Description

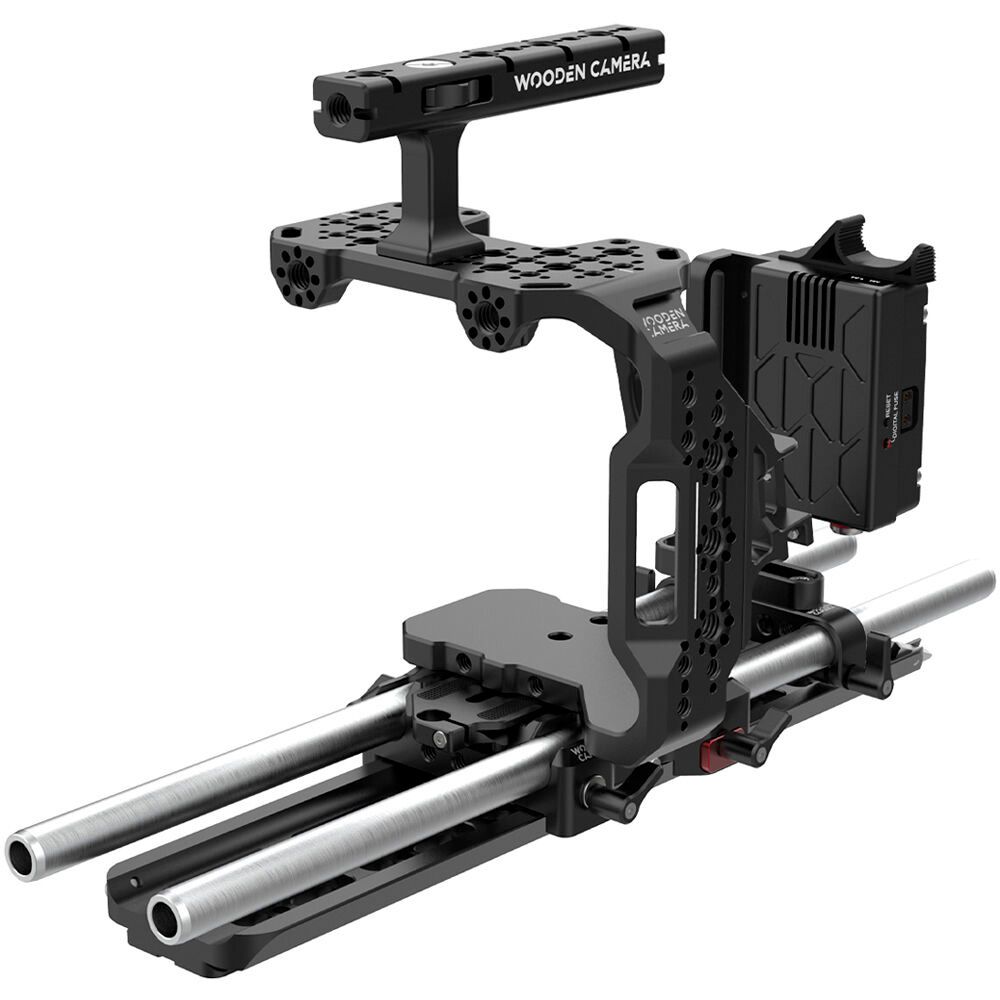

Set up your Blackmagic Pocket Cinema Camera 6K Pro for professional video and cinema production with this Base version of the Unified Accessory Kit from Wooden Camera. The kit includes a 15mm LWS baseplate, camera cage, top handle, and two 15mm rods that can function in handheld shoots and on stationary rigs. For kits with additional features, see the Wooden Camera Unified Advanced kit that includes an 8" Safety Dovetail, or the Unified Pro Kit that includes a 12" Safety Dovetail and a Micro Battery Slide Pro.

The open-style camera cage features multiple 1/4"-20 and 3/8"-16 anti-twist threads, front 3/8"-16 threads for an optional lens adapter or support, an Arca-type dovetail camera plate, and a lower quick release plate. The included 12" rod pair fits in the baseplate and offers mounting points for accessories such as a matte box, follow focus, lens support, or lens motors.

The top handle attaches to the cage using its 3/8"-16 thumbscrew and provides a convenient, secure way to hold your camera, and it features multiple 1/4"-20 and 3/8"-16 anti-twist threads. Read more below for information on the individual items included in this kit.

Wooden Camera Cage for Blackmagic Pocket Cinema Camera 6K Pro
Protect and add accessories to your Blackmagic Pocket Cinema Camera 6K Pro for pro-style video capture with this Cage from Wooden Camera. The cage protects your camera on three sides while maintaining access controls on all sides, and it leaves the camera's handgrip openly accessible. It features engraved focal plane markings to ensure accurate measurement.

Accessories can be mounted around the cage using the 1/4"-20 and 3/8"-16 threads that feature ARRI-style anti-twist locating holes. There is also a shoe mount on top and two 3/8"-16 mounting threads on the front of the cage to add optional rod mounts, microphones, lights, or other accessories. Pass-through slots on the side allow you to manage your cables. An HDMI right-angle adapter and HDMI/USB cable clamp are included to protect the camera's cable ports from cable pulls and snags.

Key Features

• Open-style camera cage custom-designed for the Blackmagic Pocket Cinema Camera 6K Pro
• Multiple 1/4"-20 and 3/8"-18 mounting threads around the cage, all with anti-twist locating holes
• Offset shoe mount on top
• Engraved focal plane markings
• Front 3/8"-16 mounting threads for optional lens adapters, supports, or rod mounts
• Pass-through slots for cable management
• Detachable HDMI/USB Type-C cable clamp
• Right-angle HDMI adapter



Wooden Camera 15mm LWS Baseplate for Blackmagic Pocket Cinema Camera 6K Pro A10026

Wooden Camera 15mm LWS Baseplate for Blackmagic Pocket Cinema Camera 6K Pro
Add a versatile mounting option to your Blackmagic Pocket Cinema Camera 6K Pro with the 15mm LWS Baseplate from Wooden Camera. The baseplate is made up of a baseplate core, an Arca-type dovetail camera mounting plate, and a lower quick dovetail. The versatile baseplate offers two types of quick release options with the upper and lower plate configuration.

The baseplate supports optional 15mm LWS rods at the correct lens height for the 6K Pro, and there are locking levers on front and back, allowing you to mount rods on the front and/or the back of the plate. The Arca-type plate offers a 3/8"-16 camera mounting screw, rubber padding to protect your camera from scratching or twisting, and a vertical 15mm rod port for incorporating the optional lens support or lens adapter. The lower quick dovetail provides 1/4"-20 and 3/8"-16 tripod mounting threads. Directional markings are engraved to ensure you can quickly mount the plates in the proper direction.

Key Features

• Includes a base unit, lower quick dovetail tripod plate, and Arca-type dovetail camera plate
  Supports 15mm LWS rods at the correct lens height
• Two sets of rod-tightening levers to mount optional rods on front and/or back
• Offers a vertical 15mm rod port on the quick release top camera plate for lens adapter support
• Engraved directional arrows on dovetail
• Two quick release options to remove base unit from lower dovetail or remove dovetail camera plate
• 3/8"-16 camera mounting screw



Wooden Camera Top Handle with 3/8"-16 Mount
Add a lightweight top handle to your rig to add accessories, create low-angle shots, and safely carry your camera using this compact Top Handle with 3/8"-16 Mount from Wooden Camera. This simple, ergonomic top handle mounts onto your camera cage using a 3/8"-16 mounting thumbscrew that tightens from the top using a separately available screwdriver or Allen wrench.

The durable metal handle features numerous 1/4"-20 threads and 3/8"-16 mounting threads on the top, front, and back. Each thread features ARRI-style anti-twist locating holes to add articulating arms, mounts, and accessories.

Wooden Camera 15mm Support Rod (15in)
This is a single, 15" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength.

Wooden Camera Safety Dovetail Plate (12in)
The 12" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations.

Wooden Camera Micro Battery Slide Pro for Blackmagic Pocket Cinema Camera 6K Pro (V-Mount)
Add a professional, high-capacity battery plate to power your Blackmagic Pocket Cinema Camera 6K Pro rig with this compact Micro Battery Slide Pro from Wooden Camera. It supports one V-mount battery while leaving access to the camera's standard battery compartment, and it powers the camera using a 2-pin LEMO-type connector cable. With the camera's L-series battery in place, hot swapping is supported.

The battery slide mounts onto optional 15mm rods using its integrated 15mm LWS rod clamp. It also features a 5.8V D-Tap output for powering accessories. The D-Tap accessory output features a digital fuse that monitors the D-Tap port and disables it if it exceeds the set current for accessories, leaving the camera running without interruption. Once the load has been reduced by removing accessories, a reset button can be pressed to enable accessory power again.
