Blackmagic Design Web Presenter 4K

99.BM.BDLKWEBPTR4K
  • Watch Video
  • Product Features:

    Complete streaming solution for YouTube, Facebook, Twitter and more
    Supports streaming via Ethernet or tethered phones via USB
    Built in broadcast quality hardware H.264 encoder
    USB webcam
    Video and Audio Meters
    SDI/HDMI Monitor Output up to 1080p60
    Dual AC/DC redundant power
    Input 12G/6G/3G-SDI Video up to UHD 4K
    1 RU rack Height 1/3rd width
    Streaming Status
    $1,129.00
    $1,026.36
    Available Soon
    Check Location Availability

    Blackmagic Design Web Presenter 4K

    Description

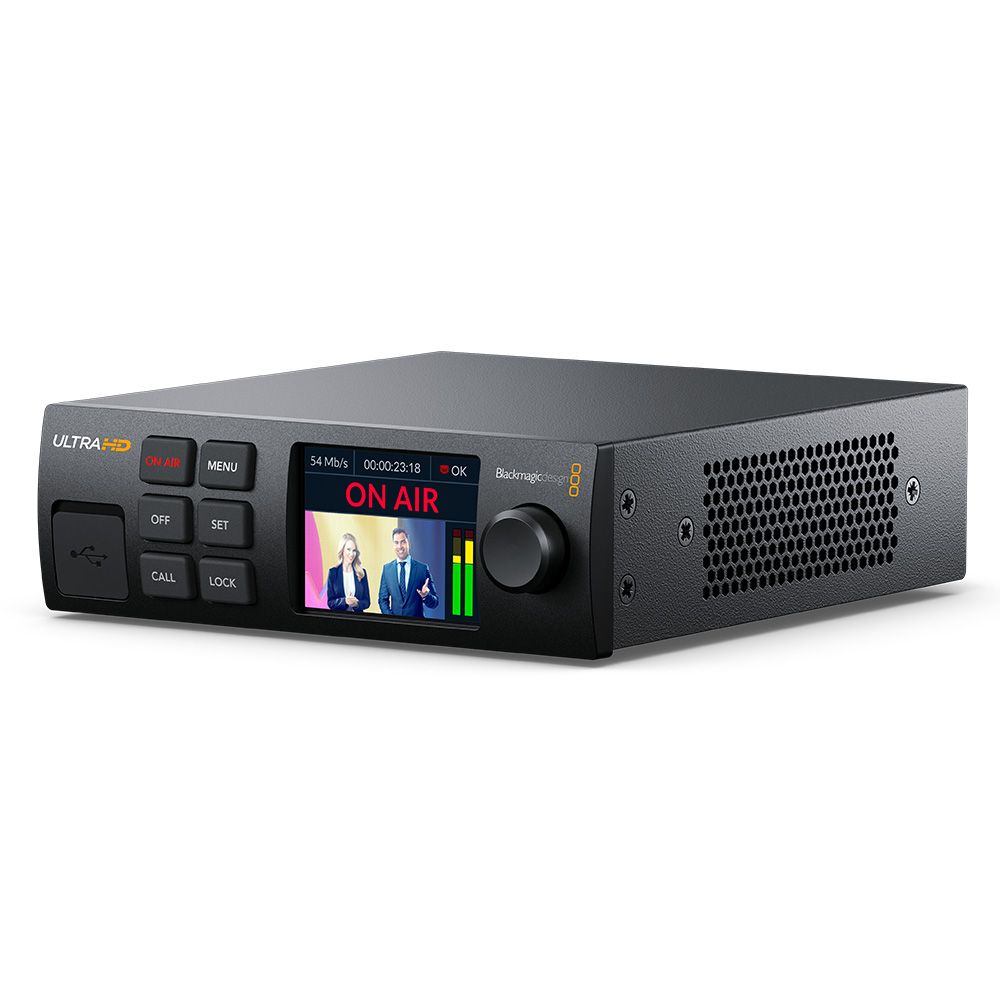

    The Web Presenter 4K is a compact desktop device that allows you to connect any SDI video input and stream it live onto the Internet, using Ethernet or tethering via USB to your smartphone using a 5G or 4G connection. The SDI and HDMI monitor outputs allow you to see a wide range of live status information along with your broadcast.

    The USB Type-C port allows you to connect any USB video source such as a webcam or computer, so it's capable of broadcasting 4K video and audio on any webcam-compatible platform and software such as Skype, YouTube Live, Facebook Live, Twitch, Periscope, Teams, and more on Mac, Windows, Linux, and Chrome OS systems. It supports the H.264 codec and streams via RTMP and can stream in resolutions up to UHD 4K.

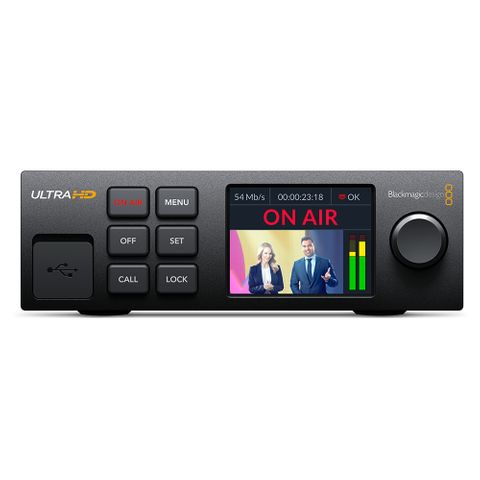

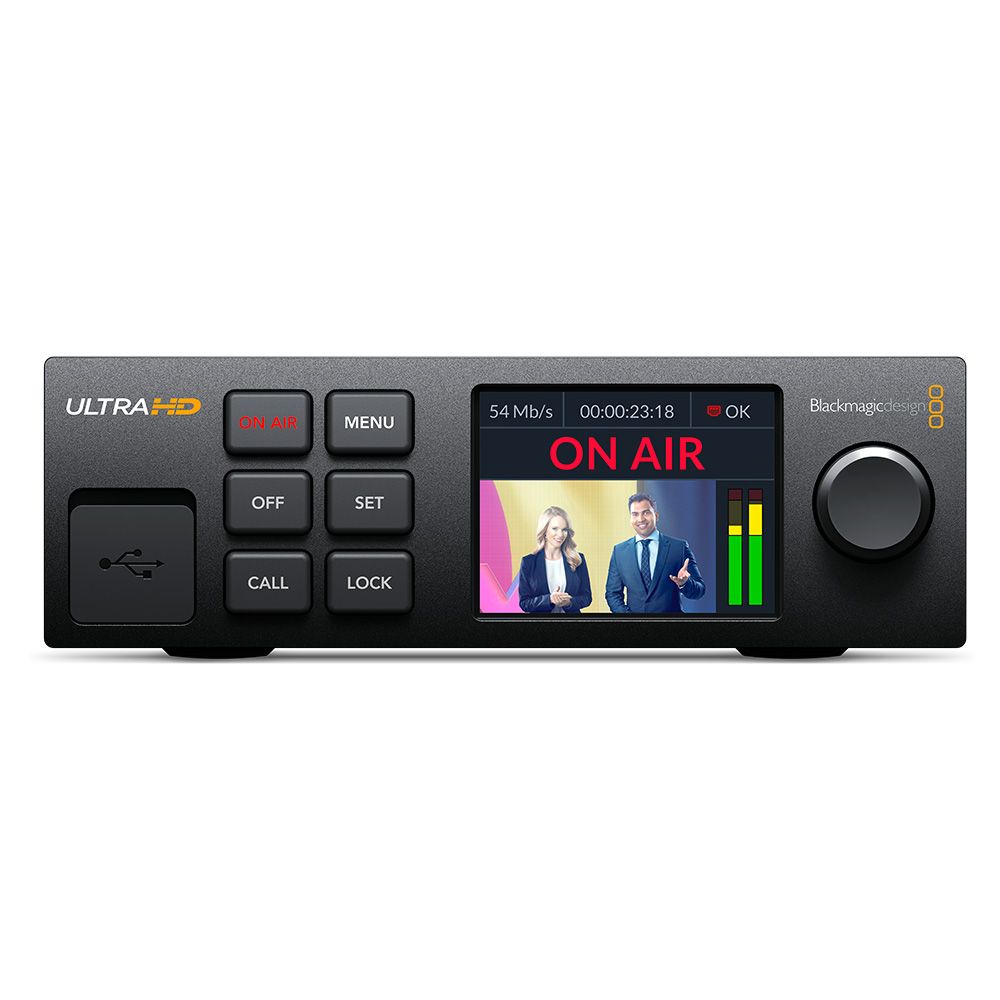

    The SDI and HDMI monitor ports provide detailed status information on your feed, so you can monitor whether you are ON AIR as well as input statuses such as bit depth and stream quality, embedded audio input status, video and audio history, trend graphs, and video and audio meters. You can also see basic status information on the bright LCD screen on the front of the unit. There is also an SDI loop output for monitoring the original feed and sending it to a switcher or router.

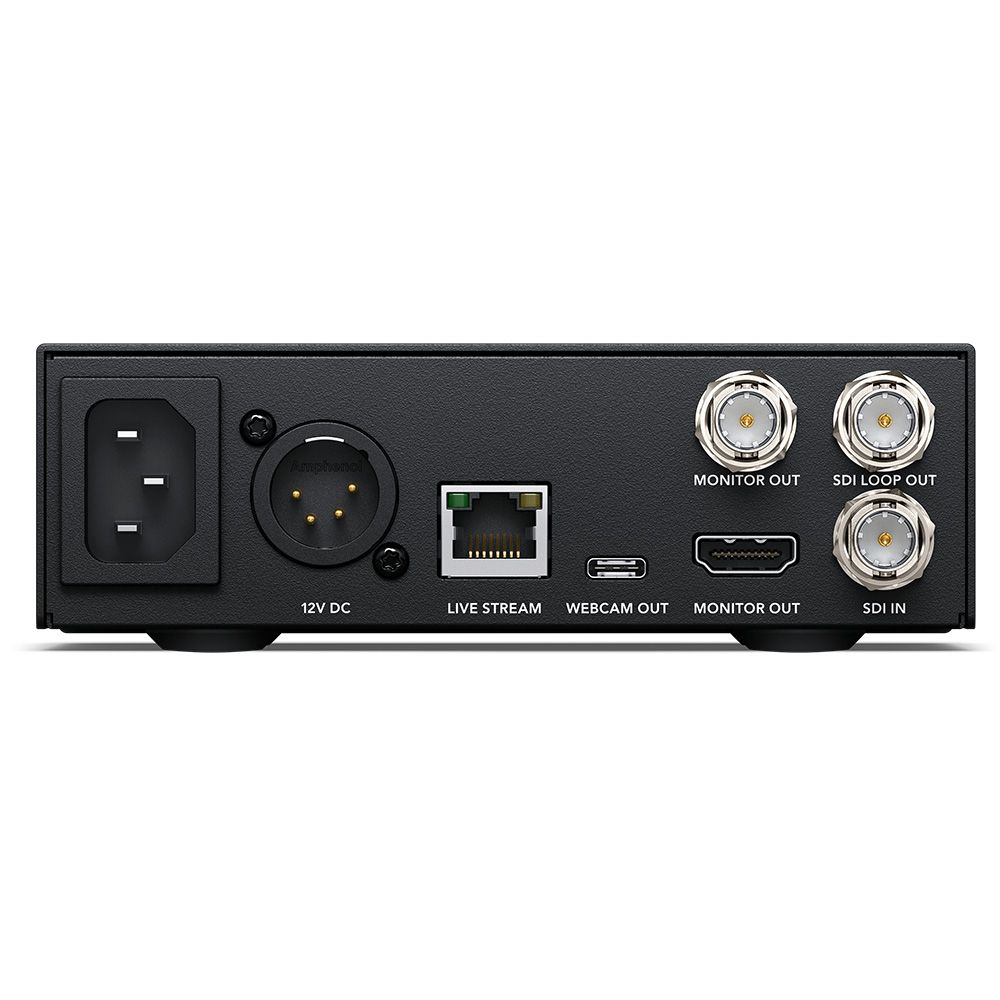

    The compact form factor allows you to fit it right into your broadcast setup, and it is compatible with optional rack shelves in case you want to install it in a 1 RU rack. Its dual AC/DC redundant power input is handy in case you lose mains power and you can utilize the 4-pin XLR input for DC power. The Web Presenter 4K is also compatible with the Blackmagic ATEM Streaming Bridge to decode the streams back into HDMI or SDI signals for additional routing options.

    Key Features

    Input any SDI Signal

    The Web Presenter allows you to input any 12G/6G/3G/HD-SDI video source up to UHD 4K.

    4K Output

    The program and USB Type-C outputs support UHD 4K video. The unit will downconvert 4K video if you are streaming in HD. When streaming 4K, it will pass 4K video as well as upscale HD to 4K video.

    Live Streaming Options

    You can stream H.264 video via RTMP streaming protocols to the internet via Ethernet or tether a 5G or 4G phone to use mobile data.

    USB Source as Webcam

    The built-in USB Type-C input works like a webcam, so you can connect a computer and use any streaming software, or even Skype or Zoom. Stream in 4K over the USB Type-C connector, if your software supports 4K).

    Monitor Outputs

    SDI and HDMI monitor outputs allow you to see the input video as well as display accurate audio levels, on-air status, data rate, and cache levels.

    Built-In Technical Monitoring

    Feature-Rich Program Status

    The graphics-based monitoring output includes a video view, audio meters with accurate ballistics, trend graphs for codec data rates, and cache fill, plus a summary of the streaming settings and detailed SDI technical information.

    Streaming Status

    There's a very large ON AIR indicator on the top left of the monitor output, so it's always clear when you are online and streaming. Plus all your current streaming settings are displayed clearly.

    Video-Input Status

    The SDI input technical details are displayed, such as video standard and ancillary data. The bit activity indicators let you see the quality and bit depth of video before H.264 encoding.

    Audio Input Status

    Audio is de-embedded from the SDI input and the channel status is displayed. The bit activity indicator lets you check for 16-, 20-, or 24-bit audio. You can even see which audio channels are present.

    Video and Audio History

    The audio and video technical displays also include a 6-second history display, so you can see the recent video input history. This ensures you can instantly see what's been happening.

    Trend Graphs

    The trend graphs below the video display let you see the last 60 seconds of codec data rate and cache fill. Plus, the codec data rate is critical for ensuring you have enough internet speed from your ISP.

    Video and Audio Meters

    A large area is dedicated to the video input display and the large multi-segment audiometer with accurate ballistics. You can even change the type of audiometer from VU, PPM, and more.
