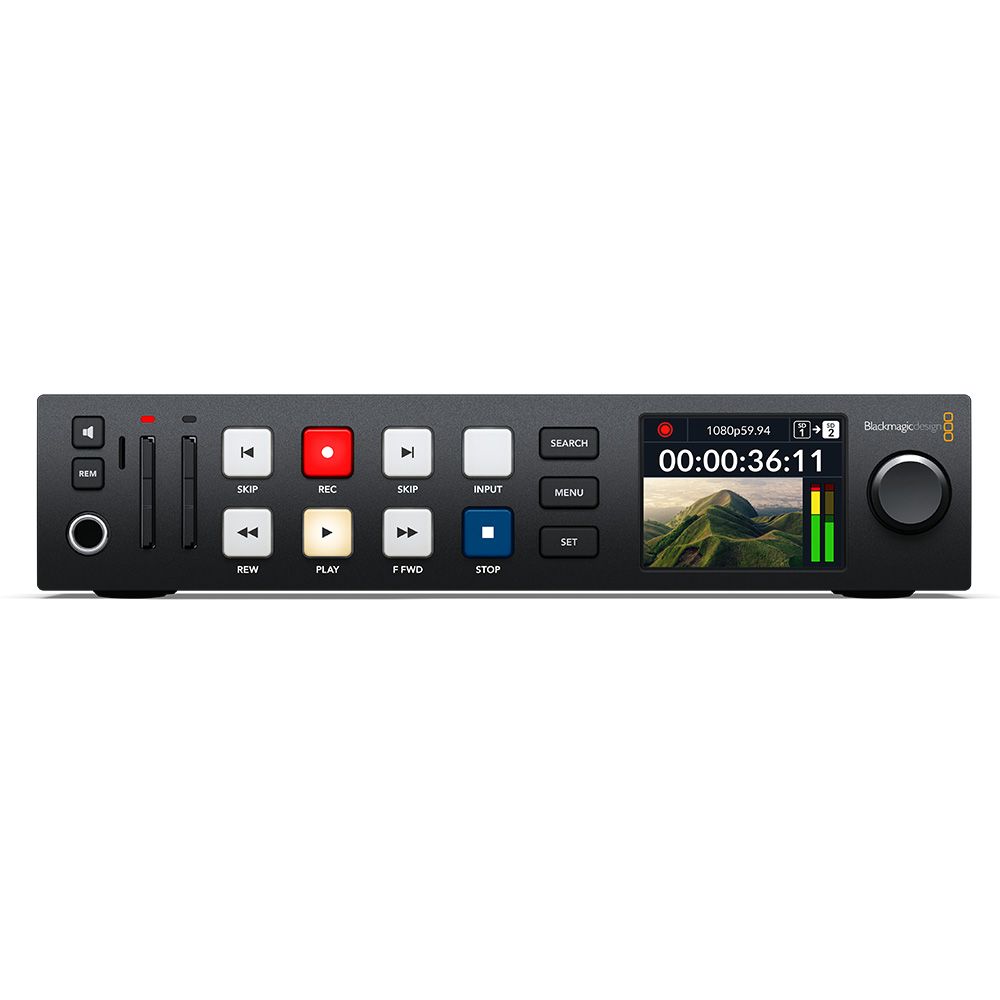

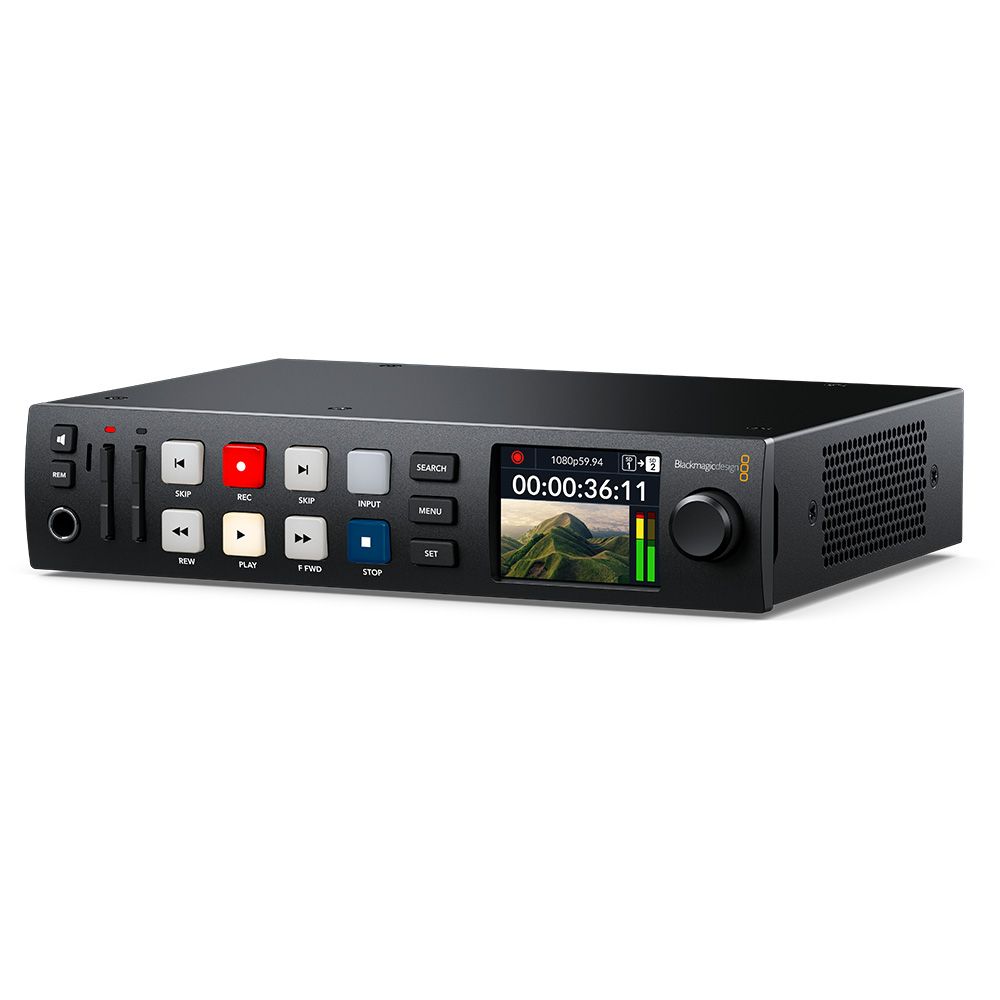

Blackmagic Design Hyperdeck Studio HD Plus
99.BM.HYPERDSTDCHP
Product Features:
Records up to 4K DCI at 30 fps
USB-C Webcam video out
Recording to USB flash disks
1 x 6G-SDI Input, 1 x HDMI 2.0 Input
Records ProRes / DNxHD / H.264
Front-Panel Buttons, Jog Wheel & LCD
Plays Back up to 3840 x 2160 at 30 fps
1 x HDMI 2.0 and 2 x 6G-SDI Outputs
Records in H.264 SDI 4:2:2 10-Bit
Timecode and Reference Input / Output
Configuration Options:
$1,155.00
$1,050.01
Available Soon
Check Location Availability
Description
Two SD card slots allow you to capture with virtually unlimited record time, and the unit also supports recording to USB disks via the USB Type-C output port. The HyperDeck Studio HD Plus features a front-panel button control and a jog/shuttle wheel for an analogue scrubbing feel. RS-422 control is supported for external control, and you can also control the unit using either the USB port or over Ethernet at 1G speeds for faster deck control and file transfers via the RJ45 connector. An integrated LCD on the front panel allows you to monitor the video.
UHD 4K Recording and Playback
The HyperDeck Studio HD Plus records UHD and DCI 4K video at up to 30 fps. The 6G-SDI outputs allow fill and key playback up to 1080p60.
Video Inputs
6G-SDI, and HDMI 2.0 inputs.
Video Outputs
Two SDI outputs support 1080p60 and 2160p30, and a loop-through output sends the input signal downstream to monitors, switchers, or other devices.
HDR
The HyperDeck Studio HD Plus supports HDR video and 33-point LUTS on the 3G-SDI output.
Supported Codecs
ProRes: Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime.
DNxHD: DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60 fps
H.264: H.264 SDI 4:2:2 10-bit, H.264 High 420 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all progressive formats up to 1080p60
DNxHD: DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60 fps
H.264: H.264 SDI 4:2:2 10-bit, H.264 High 420 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all progressive formats up to 1080p60
VTR-Style Controls
Features VTR-style front-panel controls for record and playback; a built-in jog/shuttle wheel provides analogue-style control over your playback. Broadcast-style deck control front-panel buttons connect to a dedicated RS-422 output.
Remote
The unit is controllable via RS-422 control and over the Ethernet or USB port.
Built-In LCD Monitor
The unit's front panel also features a built-in LCD screen that allows you to monitor input or playback video.
Audio Output
The unit features a built-in speaker as well as a 1/4" headphone jack.
Included Software
The HyperDeck Studio HD Plus includes Blackmagic OS and Blackmagic HyperDeck Setup.
