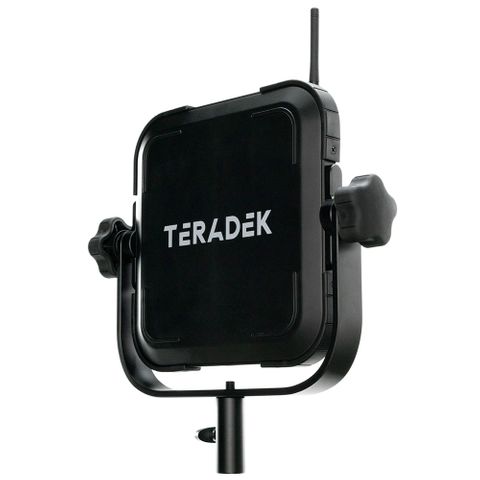

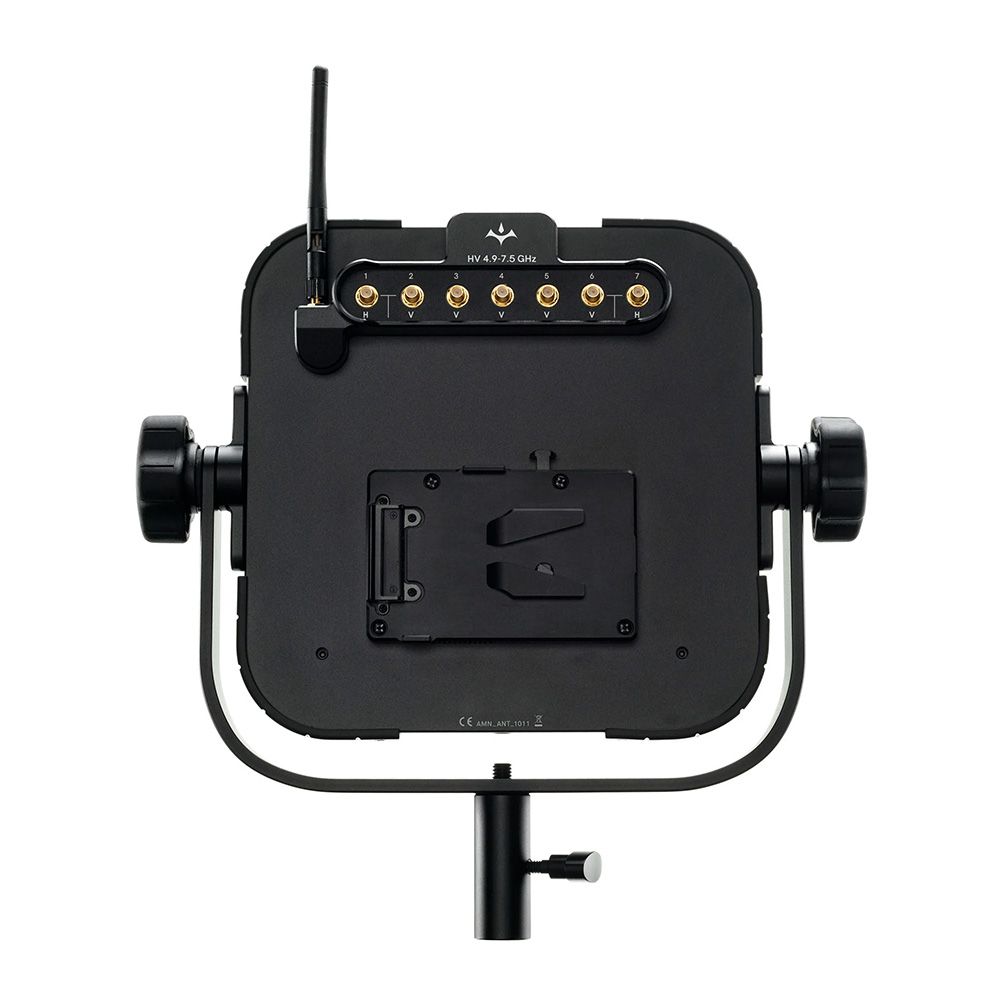

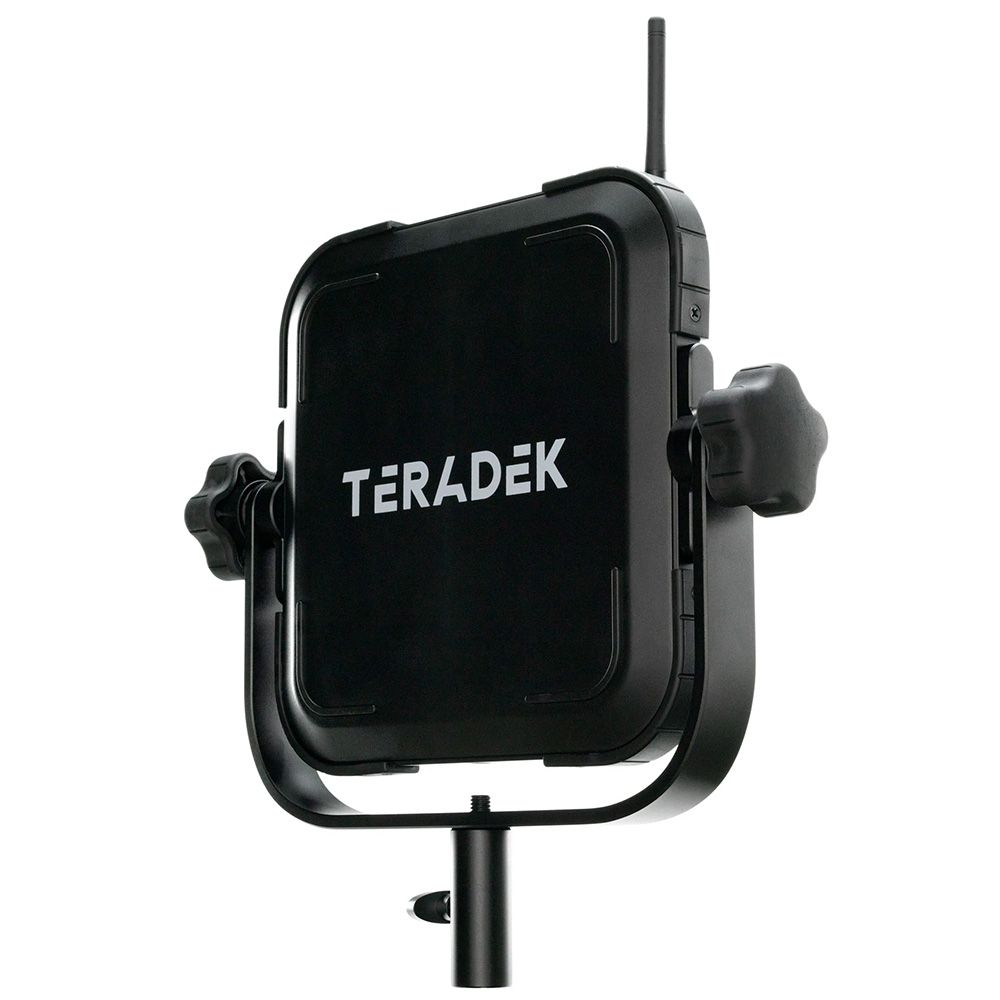

Teradek Antenna Array For Bolt 4K V-Mount

53.11-0888-V

Product Features:

The Antenna Array for Bolt 4K
4.9-7.3GHz interfaces with Bolt 4K
Provide an extremely robust and uninterrupted directional signal
Range of up to 5,000ft
Array offers a more resilient wireless transmission, especially in challenging RF conditions
Focusing the signal and reducing interference
Featuring a dedicated external omnidirectional antenna for increased reception when the signal is outside the directional cone
Small, Lightweight and made from UV-protected plastic with aluminum alloy
$2,790.00
Overseas Air Freight
Check Location Availability

Teradek Antenna Array For Bolt 4K V-Mount

Description

The Antenna Array for Bolt 6 / Bolt 4K 4.9-7.3GHz interfaces with Bolt 6 / Bolt 4K to provide an extremely robust and uninterrupted directional signal at a range of up to 5,000ft. The Array offers a more resilient wireless transmission, especially in challenging RF conditions, by focusing the signal and reducing interference. Featuring a dedicated external omnidirectional antenna for increased reception when the signal is outside the directional cone of the panel array. As a result, you may achieve a boost in the reception range based on the maximum range of the connected Bolt4K.

Features

  • Focuses the wireless signal and reduces interference to achieve a boost in reception range (but not above max range of Bolt set)

  • Composed of 3x16 dBi, 2x14 dBi, and 1x2dBi antennas using 5.1-7.3 GHz MIMO

  • Small, Lightweight and made from UV-protected plastic with aluminum alloy

Included Items

  • Antenna Array V4 for Bolt 6 / Bolt 4K

  • 5x 10cm Antenna Cable (RP-SMA Female to RP-SMA Female)

  • 1 x Standard Antenna (2dBi WiFi 2.4/5.8 GHz)
