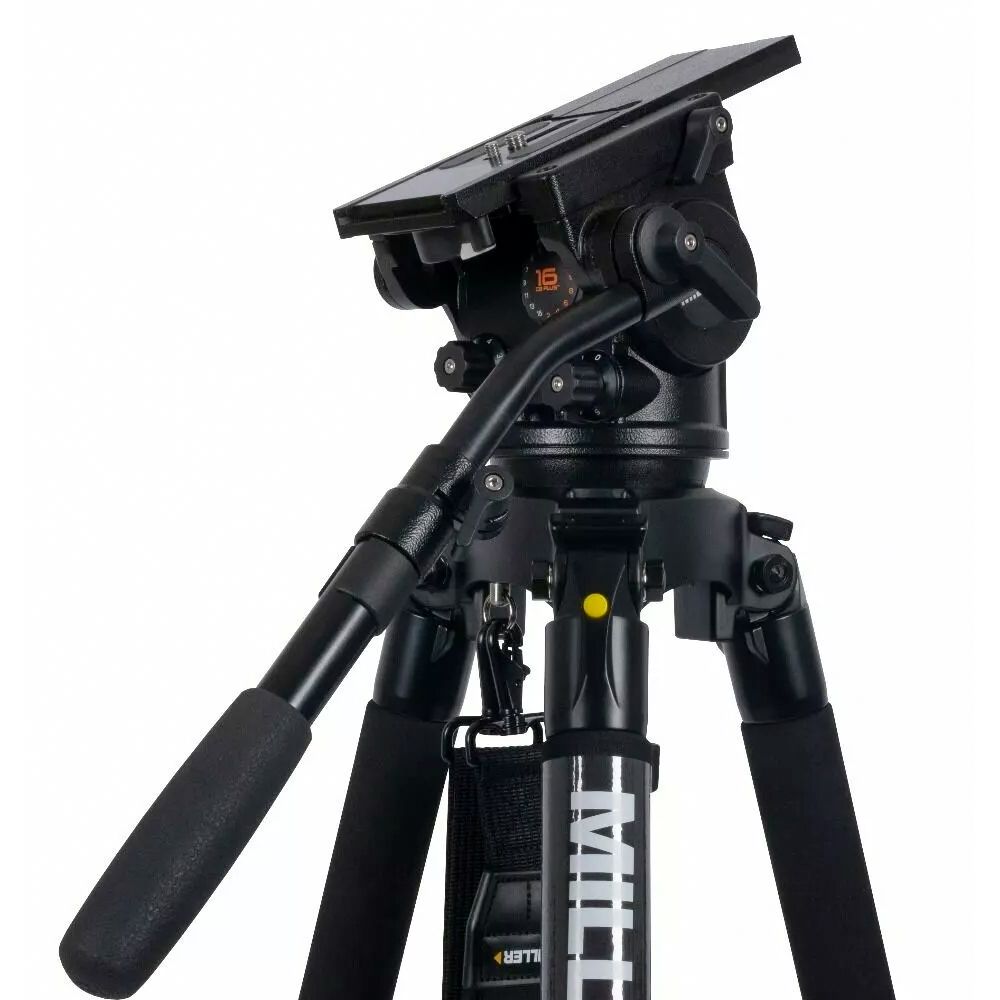

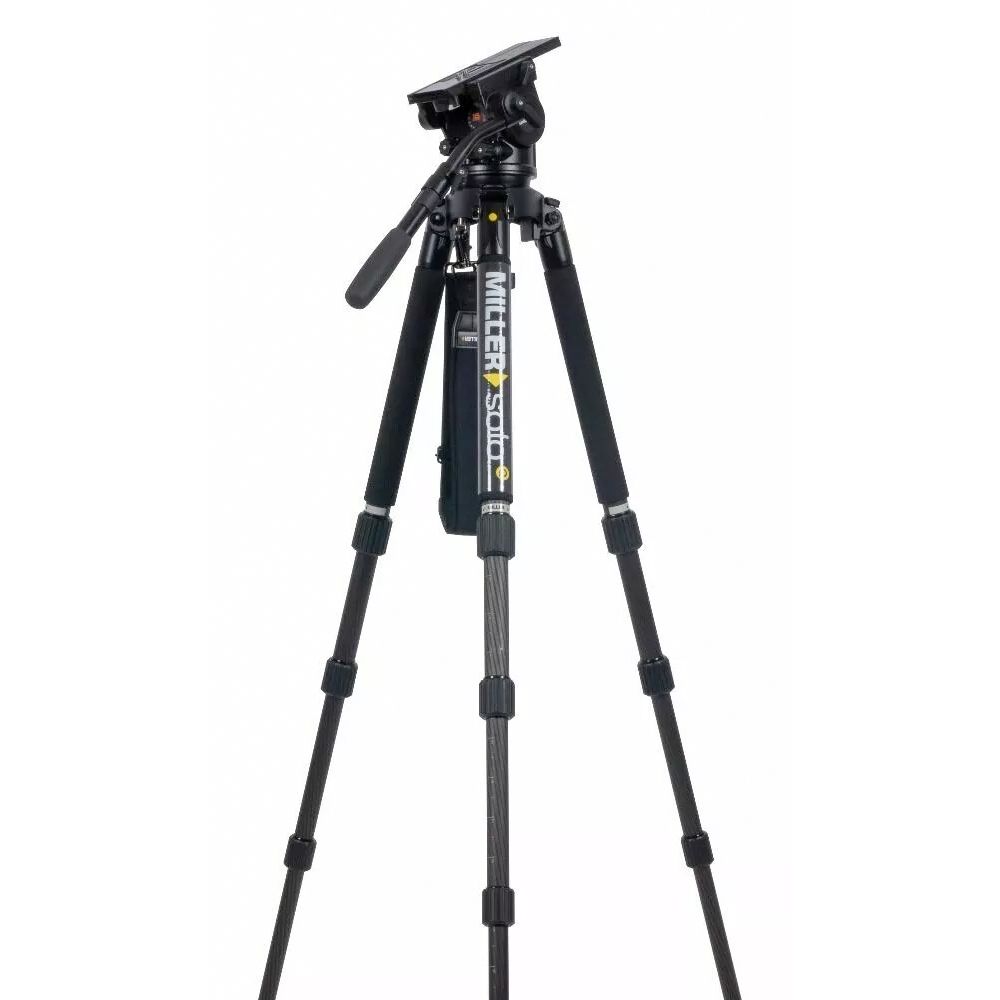

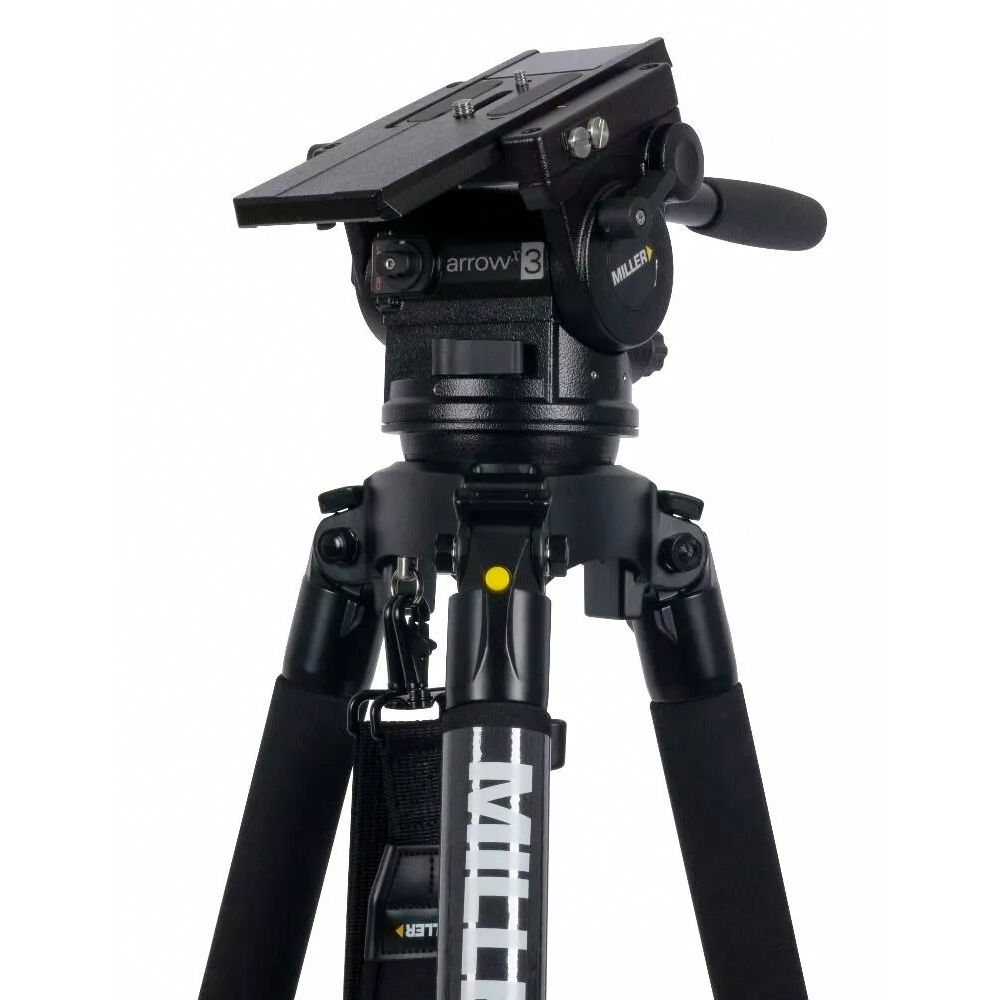

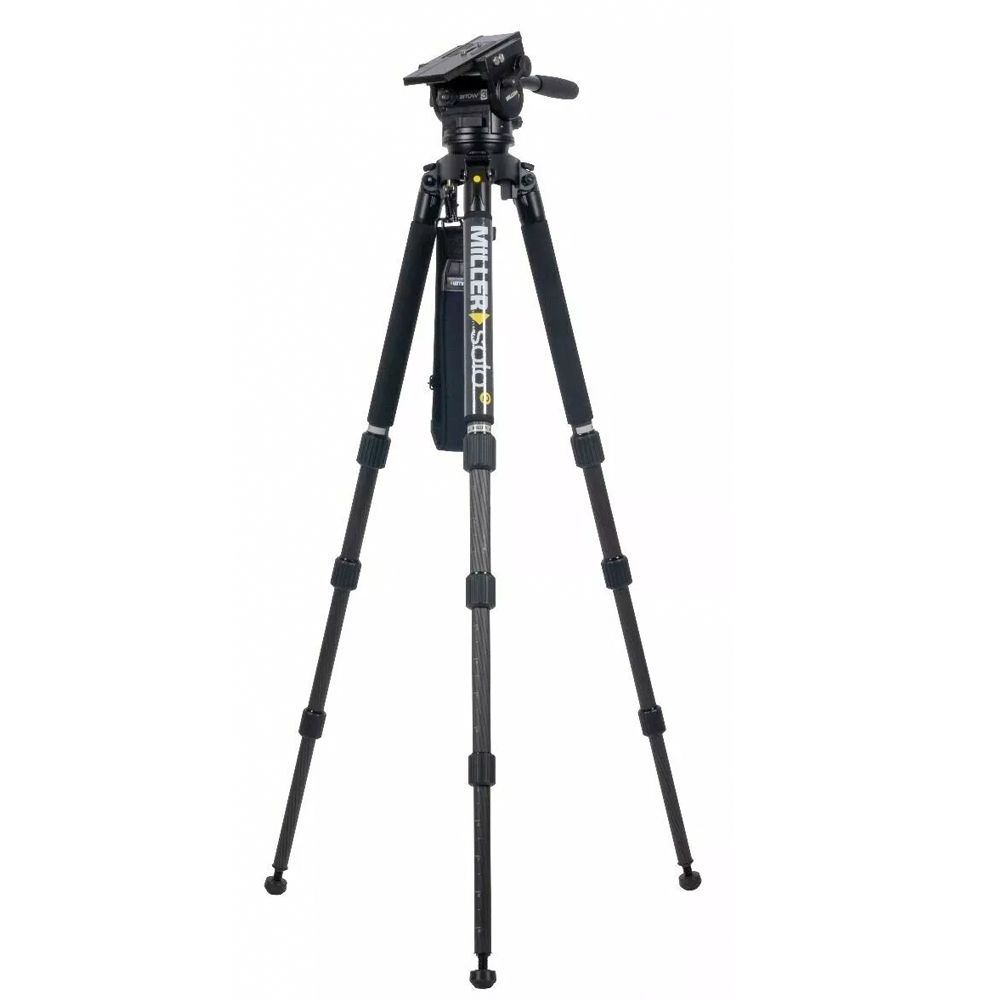

Miller Arrowx 3 Solo-Q 100 3 Stage Carbon Fibre
Product Features:
Essential Add-On's we recommend
Description
The 3068 Carbon Fibre, Solo-Q 100, 3-stage Arrowx 3 system, is designed for speed of setup, high level of stability and flexibility of payloads, The 2520 spreader less three stage tripod, included in this system provides the ultimate range of heights, speed of set up and works perfectly on all terrains.
Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrowx 3 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.
1-19kg (2.2-41.8lbs) payload range and 5 + 0 selectable pan-tilt fluid drag positions make Arrowx 3 ideal for news gathering and documentaries, enabling it to be used with a wide range of cameras, lenses and accessories.
The Arrowx 3 is matched with the 3 stage Solo-Q (carbon fibre) tripod that results in range topping height range of 390-2041mm (15.3-80.38") , all terrain versatility in the lightest Arrowx system package.
Gone are the days where you have to carry two tripods to use large and small cameras on the same shoot.
Specification - Arrowx 3 Solo-Q 100 3 Stage Carbon Fibre
Payload Range | 1.0-19.0kg (2.2-41.8lbs) |
Weight | 6.9kg (15.3lbs) |
Height Range | 390-2041mm (15.3-80.38") |
Transport Length | 825mm (32.5") |
Counterbalance Positions | 16 selectable positions |
Pan Tilt Drag | 5 selectable fluid drag positions + 0 |
Pan Tilt Locks | Positive lock calliper brake system |
Tilt Range | + 90°/ -75° |
Pan Range | 360° |
Camera Platform | Quick release camera plate (Euro) |
Sliding Range | 120mm (4.7") |
Mounting Base | Ø100mm (3.9") ball levelling |
Height Above Bowl | 162mm (6.4") |
Illuminated Controls | Bubble level, pan-tilt drag controls |
Pan Handle | Telescopic 390-590mm (15.4-23.2") |
Temperature Range | -40° to +65°C (-40° to +149°F) |
Leg Extension | 3-stage telescopic |
Lock Type | Concentric Rapid Lock & Q-Lock |
Leg Material | Carbon fibre |
Components | |
1072 | ArrowX 3 fluid head |
---|---|
2520 | Solo-Q 100 3-stage tripod (carbon fibre) |
696 | Pan handle - telescopic with clamp |
1520 | Solo-Q shoulder strap (Aircell) |

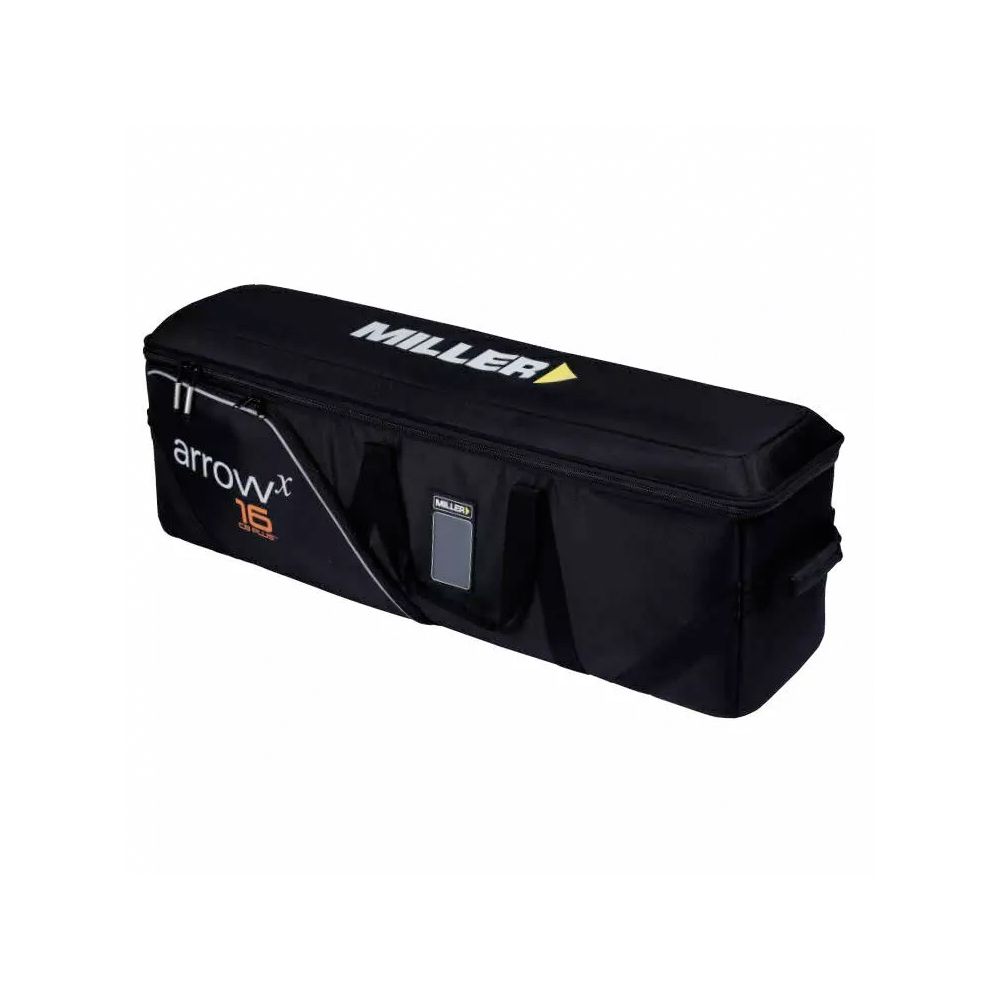

3502 | Arrowx softcase 2-stage |
