Miller 3712 CX2 Solo-Q75 2-St Cf Tripod
Product Features:
Essential Add-On's we recommend
Description

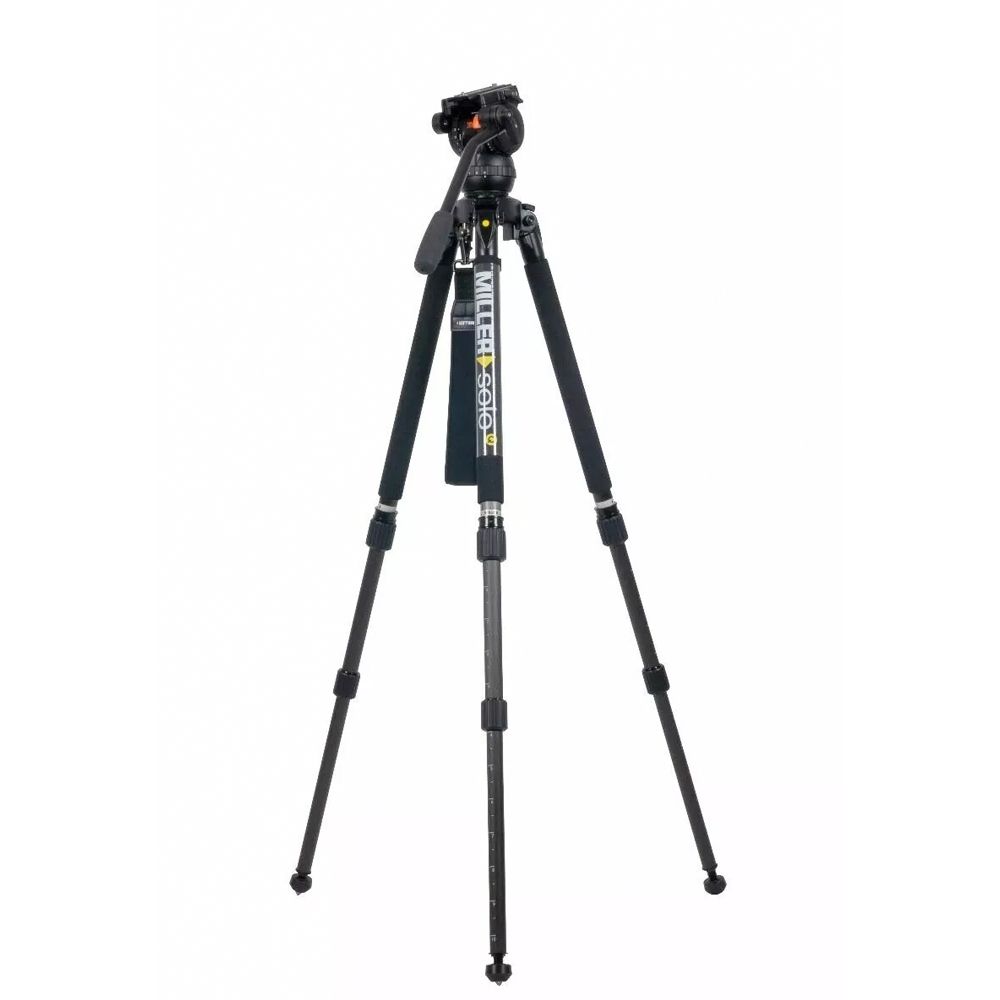

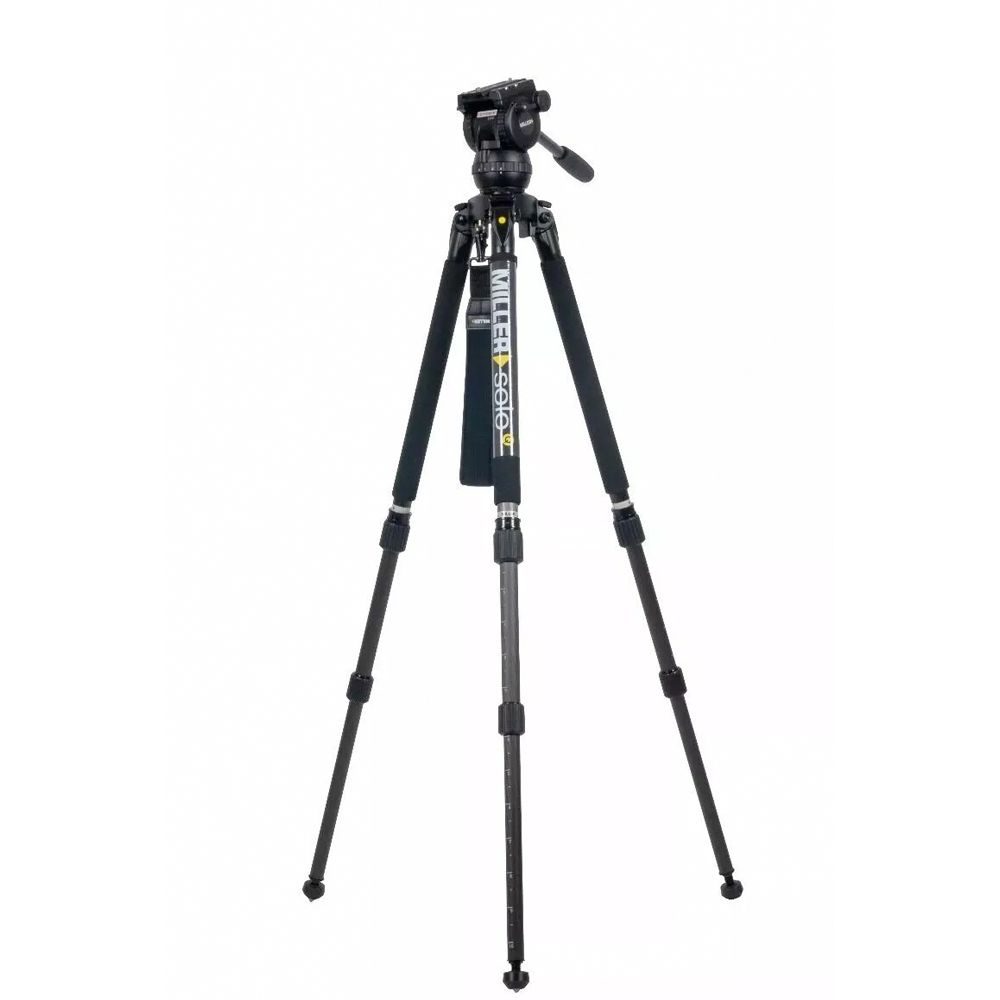

The 3712 CX2, Solo-Q 75 2-stage (carbon fibre) system consists of the CX2 fluid head and the ultra-light yet rigid 2500 Solo-Q 75 2-Stage Carbon Fibre Tripod. The system is designed to suit payload capacities from 0 to 8kg. Featuring concentric self-adjusting leg locks, Q Lock and light high strength telescopic tubing.

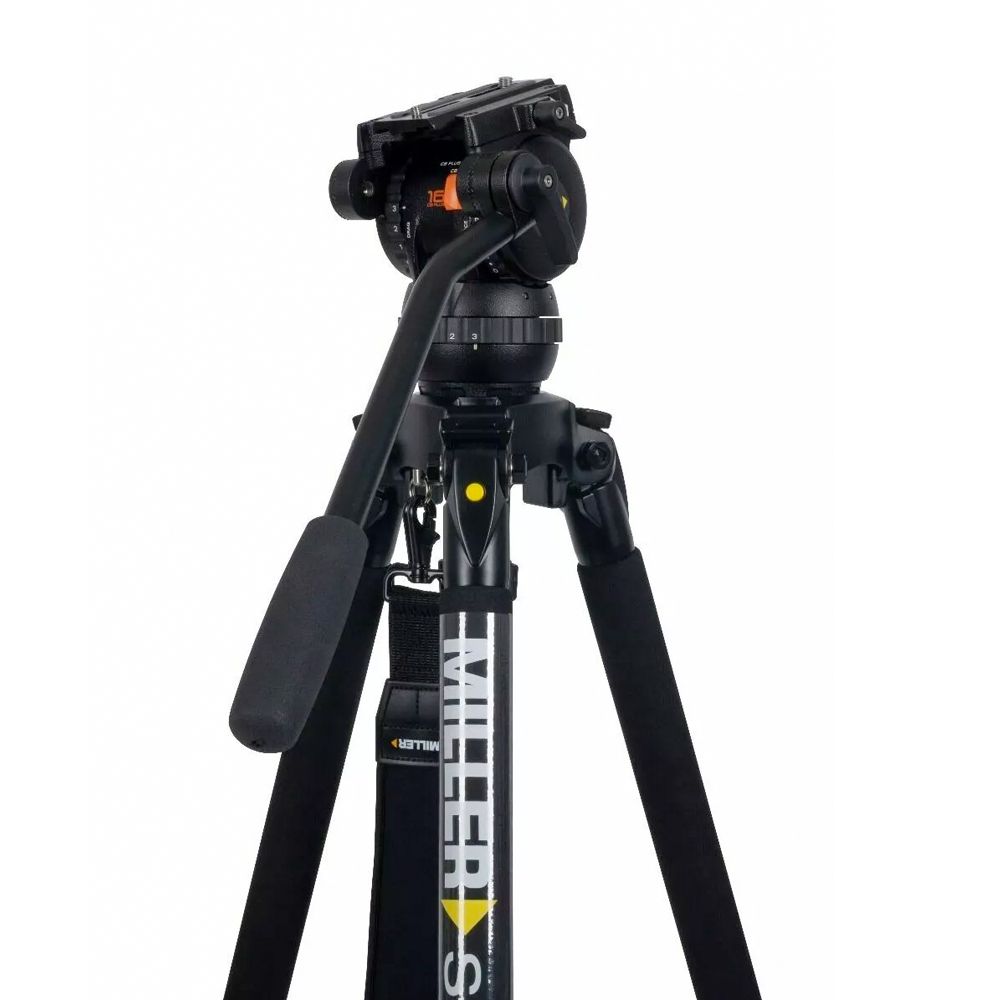

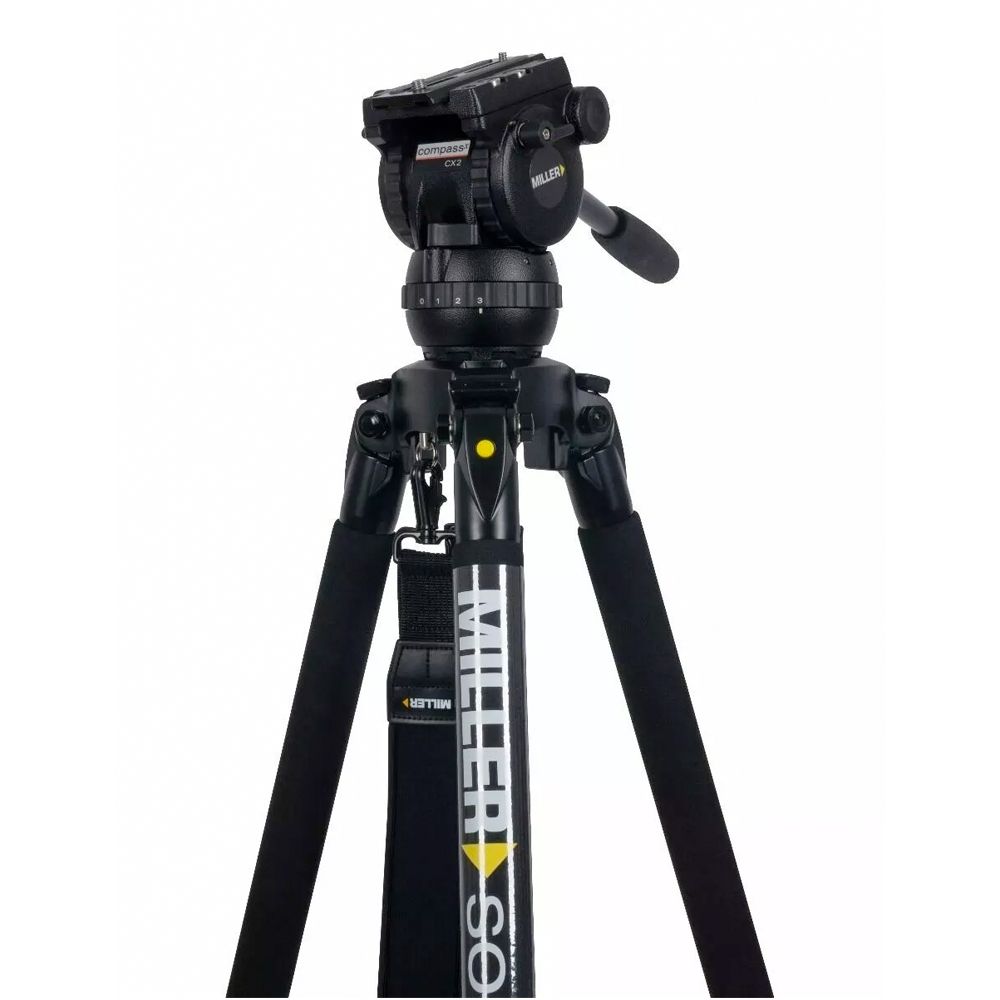

The CX2 employs CB Plus™ technology providing 16 positions of counterbalance and, with 3+0 settings of Miller's unrivalled fluid drag coupled with 60mm of camera plate travel, you can easily select the perfect set-up to match your configuration for ultimate camera control.
The CX2 is matched with the 2-stage Solo-Q (carbon fibre) tripod that results in a working height range of 412-1800mm (16.2-70.8”), offering rapid action twist locks on independent stages and the versatility of Q-Lock to set up the system across all terrains.
Specification - CX2 Solo-Q 75 2 Stage Carbon Fibre
Payload Range | 0-8kg (0-17.6lbs) | ||||||||||
Weight | 5.5kg (12.2lbs) | ||||||||||
Height Range | 412-1800mm (16.2-70.8”) | ||||||||||
Transport Length | 864mm (34”) | ||||||||||
Counterbalance Positions | 16 selectable positions (15+0) | ||||||||||
Pan Tilt Drag | 3 selectable fluid drag positions + 0 | ||||||||||
Pan Tilt Locks | Positive lock calliper brake system | ||||||||||
Tilt Range | + 90°/ -75° | ||||||||||
Pan Range | 360° | ||||||||||
Camera Platform | Quick release, side load camera plate | ||||||||||
Sliding Range | 60mm (2.4") | ||||||||||
Mounting Base | Ø75mm (2.9”) ball levelling | ||||||||||
Height Above Bowl | 167mm (6.6") | ||||||||||
Illuminated Controls | Bubble level | ||||||||||
Pan Handle | Fixed length 390mm (15.4") | ||||||||||
Temperature Range | -40° to +65°C (-40° to +149°F) | ||||||||||
Leg Extension | 2-stage telescopic | ||||||||||
Lock Type | Concentric Rapid Lock & Q-Lock | ||||||||||
Leg Material | Carbon fibre | ||||||||||
Components |
|
