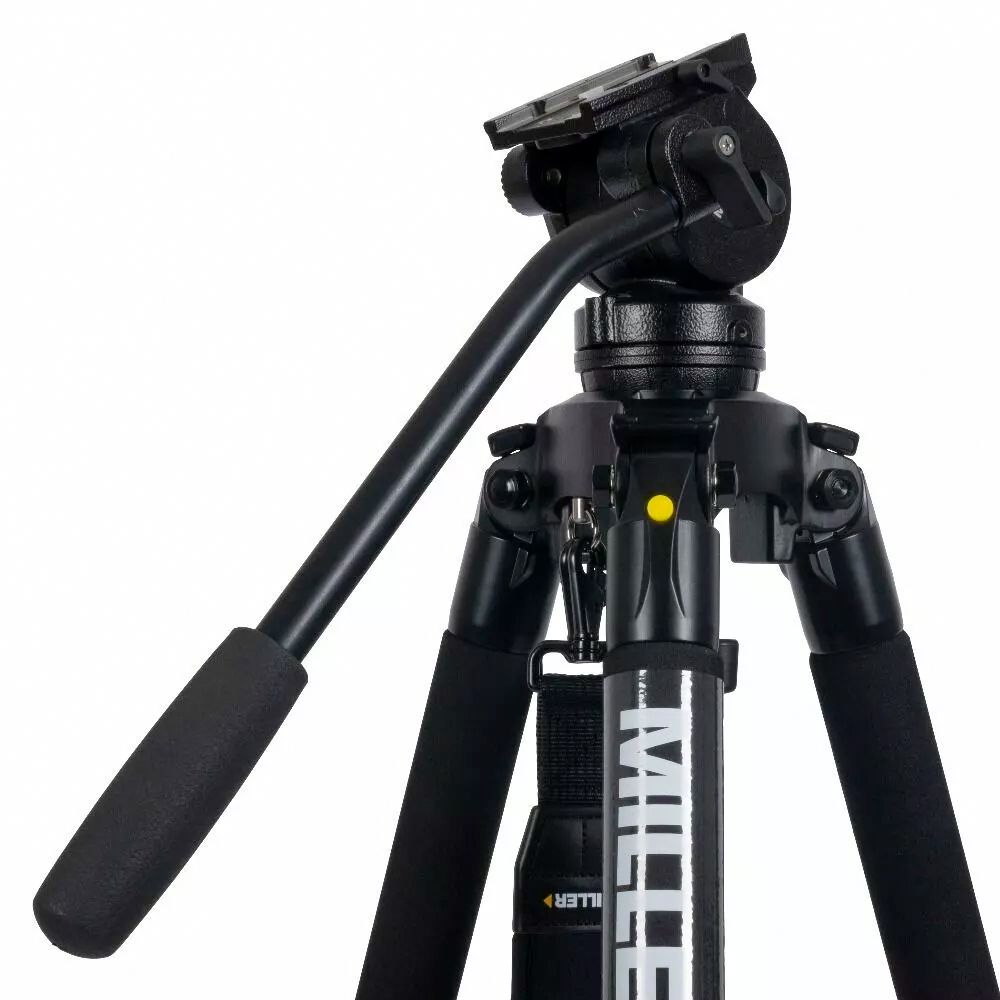

Miller System AIR Solo-Q 75 3 Stage Carbon Fibre
Product Features:
Essential Add-On's we recommend
Description
The 3010 Solo-Q 75 3-stage Carbon Fibre AIR system is light weight, quick to set up and delivers outstandingly smooth pans and tilts. For that fast action set-up the dual position counterbalance plus 60mm camera plate travel enables quick and easy balancing in both standard and heavier camera configurations. Whatever your application the AIR will always impress.

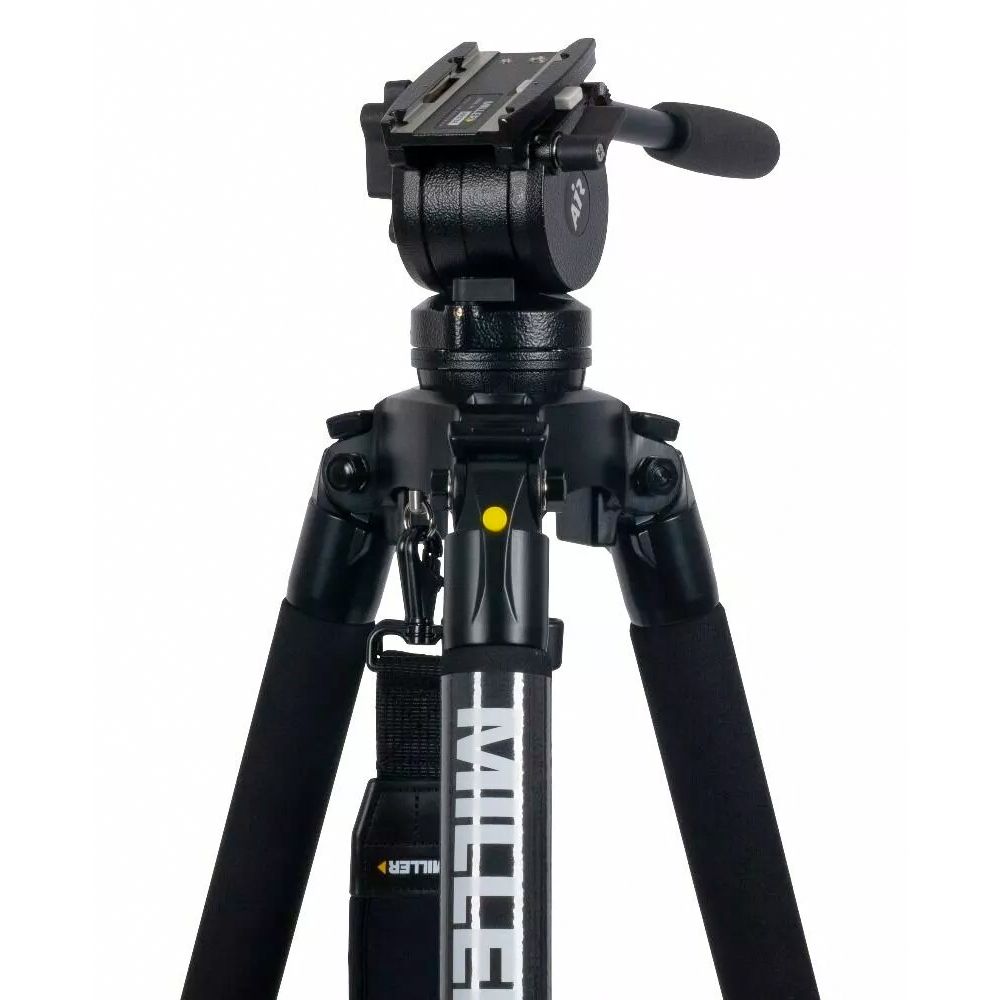

The Air fluid head is a professional, robust head used extensively by broadcasters such as the BBC, UK and ABC, Australia for news gathering. The Air head housing is made of durable alloy and comes with a three year full manufactures warranty. It is designed and constructed using the same techniques quality components and material as the more expensive professional heads in the Miller range. It is made to last and can be easily serviced.

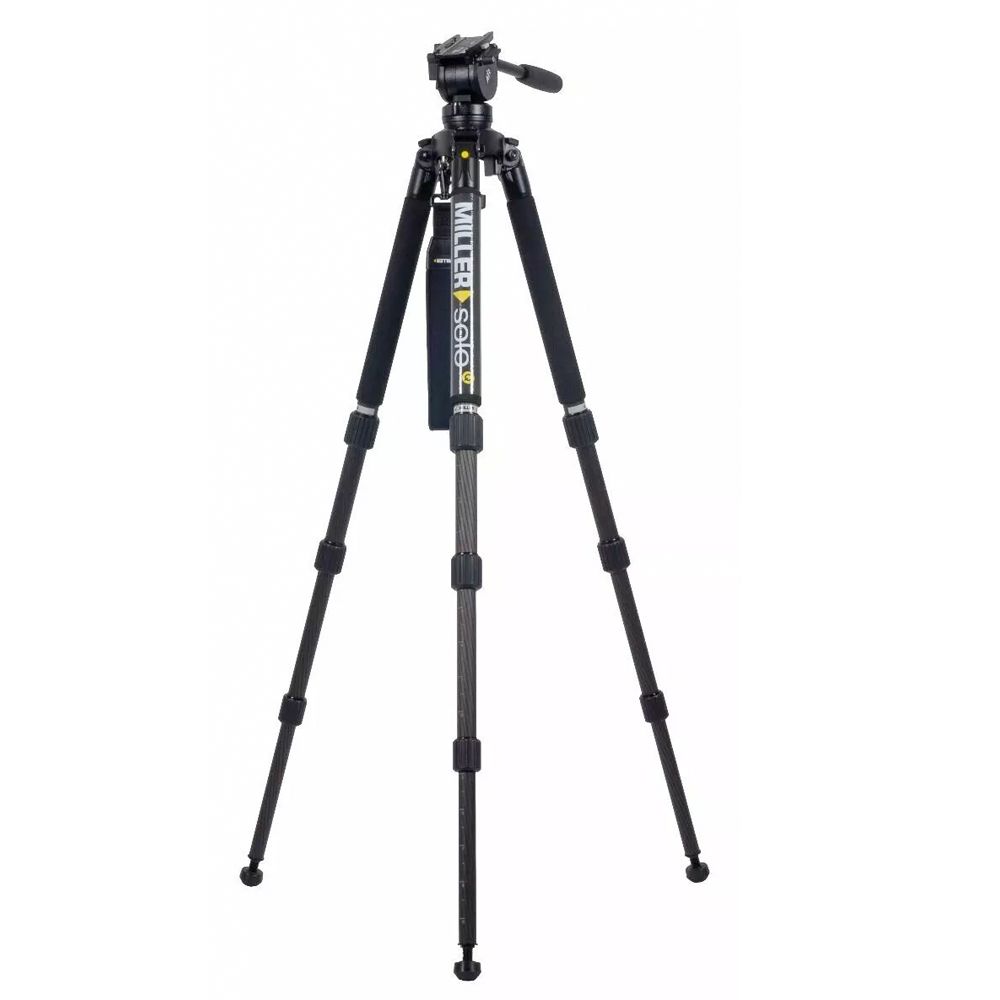

The AIR fluid head is matched with the 3 stage Solo-Q carbon fibre tripod that results in range topping height range of 365-2033mm (14.4-79.6"), rapid action twist locks on independent stages, Q-Lock speed and the versatility to set up system across all terrains.
Specification - AIR Solo-Q 75 3 Stage Carbon Fibre
Payload Range | 2.0-5.0kg (5.5-11.0lbs ) | ||||||||||
Weight | 5.1kg (11.3lbs ) | ||||||||||
Height Range | 365-2033mm (14.4-79.6") | ||||||||||
Transport Length | 827mm (29.2") | ||||||||||
Counterbalance Positions | 2 selectable positions | ||||||||||
Pan Tilt Drag | Fixed | ||||||||||
Pan Tilt Locks | Positive lock calliper brake system | ||||||||||
Tilt Range | + 90°/ -75° | ||||||||||
Pan Range | 360° | ||||||||||
Camera Platform | Sliding camera plate | ||||||||||
Sliding Range | 60mm (2.4") | ||||||||||
Mounting Base | Ø75mm (2.9") ball levelling | ||||||||||
Height Above Bowl | 137mm (5.4") | ||||||||||
Illuminated Controls | Bubble level | ||||||||||
Pan Handle | Fixed length 390mm (15.4") | ||||||||||
Temperature Range | -40 to +65C -40 to +149F | ||||||||||
Leg Extension | 3-stage | ||||||||||
Lock Type | Concentric Rapid Lock & Q-Lock | ||||||||||
Leg Material | Carbon fibre | ||||||||||
Components |
|
