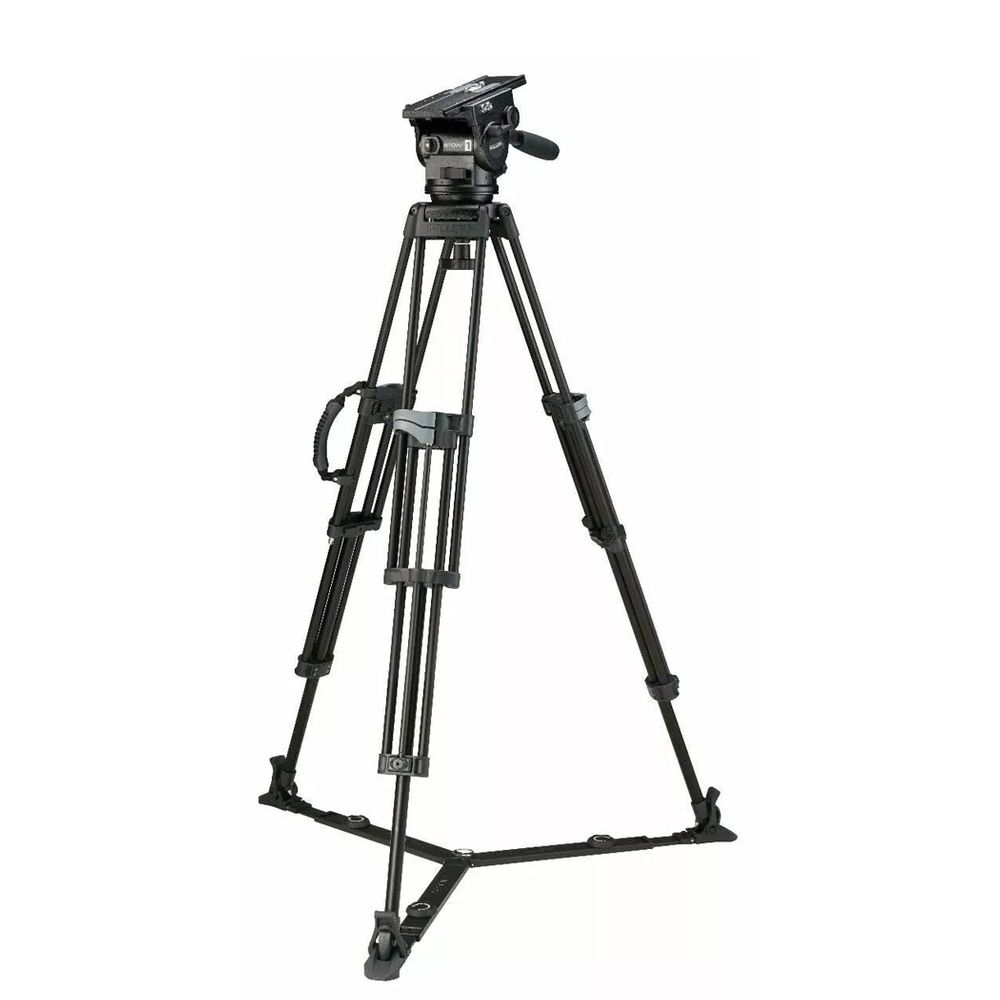

Miller 3023 Arrowx 1 Sprinter II 2 Stage Alloy Tripod Kit

99.MILLER.3023

Product Features:

Compact, lightweight and versatile.
5 selectable positions of fluid pan and tilt drag + 0.
16 position CB Pluscounterbalance system.
Perfect for payloads to 0-16.0kg (0-35.3lbs).
Integrated 100mm bowl.
High speed independent 2-stage dual leg locks.
Durable black anodised alloy tubing.
Comes with on ground spreader.
Comes with 2-stage tripod bag.
3 year warranty.
$7,648.30
$6,953.10
Available Soon
Check Location Availability

Miller 3023 Arrowx 1 Sprinter II 2 Stage Alloy Tripod Kit

Essential Add-On's we recommend

Description

The 3023 Alloy, Sprinter II, 2-stage Arrowx 1 system, fitted with ground spreader is designed for speed of setup, high level of stability and flexibility of payload, is best suited for level terrain.

Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrowx 1 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.

0-16.0kg (0-35.3lbs) payload range and 5 + 0 selectable pan-tilt fluid drag positions make Arrowx 1 ideal for news gathering and documentaries, enabling it to be used with a wide range of cameras, lenses and accessories.

The Arrowx 1 is matched with the 2 stage Sprinter II (alloy) tripod and ground spreader to give incredible speed of set up and incredible height range.



Specification - Arrowx 1 Sprinter II 2 Stage Alloy

Payload Range0-16.0kg (0-35.3lbs)
Weight7.9kg (17.4lbs)
Height Range602-1692mm (23.7-66.6")
Transport Length862mm 33.9”
Counterbalance Positions16 selectable positions
Pan Tilt Drag5 selectable fluid drag positions + 0
Pan Tilt LocksPositive lock calliper brake system
Tilt Range+90° / -75°
Pan Range360°
Camera PlatformQuick release camera plate (Euro)
Sliding Range120mm (4.7”)
Mounting BaseØ100mm (3.9") ball levelling
Height Above Bowl162mm (6.4")
Illuminated ControlsBubble level, pan-tilt drag controls
Pan HandleTelescopic 390-590mm (15.4-23.2")
Temperature Range-40° to +65°C (-40° to +150°F)
Leg Extension1-stage
Lock TypeHS single action
Leg MaterialAlloy
Components

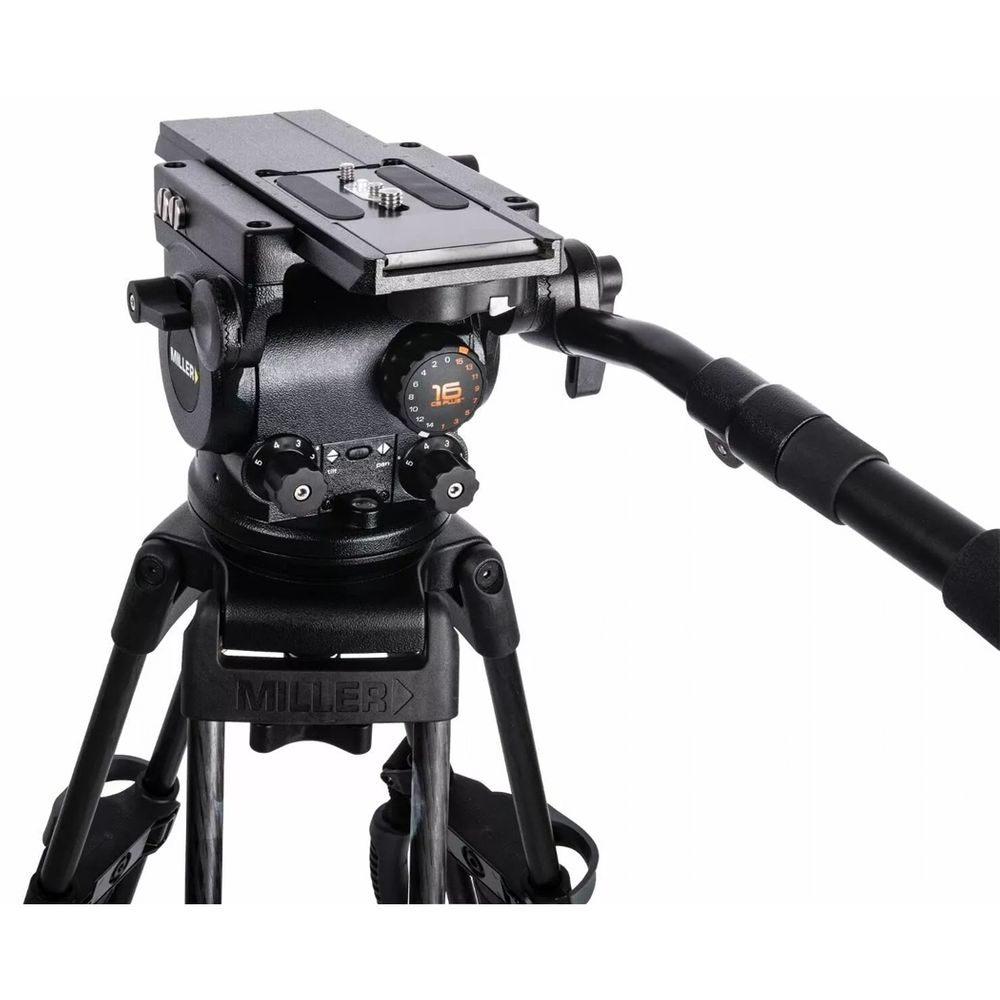

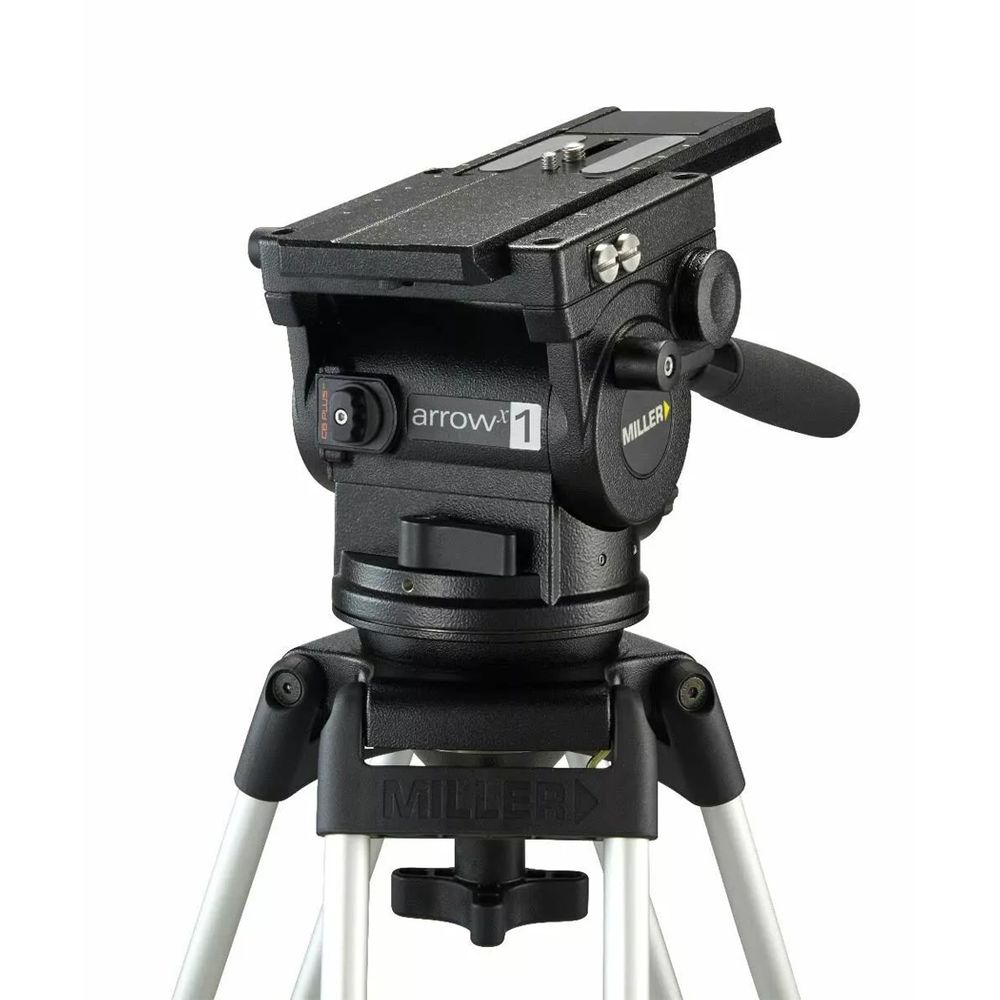

1070Arrowx 1 fluid head
1589GSprinter II 1-stage tripod (alloy)
470On ground spreader
696Pan handle - telescopic with clamp

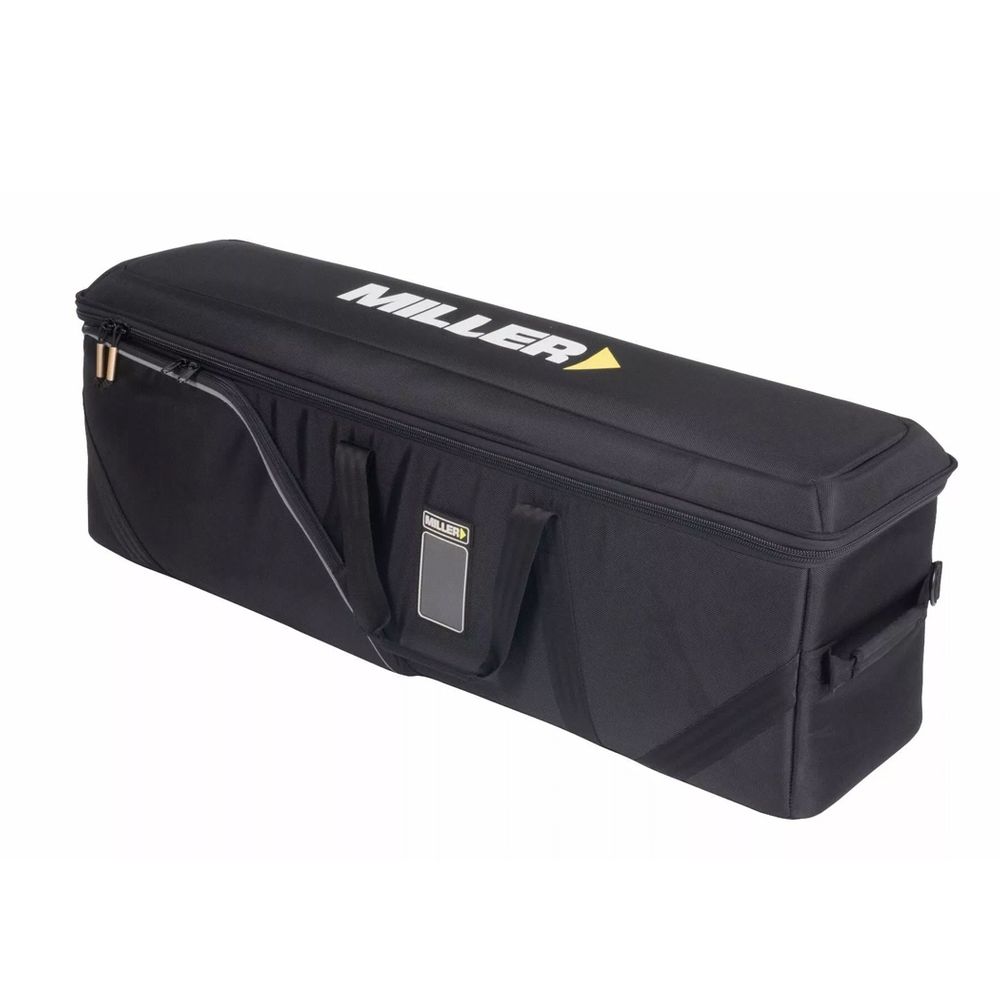

3502Arrowx soft case 2-stage
