Teradek Bolt 6 XT 1500 12G SDI/HDMI Wireless TX/RX

53.10-2310

Product Features:

Supports New 6 GHz Frequency Band
Transmit Video up to 457m Line of Sight
12G-SDI/HDMI Transmitter & Receiver Set
Smaller, Lighter, 50% Quieter
5-Pin USB Output for Camera Control
Supports up to 4K30 Resolution
10-Bit 4:2:2 Support, No Delay
Compatible with Bolt 4K Series 5G TX/RX
AES-256 Encryption, 5 x Antennas
Bluetooth Mobile App, Spectrum Analyzer

Configuration Options:

$17,865.00
$15,185.01
Overseas Air Freight
Check Location Availability
Make an Enquiry

Teradek Bolt 6 XT 1500 12G SDI/HDMI Wireless TX/RX

Add To Cart
$17,865.00
$15,185.01

Essential Add-On's we recommend

You may also like...

Description

Transmit and receive lossless HD video from up to 1500'(457m) line of sight with the Bolt 6 XT 1500 12G-SDI/HDMI Wireless Transmitter/Receiver Kit from Teradek. The kit includes a wireless Bolt 6 XT 12G-SDI/HDMI transmitter and a wireless Bolt 6 XT 12G-SDI/HDMI receiver that support the new 6 GHz wireless frequency, feature bright OLED displays, and can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support.

Other new features include a smaller, lighter design, improved long-range mode, an SDI eye pattern tool, and 50% quieter performance than previous models. The transmitter inputs video over 12G-SDI or HDMI and features 12G-SDI and HDMI loop outputs, and the receiver outputs video via 12G-SDI and HDMI. Both units are also compatible with all Bolt 4K models using the 5 GHz wireless band. A case is included to store and transport the kit.

Key Features
  • Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
  • Smaller, lighter, and 50% quieter than previous models
  • Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
  • Transmitter inputs via 12G-SDI and HDMI, transmits up to DCI 4K60 video, and has a 12G-SDI loop output; receiver outputs via 12G-SDI and HDMI
  • SDI Eye Pattern Tool to check SDI cable integrity
  • Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
  • Improved "long-range" mode
  • Transmit to up to six Bolt 4K or Bolt 6 series receivers
  • AES-256 encryption support
  • Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration



Teradek XT 1500 Specs

Inputs / Outputs
Antenna PortsTransmitter: 4 x RP-SMA Female
Receiver: 5 x RP-SMA Female
VideoTransmitter: 1 x HDMI Type A (HDMI 2.0) Input
Transmitter: 1 x BNC (12G-SDI) Input
Transmitter: 1 x BNC (12G-SDI) Loop Output
Receiver: 1 x HDMI Type A (HDMI 2.0) Output
Receiver: 1 x BNC (12G-SDI) Output
Embedded AudioHDMI: 2-Channel
SDI
AudioNone
PowerTransmitter/Receiver: 1 x LEMO 2-Pin (28 VDC) Input
Other I/OTransmitter/Receiver: 1 x USB-C 2.0 Input
Transmitter/Receiver: 1 x LEMO 5-Pin 2.0 Output
Encryption256-Bit AES
Wireless
Wireless Range1500' / 457.2 m (Line-of-Sight)
Channel Bandwidth40 MHz
Frequency RangeNon-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency< 0.01 ms
RF Power23 dBm
Wi-FiNone
BluetoothYes
Format Support
Video FormatHDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format2-Channel 24-Bit 48 kHz
Timecode SupportYes
Power
DC Input Power6 to 28 VDC
Power ConsumptionTransmitter: 20 W
Receiver: 18 W
Environmental
IP RatingNone
Operating Temperature 0 to 40°C
General
Material of ConstructionAluminum, Polycarbonate
DimensionsTransmitter:  132 x 91 x 27 mm
Receiver:  139 x 112 x 27 mm
WeightTransmitter:  344 g
Receiver: 430 g

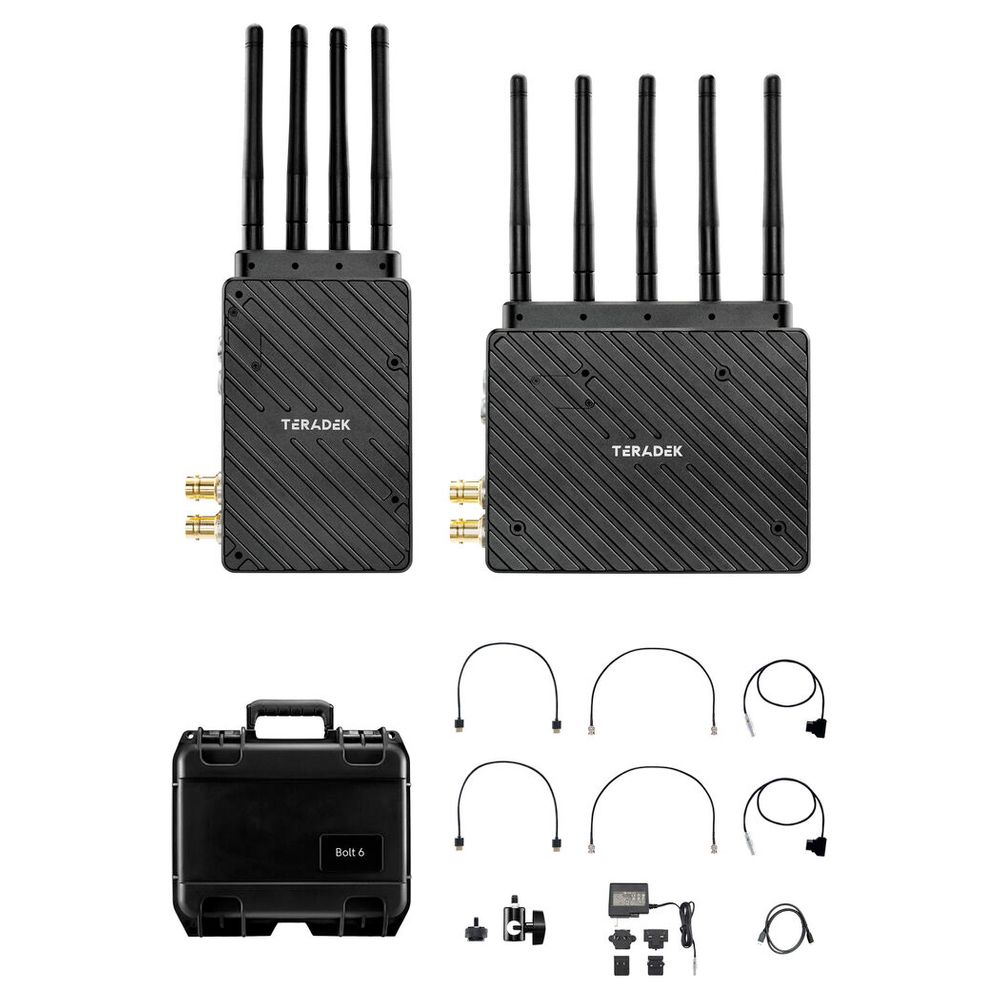

In the Box

  • Teradek Bolt 6 XT 1500 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
  • Bolt 6 XT 1500 12G-SDI/HDMI Transmitter
  • Bolt 6 XT 1500 12G-SDI/HDMI Receiver
  • 2 x 2-Pin to D-Tap Power Cable (18")
  • USB 2.0 Type-A Male to Type-C Male Cable (39")
  • 2 x HDMI Type A Male Cable (18")
  • 2 x BNC 12G-SDI Cable (18")
  • AC Adapter with Cable (6')
  • 9 x Antenna
  • Light Stand Adapter
  • Shoe Adapter
  • Carry Case
  • Limited 1-Year Warranty
