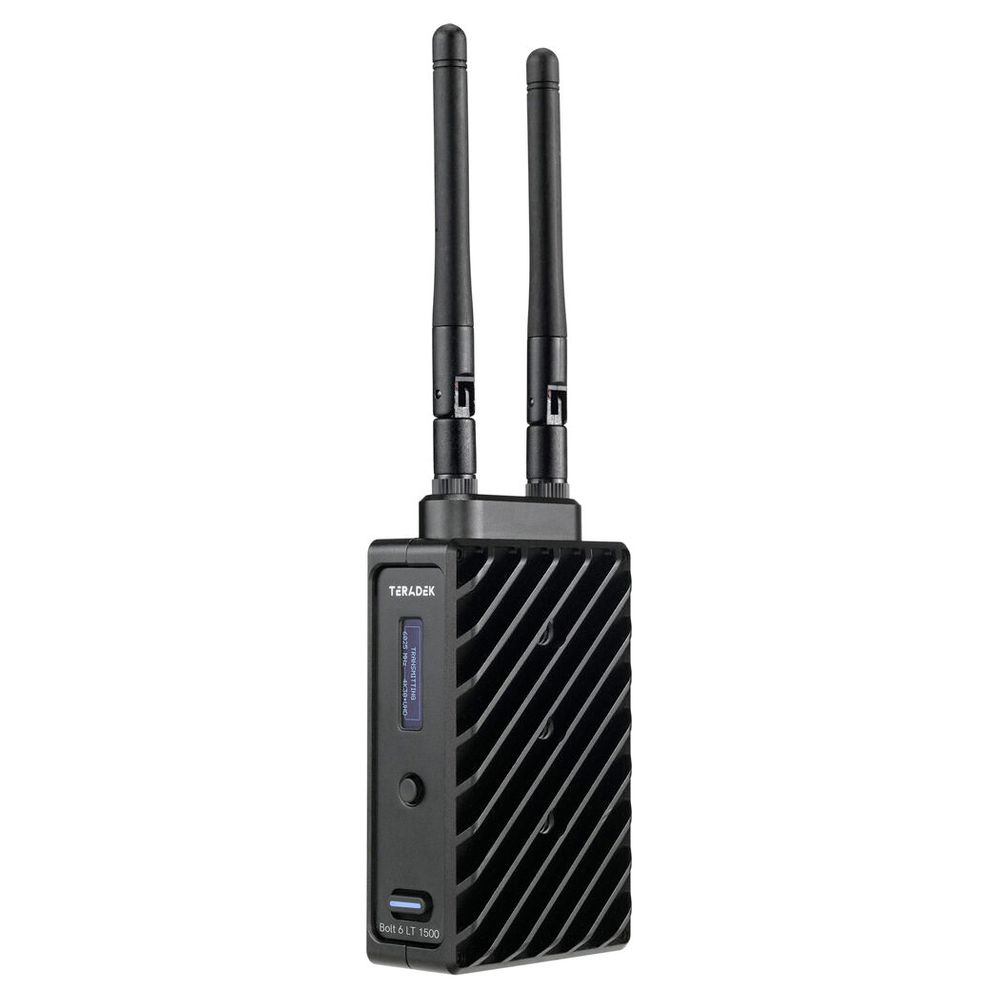

Teradek Bolt 6 LT 1500 TX

53.10-2271

Product Features:

Supports New 6 GHz Frequency Band
Transmits up to 457m Line of Sight
3G-SDI and HDMI Input, SDI Output
Transmit to up to 6 x RXs
UHD 4K30 10-Bit 4:2:2 HDR Support
Compatible with all Bolt 4K 5G Devices
AES-256 Encryption, 5 x Antennas
Bluetooth Mobile App, Spectrum Analyzer
$6,250.00
$5,625.00
Overseas Air Freight
Check Location Availability

Teradek Bolt 6 LT 1500 TX

Essential Add-On's we recommend

Description

Transmit lossless HD video up to 1500'(457m) with the Bolt 6 LT 1500 3G-SDI/HDMI Wireless Transmitter from Teradek. With the same form factor as the Bolt 4K LT 1500, this transmitter can input video over HDMI or 3G-SDI with 10-bit HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. The transmitter unit provides a powerful signal that can travel up to 1500' line of sight. It also features a bright OLED display and an SDI loop output.

The transmitter supports transmission of up to UHD 4K30 video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.

Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.



Key Features
  • Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
  • Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
  • Input up to UHD 4K30 video via HDMI and up to 1080p60 3G-SDI; transmit up to 4K30 video; 3G-SDI loop output
  • SDI Eye Pattern Tool to check SDI cable integrity
  • Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
  • Improved "long range" mode
  • Small and light chassis design
  • Transmit to up to six Bolt 4K or Bolt 6 series receivers
  • AES-256 encryption support
  • Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration



Teradek LT 1500 Specs

Inputs / Outputs
Antenna Ports2 x RP-SMA Female
Video1 x HDMI Type A (HDMI 1.4b) Input
1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Loop Output
Embedded AudioHDMI: 2-Channel
SDI: 2-Channel
AudioNone
Power I/O1 x LEMO 2-Pin (28 VDC) Input
Other I/O1 x Micro-USB Input
Encryption256-Bit AES
Wireless
Wireless Range1500' / 457.2 m (Line-of-Sight)
Channel Bandwidth40 MHz, 20 MHz
Frequency RangeNon-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency< 0.01 ms
RF Power23 dBm
Wi-FiNone
BluetoothYes
Format Support
Video FormatHDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format2-Channel 24-Bit 48 kHz
Timecode SupportYes
Power
DC Input Power6 to 28 VDC
Power Consumption9 W
Mounting
Mounting1 x 1/4"-20 Female
Environmental
IP RatingNone
Operating Temperature 0 to 40°C
General
Material of ConstructionAluminum, Polycarbonate
Dimensions103 x 60 x 33 mm
Weight206 g



In the Box

  • Teradek Bolt 6 LT 1500 3G-SDI/HDMI Wireless Transmitter
  • 2-Pin to D-Tap Power Cable (18")
  • USB 2.0 Type-A Male to Micro-USB Male Cable (39")
  • HDMI Type A Male to HDMI Type A Male Cable (18")
  • BNC to BNC SDI Cable (10")
  • AC Adapter with Cable (6')
  • 2 x Antenna
  • Limited 1-Year Warranty
