Teradek Bolt 6 LT Max TX/RX Deluxe Set V Mount

53.10-2280-V

Product Features:

Supports New 6 GHz Frequency Band
Transmits up to 1524m Line of Sight
HDMI and 3G-SDI Inputs and Outputs
Transmit up to 4K30 Video
Long-Range Panel Antenna Included
V Mount Battery Mount on RX
10-Bit 4:2:2 Support, No Delay
Compatible with Bolt 4K Series TX/RX
AES-256 Encryption, 7 Antennas
Bluetooth Mobile App, Spectrum Analyzer
$24,175.00
Stock Level:
In Stock
Check Location Availability

Teradek Bolt 6 LT Max TX/RX Deluxe Set V Mount

Essential Add-On's we recommend

Description

Transmit and receive lossless HD video from up to 5000'(1524m) line of sight with the Bolt 6 LT MAX 3G-SDI/HDMI Wireless RX/TX Deluxe Kit from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K30 video with 10-bit HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. The transmitter inputs up to UHD 4K30 video over HDMI or up to 1080p60 video via 3G-SDI, and the receiver outputs video via HDMI and 3G-SDI. A V-mount battery plate is included to power the receiver with a professional V-mount battery. The transmitter unit provides a powerful signal that can travel up to a 5000' line of sight.

The transmitter sends up to 4K30 video to any Bolt 4K series receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

Key Features
  • Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
  • Cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum
  • Transmits to an unlimited number of receivers in broadcast mode
  • SDI Eye Pattern Tool to check SDI cable integrity
  • Improved "long-range" mode
  • Input up to 4K via HDMI video; input/output 1080p via 3G-SDI, and transmit up to 4K30 video
  • Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
  • HDR workflow support with HDR-10, PQ, and HLG standards
  • Smaller and lighter chassis design than other Bolt transmitters
  • Transmit metadata, timecode, and stop/start triggers over a wireless connection
  • Simultaneously transmit to up to six Bolt 6 or Bolt 4K series receivers
  • AES-256 encryption support
  • Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration



Teradek LT MAX Specs

Inputs / Outputs
Antenna PortsTransmitter: 2 x RP-SMA Female
Receiver: 5 x RP-SMA Female
VideoTransmitter: 1 x HDMI Type A (HDMI 1.4b) Input
Transmitter: 1 x BNC (3G-SDI) Input
Transmitter: 1 x BNC (3G-SDI) Loop Output
Receiver: 1 x HDMI Type A (HDMI 1.4b) Output
Receiver: 1 x BNC (3G-SDI) Output
Embedded AudioSDI: 2-Channel
HDMI: 2-Channel
AudioNone
PowerTransmitter/Receiver: 1 x LEMO 2-Pin Input
Other I/OTransmitter/Receiver: 1 x Micro-USB 2.0 Input
Encryption256-Bit AES
Wireless
Wireless Range5000' / 1524 m (Line-of-Sight)
Channel Bandwidth40 MHz
Frequency RangeNon-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency< 0.01 ms
RF Power23 dBm
Wi-FiNone
BluetoothYes
Format Support
Video FormatHDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 59.94/50
480i: 59.94
Audio Format2-Channel 24-Bit 48 kHz LPCM Audio
Wireless Video CompressionUncompressed
Timecode SupportYes
Power
DC Input Power28 VDC
Battery TypeReceiver: 1 x Gold Mount
Power ConsumptionTransmitter: 9 W
Receiver: 11 W
Mounting
Mounting1 x 1/4"-20 Female
1 x 3/8"-16 Female
Environmental
IP RatingNone
Operating Temperature0 to 40°C
General
Material of ConstructionAluminum, Polycarbonate
DimensionsTransmitter: 103 x 60 x 33 mm
Receiver: 4122 x 94 x 27 mm
WeightTransmitter: 206 g
Receiver: 292 g

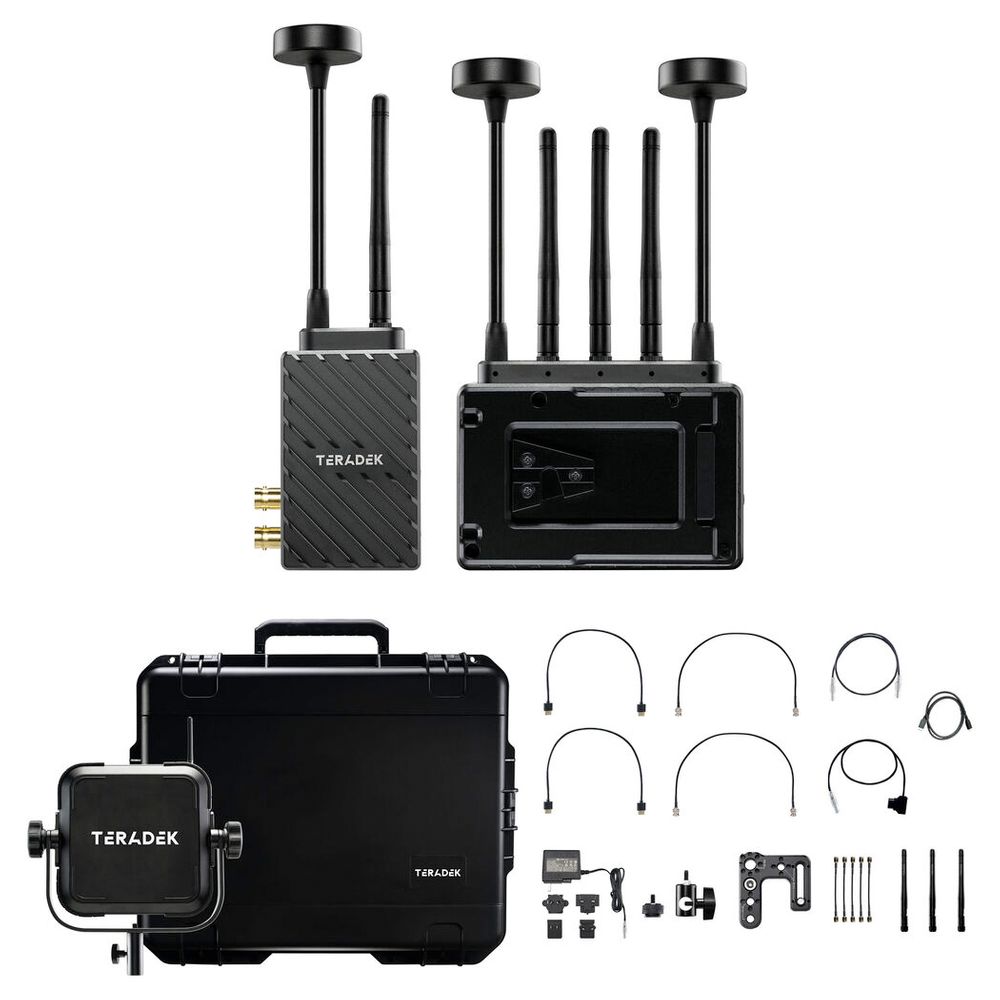

In the Box

  • Teradek Bolt 6 LT MAX 3G-SDI/HDMI Wireless RX/TX Deluxe Kit (V-Mount)
  • Bolt 6 LT MAX 3G-SDI/HDMI Transmitter (V-Mount)
  • Bolt 6 LT MAX 3G-SDI/HDMI Receiver (V-Mount)
  • Antenna Array
  • 2 x Bolt Battery Cover
  • 2-Pin to D-Tap Power Cable (18")
  • Micro-USB to USB Type-A Cable (36")
  • HDMI Type A Cable (18")
  • 18W AC Adapter with Cable (6')
  • 2 x BNC Cable (10")
  • 5 x RP-SMA Female Cable (4")
  • 2-Pin Connector Cable for ALEXA (18")
  • 1/4"-20 Light Stand Adapter
  • Shoe Adapter
  • Wooden Camera Offset Mount
  • 5 x Standard Antenna
  • 3 x Mushroom Antenna
  • Carry Case
  • Limited 1-Year Warranty
