Teradek Bolt 6 Monitor Module 1500 RX V Mount

53.10-2299-V7

Product Features:

Supports New 6 GHz Frequency Band
Receive HD Video from up to 457m LoS
Receive up to 4K30 Video, Zero Delay
V Mount Battery Plate
For SmallHD Cine 7/Indie 7/702 Touch
Output up to 4K30 Video via HDMI
Compatible with Any Bolt 4K Transmitter
AES-256 Encryption, 5 x Antennas
Bluetooth Mobile App, Spectrum Analyzer
$5,215.00
Overseas Air Freight
Check Location Availability

Teradek Bolt 6 Monitor Module 1500 RX V Mount

Description

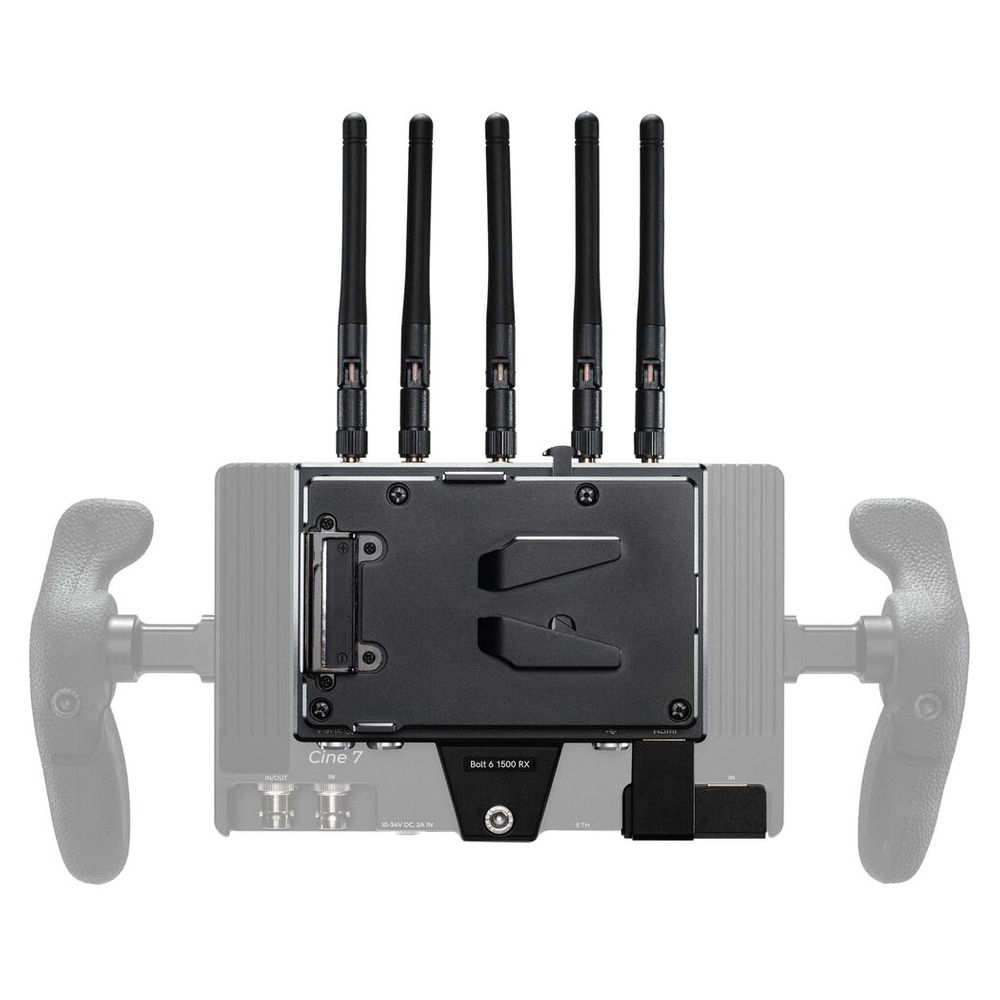

Receive lossless HD video from up to 1500'(1524m) line-of-sight with the Bolt 6 RX 1500 Monitor Module from Teradek. The module mounts onto the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor and can wirelessly receive up to UHD 4K30 HDR video with 10-bit 4:2:2 HDR support and outputs video via one HDMI port. A V-mount battery plate is included to power the receiver using a professional V-mount battery.

The receiver module supports transmissions of up to 4K30 video from any Bolt 6 or Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 system also supports the transmission of timecode and start/stop triggers from the camera.

Though it can receive visually lossless video from any Bolt 4K series transmitter with zero delay using the 5 GHz band, it requires a Bolt 6 device to receive over the 6 GHz band. The module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

Key Features
  • Supports the newly available 6 GHz wireless frequency band
  • Cross-compatible with all Bolt 4K and 4K LT 5G series transmitters
  • Mounts on the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor
  • Wirelessly receive up to 4K30 video and output up to 4K30 via HDMI port
  • V-mount battery plate included
  • Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
  • Smaller and lighter chassis design than other Bolt receivers
  • The receiver features five antennas
  • AES-256 encryption and RSA 1024 key pairing support
  • Wireless Android/iOS app via Bluetooth features a spectrum analyzer and remote configuration



Teradek RX Module 1500 Specs

Antenna Ports5 x RP-SMA Female
Video1 x HDMI Type A (HDMI 1.4b) Output
Embedded AudioHDMI: 2-Channel
AudioNone
Power I/O1 x LEMO 2-Pin (18 VDC) Input
Other I/O2 x LEMO 5-Pin 2.0 Output
Encryption256-Bit AES
Wireless
Wireless Range1500' / 457.2 m (Line-of-Sight)
Channel Bandwidth40 MHz
Frequency RangeNon-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency< 0.01 ms
RF Power21 dBm
Wi-FiNone
BluetoothYes
Format Support
Video FormatHDMI/Wireless (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format2-Channel 24-Bit 48 kHz LPCM Audio
Timecode SupportYes
Power
DC Input Power6 to 18 VDC
Battery Type1 x V-Mount
Power Consumption6 W
Environmental
IP RatingNone
Operating Temperature0 to 40°C
General
Material of ConstructionAluminum, Plastic
Dimensions122 x 94 x 27 mm
Weight292 g



In the Box

  • Teradek Bolt 6 RX 1500 Monitor Module for Smart 7 Series (V-Mount)
  • V-Mount Battery Plate
  • 5 x Antenna
  • HDMI to HDMI Block Adapter
  • 1/4"-20 Light Stand Adapter
  • Hex Wrench Set
  • Screw Socket Head Set
  • Limited 1-Year Warranty
