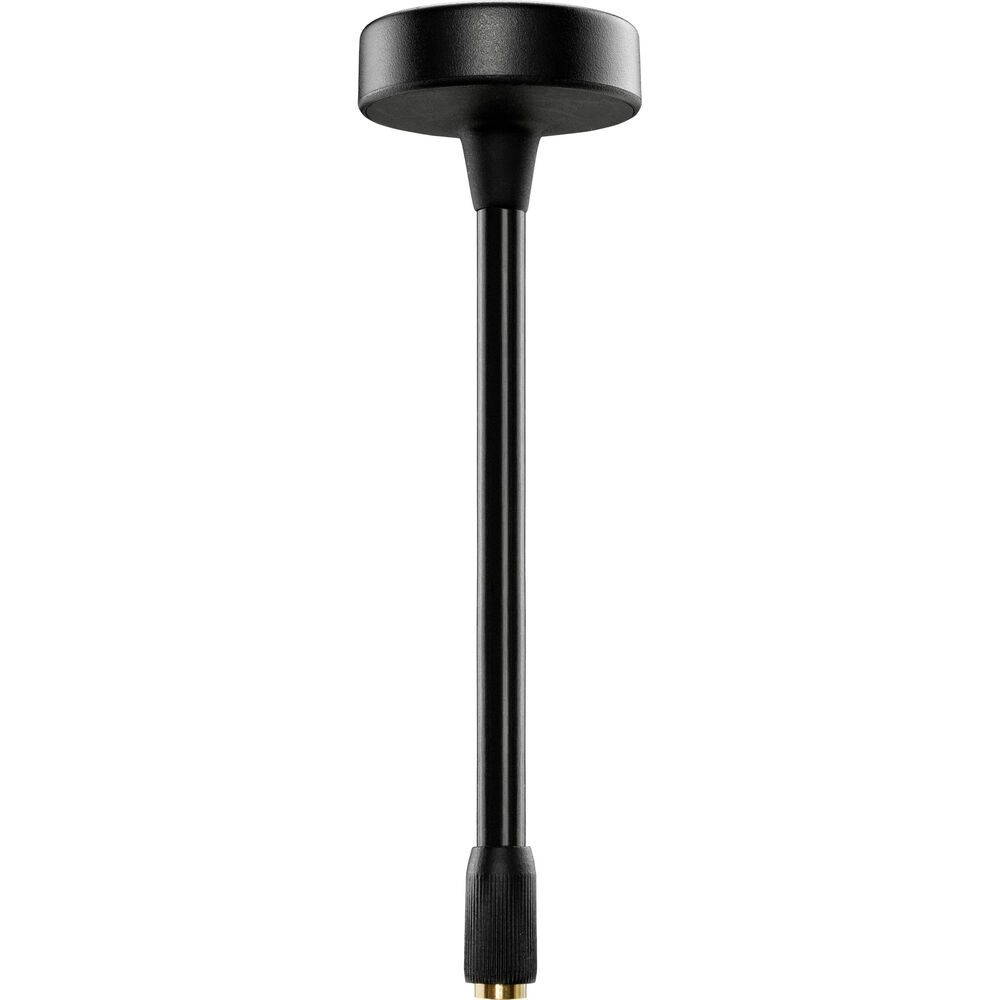

Teradek 6G Flexible H Antenna Mushroom 2dbi 4.9-7.3ghz

53.11-0902

Product Features:

Sold as a set of 1
These are designed special horizontally polarized antennas
For use with the V antennas
Using a pair of H and a pair of V antennas on the TX improves the diversity characteristics
The combination of H and V antenna signals achieves better diversity than V antennas alone
H antennas cause the RF signal from the transmitter to propagate in a perpendicular manner
2dbi gain
4.9-7.3ghz range
Polarization: Mushroom Horizontal
$185.00
Stock Level:
In Stock
Check Location Availability
Make an Enquiry

Teradek 6G Flexible H Antenna Mushroom 2dbi 4.9-7.3ghz

Add To Cart
$185.00

Description

These are designed special horizontally polarized antennas for use with the V antennas. Using a pair of H and a pair of V antennas on the TX improves the diversity characteristics of the system by combining the two perpendicular polarizations. For this H+V antenna configuration, two H antennas should be used at the TX and two at the RX as pictured. This configuration should allow for better reception and better video quality in medium-range situations and/or when the environment will create a lot of reflections for the wireless signal.

The combination of H and V antenna signals achieves better diversity than V antennas alone, especially while shooting outdoors. H antennas cause the RF signal from the transmitter to propagate in a perpendicular manner compared to the vertical signal from the V antenna.

Meant for Bolt 4K or Bolt 6 and to be used with V antennas.
