The lens optics include an integrated 15x HD optical zoom, a nine-bladed circular iris for more natural highlights, and wide DR gamma support for low-light recording. The camera's pro-style features include Dual-Pixel and Contrast autofocus, fast- and slow-motion recording, full manual control, optical and electronic image stabilization, a 3.5" touchscreen LCD, user-assignable buttons, infrared mode, and a DIG!C DV 6 image processor with high sensitivity and low noise. The XA75 also has display monitoring features such as zebra, color bars, and test tone, plus a built-in neutral density filter mechanism.
The camera records UHD 4K30 and Full HD 1080p60 captured to dual SD card slots in XF-AVC and MP4 formats, and it outputs to mini-HDMI and 3G-SDI ports. The dual SD card slots allow for automatic switching from one card to another, as well as simultaneous recording to both. The camera can output up to 1920 x 1080p 10-bit 4:2:2 video at 59.94 fps via its mini-HDMI and 3G-SDI outputs. On the audio side, the XA75 features up to four channels of LPCM audio with manual/automatic recording levels, two XLR inputs with phantom power, and a 3.5mm stereo mini input. It features a built-in stereo microphone as well as a headphone jack.
The XA75 captures sharp UHD images thanks to a 1" CMOS 4K sensor and DIGIC DV6 image processor. Oversampled HD delivers Full HD images from the 4K sensor.
OSD recording embeds date, time, timecode, and other data into your original camera files, effectively "time stamping" the information into each frame of video, a requirement for legal and law enforcement videographers.
Stream HD video directly from the camera via UVC1 to a Windows or macOS computer. Audio output through USB is not supported.
Adjustable focusing speeds and advanced Dual-Pixel CMOS AF give fast and precise focusing. Use the ultrabright 3.5" LCD to set focus by touching the AF point required. Face Detection AF and Face Tracking are available, while Manual Focus is set via the focus/zoom ring.
Choose from XF-AVC or MP4 recording formats. Record XF-AVC UHD 4K 160 Mb/s at 30P and Full HD 45 Mb/s at 60p/60i and 30/24p. For smaller files, record MP4 in 4K 150 Mb/s at 30/24p and Full HD 35 Mb/s or 17 Mb/s at 60/30/24p.
Output options include HDMI, simultaneous backup and relay recording via dual SD cards, and Infrared mode. Record 5x slow motion in Full HD or Fast Motion in 4K/Full HD up to 1200x. Color match with other Canon cameras using the custom picture menu.

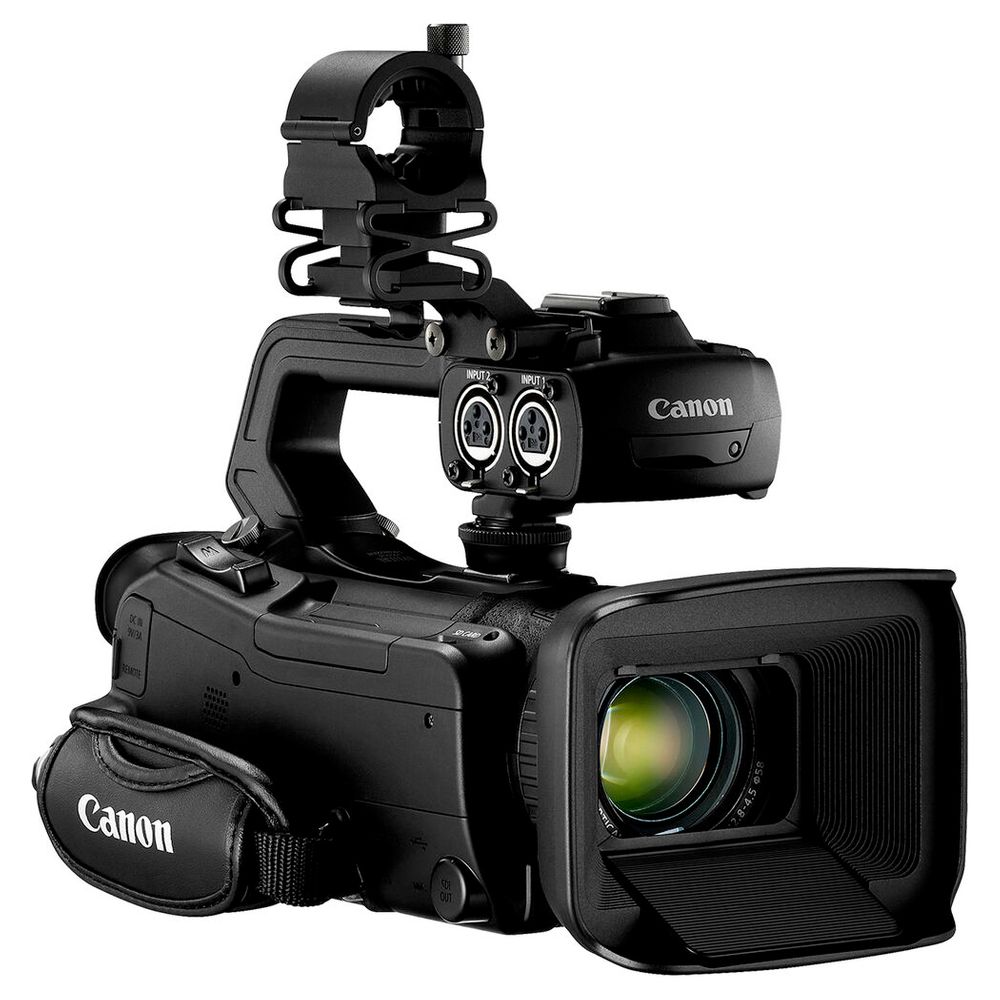

Two XLR terminals on a detachable handle plus 4-channel linear PCM bring pro audio options.
Image Sensor
Sensor 1 inch-type CMOS Sensor
Filter RGB Primary Colour Filter
Total Pixels Approx.13.4MP
Effective Pixels per Sensor Approx. 8.29 MP (3840 x 2160)
Subject Illumination Range Approx. 0.1 lx to 100,000 lx
Minimum Illumination (PAL) Approx. 0.1 lx: Low Light (shooting mode), shutter speed 1/2 sec. Approx. 1.4 lx: In P (Program AE) mode, 50.00P, shutter speed 1/25 sec. auto slow shutter On
Image Processor
Type DIGIC DV 6
Colour Sampling YCC 4:2:0 8bit
Lens
Zoom Ratio 15 x optical
Focal Length (35mm Equivalent) Approx. 25.5 - 382.5mm Standard IS/IS Off
Minimum Focus Distance 1 cm at wide end, 60 cm across entire zooming range
Max. Aperture f/2.8 - 4.5
Aperture Blades 9 blades
Filter Diameter 58mm
Image Stabilization System Optical system (lens shift) + electronic stabilization Dynamic, Standard, Powered IS, Off
ND Filter 3 densities: ND 1/4, ND 1/16, and ND 1/64, turret switched, motor-driven.
Zoom Control Zoom rockers on the body and handle; Touch Screen or Remote Controller Selectable manual zoom/focus ring on lens; Selectable High Speed and Soft Zoom modes available.
Zoom Speed Variable (body rocker only) or Constant speed (body and handle rocker; Fast/Normal/Slow, 16 speed level settings in each)
Focus Control MANUAL: Lens ring and touchscreen point selection (Magnify and Peaking assist functions), Focus Preset. AUTOFOCUS: Touchscreen AF point selection, Face Detection and Tracking, Touch and Track, Face Only AF. Face Frame displays tracked subject
Focus System Dual Pixel CMOS AF, detection range 80% vertical/80% horizontal of field of view Contrast AF.
AF Modes Continuous, AF-Boosted MF Face Detection and Tracking, Face Only AF.
Manual Focus Assist Dual Pixel Focus Guide, Peaking, Magnification
Iris Control Touchscreen, Auto Digital Zoom/Teleconverter 20x Digital zoom (300x with optical zoom) and 40x digital zoom (600x with optical zoom) are available.
Digital zoom is not available in AUTO mode. 2x Digital Teleconverter (Not available when using Digital Zoom)
Recording
Video Storage Media SD/SDHC/SDXC card (2 card slots)
Type U3 Class recommended for all recording conditions * UHS-II not supported.
Recording Time MP4: 150Mbps: 55 mins / 35Mbps: 240 mins / 17Mbps: 495 mins XF-AVC:160Mbps: 50 mins/45 Mbps: 185 mins
Recording File System FAT32/exFAT
Internal Recording Format (PAL)
XF-AVC: 3840 x 2160 / 25.00P (160 Mbps) 1920 x 1080 / 50.00P, 50.00i, 25.00P (45 Mbps)
MP4: 3840 x 2160 / 25.00P(150 Mbps) 1920 x 1080 / 50.00P, 25.00P (35, 17 Mbps)
External Recording Output
HDMI output (When Shooting):
UHD recording mode: 1920 x 1080 / 25.00P, 50.00P (for Slow&Fast), 50.00i (PsF mode); 1280 x 720 / 50.00P YCC 4:2:2 8-bit
Full HD recording mode: 1920 x 1080 50.00P/25.00P/50i ; 1280 x720 50.00P YCC4:2:2 10-bit
SDI output (When Shooting):
UHD recording mode: 1920 x 1080 / 25.00P, 50.00P (for Slow&Fast), 50.00i (PsF mode); 1280 x 720 / 50.00P YCC 4:2:2 8-bit
Full HD recording mode: 1920 x 1080 50.00P/25.00P/50i ; 1280 x720 50.00P YCC4:2:2 10-bit
Slow/Fast Motion (PAL)
3840 x 2160 / 25.00P: x2, x4, x10, x20, x60, x120, x600, x1200
1920 x 1080 / 50.00P: x2, x4, x10, x20, x60, x120, x600, x1200
1920 x 1080 / 25.00P: x0.5
Pre-Record Function Yes. 3 seconds
Still Photos JPEG up to 3840x2160 (Still image resolution is dependent on the video resolution)
Photo Storage Media SD Card
System
Display Type Capacitive LCD touch panel
Size 3.5-inch (8.8 cm) on the diagonal, Approx. 2,760,000 dots (1280 x RGB x 720)
Wave Form Monitor No
Focus Assist Peaking / Magnify
Peaking Selectable Peaking Colour: Red / Blue / Yellow
Zebra 70% or 100% reference level
Markers Grid (white/grey), Level (white/grey), 4:3 (white/grey)
EVF
Size 0.36-inch (0.92 cm on the diagonal), Approx. 1,770,000 dots (1024 x RGB x 576)
Correction Lens +2.0 to -5.5 dioptre
Inputs / Outputs
Audio Input XLR 3-pin jack (x2) with 48V phantom power, Line and Mic options on detachable handle, 3.5mm microphone input jack (Supply Voltage 2.4V DC) Built-in Mic
Headphone Output 3.5mm stereo mini jack
HDMI Output HDMITM mini connector. Timecode can be superimposed onto HDMI output
USB Type-C Hi-Speed USB (USB 2.0) equivalent. Point-to-point class and UVC supported.
SDI Output 3G-SDI
Time Code Rec Run / Free Run
Genlock No
LAN No
AV Terminal No
DC Input USB-C
Remote Control Terminal 2.5mm mini jack
Streaming, Wi-Fi, & GPS Specifications
Wi-Fi No
GPS Information (Optional Accessory) Location (Latitude/Longitude/Altitude), Coordinated Universal Time (UTC), Satellite reception. (requires the optional GPS Receiver GP-E2)
Audio
Recording Format MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch)
Audio Control Manual/Auto Independent 2ch Line/Mic/Mic+48V input; Independent level control per channel (-∞ to +18 dB); Independent audio limiters (2 ch); Input mic trimming
Reference Tone 1KHz, -12dB / -18dB / -20dB / Off
Microphone Attenuation On/Off (20dB)
Microphone Level Meter Yes
Power Source
Power Supply (Battery) Canon Battery Pack BP-820 (supplied), BP-828 (optional)
Power Consumption MP4, 150Mbps/XF-AVC, 160Mbps, 25.00P: 5.1W
Recording Time MP4, 150Mbps/XF-AVC, 160Mbps, 25.00P: Max 145 mins, typical 80 mins (BP-820)
Physical Specifications
Dimensions Approx. 110 x 91 x 214 mm (main body only) Approx. 140 x 216 x 265 mm (Including lens hood, BP-820, mic holder unit, and handle unit)
Weight (Body Only) 990g
Weight (Accessories) 1465g
Operating Temperature Range 0ºC to +40ºC, 85% relative humidity

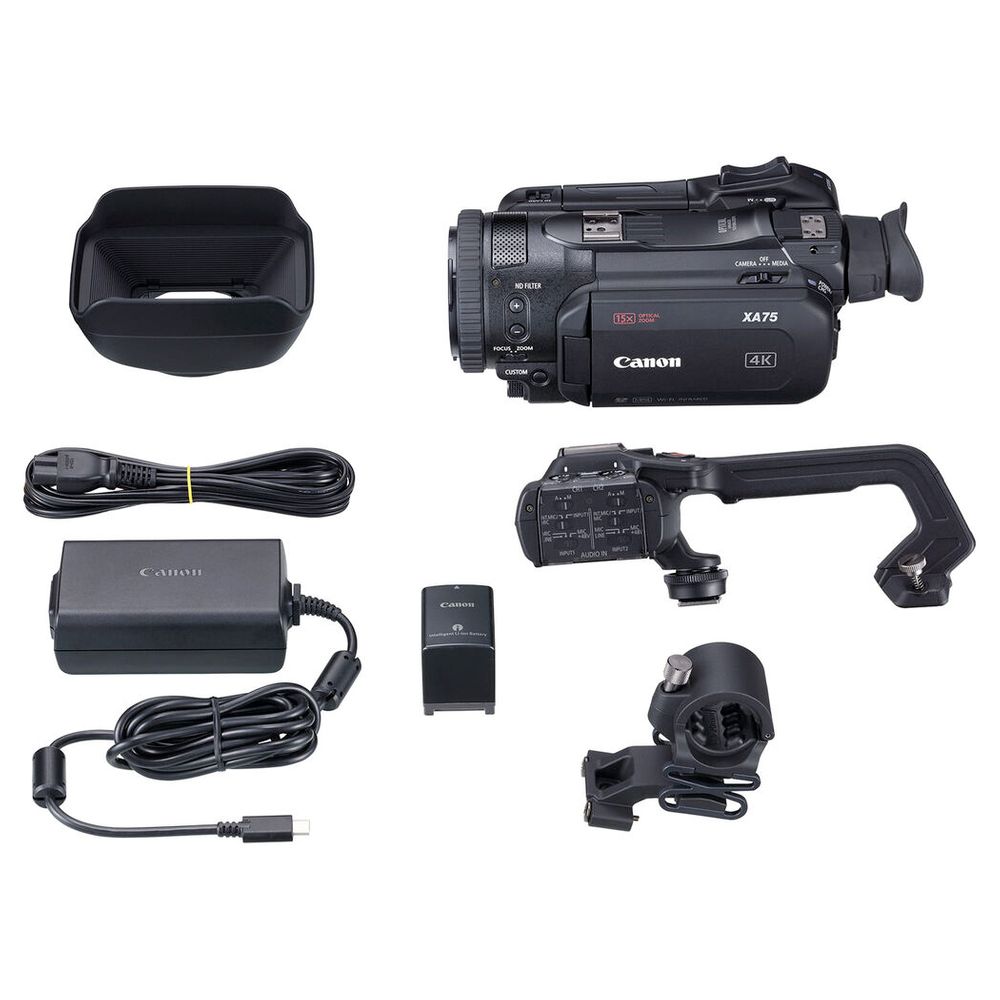

What's in the Box
- Canon PD-E1 USB Power Adapter
- Canon BP-820 Lithium-Ion Single Battery Pack (1780mAh, Retail Packaging)
- Lens Hood with Lens Cover
- Handle
- Microphone Holder
- Limited 1-Year Warranty
