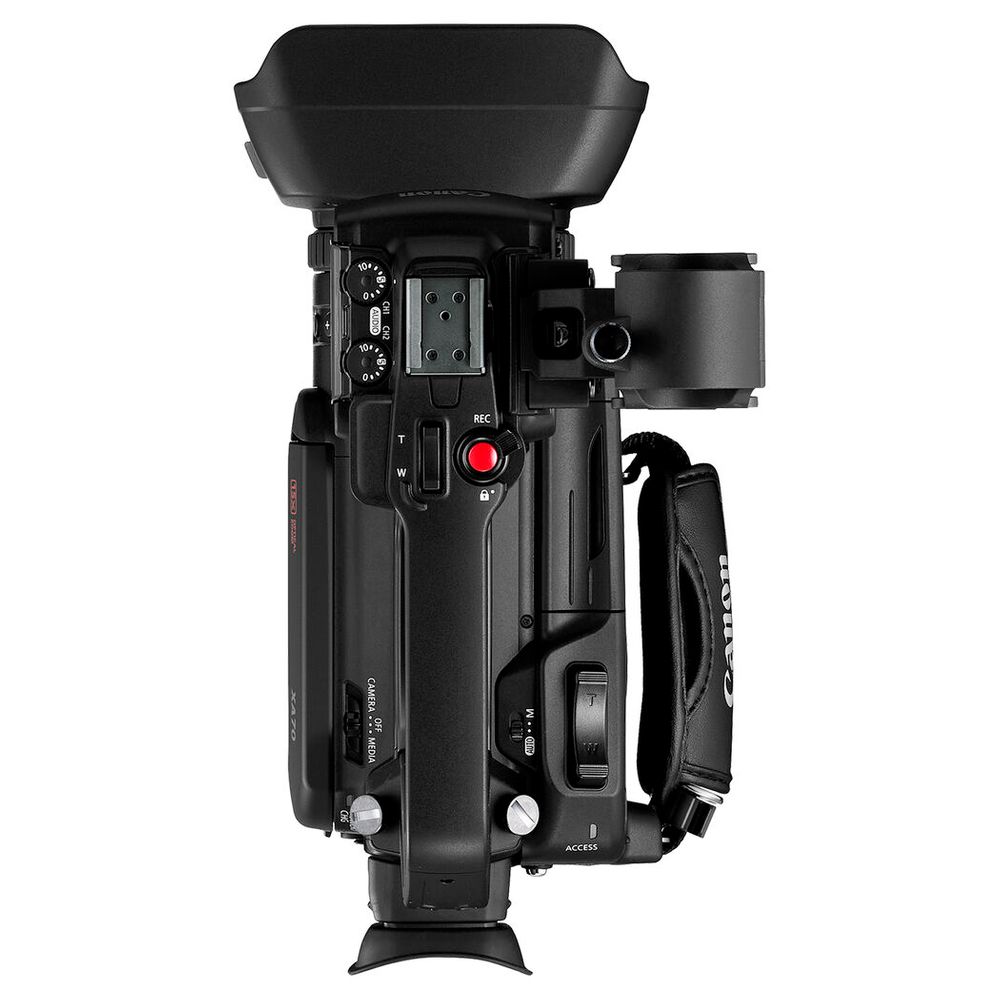

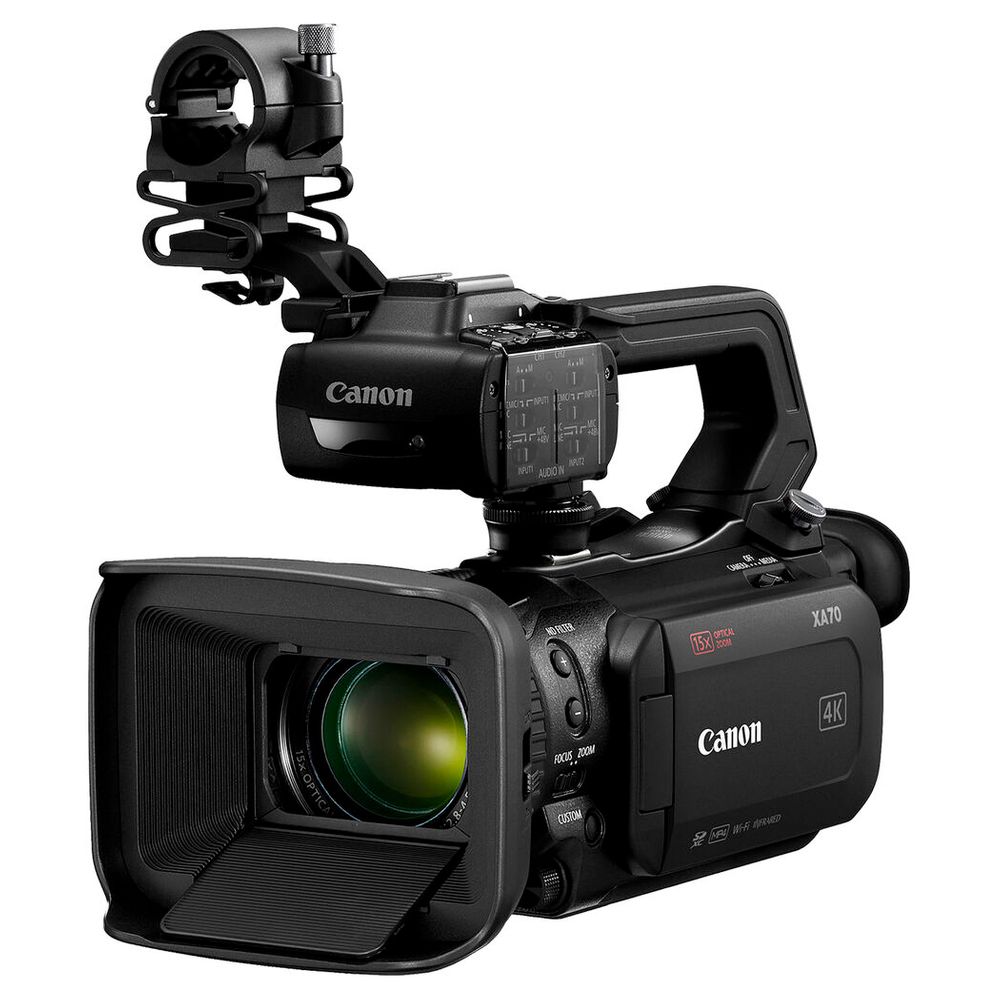

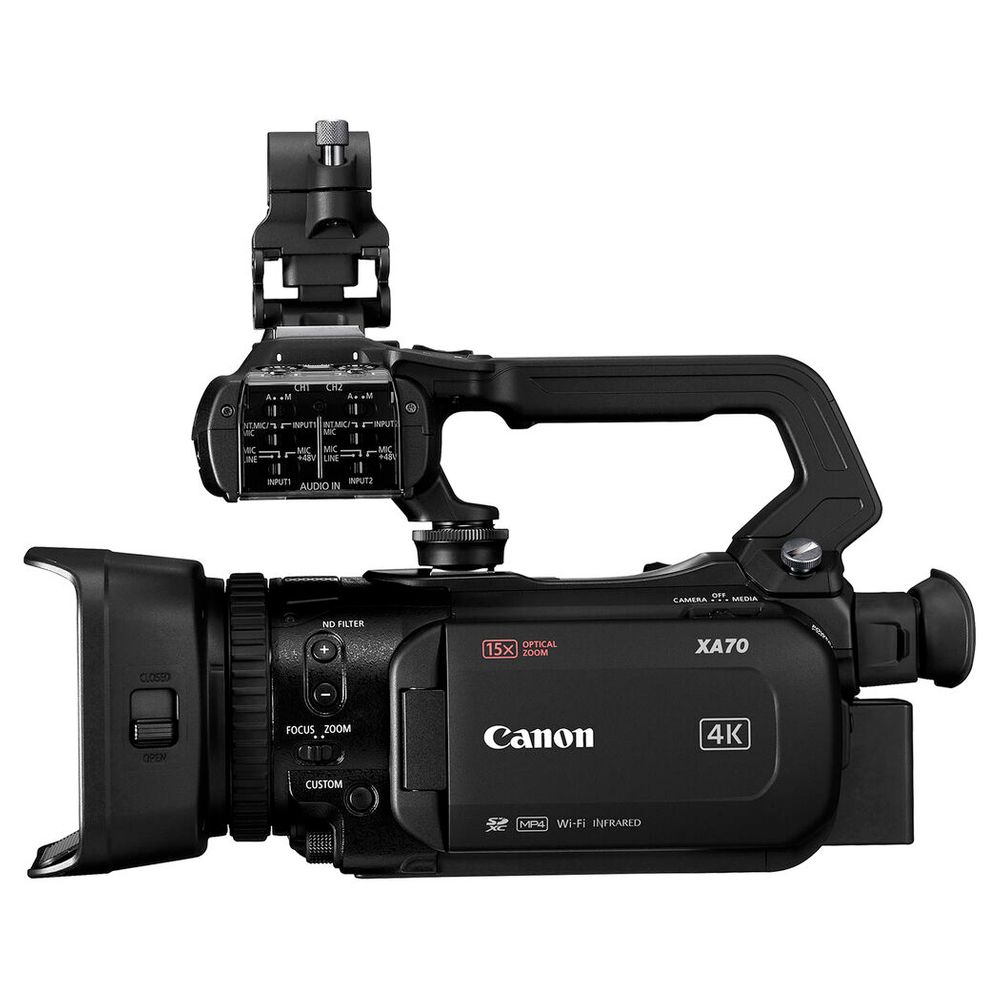

Canon XA70 4K Camcorder

81.05.XA70

Product Features:

1" CMOS Sensor, DIG!C DV 6 Processor
Up to UHD 4K30 Video Recording
Mini-HDMI Output
Integrated 15x Optical Zoom Lens
Dual XLR and Mic/Line Audio Input
USB Type-C Output with UVC Support
5-Axis Optical Image Stabilization
Dual-Pixel CMOS Autofocus Feature
Dual SD Relay and Simultaneous Recording
3.5" Touchscreen LCD, Tiltable OLED EVF
$3,040.00
Available Soon
Check Location Availability

Canon XA70 4K Camcorder

Essential Add-On's we recommend

Description

The Canon XA70 Professional UHD 4K Camcorder is a compact, lightweight camera featuring UHD 4K capture, a 1" CMOS sensor, two XLR audio inputs, and one mini-HDMI output which fits right into the ENG category for documentary or journalism-style productions. Updated from its XA55 predecessor, this model features a larger 3.5mm LCD capacitive touchscreen display, a higher resolution tiltable 0.36" OLED EVF, OSD metadata recording, and fast USB Type-C video-only output with UVC support for live streaming to a computer.

The lens optics include an integrated 15x HD optical zoom, a nine-bladed circular iris for more natural highlights, and wide DR gamma support for low-light recording. The camera's pro-style features include Dual-Pixel and Contrast autofocus, fast- and slow-motion recording, full manual control, optical and electronic image stabilization, a 3.5" touchscreen LCD, user-assignable buttons, infrared mode, and a DIG!C DV 6 image processor with high sensitivity and low noise. The XA70 also has display monitoring features such as zebra, color bars, and test tone, plus a built-in neutral density filter mechanism.

The camera records UHD 4K30 and Full HD 1080p60 captured to dual SD card slots in XF-AVC and MP4 formats, and it outputs to a mini-HDMI port. The dual SD card slots allow for automatic switching from one card to another, as well as simultaneous recording to both. The camera can output up to 1920 x 1080p 10-bit 4:2:2 video at 59.94 fps via its mini-HDMI output. On the audio side, the XA70 features up to four channels of LPCM audio with manual/automatic recording levels, two XLR inputs with phantom power, and a 3.5mm stereo mini input. It features a built-in stereo microphone as well as a headphone jack.

Compact Professional UHD 4K Camcorder

The XA70 captures sharp UHD images thanks to a 1" CMOS 4K sensor and DIGIC DV6 image processor. Oversampled HD delivers Full HD images from the 4K sensor.

On-Screen Display (OSD) "Time Stamp" Recording

OSD recording embeds date, time, timecode, and other data into your original camera files, effectively "time stamping" the information into each frame of video, a requirement for legal and law enforcement videographers.

UVC Livestreaming

Stream HD video directly from the camera via UVC1 to a Windows or macOS computer. Audio output through USB is not supported.

4K 15x Optical Zoom Lens

Adjustable focusing speeds and advanced Dual-Pixel CMOS AF give fast and precise focusing. Use the ultrabright 3.5" LCD to set focus by touching the AF point required. Face Detection AF and Face Tracking are available, while Manual Focus is set via the focus/zoom ring.

XF-AVC and MP4 for Flexible Recording

Choose from XF-AVC or MP4 recording formats. Record XF-AVC UHD 4K 160 Mb/s at 30P and Full HD 45 Mb/s at 60p/60i and 30/24p. For smaller files, record MP4 in 4K 150 Mb/s at 30/24p and Full HD 35 Mb/s or 17 Mb/s at 60/30/24p.

Professional Input and Output

Output options include HDMI, simultaneous backup and relay recording via dual SD cards, and Infrared mode. Record 5x slow motion in Full HD or Fast Motion in 4K/Full HD up to 1200x. Color match with other Canon cameras using the custom picture menu.

Professional Audio Options

Two XLR terminals on a detachable handle plus 4-channel linear PCM bring pro audio options.



Canon XA70 UHD 4K30 Camcorder With Dual-Pixel Autofocus Specifications

Image Sensor

Sensor 1 inch-type CMOS Sensor

Filter RGB Primary Colour Filter

Total Pixels Approx.13.4MP

Effective Pixels per Sensor Approx. 8.29 MP (3840 x 2160)

Subject Illumination Range Approx. 0.1 lx to 100,000 lx

Minimum Illumination (PAL) Approx. 0.1 lx: Low Light (shooting mode), shutter speed 1/2 sec. Approx. 1.4 lx: In P (Program AE) mode, 50.00P, shutter speed 1/25 sec. auto slow shutter On

Image Processor

Type DIGIC DV 6

Colour Sampling YCC 4:2:0 8bit

Lens

Zoom Ratio 15 x optical

Focal Length (35mm Equivalent) Approx. 25.5 - 382.5mm Standard IS/IS Off

Minimum Focus Distance 1 cm at wide end, 60 cm across entire zooming range

Max. Aperture f/2.8 - 4.5

Aperture Blades 9 blades

Filter Diameter 58mm

Image Stabilization System Optical system (lens shift) + electronic stabilization Dynamic, Standard, Powered IS, Off

ND Filter 3 densities: ND 1/4, ND 1/16, and ND 1/64, turret switched, motor-driven.

Zoom Control Zoom rockers on the body and handle; Touch Screen or Remote Controller Selectable manual zoom/focus ring on lens; Selectable High Speed and Soft Zoom modes available.

Zoom Speed Variable (body rocker only) or Constant speed (body and handle rocker; Fast/Normal/Slow, 16 speed level settings in each)

Focus Control MANUAL: Lens ring and touchscreen point selection (Magnify and Peaking assist functions), Focus Preset. AUTOFOCUS: Touchscreen AF point selection, Face Detection and Tracking, Touch and Track, Face Only AF. Face Frame displays tracked subject

Focus System Dual Pixel CMOS AF, detection range 80% vertical/80% horizontal of field of view Contrast AF.

AF Modes Continuous, AF-Boosted MF Face Detection and Tracking, Face Only AF.

Manual Focus Assist Dual Pixel Focus Guide, Peaking, Magnification

Iris Control Touchscreen, Auto Digital Zoom/Teleconverter 20x Digital zoom (300x with optical zoom) and 40x digital zoom (600x with optical zoom) are available.

Digital zoom is not available in AUTO mode. 2x Digital Teleconverter (Not available when using Digital Zoom)

Recording

Video Storage Media SD/SDHC/SDXC card (2 card slots)

Type U3 Class recommended for all recording conditions * UHS-II not supported.

Recording Time MP4: 150Mbps: 55 mins / 35Mbps: 240 mins / 17Mbps: 495 mins XF-AVC:160Mbps: 50 mins/45 Mbps: 185 mins

Recording File System FAT32/exFAT

Internal Recording Format (PAL)

XF-AVC: 3840 x 2160 / 25.00P (160 Mbps) 1920 x 1080 / 50.00P, 50.00i, 25.00P (45 Mbps)

MP4: 3840 x 2160 / 25.00P(150 Mbps) 1920 x 1080 / 50.00P, 25.00P (35, 17 Mbps)

External Recording Output

HDMI output (When Shooting):

UHD recording mode: 1920 x 1080 / 25.00P, 50.00P (for Slow&Fast), 50.00i (PsF mode); 1280 x 720 / 50.00P YCC 4:2:2 8-bit

Full HD recording mode: 1920 x 1080 50.00P/25.00P/50i ; 1280 x720 50.00P YCC4:2:2 10-bit

Slow/Fast Motion (PAL)

3840 x 2160 / 25.00P: x2, x4, x10, x20, x60, x120, x600, x1200

1920 x 1080 / 50.00P: x2, x4, x10, x20, x60, x120, x600, x1200

1920 x 1080 / 25.00P: x0.5

Pre-Record Function Yes. 3 seconds

Still Photos JPEG up to 3840x2160 (Still image resolution is dependent on the video resolution)

Photo Storage Media SD Card

System

Display Type Capacitive LCD touch panel

Size 3.5-inch (8.8 cm) on the diagonal, Approx. 2,760,000 dots (1280 x RGB x 720)

Wave Form Monitor No

Focus Assist Peaking / Magnify

Peaking Selectable Peaking Colour: Red / Blue / Yellow

Zebra 70% or 100% reference level

Markers Grid (white/grey), Level (white/grey), 4:3 (white/grey)

EVF

Size 0.36-inch (0.92 cm on the diagonal), Approx. 1,770,000 dots (1024 x RGB x 576)

Correction Lens +2.0 to -5.5 dioptre

Inputs / Outputs

Audio Input XLR 3-pin jack (x2) with 48V phantom power, Line and Mic options on detachable handle, 3.5mm microphone input jack (Supply Voltage 2.4V DC) Built-in Mic

Headphone Output 3.5mm stereo mini jack

HDMI Output HDMITM mini connector. Timecode can be superimposed onto HDMI output

USB Type-C Hi-Speed USB (USB 2.0) equivalent. Point-to-point class and UVC supported.

SDI Output No

Time Code Rec Run / Free Run

Genlock No

LAN No

AV Terminal No

DC Input USB-C

Remote Control Terminal 2.5mm mini jack

Streaming, Wi-Fi, & GPS Specifications

Wi-Fi No

GPS Information (Optional Accessory) Location (Latitude/Longitude/Altitude), Coordinated Universal Time (UTC), Satellite reception. (requires the optional GPS Receiver GP-E2)

Audio

Recording Format MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch)

Audio Control Manual/Auto Independent 2ch Line/Mic/Mic+48V input; Independent level control per channel (-∞ to +18 dB); Independent audio limiters (2 ch); Input mic trimming

Reference Tone 1KHz, -12dB / -18dB / -20dB / Off

Microphone Attenuation On/Off (20dB)

Microphone Level Meter Yes

Power Source

Power Supply (Battery) Canon Battery Pack BP-820 (supplied), BP-828 (optional)

Power Consumption MP4, 150Mbps/XF-AVC, 160Mbps, 25.00P: 5.1W

Recording Time MP4, 150Mbps/XF-AVC, 160Mbps, 25.00P: Max 145 mins, typical 80 mins (BP-820)

Physical Specifications

Dimensions Approx. 110 x 91 x 214 mm (main body only) Approx. 140 x 216 x 265 mm (Including lens hood, BP-820, mic holder unit, and handle unit)

Weight (Body Only) 990g

Weight (Accessories) 1465g

Operating Temperature Range 0ºC to +40ºC, 85% relative humidity



What's in the Box

Canon XA70 UHD 4K30 Camcorder with Dual-Pixel Autofocus
  • Canon PD-E1 USB Power Adapter
  • Canon BP-820 Lithium-Ion Single Battery Pack (1780mAh, Retail Packaging)
  • Lens Hood with Lens Cover
  • Handle
  • Microphone Holder
  • Limited 1-Year Warranty
