SmallHD Indie 7 On-Camera Monitor

33.1.MON-INDIE7
  • Watch Video
  • Watch Video
  • Watch Video
  • Product Features:

    Optically Bonded 7-inch IPS LCD touchscreen
    1920x1200 resolution
    1000 nits brightness
    10-bit color processing in 100% Rec 709
    4K & HDR compatible
    530g
    HDMI and 3G-SDI inputs and outputs
    Cross conversion: HDMI to SDI, SDI to HDMI
    $2,550.00
    $2,295.00
    Stock Level:
    In Stock
    Check Location Availability

    SmallHD Indie 7 On-Camera Monitor

    Essential Add-On's we recommend

    Description

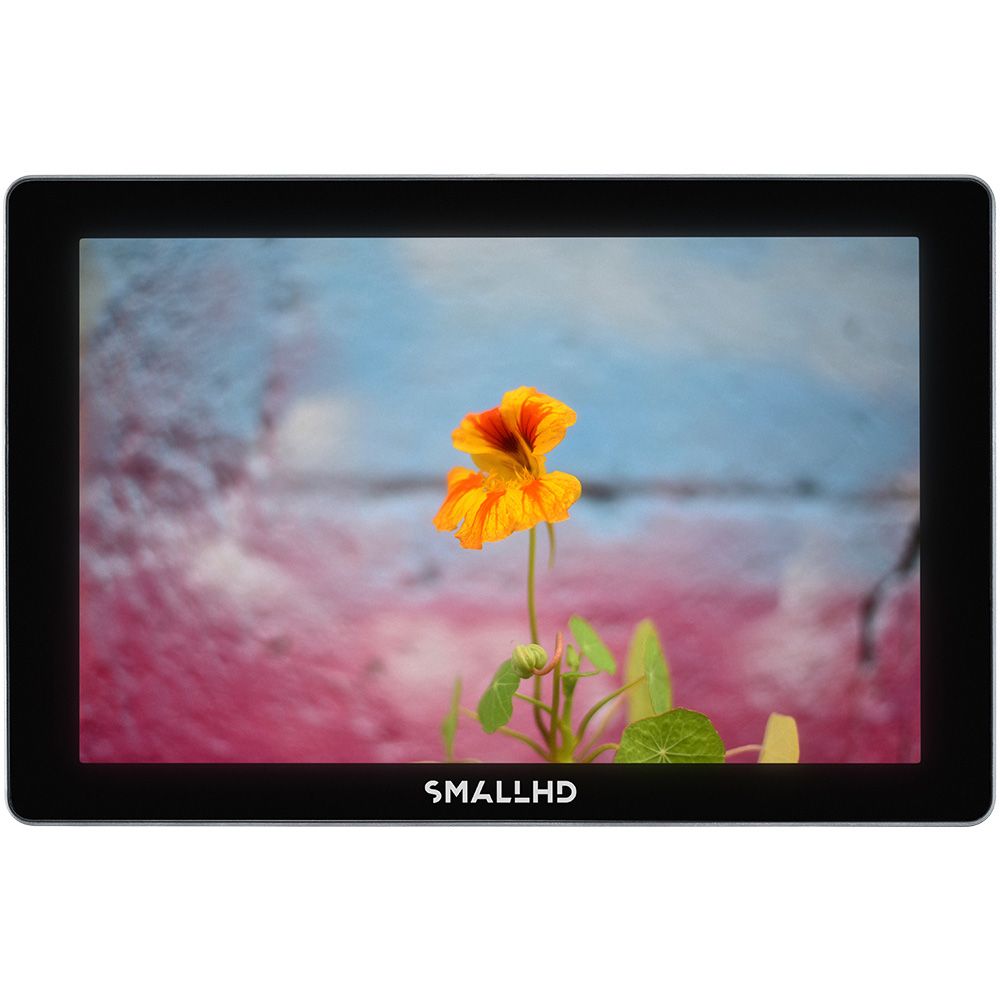

    The lightweight Touchscreen On-Camera Monitor provides professional monitoring in a sharp 7" IPS LCD with 1920 x 1200 resolution, 10-bit colour processing, 1000 cd/m² brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input via HDMI.

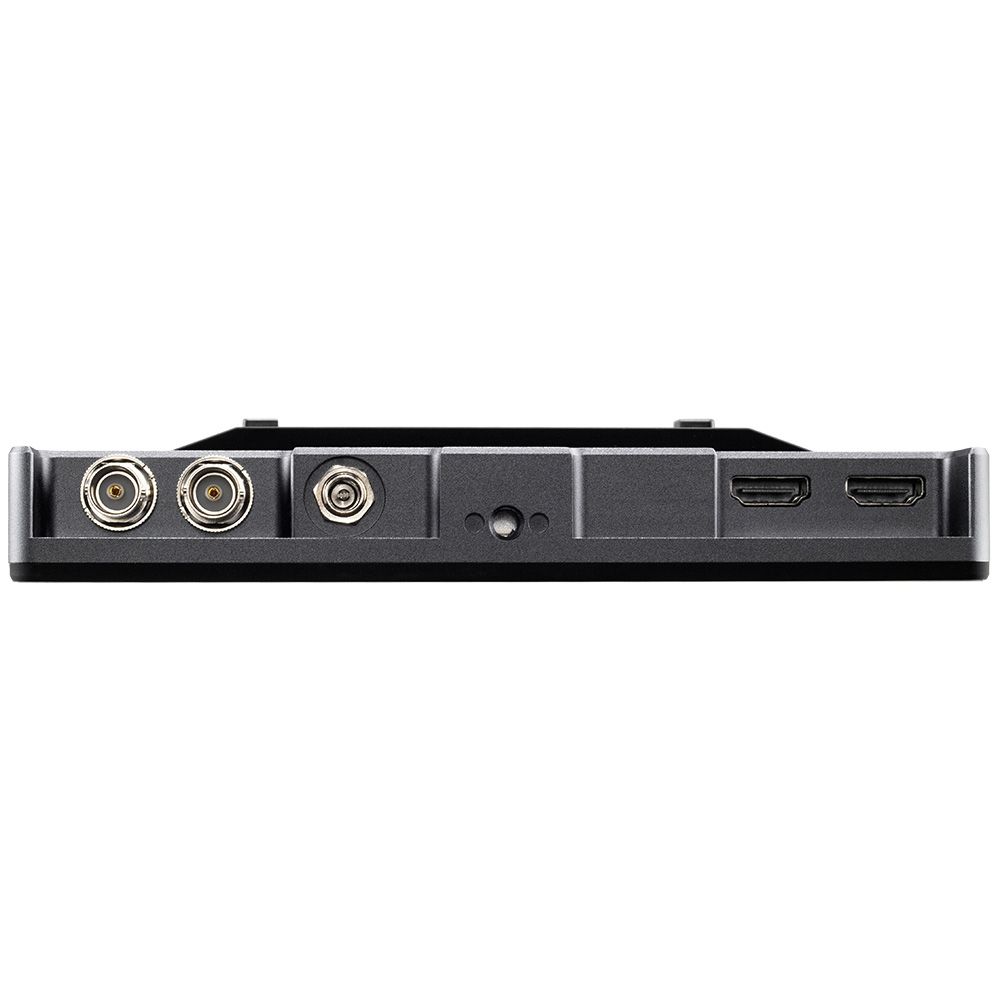

    The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4"-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs.

    Using the intuitive SmallHD PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, pre-configured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements, while maintaining all the features of its predecessor, OS3.

    Features

    • Daylight-viewable, 7" touchscreen on-camera monitor with 1000 cd/m² brightness
    • Slim, lightweight design with 10-bit, touchscreen IPS LCD panel
    • HDMI and 3G-SDI inputs and outputs; supports video input up to UHD 4K30 via HDMI

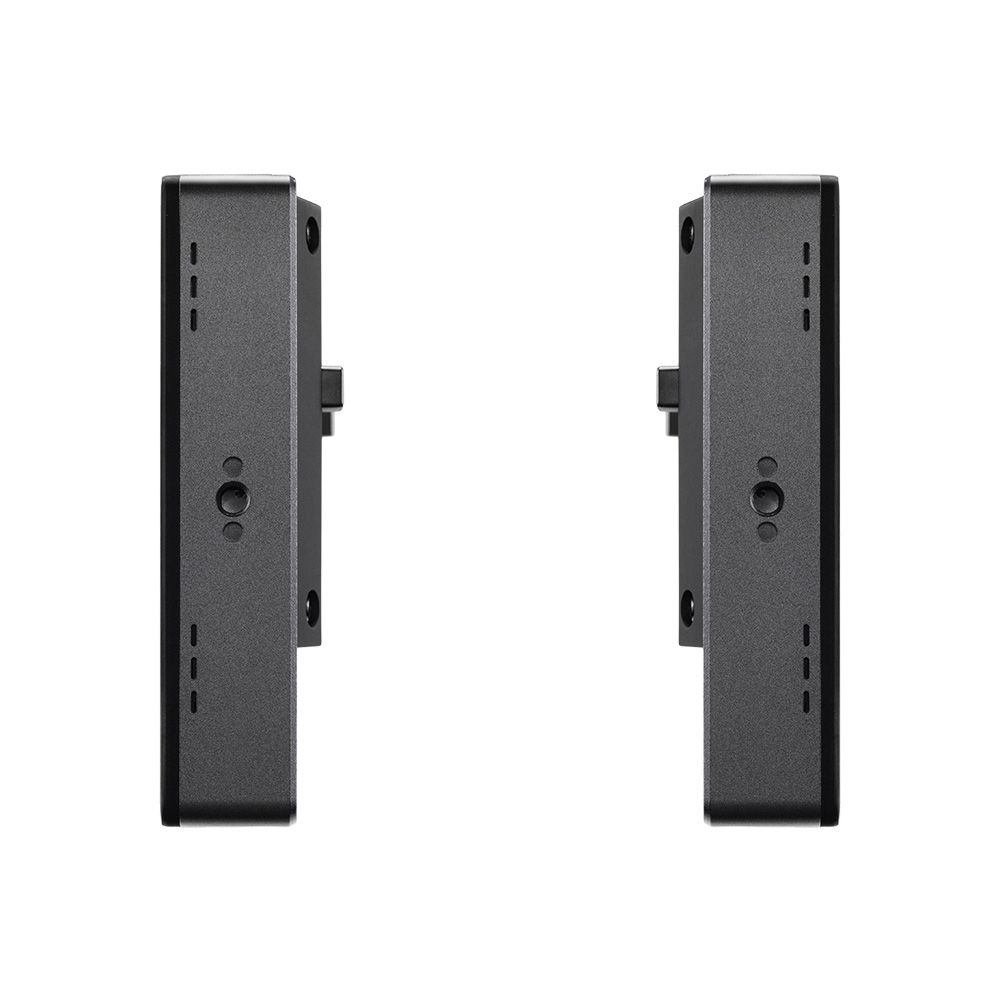

    • Four 1/4"-20 mounting threads on left, right, bottom, and back of the monitor
    • SmallHD PageOS 4 has all the features of OS3 to organize and save customized function and settings pages as well as a settings dashboard, page tabs, false colour overlays, improved function buttons, pixel zoom, focus assist, peaking, and more
    • Power using a barrel input or with the included L-series battery plate, or use a separately available Gold mount or V-mount plate
    • Durable aluminium chassis

    Display Tools

    Pixel zoom: 2x and 4x with pinch-zoom
    Aspect ratios: Preset and customizable
    DSLR scale: Canon 5D Mk II and Canon 7D
    Custom scale: Underscan only
    Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
    Image flip: Auto and manual
    Image rotation: Auto and manual
    Cross conversion: HDMI to SDI, SDI to HDMI
    Colour focus assist: Adjustable style and intensity
    Peaking: Adjustable intensity
    False-colour: Spectrum, ARRI-style, and customizable
    Zebra: Dual, customizable
    Waveform: Luma and RGB, customizable with region-of-interest highlighting
    Vectorscope
    RGB parade, customizable
    Histogram: Luma and RGB
    Image capture, with dedicated button and image gallery
    Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
    LUT import: Via SD card or USB storage device
    Image overlay: Opacity slider and blink setting
    Image capture
    Audiometers: Up to 8 channels
