INOVATIV Deploy Inc Bottom Drawer & 2 Load Handles
Product Features:
Description

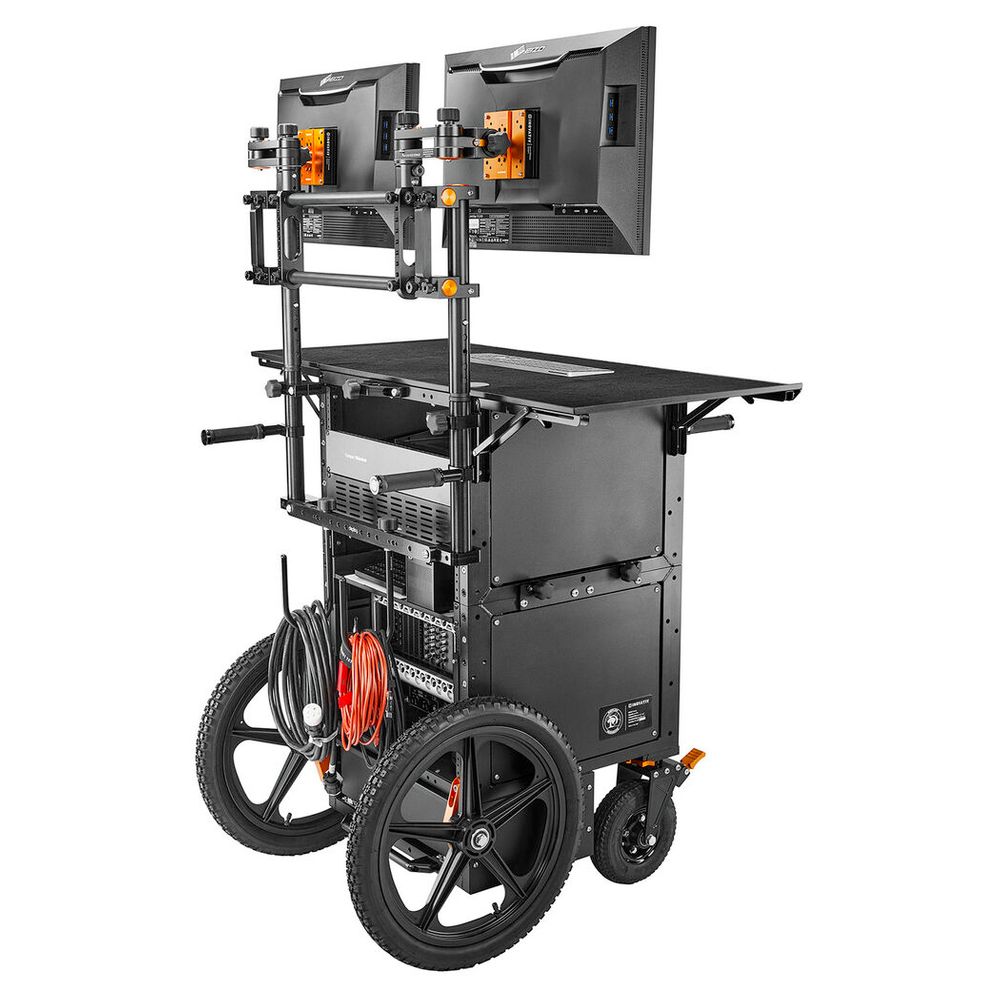

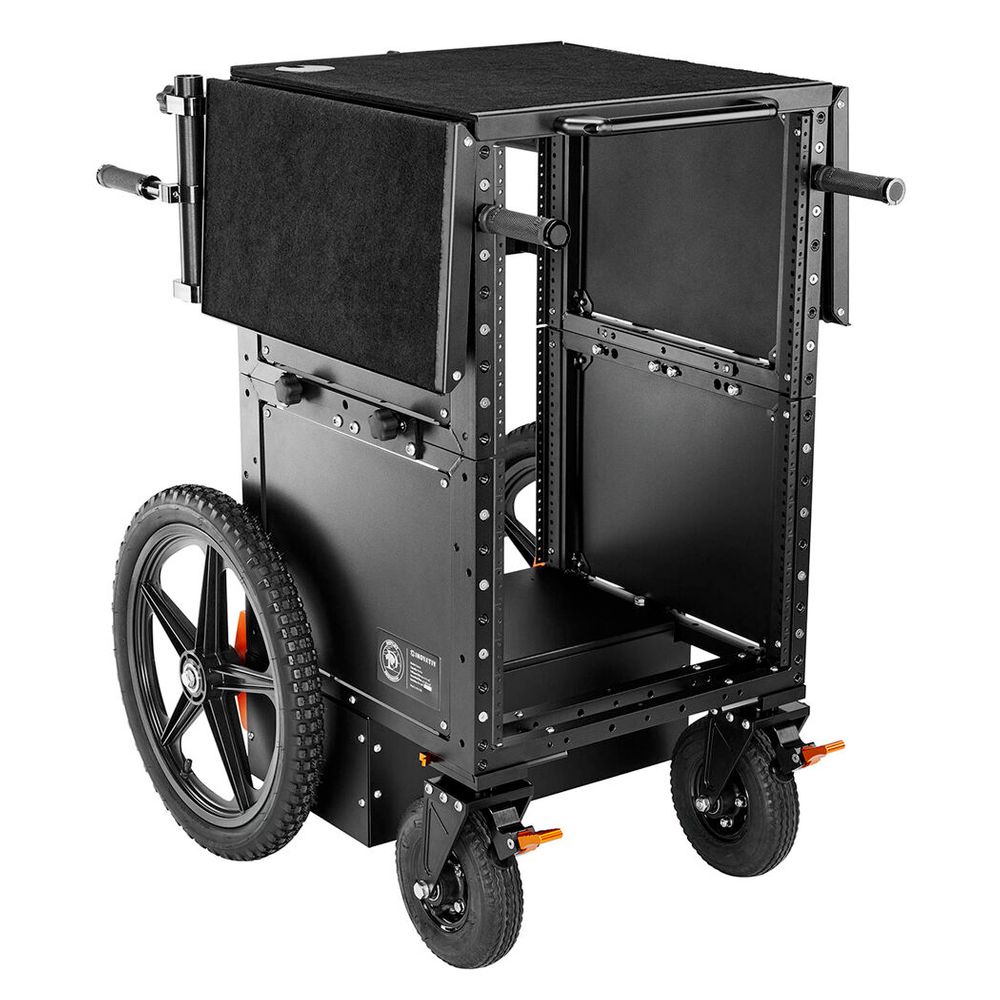

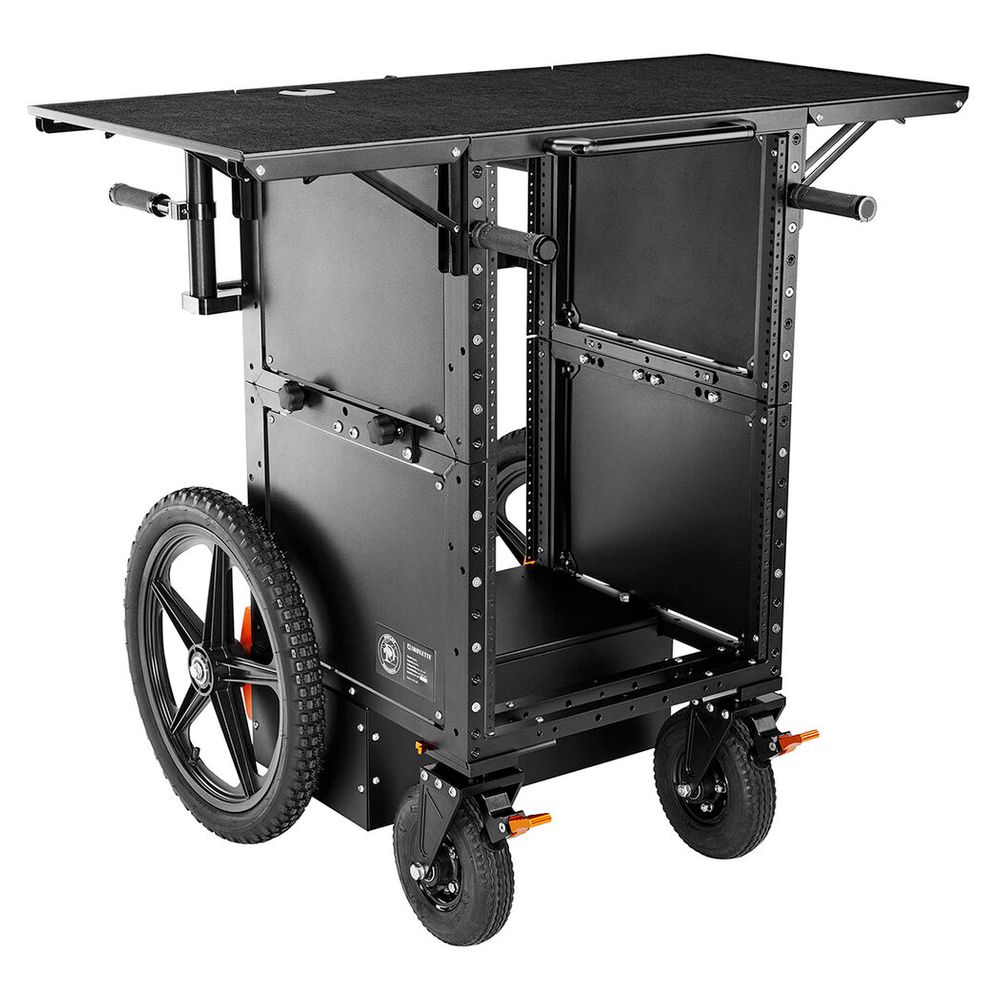

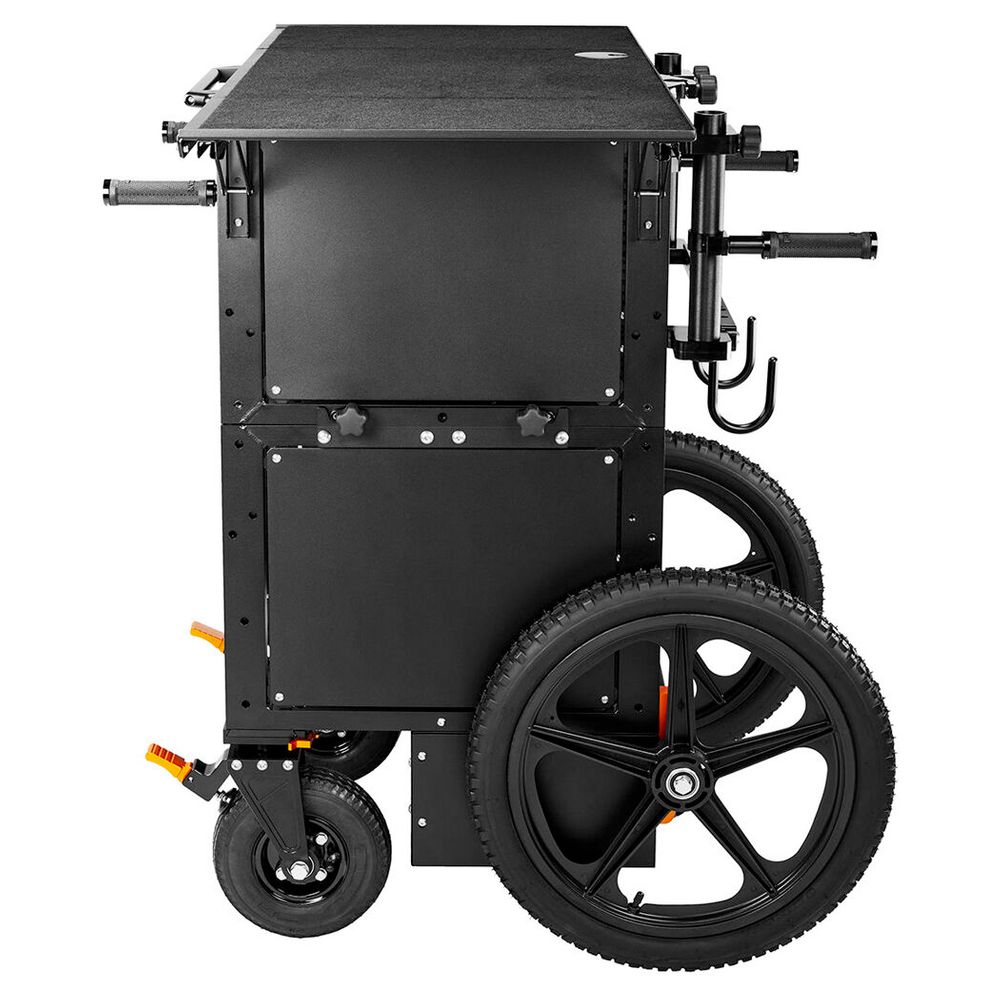

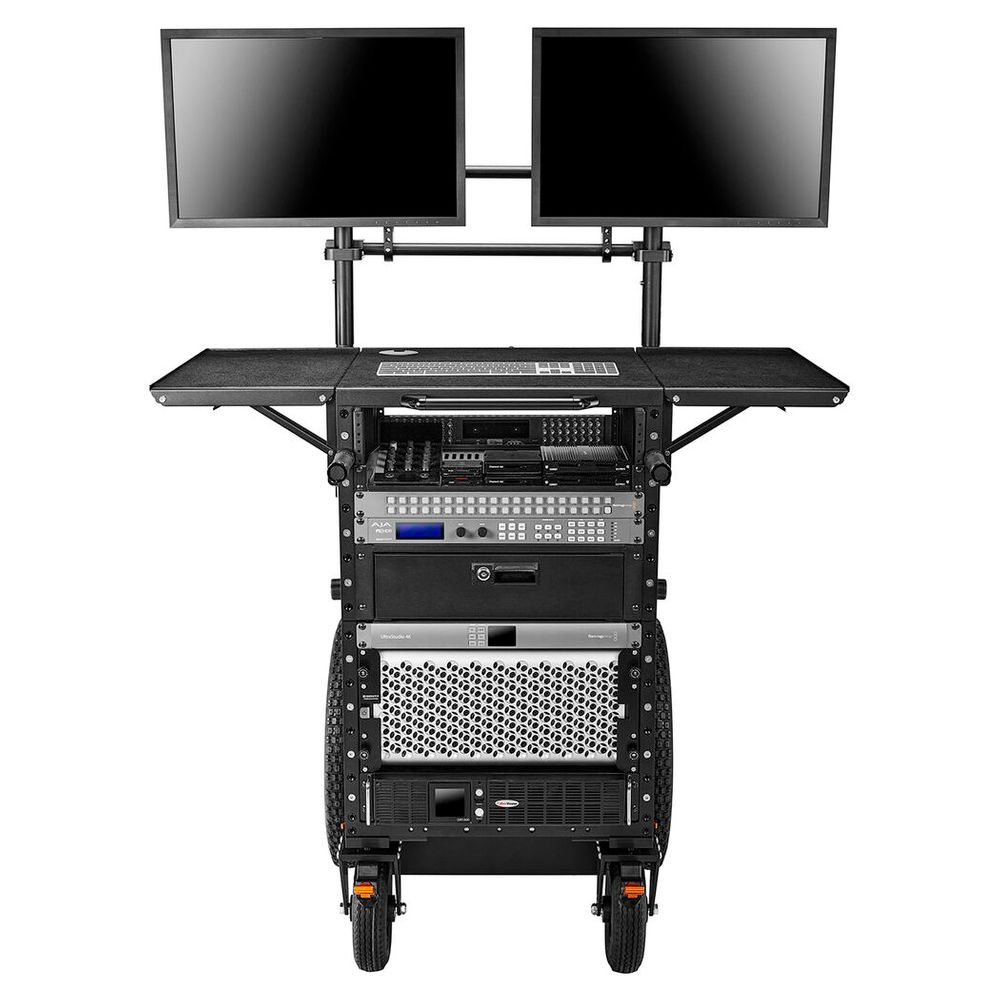

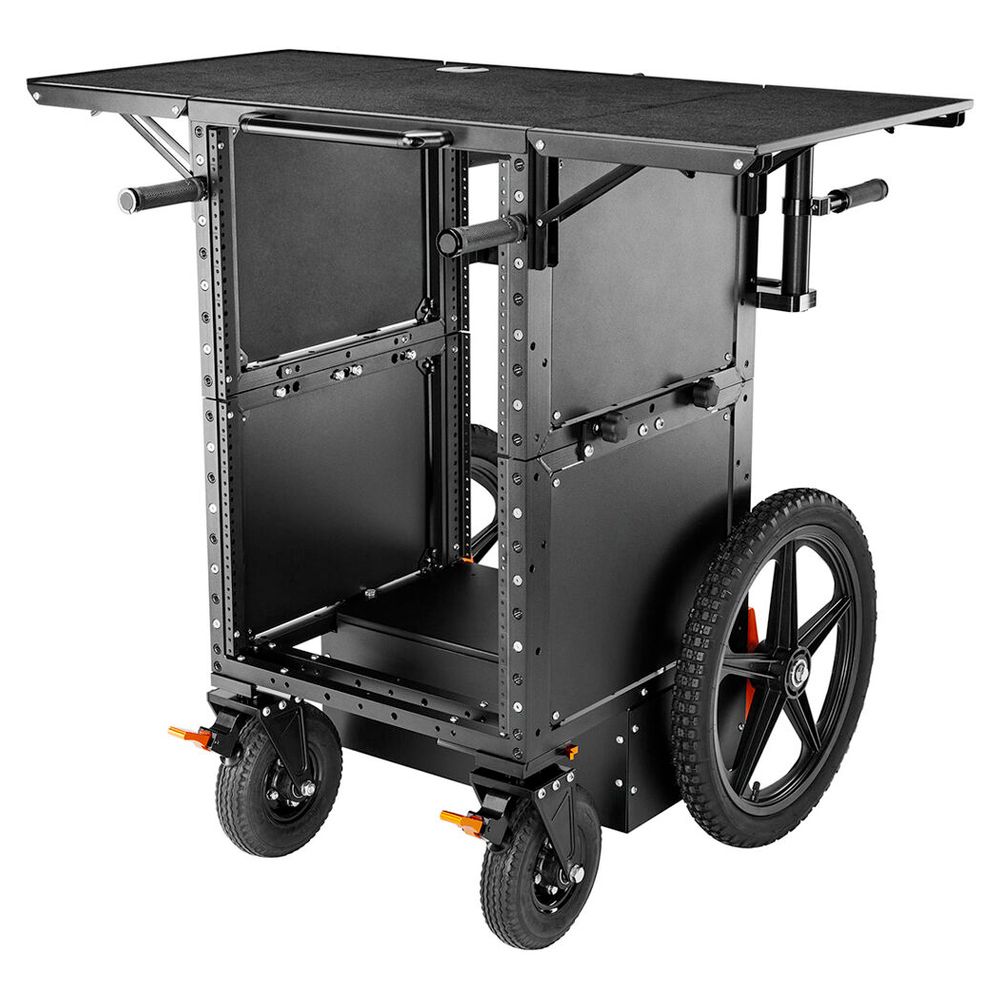

The Deploy is a mobile workstation with up to 16U of vertical rack-mount space. Ideal for both studio and on-location use, the Deploy is fit for travel with INOVATIV’s EVO Wheel System on the front and 20′′ traction wheels in the rear. EVO Wheels swivel for navigation, include foot brakes
for safety, and can be removed if needed. The 20′′ rear wheels improve mobility over uneven surfaces or rugged terrain.
KEY FEATURES
16U of Rack Space
• Accessible from Both Front and Back
Integrated Accessory Mounting Systems
Center Mast Bracket
Dual Rear Tube Accessory Mounts
Rear Crossbar with 3/8′′-16 and 1/4′′-20
Mounting Points
3/8′′-16 and 1/4′′-20 Throughout
Compact Mobile Design
Extendable/Collapsible 45′′ Work Surface
Height Adjustable 360° Quick Grips
Bolt-On Load Handles
Superior Wheel Systems
Front EVO Wheels & Foot Brakes
Rear 20′′ Traction Wheels
Premium Turnkey Construction
StainlessSteelHardware
Combo-LockingBottomDrawer
Separable Top and Bottom Halves
NEWAnodizedAluminumPullHandles
What’s Included in the Box
1x Deploy Workstation
1x 220-114Bottom Drawer,
1x 500-785 Load Handles (2),
1x 300-500 OVERTUBE STYLE QUICK GRIPS - BLACK
Dimensions
- 89cm L x 115cm W x 108cm H Assembled, Wings Extended
- 89cm L x 70cm W x 108cm H Assembled, Wings Collapsed
- Top Working Surface, Side Wings Collapsed: 54cm L x 53.6cm W
- Top Working Surface, Side Wings Extended: 54cm L x 114.6cm W
- Bottom Drawer Internal Dimensions: 29.5cm L x 44.7cm W x 13.3 H
- Rack Dimensions (Top Half): 53.3cm L x 48.2cm W x 35.5cm H
- Rack Dimensions (Bottom Half): 53.3cm L x 48.2cm W x 35.5cm H
Rack and Frame
- 10/32 Tapped Steel Rack-Rail
- 16U of standard 48.2cm rack space, 53.3cm depth
- (38) integrated and replaceable 3/8-16 threaded mounting holes
Weight and Payload
- Product Weight: 46kg
- Payload Capacity: 272kg
