amaran PT4c 16 Pixel RGBWW 1200mm Tube
Product Features:
amaran PT4c 16 Pixel RGBWW 1200mm Tube
Description
The amaran PT4c is a 4-foot battery-powered pixel tube that is part of amaran’s first-ever full-color LED pixel tube series. The Pixel Tube series is comprised of a family of 1-foot, 2-foot, and 4-foot lengths – all featuring multiple Pixel FX, RGBWW color quality, Sidus Link app & DMX *1 control, and USB-C rechargeable batteries packed into their sleek & slender form factor. At 4 feet in length, the amaran PT4c is an expansive and powerful tube light that adds waves of color to a scene.
For greater control and color chasing capabilities, the PT4c features 16 built-in pixels that can be independently adjusted via the Sidus Link app and 7 pre-programmed Pixel FX for a variety of scenarios, in addition to 9 System FX.
As a full-color fixture, the PT4c’s RGBWW LED chipset produces stellar color quality and accurate skin tones throughout its CCT range of 2,700K to 10,000K with full green-magenta control, achieving high CRI [95], TLCI [98], and SSI values across the board, with an SSI (Tungsten) of 85 and SSI (D56) of 75.
Inside its sleek T12 form factor, the PT4c is powered by a 77Wh internal lithium-ion battery for up to 170 minutes of maximum output. By utilizing a ubiquitous USB-C port, the PT4c be easily charged, and can even fast charge at 32W using USB-C PD to reach full capacity in approximately 3 hours.
Complementing its simple design, each PT4c comes with two clear, 3/8- 16in threaded magnetic T12 brackets to make mounting as easy as possible. Use the magnets to attach the pixel tube to ferromagnetic surfaces or add a 3/8-16in spigot or baby pin to mount it to a light stand. The clear design of the brackets ensure that the mounting solutions do not interfere with the quality or output of the light.
For additional mounting options, each endcap houses a 3/8-16in threaded mount. The possibilities are endless, with the ability to use splicing connectors *2 to arrange the tubes in multiple 3D shapes, like with the amaran T2c/T4c.
The PT4c can be controlled from the new interface on the back of the tube, featuring the latest UI, or via the Sidus Link Bluetooth app that powers the rest of the Aputure and amaran product lines. This ultra- capable application can control all the lights in the scene, activate stunning lighting effects, and ensure that the Pixel Tubes are always up to date. For more advanced console controls, a Wired USB-C to 5-Pin XLR In & Out DMX Dongle1 unlocks DMX control for the entire Pixel Tube product line, like the amaran T2c/T4c and F-Series products.
Combining layers of functionality, battery power, high-quality color, and a high transmittance diffuser that produces a wide 180° beam angle, the versatile mid-sized Pixel Tube from amaran shines as an effects, fill, accent light, and so much more. Lastly, for that extra touch of lighting control, the 45o Fabric Light Control Grid *3 will hone the quality of the light to perfection.
*1 amaran USB-C to DMX Adapter with USB-C Input Sold Separately
*2 amaran Pixel Tube Splicing Connectors Sold Separately
*3 45o Fabric Light Control Grid for amaran PT4c Sold Separately
Features:
• 4ft (120cm) Battery Powered RGBWW Color LED Pixel Tube
• 16 Independently Controllable Pixels (LED Engines)
• Built-In 77Wh Lithium-Ion Battery (Approx. 170 min. Runtime
@ Max Power)
• Supports USB PD 32W Fast Charging
• 5-Sided Endcaps for Quick Positioning
• 3/8-16in Mounting Points on Each End Cap for Additional
Rigging Options
• Fully Tunable CCT from 2,700K to 10,000K
• CRI: 95, TLCI: 98, TM-30 Rf (ave.): 92, TM-30 Rg (ave.): 100, SSI
(D56): 75, SSI (Tungsten): 85
• Fully Tunable Green-Magenta Adjustment (Full Plus/Minus
Green)
• Advanced HSI with White Point CCT Control
• Sidus Link Bluetooth App Control
• DMX Control via USB-C with 14 Built-In DMX Profiles & DMX
Loss Behaviors1
• 9 System FX: Fireworks, Fire, Paparazzi, Faulty Bulb, TV, Pulsing,
Cop Car, Lightning, Party Lights
• 7 Pixel FX: Color Fade, Color Cycle, One Pixel Chase, Two Pixel
Chase, Three Pixel Chase, Rainbow, Pixel Fire
• Smooth Diffusion for High-Output Blended Color
• Included Threaded Magnetic Brackets for Additional Mounting Options

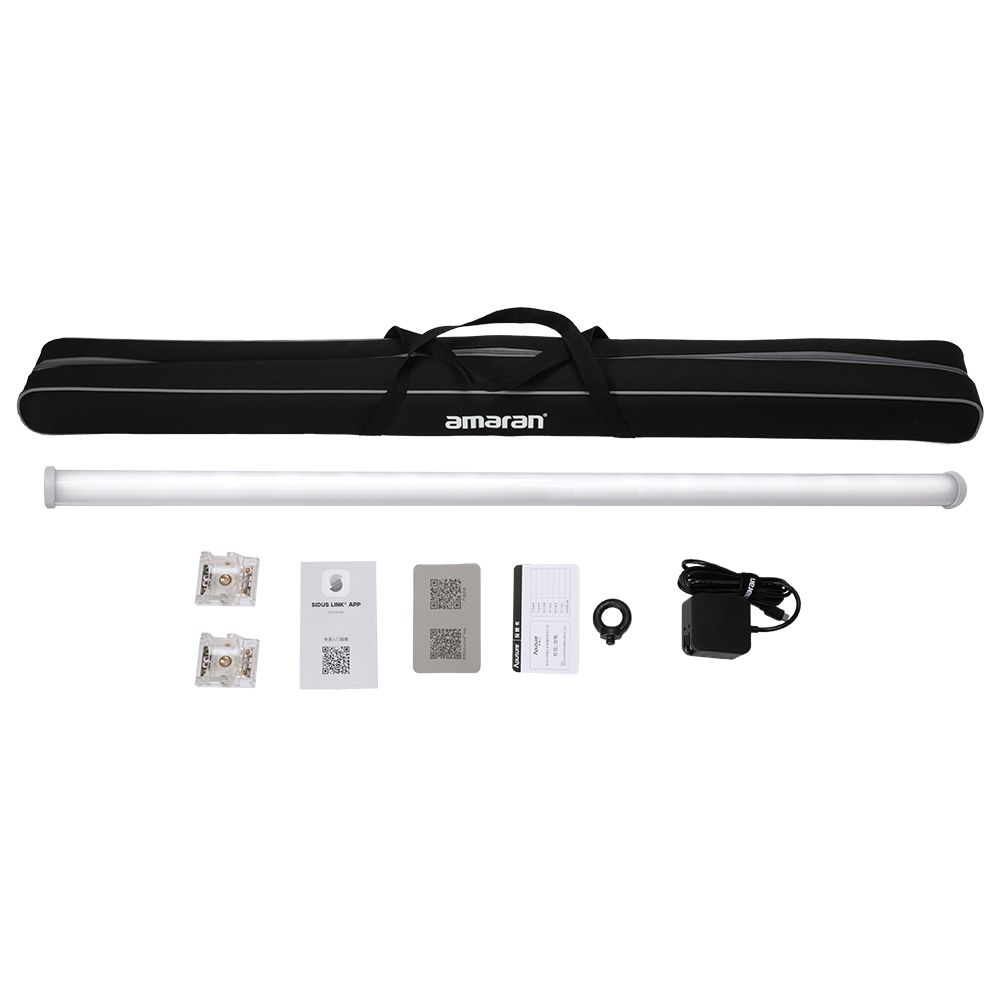

• Included Carrying Case
* amaran USB-C to DMX Adapter with USB-C Input Sold Separately
amaran PT4c Specifications:
CCT 2,700K – 10,000K
CRI (@ 5,600K) 95
TLCI (@ 5,600K) 98
CQS (@ 5,600K) 96
SSI (D56) 75
SSI (Tungsten) 85
TM-30 RF (@ 5,600K) 92
TM-30 RG (@ 5,600K) 100
Max Power Output 23W
Max Power Consumption 32W
Pixel Mapping 16 Pixels
Lumens 1402lm
Beam Angle 180o
Charging Input USB Type-C PD 32W
Power Supply:
Voltage USB PD 5V/9V/12V/15V/20V
Cable Length 1.8m
Battery Voltage 14.8V
Battery Capacity 5200mAh, 77Wh
Battery Life:
Approx. 170 Mins @ 100% Output
Approx. 228 Mins @ 75% Output
Approx. 321 Mins @ 50% Output
Approx. 776 Mins @ 10% Output
Charge Time Approx. 190 Mins (20V/1.6A)
Operating Temperature -10°C ~ 40°C / 14°F ~ 104°F
Control Methods On-board, Sidus Link App, DMX via USB Type-C (Sold Separately)
Firmware Upgradeable Sidus Link
Wireless Operating Range ≤80m / ≤262.5ft (Bluetooth)
Screen Type TFT
IP Rating IP20
Cooling Method Passive Cooling
Dimensions:
Fixture φ42 x 1200 mm / φ1.65 x 47.24in
Magnetic T12 Bracket 54 x 46 x 42mm / 2.12 x 1.81 x 1.65in
Power Adapter 58 x 58 x 29mm / 2.28 x 2.28 x 1.14in
Eyebolt 36 x 20 x 40mm / 1.42 x 0.79 x 1.57in
Carrying Case 1250 x 110 x 100mm
49.21 x 4.33 x 3.94in
Weight:
Fixture 1.375kg
Magnetic T12 Bracket 54g
Power Adapter 185g
Eyebolt 41g
Total with Case 2.629kg
