SmallHD Indie 5 RED RCP2 Kit Komodo DSMC3
Description

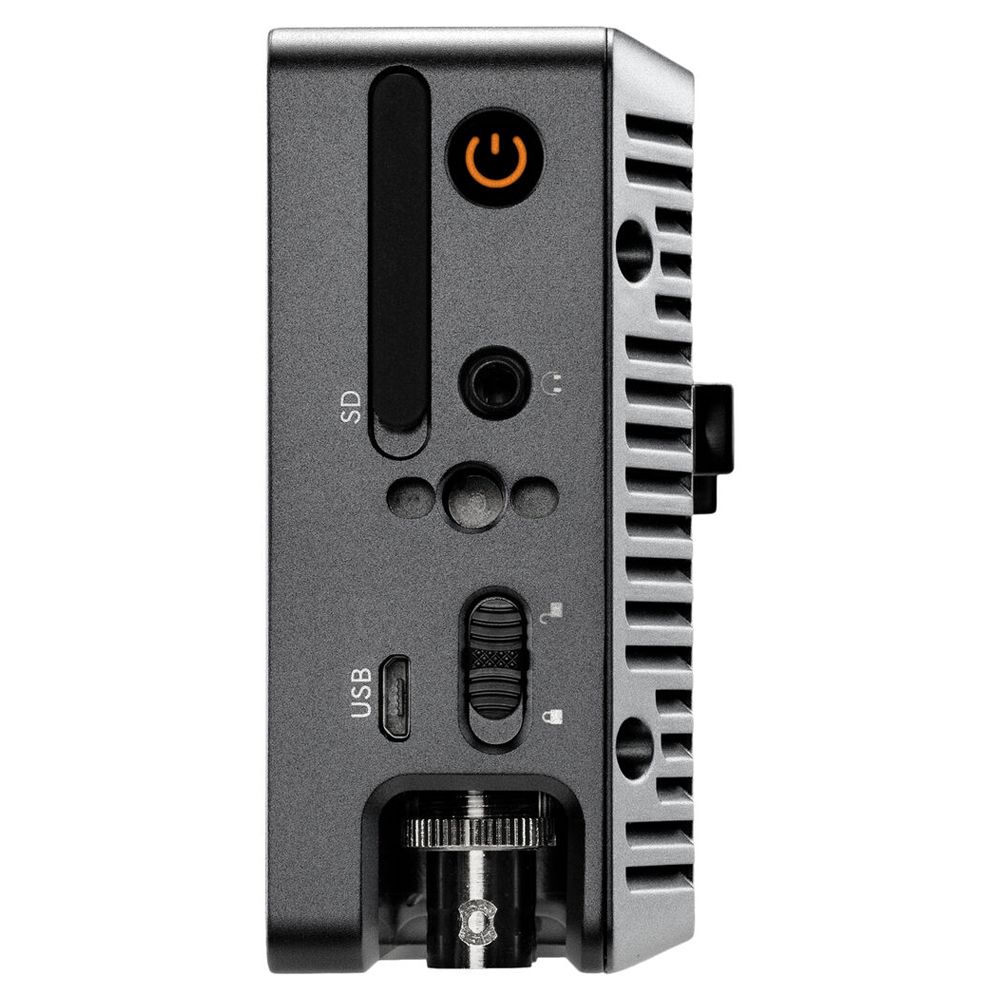

Use the lightweight Indie 5 RED RCP2 Monitor Kit from SmallHD to provide professional monitoring for your KOMODO or RED DSMC3 camera with a sharp 5" display suitable for indoor or outdoor use. The kit includes the Indie 5 monitor, a micro-USB to 5-pin control cable, a cable adapter, a microfiber cleaning cloth, and the RED KOMODO/DSMC3 RCP2 camera control software upgrade.
The Indie 5 monitor supports up to UHD 4K30 HDMI input/output as well as up to 1080p60 via the SDI input/output. The RED control software loads onto the monitor and allows you to control RED camera functions via the RCP2 protocol such as run/stop, color and exposure controls, status, color temperature, video format, playback, shutter, menu control, and more, all via the Indie 5 touchscreen. The control cable and micro-USB-to-LEMO adapter allow the monitor to connect to the camera.
The compact and lightweight INDIE 5 Touchscreen On-Camera Monitor from SmallHD provides professional monitoring in a sharp 5" LCD with 1920 x 1080 resolution, 10-bit 4:2:2 Rec. 709 color processing, 1000 cd/m² brightness, 1000:1 contrast ratio, touchscreen-only control, and updated SmallHD PageOS 5 firmware. It features HDMI and 3G-SDI inputs and outputs.
The INDIE 5 features a handy touchscreen lock slider, so you don't have to worry about accidentally touching the screen when it's in use. Using the intuitive SmallHD PageOS 5, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements. You can also utilize optional RED camera control via the monitor's micro-USB port.
The monitor is powered using the DC barrel input with a DC adapter, and its durable aluminum chassis protects the monitor in any production environment.
- Daylight-viewable, 5" touchscreen on-camera monitor with 1000 cd/m² brightness
- Slim, lightweight design with 10-bit, touchscreen-only LCD panel
- HDMI and 3G-SDI inputs and outputs
- The included PageOS 5 Toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), Advanced Teradek RT Overlays, and more
- The PageOS 5 UI offers quick and repeatable setups and full control over all parameters and display tools
- Four 1/4"-20 mounting threads on the left, right, bottom, and back of the monitor
- SmallHD PageOS 5 has all the features of OS 4 to organize and save customized function and settings pages as well as a settings dashboard, page tabs, false color overlays, improved function buttons, pixel zoom, focus assist, peaking, and more
- Power using a DC barrel input
- Optional RED camera control via the micro-USB port
- Durable aluminum chassis
- Pixel zoom: 2x and 4x with pinch-zoom
- Aspect ratios: Preset and customizable
- DSLR scale: Canon 5D Mk II and Canon 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Cross conversion: HDMI to SDI, SDI to HDMI
- Color focus assist: Adjustable style and intensity
- Peaking: Adjustable intensity
- False colour: Spectrum, ARRI-style, and customizable
- Zebra: Dual, customizable
- Waveform: Luma and RGB, customizable with region-of-interest highlighting
- Vectorscope
- RGB parade, customizable
- Histogram: Luma and RGB
- Image capture, with dedicated button and image gallery
- Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Image capture
- Audio meters: Up to eight channels
Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use.
Since SmallHD monitors can now display lens focus information with the latest OS3 upgrade, this Micro-USB to 5-Pin LEMO Adapter helps attach a Teradek RT lens controller to your monitor to map and display that information along with your camera's image.
The adapter features a micro-USB male connector that plugs directly into your monitor, and the female 5-pin LEMO adapter on the other end connects a separately available cable from a Teradek CTRL.1 or CTRL.3 lens controller. The port can also power the controller using 5V pass-through power from the micro-USB port. The adapter mounts directly onto your monitor using a 1/4"-20 thumbscrew, or it can mount onto a monitor cage.
Teradek RT CTRL.1 and CTRL.3 lens controllers
Control the RCP2 functions on your RED KOMODO camera when using the optional KOMODO Camera Control software on your Focus Pro monitor with this EXT 9-Pin to 5-Pin USB Camera Control Cablefrom SmallHD. This purpose-built cable allows your RED KOMODO camera to be controlled via the SmallHD FOCUS Pro monitor when it has the RED control software installed. The cable measures 18" in length.
