Your Creative Partner Since 1970

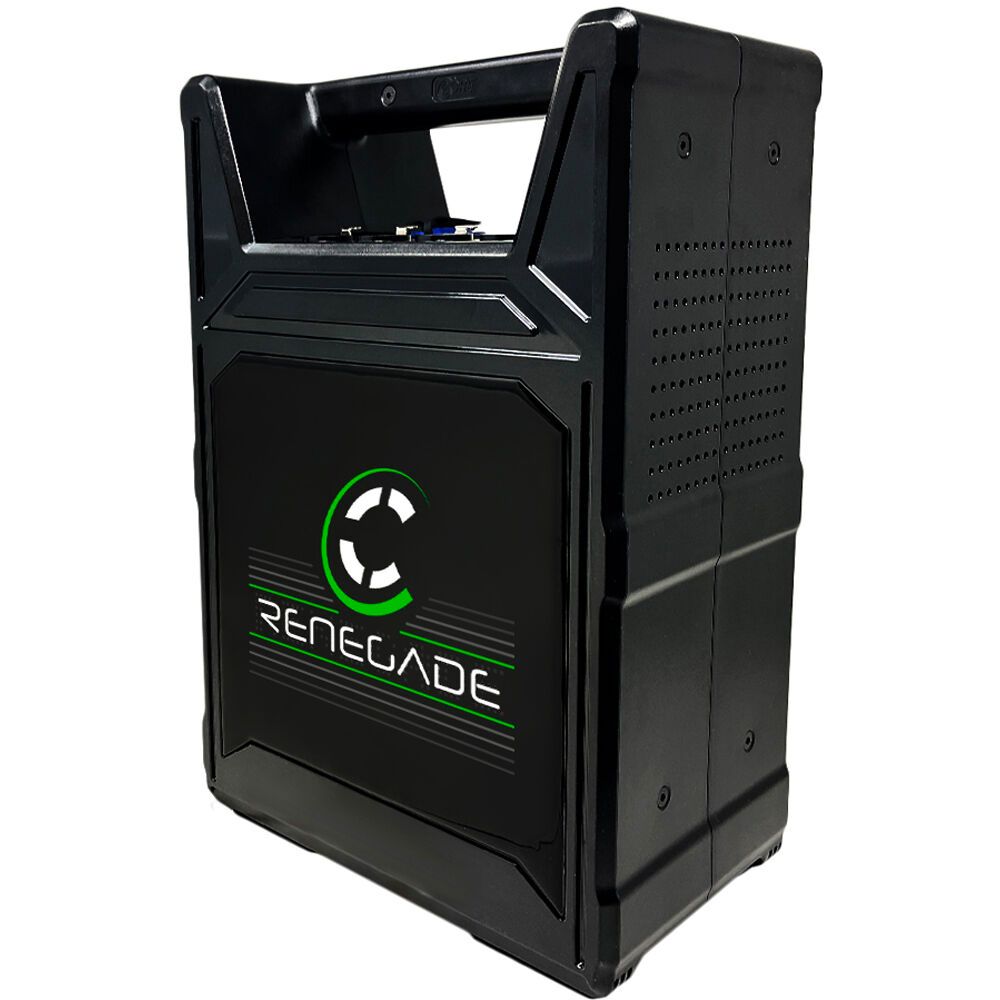

Core SWX Renegade Mobile Power Station 777wh

52.RNG7

Product Features:

15 and 28V XLR, 28V powerCON Outputs
777Wh Lithium Iron Phosphate Battery
Charges in 3.5 Hours
Backlit LCD
3-Pin XLR Charging Input
Includes PFQ8 Charger

Configuration Options:

$4,395.00
$3,745.01
Stock Level:
Out of Stock
Check Location Availability

Core SWX Renegade Mobile Power Station 777wh

Essential Add-On's we recommend

Description

Designed to power cinema cameras, lights, and other heavy-duty items on set, the Core SWX Renegade Mobile Power Station features multiple power output ports and voltages to suit a variety of gear. A 777Wh Lithium Irion Phosphate battery makes up the power station's internal construction. Two 4-pin XLR ports output 15V of regulated power, two 3-pin XLR ports output 28V of power, and one powerCON port outputs 48V of regulated power to devices of your choice.

The Renegade can accommodate a maximum load of 20A at 15/28V and 15A at 48V. A built-in, backlit LCD screen provides extensive status reporting and can even show real-time charging updates. Once its power has been depleted, recharge it in just 3.5 hours with the included PFQ8 external fast charger and 3-pin XLR input. Internal temperature, voltage, and current protections, as well as a durable exterior design, ensure the mobile station's longevity.



EXPECTED RUN TIMES (FULL POWER)





LS300D MKII

LS600D

LS600D/X/C PRO

LS1200D

RENEGADE

130 MINS

60 MINS

60 MINS

NA

RENEGADE XL

230 MINS

105 MINS

105 MINS

NA

RENEGADE XL48

230 MINS

105 MINS

105 MINS

45 MINS

*RUN TIME IS AN ESITMATE ONLY, MAY VARY BASED ON INDIVIDUAL CONDITIONS

Core SWX RNG7 Specs

General
CompatibilityCore SWX PFQ8 Charger
Display
Panel TypeLCD
SizeNot Specified by Manufacturer
TouchscreenNo
Battery
Battery ChemistryLithium Iron Phosphate
Battery Capacity777 Wh
Recharge Time3.5 Hours
Power
Operating Current20 A (Maximum)
15 A (Maximum)
Environmental
Environmental ProtectionNone
Physical
ColorBlack
Material of ConstructionPolycarbonate, Sheet Aluminum
Cable LengthNot Specified by Manufacturer
Dimensions34.8 x 24.28 x 13.5 cm
Weight9.8 kg



In the Box

  • Core SWX Renegade Mobile Power Station (777Wh)
  • Core SWX Replacement Charger for Renegade RNG7
  • Limited 2-Year Manufacturer Warranty
