The Renegade XL1 Mobile Power Station from Core SWX is designed to power your hybrid lighting and camera needs in high-demand productions. This mobile power station features multiple outputs and voltages to suit a variety of power-hungry gear on your set, which can be monitored by a detailed status display and VoltBridge technology.
More Power at Your Disposal
The Renegade XL1 is designed to be a cine/lighting hybrid power station, providing 14V 4-pin XLR outputs, a 3-pin 28V XLR output, and 48V powerCON output to power any camera or light on your set. It features internal lithium-ion cells with a 1376Wh / 93Ah capacity and up to a 12-15A maximum load, depending on your output type.
The D-Tap power outputs allow you to daisy-chain the Renegade XL units so you can provide even more extensive power on set.
Form Factor and Charging Options

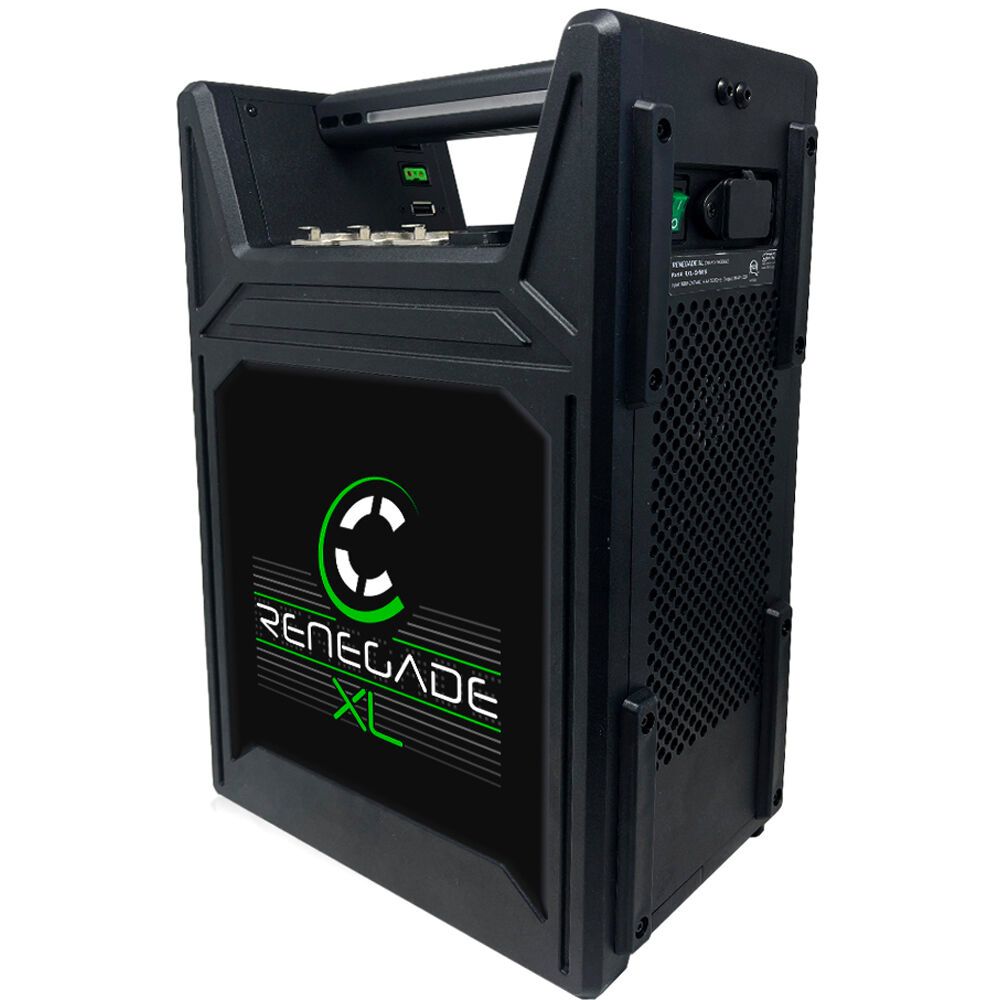

The Renegade XL1 features the same form factor as its siblings, the Renegade and Renegade XL48, featuring the same modular structure that allows easy maintenance and its built-in handle to provide simple transport. It can be charged using its internal charger and just an IEC cable in about five hours, and it can also be used with the optional SFQ40 external charger that can charge a single XL1 in 2.5 hours or simultaneously charge two XL1 batteries in 5 hours.

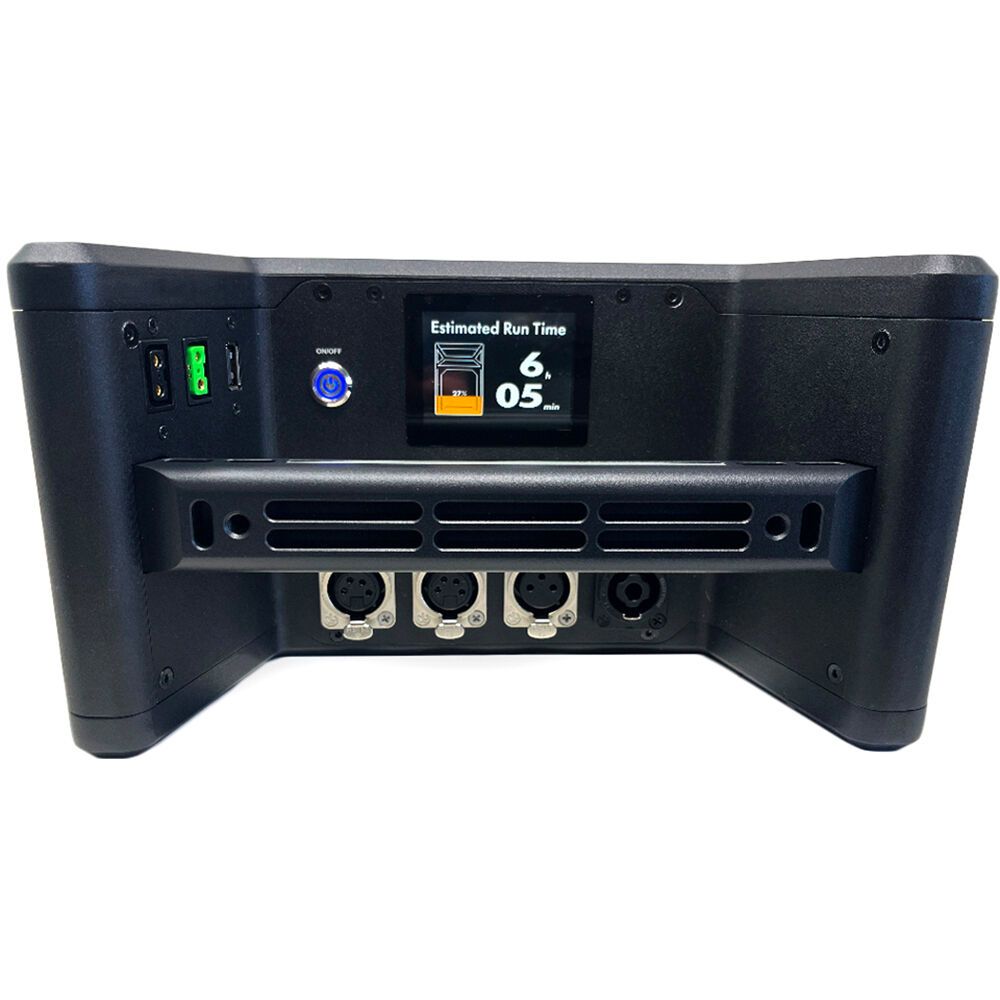

OLED Status Display
The XL1 features a bright, color OLED display that shows multiple stats about the battery, including available charge, percentage, and runtime, and it provides real-time updates on current load. It also provides information about standby, connected, and charging phases for even more control over the battery.
VoltBridge Mesh, Cloud-Based Monitoring
Like other Core SWX power stations, the Renegade XL1 can be monitored and managed using the VoltBridge Mesh Enterprise platform.
You can insert a VoltBridge dongle into the SmartTap aux port on the Renegade XL1, and it will provide all the data to the VoltBridge applications for performance monitoring, safety operation, and management.
The XL1 features internal temperature protection, overvoltage protection, and overcurrent protection. The VoltBridge management system can also assist in monitoring voltage and current information, providing an additional layer of protection.
