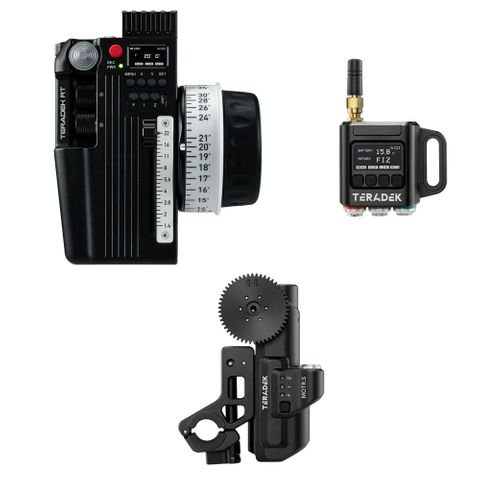

For precise lens control with your Teradek RT motors and receivers, the Teradek CTRL.3 Three-Axis Wireless Lens Controller can control focus, iris, or zoom with ease. The CTRL.3 has an outdoor wireless range of 5000' and an indoor wireless range of 500'. You can also use the included 5-pin monitor interface cable to connect directly to a monitor.

The large focus knob, flexible mounting options, OLED display for configuration and lens data, and its lightweight design make the CTRL.3 accessible and easy to use. It's powered by a single LP-E6 battery (available separately) which provides approximately 36 hours of usage time. Features include a lens mapping firmware update to utilize the included pre-marked focus or iris rings for quick autocalibration when switching lenses during a shoot. The CTRL.3 comes with five white discs Type-B, a 3' USB cable, a SmallHD monitor interface cable, a large case, six pre-marked focus rings, and four Iris strip sliders.

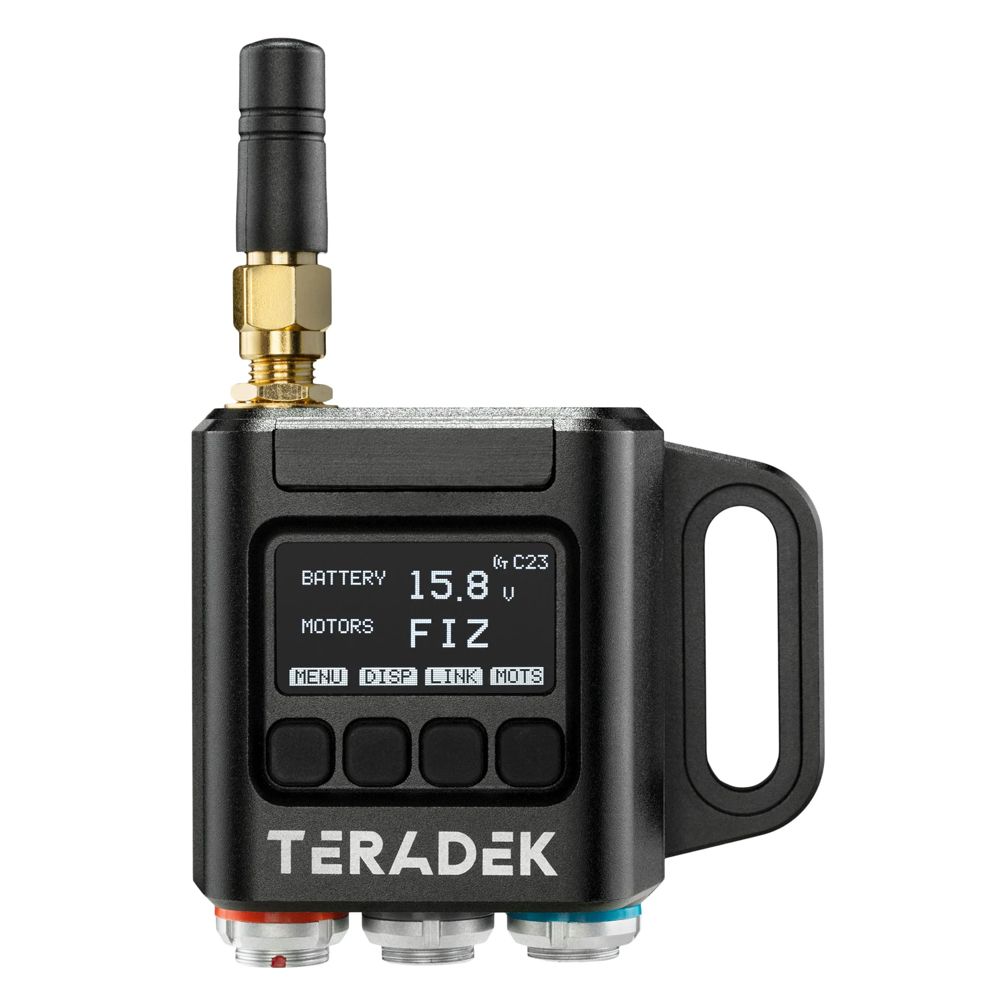

With 3-channel lens control in an ultracompact form factor, the MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth from Teradek allows you to control compatible RT motors for wireless focus, iris, and zoom functionality. The MDR.S has FHSS wireless technology that prevents interference and a 5000' line of sight range. A 6-pin port on the receiver allows you to trigger run/stop on the camera from your connected hand unit.

The MDR.S features a built-in OLED display with four buttons for control over various functions. Further parameters can be controlled via the device's integrated Bluetooth and the Teradek RT smartphone app. A 28V input range allows you flexibility in powering the receiver.

Designed to improve upon previous models, the Teradek RT MOTR.S Lens Motor is an ultra-compact, lightweight, and speedy lens control unit capable of adjusting focus, iris, or zoom functions. The motor has a maximum torque of 0.95nm and a maximum speed of 297 teeth per second. Balanced cable management ensures your 0B 4-pin connections redirect cables and prevent them from getting in the way of your camera configuration.

An improved rod clamp is compatible with both 15 and 19mm rods. One 0.8 MOD lens gear is included and separately available gears can expand lens compatibility. The MOTR.S can be daisy-chained to suit your needs. The motor supports an operating voltage up to 32V.

Power your RT MDR.S Lens Control Receiver from a separately available power source with this 3-Pin to 2-Pin Power Cable from Teradek. The cable features a 3-pin connector on one end for the MDR.S and a 2-pin on the other end to plug into a separately available power source. The cable measures 15.7" in length.

Power your RT MDR.S Lens Control Receiver from a separately available power source with this 3-Pin to 3-Pin R/S Power Cable from Teradek. The cable features a 3-pin connector on one end for the MDR.S and a 3-pin with ARRI run/stop trigger on the other end to plug into a separately available power source. The cable measures 15.7" in length.

The 16" Run/Stop Cable from Teradek is designed to connect an MDR.X receiver to a RED camera equipped with a CTRL socket. It enables run/stop control of EF lenses.

Teradek LANC Run/Stop Cable for MDR.X Receiver (16")

The 16" Run/Stop Cable from Teradek is designed to connect an MDR.X receiver to a LANC-equipped camera such as the Sony FS-700 or FS7, Canon C300, and Blackmagic Design cameras.

The 16" 5-Pin to Micro-USB 2.0 Type-B Monitor Cable from Teradek is designed to connect the CTRL.1 or CTRL.3 controller to a FOCUS Bolt and CINE 7 receivers, running PageBuilder OS3 to enable lens data overlays.

Use the 24" long Teradek RT SmallHD Monitor Interface Cable to connect your Teradek RT to your SmallHD 703 monitor. The cable features a 5-pin right-angle connector that attaches to your Teradek RT unit and a straight 5-pin connector that attaches to your SmallHD 703 monitor.

This 8" Motor Cable from Teradek has a 4-pin straight-angle connector on each end. The flexible cable exits downward from the MOTR.X brushless lens motor for easy routing back to the receiver or daisy-chaining to another motor.

This 16" Motor Cable from Teradek has a 4-pin straight-angle connector on each end. The flexible cable exits downward from the MOTR.X brushless lens motor for easy routing back to the receiver or daisy-chaining to another motor.

This 24" Motor Cable from Teradek has a 4-pin straight-angle connector on each end. The flexible cable exits downward from the MOTR.X brushless lens motor for easy routing back to the receiver or daisy-chaining to another motor.

Teradek Monitor Bracket for CTRL.1/CTRL.3 Hand Controllers

This Monitor Bracket from Teradek is designed to mount the SmallHD FOCUS, CINE 7, or 703 Bolt monitor directly on the CTRL.1 or CTRL.3 hand controller.

This RT Controller Neck Strap from Teradek is designed to carry the MK3.1 controller hand unit. Use this strap to position the control unit around your neck or across your body, or to drape the controller from a stand when not in use.

Transport your entire RT Wireless Lens Control Kit safely with this RT Protective Case from Teradek. The case has a custom-cut foam insert for three motors and white disc/lens rings. The motors and receiver can be stored with brackets on.

The case is molded with an ultra-high-strength polypropylene copolymer resin. It features a gasketed, water- and dust-tight submersible design that is resistant to corrosion and impact damage. It features a molded-in hinge, a trigger-release latch system, a comfortable snap-down overmolded rubber cushion grip handle, and an automatic ambient pressure equalization valve. The case is resistant to UV, solvents, corrosion, fungus, and impact damage.

In the Box

• Teradek CTRL.3 Three-Axis Wireless Lens Controller (Imperial)
• 5 x Teradek White Disc for CTRL.1/CTRL.3 Controller
• USB Type-A to Micro-USB Type-B Cable (3')
• 5-Pin to Micro-USB SmallHD Monitor Interface Cable (1.3')
• Pre-Marked Focus Ring (0.25m Minimum Focus)
• Pre-Marked Focus Ring (0.5m Minimum Focus)
• Pre-Marked Focus Ring (1m Minimum Focus)
• Pre-Marked Focus Ring (2m Minimum Focus)
• Pre-Marked Focus Ring (3m Minimum Focus)
• Pre-Marked Iris Ring (1 - 32)
• Iris Strip Slider 0 (1 - 22)
• Iris Strip Slider 10 (1.4 - 22)
• Iris Strip Slider 20 (2 - 22)
• Iris Strip Slider 30 (2.8 - 22)
• Large Teradek Case with RT Motion 3 Motor
• Limited 1-Year Manufacturer Warranty
• Teradek MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth
• USB 2.0 Type-A to Type-C Male Cable (3.3')
• Teradek RT Power 3-Pin D-Tap Cable
• Straight 2.4 GHz Wi-Fi Antenna
• MDR.S Bracket
• Black Screw Socket Head (M2 x 6mm)
• Screw Socket Cap (1/4"-20 x 3/8"-16)
• Teradek RT MOTR.S Lens Motor
• 0.8 MOD Gear
• MOTR.S Bracket
• Teradek 3-Pin to 2-Pin Power Cable for MDR.S Receiver (15.7")
• Teradek 3-Pin to 3-Pin R/S Power Cable for MDR.S Receiver (15.7")
• Teradek RED Run/Stop Cable for MDR.X Receiver (16")
• Teradek LANC Run/Stop Cable for MDR.X Receiver (16")
• Teradek 5-Pin to Micro-USB 2.0 Type-B Monitor Cable for SmallHD Overlays (16")
• Teradek RT SmallHD Monitor Interface Cable (24")
• Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (8")
• Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (16")
• Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (24")
• Teradek Monitor Bracket for CTRL.1/CTRL.3 Hand Controllers
• Teradek RT Controller Neck Strap
• Teradek RT Protective Case for 3-Motor Lens Control Kit
• NPI RED KOMODO/RAPTOR CTRL 9-Pin EXT to 6-Pin (CAM Port)
• LP-E6 1600mAh Li-Ion Battery
• LP-E6 Charger
