Designed to improve upon previous models, the Teradek RT MOTR.S Lens Motor is an ultra-compact, lightweight, and speedy lens control unit capable of adjusting focus, iris, or zoom functions. The motor has a maximum torque of 0.95nm and a maximum speed of 297 teeth per second. Balanced cable management ensures your 0B 4-pin connections redirect cables and prevent them from getting in the way of your camera configuration.

An improved rod clamp is compatible with both 15 and 19mm rods. One 0.8 MOD lens gear is included and separately available gears can expand lens compatibility. The MOTR.S can be daisy-chained to suit your needs. The motor supports an operating voltage up to 32V.

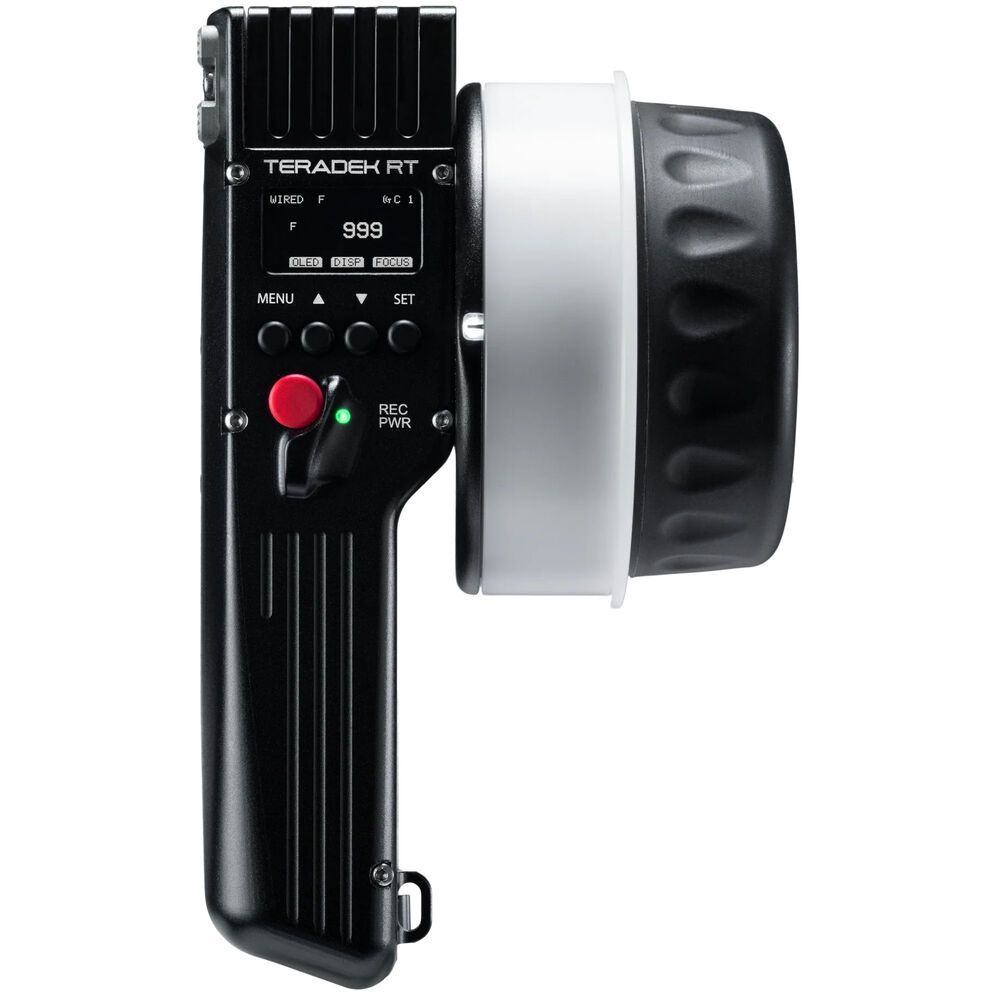

For precise lens control with your Teradek RT motors and receivers, the Teradek RT CTRL.1 Single-Axis Wireless Lens Controller can control focus, iris, or zoom with ease. The CTRL.1 has a wireless range of 5000' so you can control your lens functions when up on a crane or down the block, or you can use an optional 5-pin motor controller cable to connect directly to a motor.

The large focus knob, start/stop control button, bright OLED display for configuration and lens data, and its lightweight design make the CTRL.1 accessible and easy to use. You can also control multiple motor units on the same lens simultaneously with the CTRL.1.

It's powered by a single LP-E6 battery which provides approximately 36 hours of usage time. Optional features include a lens mapping firmware update to utilize separately available, pre-marked focus or iris rings for quick autocalibration when switching lenses during a shoot. The CTRL.1 comes with a neck strap, a mini-USB firmware cable, and a large hard-shell case with custom foam insert to transport your controller and cables.

With 3-channel lens control in an ultracompact form factor, the MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth from Teradek allows you to control compatible RT motors for wireless focus, iris, and zoom functionality. The MDR.S has FHSS wireless technology that prevents interference and a 5000' line of sight range. A 6-pin port on the receiver allows you to trigger run/stop on the camera from your connected hand unit.

The MDR.S features a built-in OLED display with four buttons for control over various functions. Further parameters can be controlled via the device's integrated Bluetooth and the Teradek RT smartphone app. A 28V input range allows you flexibility in powering the receiver.

Power your RT MDR.S Lens Control Receiver from a separately available power source with this 3-Pin to 2-Pin Power Cable from Teradek. The cable features a 3-pin connector on one end for the MDR.S and a 2-pin on the other end to plug into a separately available power source. The cable measures 15.7" in length.

Power your RT MDR.S Lens Control Receiver from a separately available power source with this 3-Pin to 3-Pin R/S Power Cable from Teradek. The cable features a 3-pin connector on one end for the MDR.S and a 3-pin with ARRI run/stop trigger on the other end to plug into a separately available power source. The cable measures 15.7" in length.

This 8" Motor Cable from Teradek has a 4-pin straight-angle connector on each end. The flexible cable exits downward from the MOTR.X brushless lens motor for easy routing back to the receiver or daisy-chaining to another motor.

This 16" Motor Cable from Teradek has a 4-pin straight-angle connector on each end. The flexible cable exits downward from the MOTR.X brushless lens motor for easy routing back to the receiver or daisy-chaining to another motor.

Teradek Monitor Bracket for CTRL.1/CTRL.3 Hand Controllers

This Monitor Bracket from Teradek is designed to mount the SmallHD FOCUS, CINE 7, or 703 Bolt monitor directly on the CTRL.1 or CTRL.3 hand controller.

This White Disc from Teradek is designed to be used with the CTRL.1 or CTRL.3 controller. Use a dry-erase marker to clearly mark the disc. Permanent marker pens can also be used and cleaned with isopropyl alcohol.

This Pre-Marked Focus Ring from Teradek features imperial measurements and is designed for use with the CTRL.1 lens controller unit for automatic calibration and RT lens mapping. It supports a minimum focus distance of 10". The pre-marked ring saves calibration time when swapping out lenses.

This Pre-Marked Focus Ring from Teradek features imperial measurements and is designed for use with the CTRL.1 lens controller unit for automatic calibration and RT lens mapping. It supports a minimum focus distance of 20". The pre-marked ring saves calibration time when swapping out lenses.

This Pre-Marked Focus Ring from Teradek features imperial measurements and is designed for use with the CTRL.1 lens controller unit for automatic calibration and RT lens mapping. It supports a minimum focus distance of 3.5'. The pre-marked ring saves calibration time when swapping out lenses.

This Pre-Marked Focus Ring from Teradek features imperial measurements and is designed for use with the CTRL.1 lens controller unit for automatic calibration and RT lens mapping. It supports a minimum focus distance of 6'. The pre-marked ring saves calibration time when swapping out lenses.

This Pre-Marked Focus Ring from Teradek features imperial measurements and is designed for use with the CTRL.1 lens controller unit for automatic calibration and RT lens mapping. It supports a minimum focus distance of 10'. The pre-marked ring saves calibration time when swapping out lenses.

This Pre-Marked Focus Ring from Teradek features metric measurements and is designed for use with the CTRL.1 lens controller unit for automatic calibration and RT lens mapping. It supports a minimum focus distance of 0.8' (0.25m). The pre-marked ring saves calibration time when swapping out lenses.

This Pre-Marked Focus Ring from Teradek features metric measurements and is designed for use with the CTRL.1 lens controller unit for automatic calibration and RT lens mapping. It supports a minimum focus distance of 1.6' (0.5m). The pre-marked ring saves calibration time when swapping out lenses.

This Pre-Marked Focus Ring from Teradek features metric measurements and is designed for use with the CTRL.1 lens controller unit for automatic calibration and RT lens mapping. It supports a minimum focus distance of 3.3' (1m). The pre-marked ring saves calibration time when swapping out lenses.

This Pre-Marked Focus Ring from Teradek features metric measurements and is designed for use with the CTRL.1 lens controller unit for automatic calibration and RT lens mapping. It supports a minimum focus distance of 6.6' (2m). The pre-marked ring saves calibration time when swapping out lenses.

This Pre-Marked Focus Ring from Teradek features metric measurements and is designed for use with the CTRL.1 lens controller unit for automatic calibration and RT lens mapping. It supports a minimum focus distance of 9.8' (3m). The pre-marked ring saves calibration time when swapping out lenses.

The Pre-Marked Iris Ring from Teradek is designed to be used with a CTRL.1 controller for RT lens mapping. Scaled in metric from 1 to 32, it covers multiple lenses, saving time on the set from manually calibrating after every lens swap.

In the Box

• Teradek RT MOTR.S Lens Motor
• 0.8 MOD Gear
• MOTR.S Bracket
• Limited 1-Year Manufacturer Warranty
• Teradek RT CTRL.1 Single-Axis Wireless Lens Controller
• Neck Strap
• Mini-USB to USB Cable (18")
• Hard-Shell Case with Custom Foam
• Limited 1-Year Manufacturer Warranty
• Teradek MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth
• USB 2.0 Type-A to Type-C Male Cable (3.3')
• Teradek RT Power 3-Pin D-Tap Cable
• Straight 2.4 GHz Wi-Fi Antenna
• MDR.S Bracket
• Black Screw Socket Head (M2 x 6mm)
• Screw Socket Cap (1/4"-20 x 3/8"-16)
• Limited 1-Year Manufacturer Warranty
• Teradek 3-Pin to 2-Pin Power Cable for MDR.S Receiver (15.7")
• Limited 1-Year Manufacturer Warranty
• Teradek 3-Pin to 3-Pin R/S Power Cable for MDR.S Receiver (15.7")
• Limited 1-Year Manufacturer Warranty
• Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (8")
• Limited 1-Year Manufacturer Warranty
• Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (16")
• Limited 1-Year Manufacturer Warranty
• Teradek Monitor Bracket for CTRL.1/CTRL.3 Hand Controllers
• Limited 1-Year Manufacturer Warranty
• Teradek White Disc for CTRL.1/CTRL.3 Controller
• Limited 1-Year Manufacturer Warranty
• Teradek Pre-Marked Focus Ring (10", Imperial)
• Limited 1-Year Manufacturer Warranty
• Teradek Pre-Marked Focus Ring (20", Imperial)
• Limited 1-Year Manufacturer Warranty
• Teradek Pre-Marked Focus Ring (3.5', Imperial)
• Limited 1-Year Manufacturer Warranty
• Teradek Pre-Marked Focus Ring (6', Imperial)
• Limited 1-Year Manufacturer Warranty
• Teradek Pre-Marked Focus Ring (10', Imperial)
• Limited 1-Year Manufacturer Warranty
• Teradek Pre-Marked Focus Ring (0.8', Metric)
• Limited 1-Year Manufacturer Warranty
• Teradek Pre-Marked Focus Ring (1.6', Metric)
• Limited 1-Year Manufacturer Warranty
• Teradek Pre-Marked Focus Ring (3.3', Metric)
• Limited 1-Year Manufacturer Warranty
• Teradek Pre-Marked Focus Ring (6.6', Metric)
• Limited 1-Year Manufacturer Warranty
• Teradek Pre-Marked Focus Ring (9.8', Metric)
• Limited 1-Year Manufacturer Warranty
• Teradek Pre-Marked Iris Ring (1-32, Metric)
• Limited 1-Year Manufacturer Warranty
• Pre-Marked Focus Ring (14", Imperial)
• Canon LP-E6 Lithium-Ion Battery (1600mAh)
• Canon LP-E6 Charger
• Large Hard-Shell Case with Custom Foam
