Wooden Camera - Accessory System For Sony FX3/FX30 (G Mount)

54.K10022

Product Features:

For Sony FX3 or FX30
Half Camera Cage, Cheese-Style Plates
Gold Mount Micro Battery Slide Plate
LW 15mm Baseplate, 15mm Rods
8in Safety Dovetail, Right-Side Handgrip
D-Tap to Dummy Battery Cable
$2,635.00
Overseas Air Freight
Check Location Availability

Wooden Camera - Accessory System For Sony FX3/FX30 (G Mount)

Description

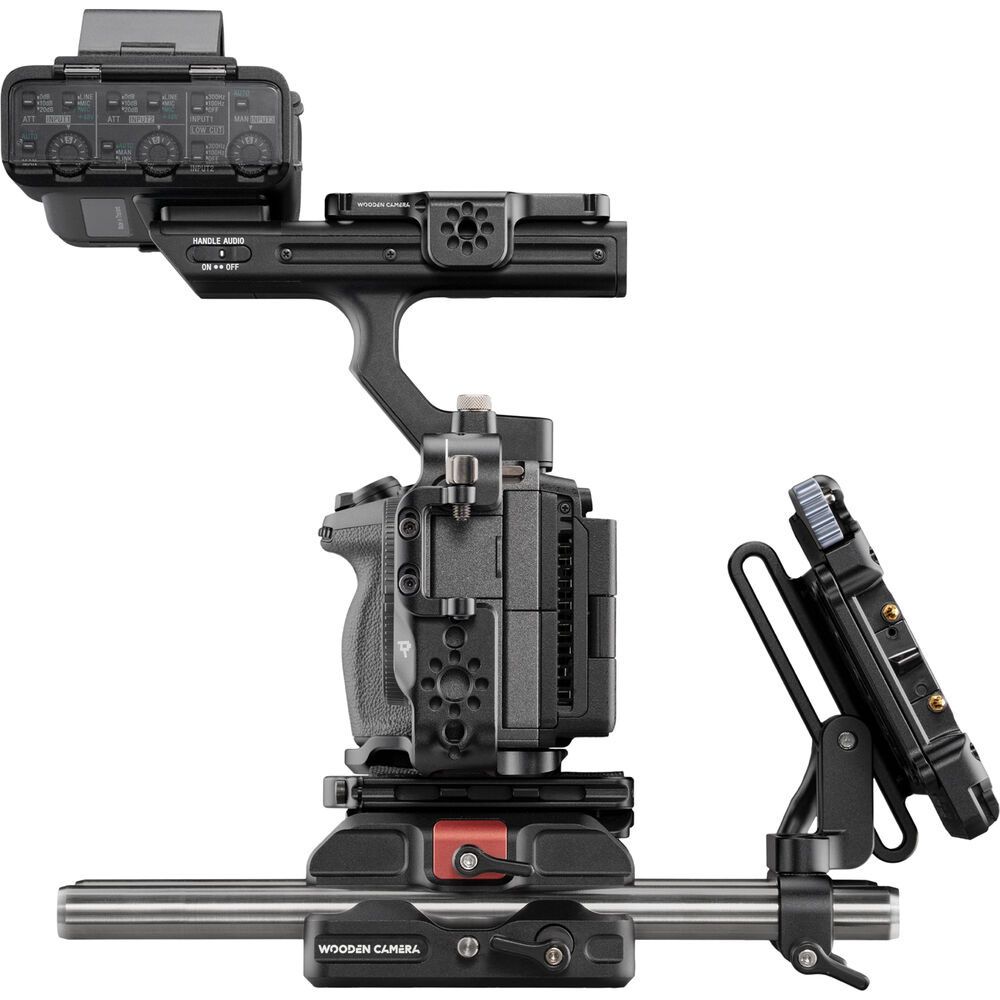

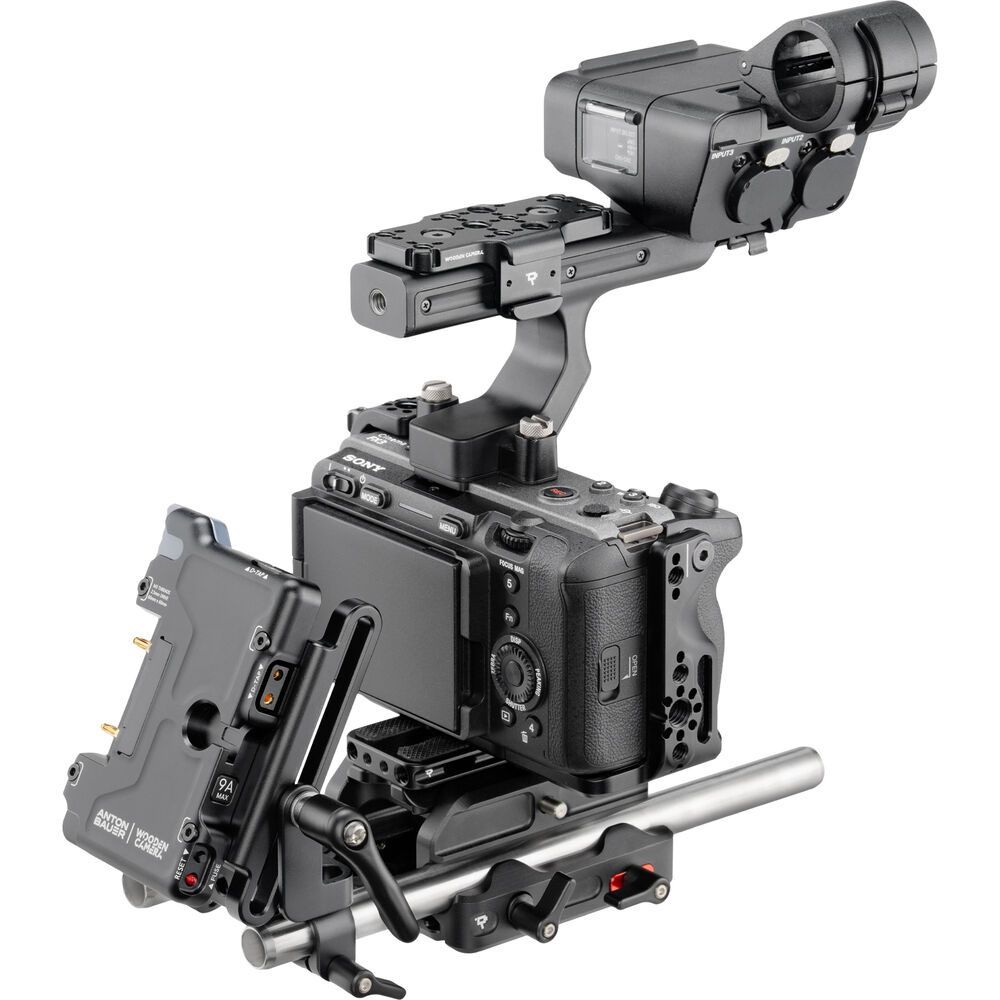

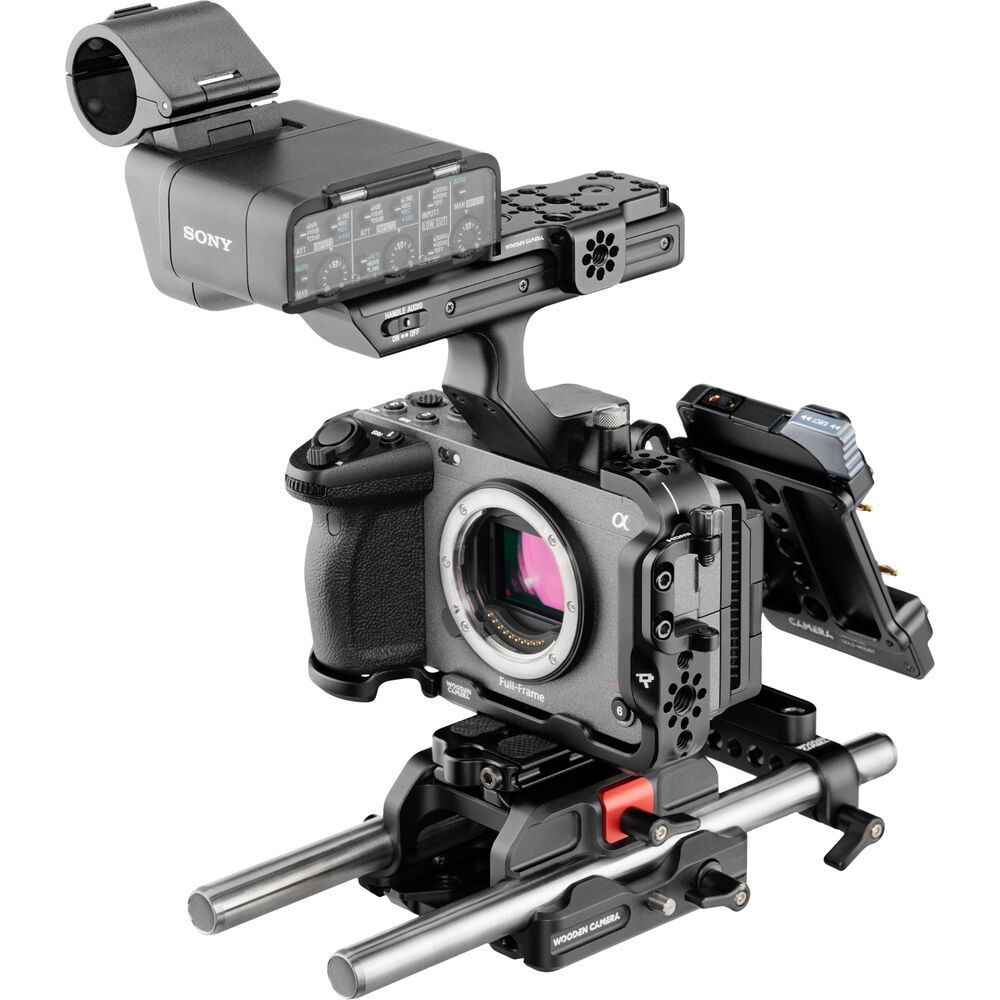

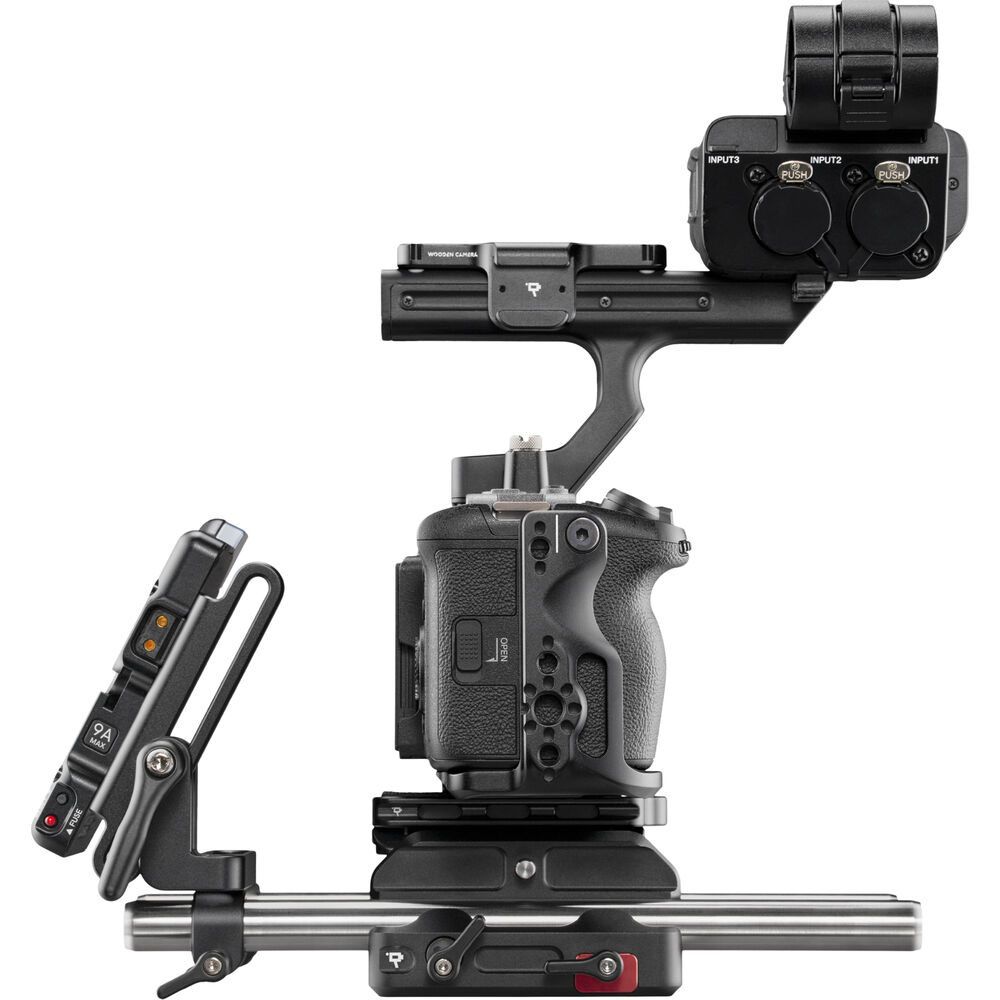

The Wooden Camera Accessory System outfits your Sony FX3 or FX30 camera with a comprehensive mounting system for handheld or tripod-mounted shooting. Included in the system bundle are a half camera cage, two cheese-style mounting plates, and a right-side handgrip that directly mounts on your camera and its XLR handle. Other accessories include a Gold mount micro battery slide plate, LW 15mm baseplate, two 15mm rods, an 8" safety dovetail, and a D-Tap to dummy battery power cable.



Wooden Camera Half Cage for Sony FX3/FX30

Incorporate additional accessories and mounting points into your Sony FX3 or FX30 setup using this Wooden Camera Half Cage. The half cage features an L-shaped design with an Arca-type mounting plate at the bottom for easy transitioning from tripod-mounted to handheld configurations. Two 3/8"-16 and two 1/4"-20 threads on the cage offer places to mount articulating arms or adapters. A detachable HDMI clamp ensures your cable connection to your external monitor remains secure. Two camera screws secure your camera safely inside the cage. Its modular design makes creating your own custom rig a breeze using separately available Wooden Camera or third-party components.



Wooden Camera Cheese-Style Top Plate for Sony FX3/FX30

Designed to fit the top of your Sony FX3 or FX30 camera and replace the Sony Carry Handle, this Wooden Camera Cheese-Style Top Plate offers additional mounting points to customize your rig to your preference. Two mounting screws secure the top plate to your camera. One 3/8"-16 and two 1/4"-20 threads allow you to attach Wooden Camera Ultra Handles or other accessories to your camera



Wooden Camera Right-Side Handgrip for Sony FX3/FX30

Attach this Wooden Camera Right-Side Handgrip to your Sony FX3 or FX30 camera and expand the mounting points of your rig. The handgrip wraps around the camera's preexisting handgrip and has a pass-through slot at the bottom so it can remain attached when you swap your battery. One 3/8"-16 thread and three 1/4"-20 threads offer mounting points for articulating arms or cable clamps. Three mounting screws secure the handgrip to your camera.



Wooden Camera Cheese-Style Plate for Sony FX3/FX30 XLR Handle

This Wooden Camera Cheese-Style Plate attaches to your Sony FX3 or FX30's XLR handle to expand its mounting capabilities. Multiple 1/4"-20 and 3/8"-16 threads on the plate allow you to attach articulating arms for on-camera monitors, among other accessories. A cold shoe mount can accommodate a wireless transmitter or shotgun microphone. Two mounting screws secure the plate to the handle.



Wooden Camera Micro Battery Slide Plate with Dual 15mm Rod Clamp (Gold Mount)

Power your camera and accessories with a Gold mount battery using this Micro Battery Slide Plate with Dual 15mm Dual Rod Clamp from Wooden Camera. The battery plate itself can slide up and down and be tightened in place using the attached lever for optimal placing on your rig. Two D-tap ports take power from your attached Gold mount battery and deliver it to your camera or accessories of your choice. The plate features a 9A fuse that can be reset as needed. A dual 15mm rod clamp attaches the plate to your shoulder- or tripod-mounted rig. Multiple 1/4"-20 and 3/8"-16 threads on the back of the plate and on the rod clamp accommodate additional accessories.



Wooden Camera LW 15mm Baseplate for Select Sony and FUJIFILM Cameras

Integrate 15mm rod support systems at the correct lens height for your select FUJIFILM or Sony camera using this LW 15mm Baseplate from Wooden Camera. The quick release baseplate has dual 15mm rod ports that have two locking thumbscrews to tighten or release the system. When releasing the baseplate from your support configuration, you can choose to keep the 15mm rods attached or leave them behind. Your camera is secured via two 3/8"-16 screws.

After securing your camera, sliding the quick ARRI standard dovetail onto the system is easy with the engraved arrows. Locating pins on the dovetail give it a more user-friendly design and ensure it locks into the same position every time. A safety release button makes it simple to detach the dovetail as needed. With the dovetail and baseplate attached to each other, you can mount your compatible camera onto Wooden Camera Quick Release Bridgeplates.



Compatibility
Sony FX3, FX30
FUJIFILM GFX100S, X-H2S, X-H2


Wooden Camera Safety Dovetail Plate (8")

The 8" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations.



Wooden Camera D-Tap to Sony a9 / a7R III Dummy Battery Power Cable (20")

Featuring an NP-FZ100 dummy battery, the D-Tap to Sony a9 / a7R III Dummy Battery Power Cable from Wooden Camera allows you to power the Sony a9 or a7R III from D-Tap power sources, particularly brick batteries with a D-Tap port. A voltage converter box integrated into the cable converts 14.4V to standard 7.4V required by the camera. Additionally, reverse polarity protection is built-in to protect against damage if the cable is plugged in backward to a D-Tap.



Wooden Camera 15mm Support Rod (3")

This is a single, 3" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength.
