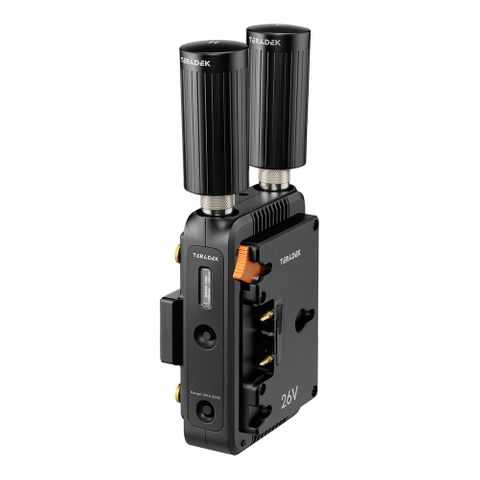

Teradek Ranger MKII 5000 12G-SDI/HDMI TX 26v G Mount

53.10-2596-G26

Product Features:

Supports 4.9 to 6.4 GHz Frequency Bands
Transmit Video up to 5000ft Line of Sight
Lossless Transmission with Zero Delay
4K60 10-Bit 4:2:2 HDR Support
26V Gold Mount Battery Plate
12G-SDI and HDMI Input, SDI Output
Transmit to up to 6 x RXs
Pairs with all Ranger Series Devices
AES-256 Encryption, 2 x Antennas
Launchpad App, Spectrum Analyzer
$17,695.00
Overseas Air Freight
Check Location Availability
Make an Enquiry

Teradek Ranger MKII 5000 12G-SDI/HDMI TX 26v G Mount

Add To Cart
$17,695.00

Description

Transmit lossless HD video up to 5000ft with the Ranger MK II 5000 12G-SDI/HDMI Wireless Transmitter from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this transmitter can input up to 4K60 video over HDMI or 12G-SDI with 10-bit HDR support and transmit up to 4K60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum. The transmitter unit provides a powerful signal that can travel up to 5000ft line of sight. It also features an SDI loop output for local monitoring, and one horizontal and one vertical N-type antenna.

The transmitter supports transmission of up to 4K60 video to up to six receivers and features built-in AES-256 encryption protects your video from prying eyes. It can transmit visually lossless video to any Ranger series receiver with zero delay. The transmitter supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

The unit is powered using a 2-pin DC input or the included 26V Gold mount battery plate, and there are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Key Features
Premium Wireless Hardware
State-of-the-art hardware. Designed for professional video production. The Ranger Series is powered by Teradek's Emmy and Academy Award-winning technology for zero-delay wireless video transmission. This model boasts a maximum range of 5000ft, and it works seamlessly within a variety of professional broadcast, sports, and ENG applications, including handheld gimbals, drones, and shoulder-mounted production cameras.

Ranger Compatibility
Pair any combination of Ranger TX and RX together, regardless of model. That means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range. Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX.

Zero Delay
When a delay in audio and video transmission is noticeable, it's nearly impossible to offer a lifelike experience. Ranger's patented zero-delay technology solves this problem. With Ranger, your audio and video signals are transmitted with ultra-low latency, even in 4K60, providing a visually lossless and engaging experience for your viewers.

Configure Ranger from PC or Phone
  • Install the Launchpad app on your macOS or Windows computer, or on iOS/Android phone
  • Bluetooth 5 LE connection support
  • Pair transmitters and receivers with the touch of a button
  • Measure and analyze the frequency and amplitude of a signal
  • View live channel strength for licensed/unlicensed bands
  • Monitor your live RF spectrum bandwidth
Wide Transmission Frequency Range
With the number of wireless devices on the rise, and a limited amount of frequency bands to choose from, there is little room for your signal to move without interference or disruption. But with Ranger, you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uncongested wireless spectrum.
