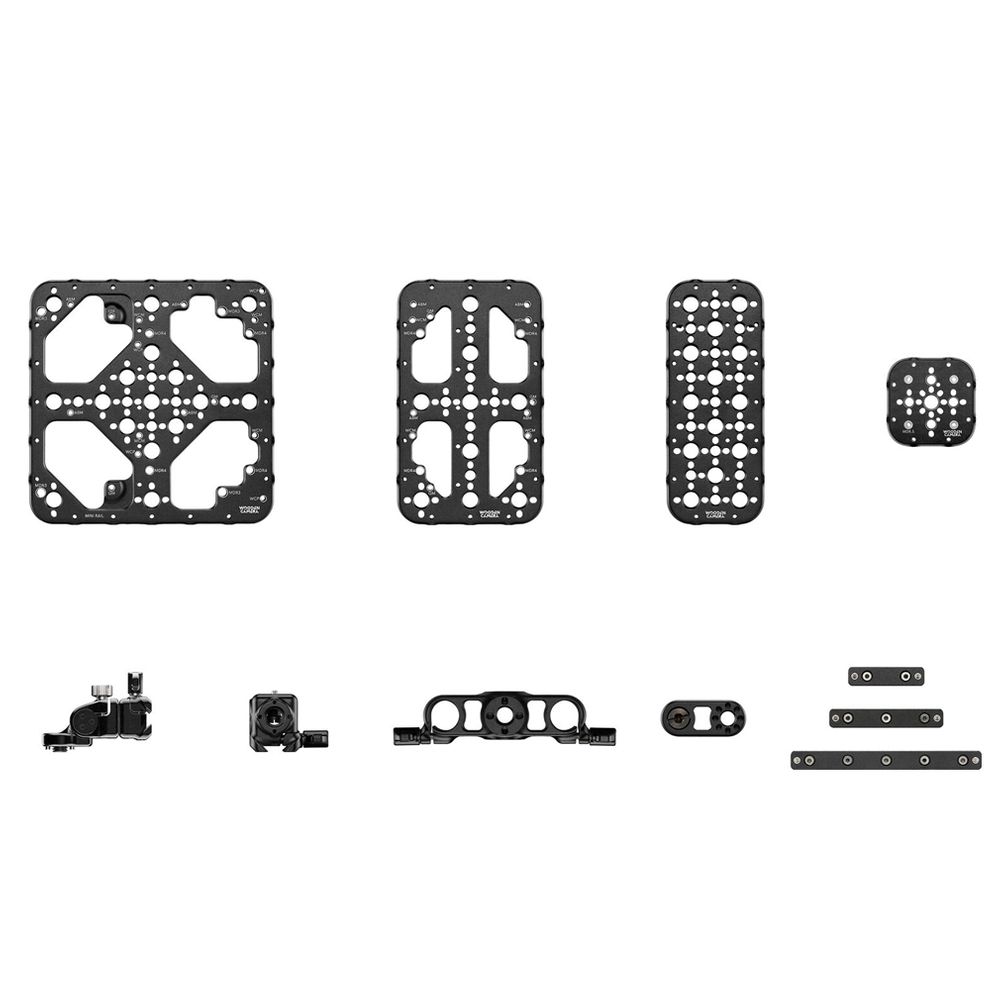

Wooden Camera - Accessory Plate System

54.A00434

Product Features:

Universal 15mm LWS Rod Clamp
Accessory Hinge and Bolt-On Rail Clamp
Mini Accessory Rail Kit (100/60/40mm)
Accessory Plate Kit (4 Plate Sizes)
28mm Offset Bracket with 3/8"-16 Threads
Durable Aluminium Construction
$999.00
Overseas Air Freight
Check Location Availability

Wooden Camera - Accessory Plate System

Description

Add a complete mounting system to your camera rig using this Full Accessory Plate System from Wooden Camera. The accessory plate system includes a variety of durable aluminum plates that provide different size plates, 1/4"-20 and 3/8"-16 threads, 15mm rod mounts, mini rails, and mini rail clamps.



Wooden Camera Bolt-On Accessory Rail Clamp

Mount a 15mm or 3/8"-16 accessory onto a Mini Accessory Rail using this Bolt-On Accessory Rail Clamp from Wooden Camera. This compact, cube-shaped mount features 15mm rod ports on the sides, a 3/8"-16 anti-twist thread on top, and a rail clamp on the bottom. The rail clamp mounts onto separately available Mini Accessory Rails that allow you to mount accessories onto your rig using Wooden Camera Accessory Plates. The clamp is constructed with durable anodized aluminum.

Key Features
  • Engineered for use with any 3/8"-16 screw mount and moveable locating pins
  • Use a standard 15mm rod to mount your accessories
  • A new rail clamp tightens with a thumbscrew
  • A lightweight design adds the least amount of weight to your rig
  • Sleek and unobtrusive design featuring a black anodized aluminum finish



Wooden Camera Universal Dual 15mm Rod Clamp for Bolt-On Accessories

Use the Universal Dual 15mm Rod Clamp from Wooden Camera to add 15mm rods or to mount an accessory onto your camera rig. The clamp features 15mm ports with standard LWS spacing and four 3/8"-16 anti-twist threads. It is compatible with the Bolt-On Accessory Rail Clamp, Universal Accessory Hinge and Clamp, and other 3/8"-16 Bolt-On Accessories. The lightweight rod clamp is constructed with durable anodized aluminum.

Key Features
  • Engineered for use with any 3/8"-16 screw mount and moveable pins
  • Use standard 15mm rods to mount your accessories with 15mm LWS spacing
  • A new rail design provides quick adjustments on the fly
  • A lightweight design adds the least amount of weight to your rig
  • Sleek and unobtrusive design featuring a black anodized aluminum finish



Wooden Camera Universal Accessory Hinge (3/8"-16 Male, 3/8"-16 Female)

Mount an accessory such as a monitor, microphone, plate, or extension arm onto your rig using this Universal Accessory Hinge from Wooden Camera. The durable aluminum hinge features a 3/8"-16 thread with an anti-twist screw to mount your accessory, and it clamps onto a separately available Mini Accessory Rail using its mounting clamp. The hinge allows you to tilt the mount 90° for the best position.

Key Features
  • Engineered for use with any 3/8"-16 screw mount and moveable locating pins
  • Universal accessory design with hinge system
  • Lightweight design doesn't add much weight to your rig
  • Allows for quick adjustments



Wooden Camera 28mm Offset Bracket with Pins (3/8"-16 Male, 3/8"-16 Female)

When you need to move an accessory further from your rig, use this 28mm Offset Bracket with Pinsfrom Wooden Camera to push it out further. The lightweight 2 x 1" bracket features a 3/8"-16 female thread with locating divots, and on the other end, there is a 3/8"-16 screw with movable locating pins.

The threads are offset 28mm apart, so you can add just enough space from your rig. It works with any accessories with 3/8"-16 threads or screws with locating pins, such as the Wooden Camera Bolt-On Accessory Rail Clamp, Universal Hinge, and Universal Clamp. It is constructed with durable, lightweight black anodized aluminum.

Secure Mounting
Engineered for use with any 3/8"-16 screw mount and moveable locating pins.
Lightweight Design
When accessories get too close to the camera, move them away from your rig. The lightweight design provides the least amount of weight when adding to builds.
Durable
The sleek and unobtrusive aluminum design features a black anodized finish.


Wooden Camera Mini Accessory Rail with Safety (100mm)

Quickly mount and unmount a variety of accessories onto your camera rig using this 100mm long Mini Accessory Rail with Safety from Wooden Camera. This 100mm long movable accessory rail can mount onto separately available Wooden Camera Accessory plates using the included low-profile captive screws.

The rail is compatible with the optional Bolt-On Accessory Clamp for fast mounting and unmounting of accessories. It is also compatible with the Universal Hinge and Clamp. The rail is made from durable aluminum.

Key Features
  • Universally compatible between multiple Wooden Camera Accessory Plates
  • Customized design for easy installation and compatibility with other accessories
  • Various lengths are available separately to provide options with Accessory Plates
  • Low-profile captive screws and press-ball plungers for a safe and secure mount
  • Sleek, unobtrusive design featuring a black anodized aluminum finish
Wooden Camera Mini Accessory Rail with Safety (61mm)

Quickly mount and unmount a variety of accessories onto your camera rig using this 61mm long Mini Accessory Rail with Safety from Wooden Camera. This 61mm long movable accessory rail can mount onto separately available Wooden Camera Accessory plates using the included low-profile captive screws.

The rail is compatible with the optional Bolt-On Accessory Clamp for fast mounting and unmounting of accessories. It is also compatible with the Universal Hinge and Clamp. The rail is made from durable aluminum.

Key Features
  • Universally compatible between multiple Wooden Camera Accessory Plates
  • Customized design for easy installation and compatibility with other accessories
  • Various lengths are available separately to provide options with Accessory Plates
  • Low-profile captive screws and press-ball plungers for a safe and secure mount
  • Sleek, unobtrusive design featuring a black anodized aluminum finish
Wooden Camera Mini Accessory Rail with Safety (40mm)

Quickly mount and unmount a variety of accessories onto your camera rig using this 40mm long Mini Accessory Rail with Safety from Wooden Camera. This 40mm long movable accessory rail can mount onto separately available Wooden Camera Accessory plates using the included low-profile captive screws.

The rail is compatible with the optional Bolt-On Accessory Clamp for fast mounting and unmounting of accessories. It is also compatible with the Universal Hinge and Clamp. The rail is made from durable aluminum.

Key Features
  • Universally compatible between multiple Wooden Camera Accessory Plates
  • Customized design for easy installation and compatibility with other accessories
  • Various lengths are available separately to provide options with Accessory Plates
  • Low-profile captive screws and press-ball plungers for a safe and secure mount
  • Sleek, unobtrusive design featuring a black anodized aluminum finish
Wooden Camera Accessory Plate (127x127mm)

Mount a variety of accessories onto your camera rig using this 127x127mm Accessory Plate from Wooden Camera. The durable aluminum plate is compatible with the Wooden Camera Accessory Kit series of mounts, and it provides 1/4"-20 and 3/8"-16 anti-twist threads for mounting optional 15mm clamps, Mini Accessory Rails, hinge systems, or extensions. It is compatible with accessories such as Teradek MDR follow focus systems, the Wooden Camera Accessory Cube and battery plates, and endless other options.

Key Features
  • Engineered for use with any camera cage system or rig
  • Designed to work with movable Mini Accessory Rails and compatible mounting options
  • Easily movable and mountable
  • Multiple 1/4"-20 and 3/4"-16 threads with anti-twist divots
  • Sleek and unobtrusive design featuring a black anodized aluminum finish
Wooden Camera Accessory Plate (127 x 76mm)

Mount a variety of accessories onto your camera rig using this 125x76mm Accessory Plate from Wooden Camera. The durable aluminum plate is compatible with the Wooden Camera Accessory Kit series of mounts, and it provides 1/4"-20 and 3/8"-16 anti-twist threads for mounting optional 15mm clamps, Mini Accessory Rails, hinge systems, or extensions. It is compatible with accessories such as Teradek MDR follow focus systems, the Wooden Camera Accessory Cube and battery plates, and endless other options.

Key Features
  • Engineered for use with any camera cage system or rig
  • Designed to work with movable Mini Accessory Rails and compatible mounting options
  • Easily movable and mountable
  • Multiple 1/4"-20 and 3/4"-16 threads with anti-twist divots
  • Sleek and unobtrusive design featuring a black anodized aluminum finish
Wooden Camera Accessory Plate (127 x 50mm)

Mount a variety of accessories onto your camera rig using this 127x50mm Accessory Plate from Wooden Camera. The durable aluminum plate is compatible with the Wooden Camera Accessory Kit series of mounts, and it provides 1/4"-20 and 3/8"-16 anti-twist threads for mounting optional 15mm clamps, Mini Accessory Rails, hinge systems, or extensions. It is compatible with accessories such as Teradek MDR follow focus systems, the Wooden Camera Accessory Cube and battery plates, and endless other options.

Key Features
  • Engineered for use with any camera cage system or rig
  • Designed to work with movable Mini Accessory Rails and compatible mounting options
  • Easily movable and mountable
  • Multiple 1/4"-20 and 3/4"-16 threads with anti-twist divots
  • Sleek and unobtrusive design featuring a black anodized aluminum finish
Wooden Camera Accessory Plate (50x50mm)

Mount a variety of accessories onto your camera rig using this 50x50mm Accessory Plate from Wooden Camera. The durable aluminum plate is compatible with the Wooden Camera Accessory Kit series of mounts, and it provides 1/4"-20 and 3/8"-16 anti-twist threads for mounting optional 15mm clamps, Mini Accessory Rails, hinge systems, or extensions. It is compatible with accessories such as Teradek MDR follow focus systems, the Wooden Camera Accessory Cube and battery plates, and endless other options.

Key Features
  • Engineered for use with any camera cage system or rig
  • Designed to work with movable Mini Accessory Rails and compatible mounting options
  • Easily movable and mountable
  • Multiple 1/4"-20 and 3/4"-16 threads with anti-twist divots
  • Sleek and unobtrusive design featuring a black anodized aluminum finish



Included Items:


Bolt-On Accessory Rail Clamp
Universal Dual Rod Clamp for Bolt-On Accessories
Universal Accessory Hinge (3/8"-16 Male x 3/8"-16 Female)
28mm Offset Bracket with Pins (3/8"-16 Male x 3/8"-16 Female)
Mini Accessory Rail Kit with Safety (100 mm)
Mini Accessory Rail Kit with Safety (60 mm)
Mini Accessory Rail Kit with Safety (40 mm)
Accessory Plate 127 x 127mm
Accessory Plate (76 x 127mm)
Accessory Plate (50 x 127mm)
Accessory Plate (50 x 50mm)
