Wooden Camera - Ext Cable 12pin St Male To 9pin Male, 12in

54.A00541

Product Features:

Connect B-Box to KOMODO/KOMODO-X
12-Pin Straight Male EXT on Other End
Cable Measures 12" in Length
9-Pin Right-Angle Male EXT on One End
Control, Timecode, Genlock, Run/Stop
$199.00
Overseas Air Freight
Check Location Availability

Wooden Camera - Ext Cable 12pin St Male To 9pin Male, 12in

Description

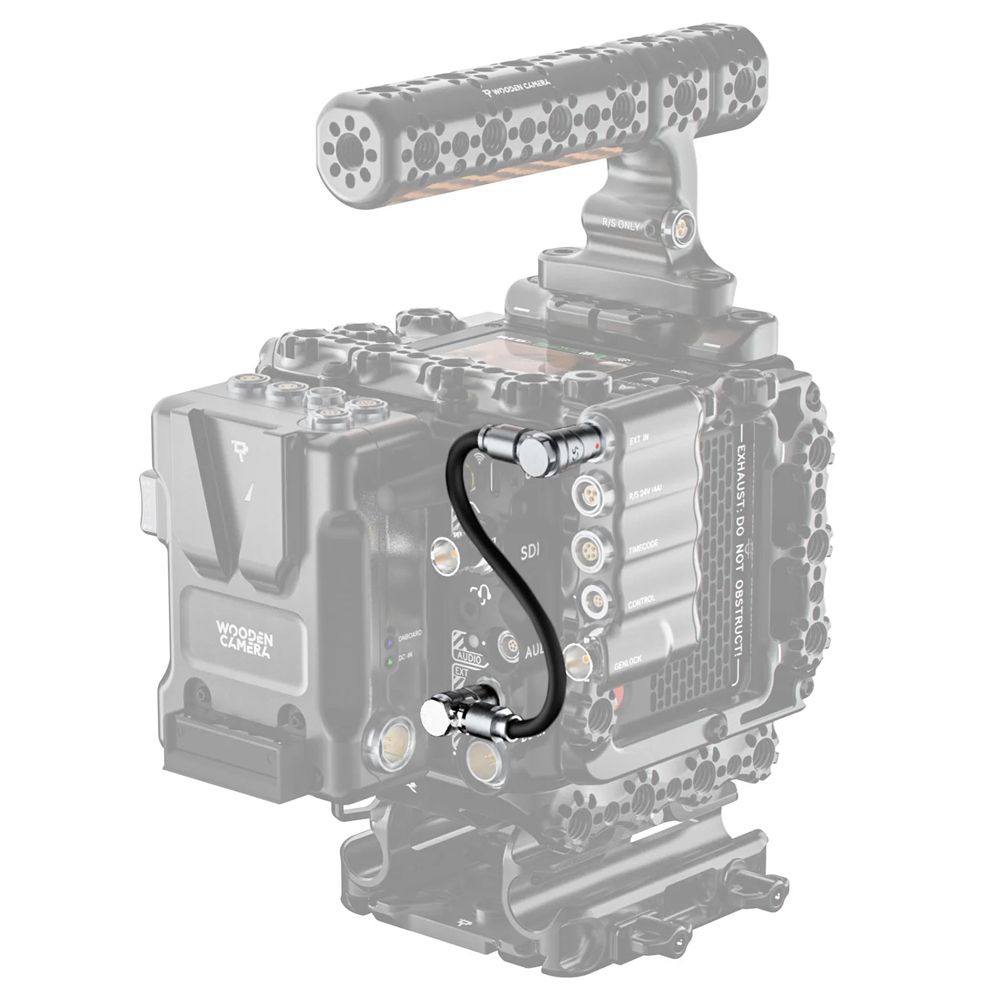

These EXT Cables connect from the camera's EXT port to the B-Box for (KOMODO®, KOMODO-X™, V-RAPTOR®) directly, breaking out control options like Timecode, Control, Genlock and 3-pin Run/Stop ability. Two length options of 4” or 12“ were intended to keep your B-Box in the place that works best for the user's needs. The 4” length was designed to be used with the Rear Cage and keeps the build tidy. The 12” length allows users to place the B-Box anywhere that works best for them, this could be along the camera's cage system like Side Rails or 3rd party system options.

Please note, the 3-pin port will not provide 24V power in this configuration unless connected to the D-Box® for KOMODO-X.
