Description

The H5 provides four tracks of simultaneous recording and, like our flagship H6, it can use all Zoom interchangeable input capsules, allowing you to choose the best microphone for every recording situation. The flexible and powerful H5 provides everything you need to create multitrack recordings, audio for video, and state-of-the-art podcasting, broadcasting and electronic news gathering.

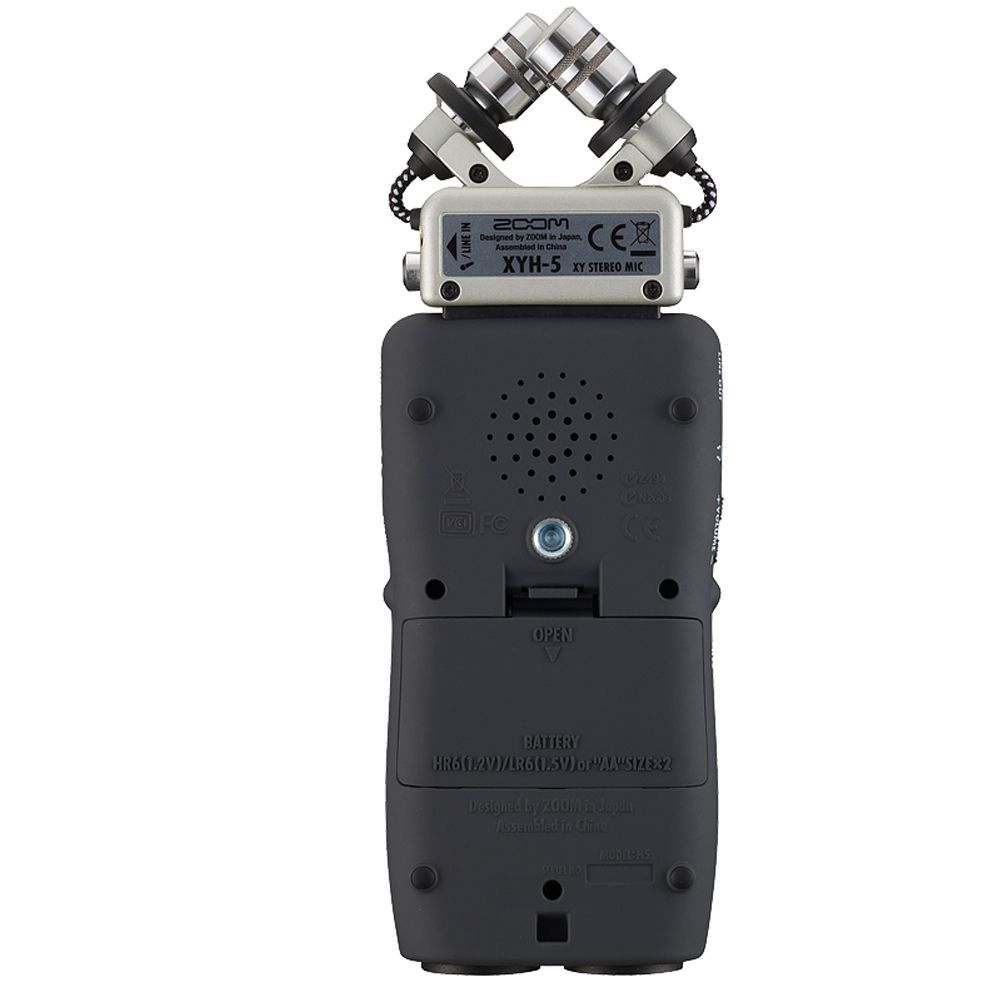

X/Y recording allows you to cover a wide area yet still capture sound sources in the centre with clarity and definition, making it ideal for all types of live stereo recording. The XYH-5 X/Y microphone capsule included with the H5 provides two matched unidirectional condenser microphones set at a 90 degree angle. These are housed within an advanced shock mount that employs rugged external mic wires and rubberised material to isolate the unit from the H5 body and thus minimise vibration and handling noise. The design of the XYH-5 also allows the H5 to handle louder sounds than any other Handy Recorder model: 140 dB SPL, to be precise—equivalent to the sound of a jet aircraft from less than 200 feet away—enabling you to capture sounds louder, closer, and cleaner than you ever could before.

User Interface

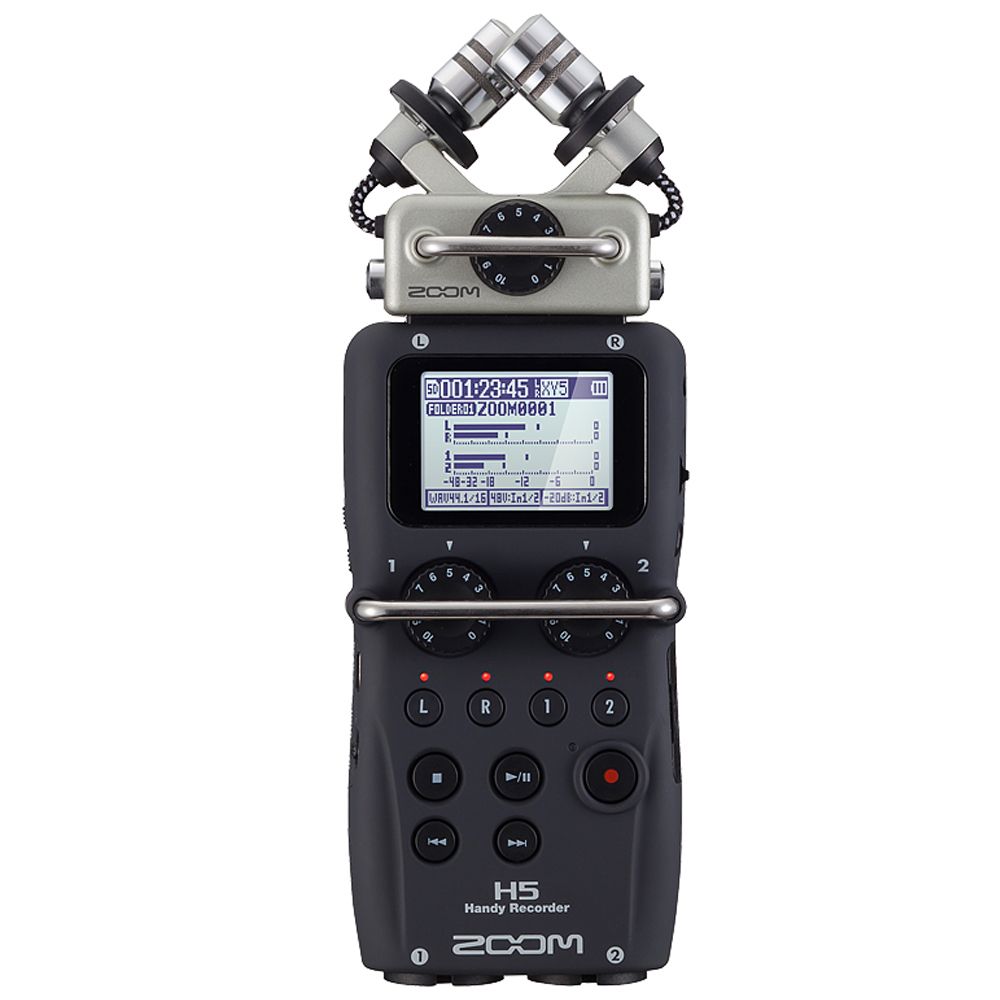

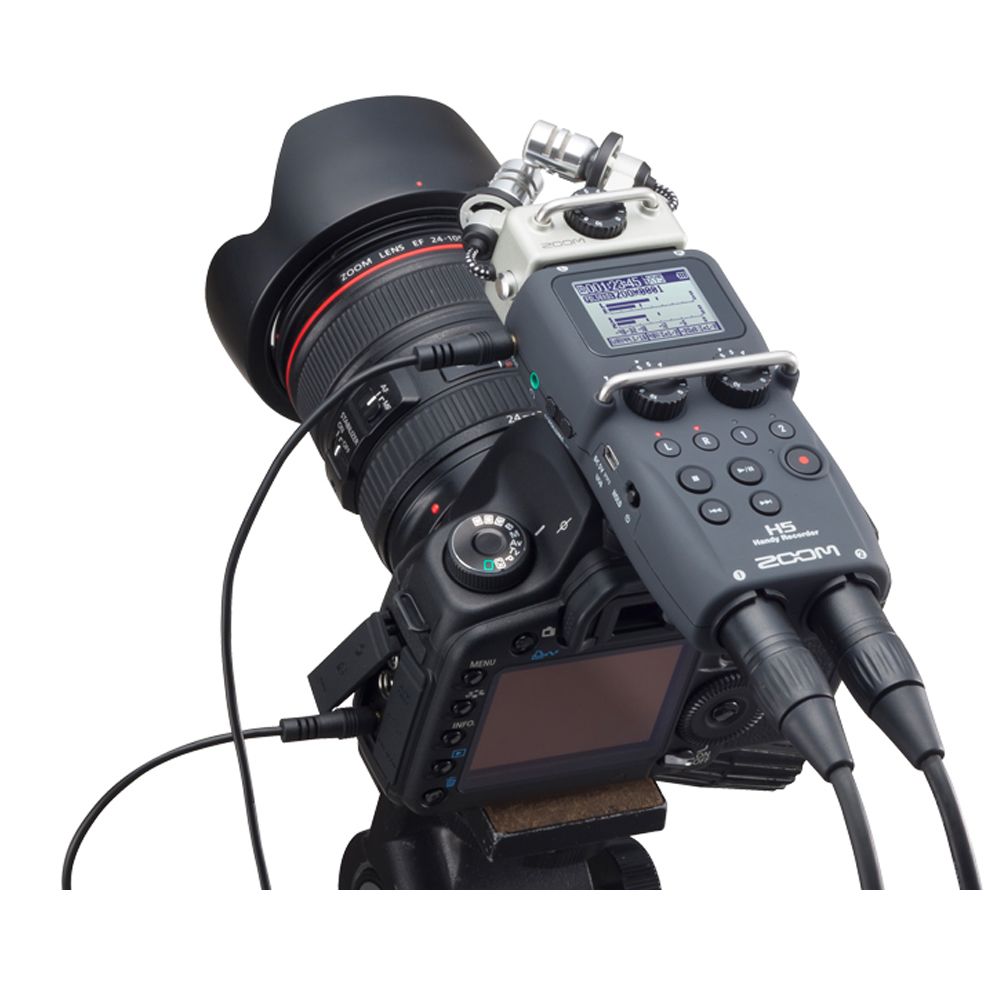

In addition to standard transport controls (stop, play/pause, record, rewind and fast-forward), the front panel of the H5 offers dedicated record arming buttons for each track, which double as mute switches during playback. A Hold switch disables all front panel buttons to prevent accidental operation during recording. The H5 can be attached to a camera strap or, with the use of our optional Hot Shoe mount, mounted directly to a DSLR or camcorder.

Inputs
The H5 also provides everything you need to connect with the outside world. Dual combo XLR/TRS inputs that can handle both mic- and line-level signals allow you to connect external microphones and line-level devices like mixers, portable music players, effects processors and electronic keyboards—even electric guitars or basses equipped with active electronics. Each H5 input has its own dedicated gain control knob, located beneath a protective bar that prevents accidental movement during handling. The supplied XYH-5 X/Y capsule also provides a secondary input for connecting stereo mic- or line-level signal via a 嚙踝蕭嚙? mini phone jack. The H5 supports a +4 dB (professional) input level and utilises the same high-quality preamps as our flagship H6, ensuring great-sounding recordings in all sonic environments.

Outputs

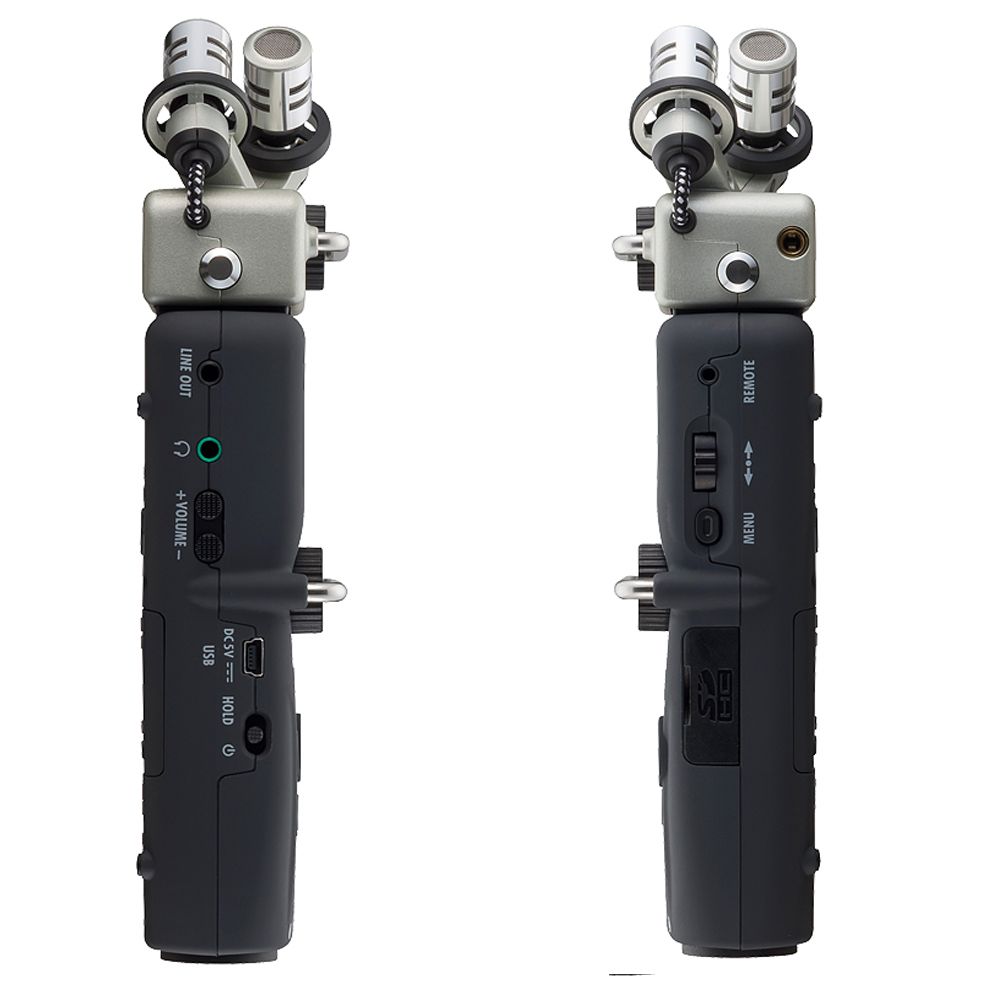

There are lots of output options as well. A dedicated Line Out with adjustable volume allows you to send a stereo audio output from the H5 to the mic input of a video camera or other device without the need for an attenuator cable. In addition, there's a separate headphone output with a dedicated volume control. You can use both outputs simultaneously to route audio to your DSLR while monitoring over headphones. There's also a built-in speaker for fast access playback, and a USB port which allows the H5 to be used as an audio interface for your computer or iPad.

Features at a glance

• Uses a system of interchangeable input capsules that can be swapped out as easily as the lens of a camera
• Includes detachable X/Y capsule (XYH-5) with extended signal capacity and shockmounted mics for reduced handling noise
• Compatible with all Zoom input capsules
• Four-track simultaneous recording
• Large backlit LCD display
• Records directly to SD and SDHC cards up to 32GB
• Up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats
• Two mic/line inputs with XLR/TRS combo connectors each with selectable phantom power and -20dB pad
• Analog-style gain controls for each input
• Protective "roll-bar" type covers prevent accidental movement of gain controls
• Plug-in power (2.5 volts)
• Built-in effects, including low-cut filtering, compression and limiting
• Chromatic tuner and metronome
• Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take
• MS decoding
• Multitrack to stereo internal mixdown
• Normalize, Divide and Trim editing
• Voice memo and up to 99 marks per recording
• A/B loop playback
• Variable playback speed and variable pitch without affecting playback speed
• Multichannel and stereo USB audio interface for PC/Mac/iPad with loop back function
• Mountable to DSLR or camcorder with optional HS-1 Hot Shoe Mount adapter
• Uses two standard AA alkaline or NiMH rechargeable batteries
• Over 15 hours of operation with alkaline batteries
