SmallHD Ultra 7 - 7in SDI/HDMI 2300nit LCD Monitor

33.1.16-0727

Product Features:

7" 1920 x 1080 Touchscreen Display
6G-SDI & HDMI Inputs/Outputs
Bright 2300 cd/m² LCD Panel
5-Pin USB & Ethernet Control Powers
PageOS 5 User Interface

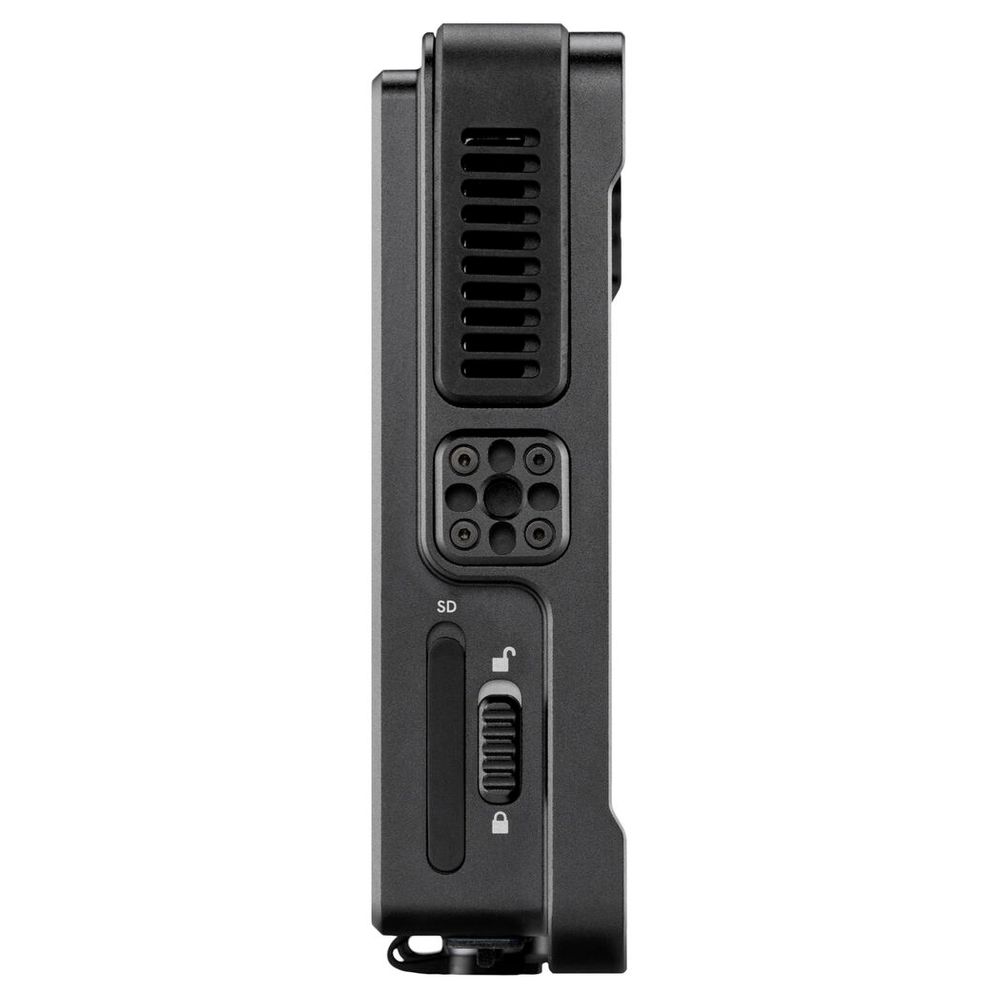

SD Card Slot, IP53 Rating
Onboard Button Controls
Milled Aluminum Unibody Housing
$5,199.00
$4,680.01
Stock Level:
In Stock
Check Location Availability

SmallHD Ultra 7 - 7in SDI/HDMI 2300nit LCD Monitor

Essential Add-On's we recommend

Description

Integrate an ultra-bright monitor into your production rig with this SmallHD ULTRA 7 UHD 4K On-Camera Touchscreen Monitor, which features a 2300 cd/m² display for viewing in just about any indoor or outdoor environment. The 7" monitor features a bright 2300 cd/m² display, a 1920 x 1080 touchscreen LCD, HDMI and 6G-SDI inputs/outputs that support up to 4K, camera control options, tactile buttons, and 10-bit 4:2:2 Rec. 709 color processing. Easily work with ARRI, Sony, and RED cinema cameras thanks to the 5-pin USB and Ethernet control ports.

Onboard button controls offer additional ways to toggle between image functions. All the functionality of the monitor is available via PageOS 5, which provides advanced functionality with a simple and efficient graphical user interface. Upload 3D LUTs via the SD card slot to create consistent aesthetic looks for your footage. An IP53 rating ensures the monitor remains dust and water resistant. Power is delivered to the ULTRA 7 via 2-pin LEMO ports or separately available Gold/V-mount micro battery plate

Features
  • Daylight-viewable 7" touchscreen on-camera monitor with 2300 cd/m² brightness
  • Slim, lightweight design with 10-bit 4:2:2 DCI-P3 color, touchscreen LCD panel
  • HDMI and 6G-SDI inputs and outputs

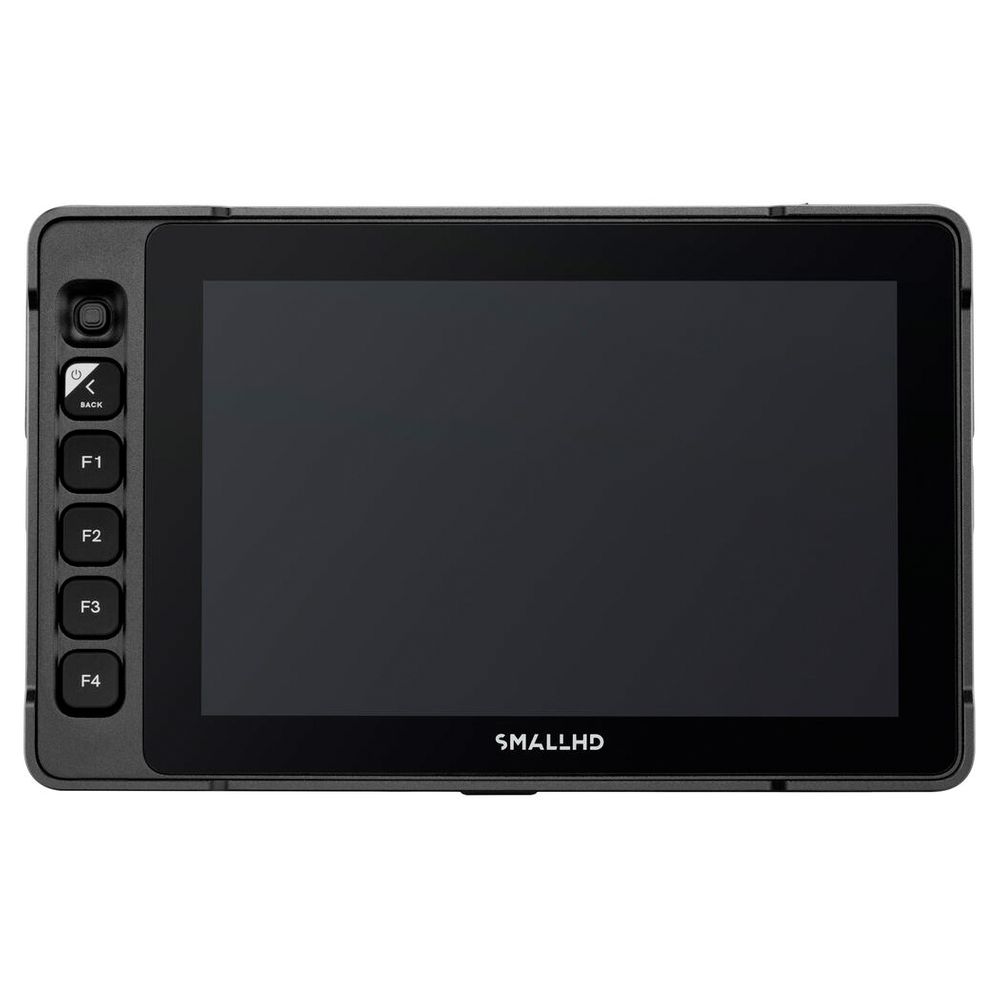

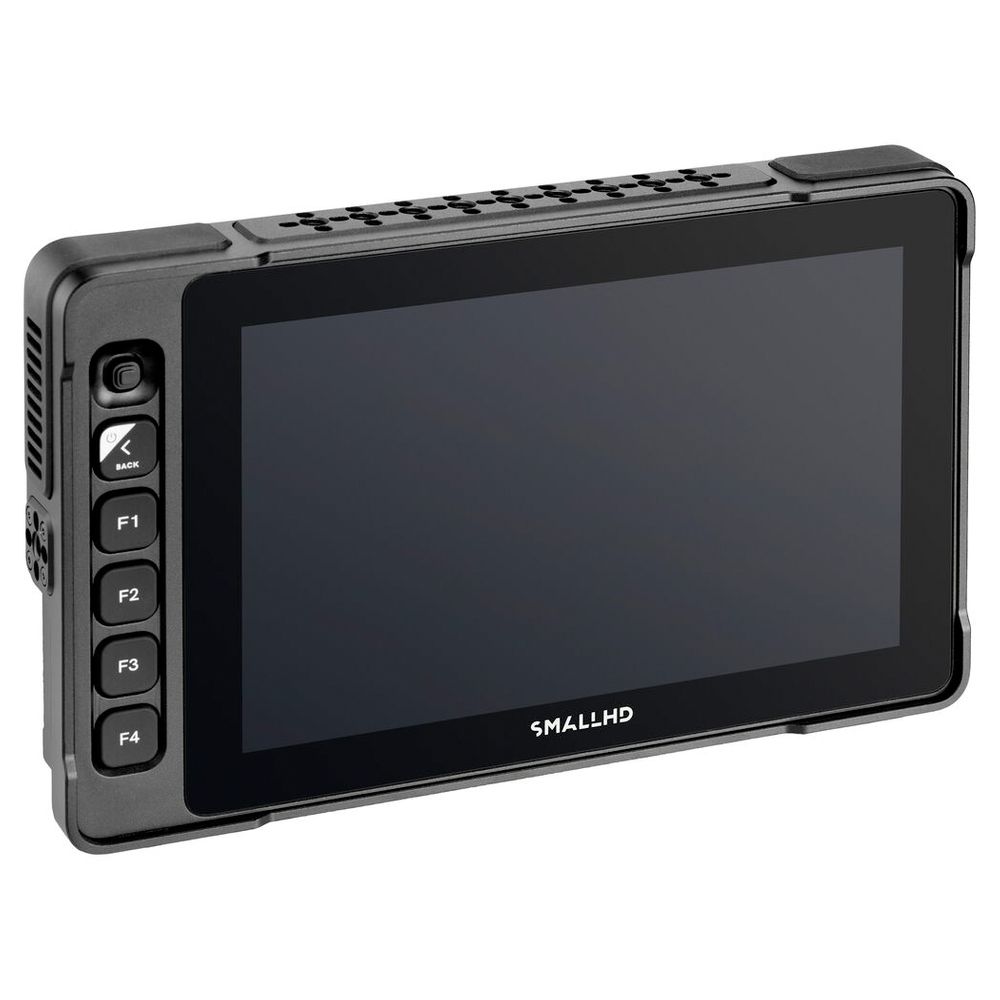

  • Tactile buttons around the monitor allow you to use the monitor in any condition
  • The PageOS 5 toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), advanced Teradek RT overlays, and more

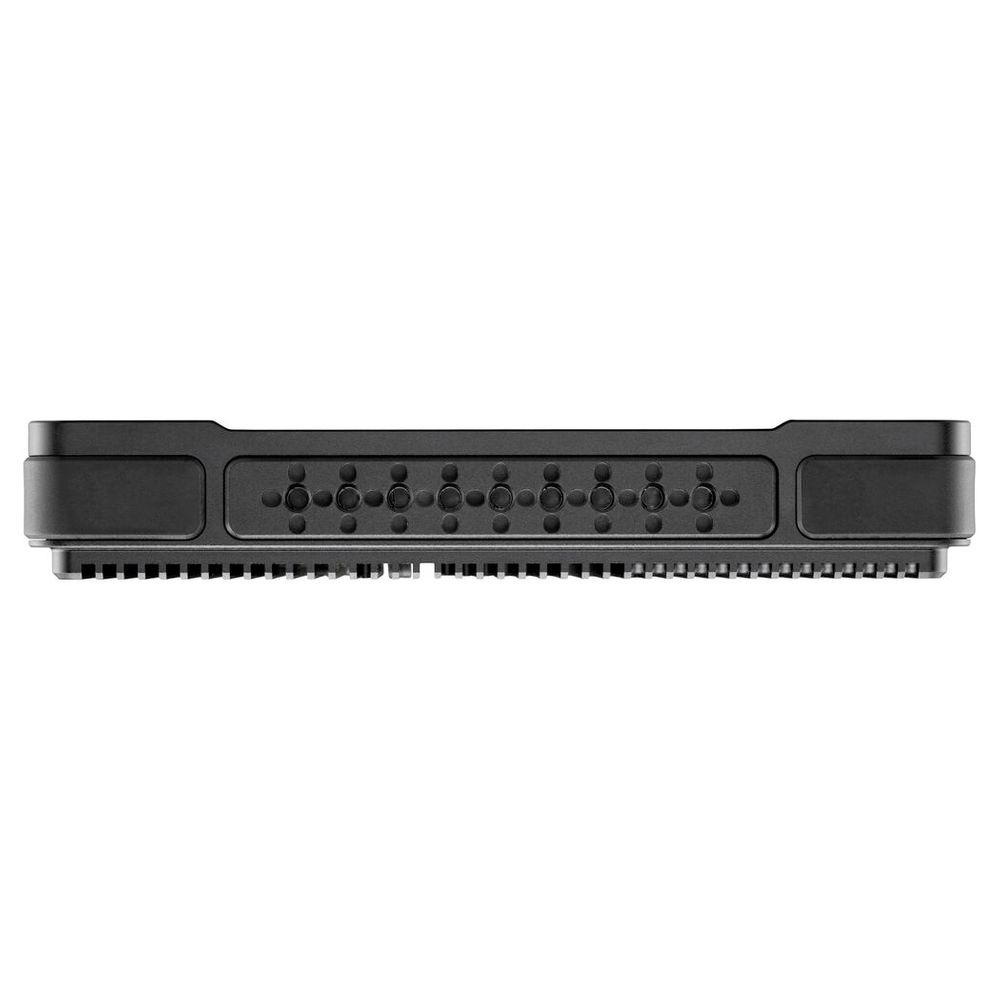

  • Four 1/4"-20 mounting threads on the left, right, bottom, and back of the monitor
  • Power using a 2-pin power input
  • Optional RED camera control via the 5-pin USB port
  • Optional ARRI/Sony VENICE camera control via the Ethernet port
  • Durable aluminum chassis
Display Tools
  • Pixel zoom: 2x and 4x with pinch-zoom
  • Aspect ratios: Preset and customizable
  • DSLR scale: Canon 5D Mk II and Canon 7D
  • Custom scale: Underscan only
  • Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
  • Image flip: Auto and manual
  • Image rotation: Auto and manual
  • Cross conversion: HDMI to SDI, SDI to HDMI
  • Color focus assist: Adjustable style and intensity
  • Peaking: Adjustable intensity
  • False color: Spectrum, ARRI-style, and customizable
  • Zebra: Dual, customizable
  • Waveform: Luma and RGB, customizable with region-of-interest highlighting
  • Vectorscope
  • RGB parade, customizable
  • Histogram: Luma and RGB
  • Image capture, with a dedicated button and image gallery
  • Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
  • LUT import: Via SD card or USB storage device
  • Image overlay: Opacity slider and blink setting
  • Image capture
  • Audio meters: Up to eight channels

SmallHD ULTRA 7 Specs

Key Specs
Display Size
7.0" / 17.8 cm
Resolution
1920 x 1080
Touchscreen
Yes
HDR Compatibility
No
Video I/O
1 x BNC (6G-SDI) Input
1 x BNC (6G-SDI) Input/Output
1 x HDMI 2.0 Input
1 x HDMI 2.0 Output
Media/Memory Card Slot
Single Slot: SD (Unspecified Type)
Video Format
SDI
UHD 4K: 30
HDMI
UHD 4K: 60
Display
Panel Type
LCD
Display Size
7.0" / 17.8 cm
Resolution
1920 x 1080
Aspect Ratio
16:9
Touchscreen
Yes
Maximum Brightness
2300 nits / cd/m2
Contrast Ratio
1000:1
Bit Depth / Color Support
10-Bit (1.07 Billion Colors)
HDR Compatibility
No
Pixels Per Inch (ppi)
314 ppi
Color Gamut
95% DCI-P3
98% Rec. 709
Image Controls
Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform

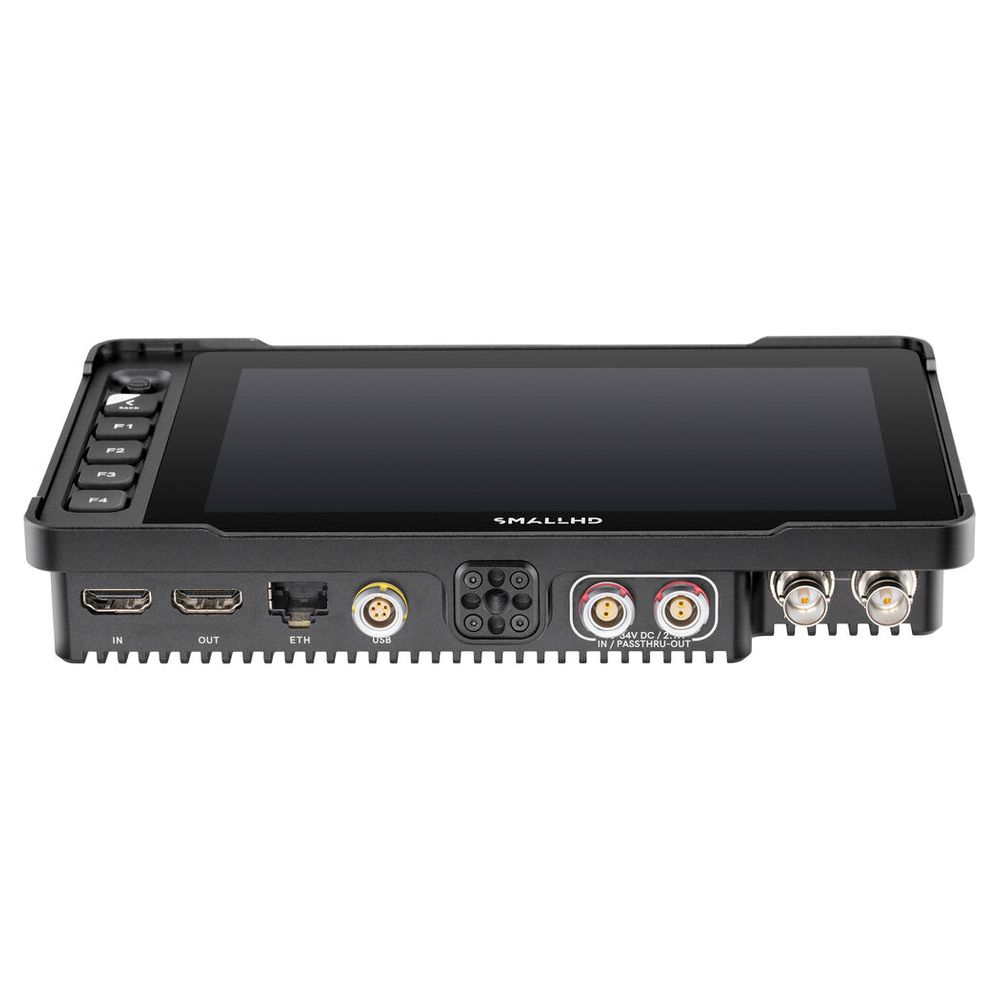

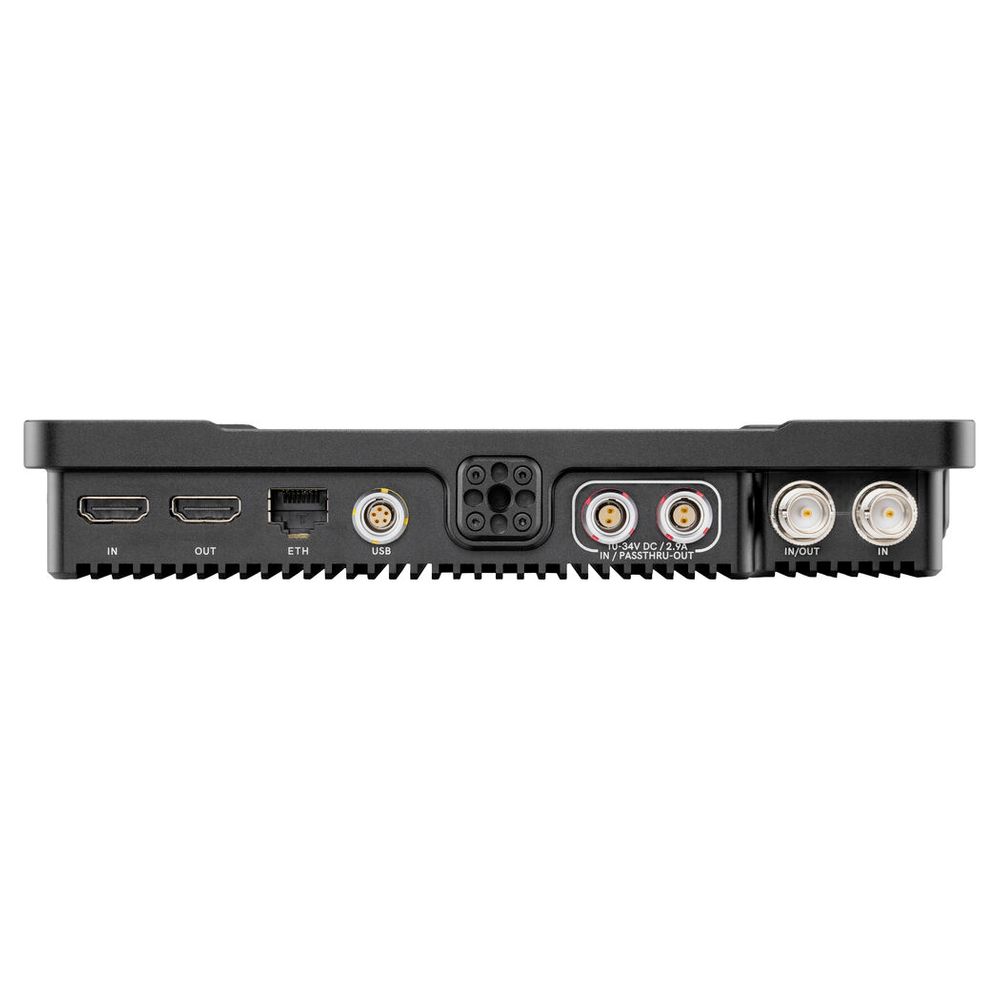

Inputs / Outputs
Video I/O
1 x BNC (6G-SDI) Input
1 x BNC (6G-SDI) Input/Output
1 x HDMI 2.0 Input
1 x HDMI 2.0 Output
Embedded Audio
HDMI/SDI
Audio I/O

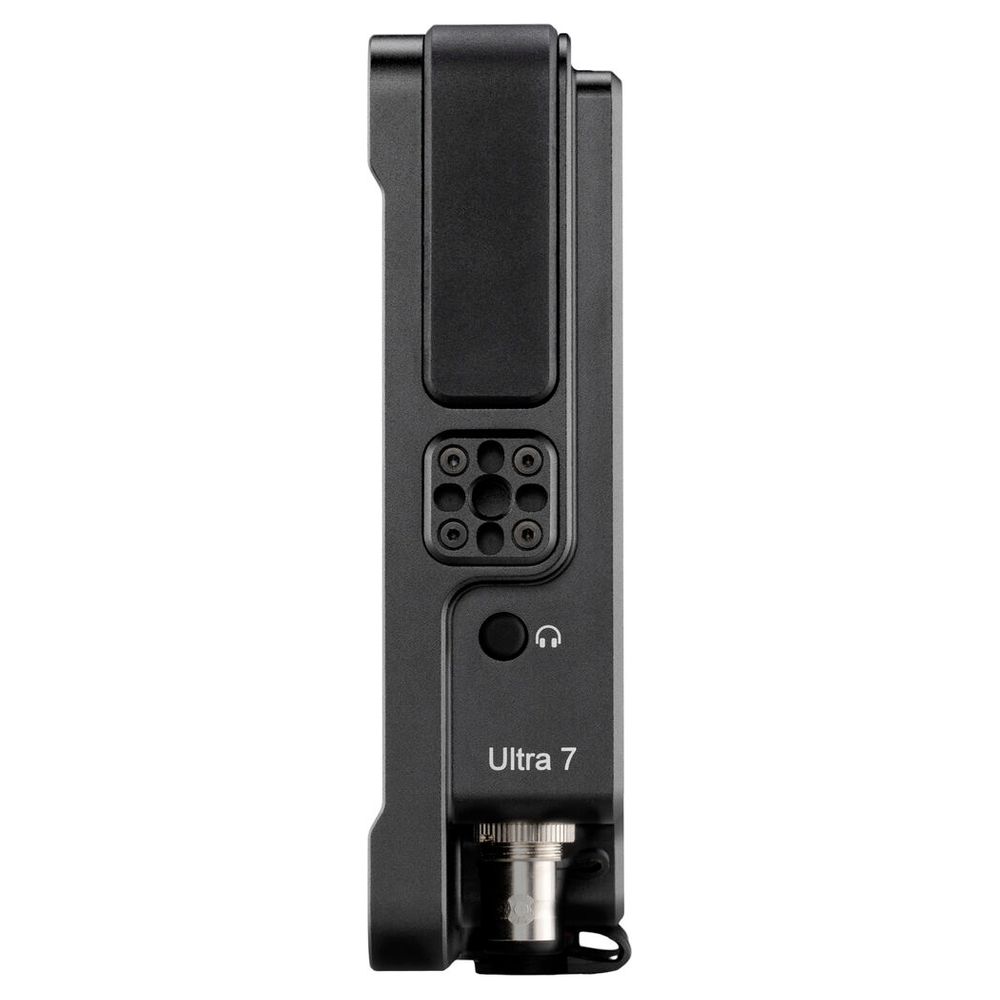

1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
No
Power I/O
1 x LEMO 0B 2-Pin (2.1 A / 34 VDC) Input
Other I/O
1 x LEMO 5-Pin USB
1 x RJ45 (Camera Control)
Media/Memory Card Slot
Single Slot: SD (Unspecified Type)
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
*As of January, 2024: Check with manufacturer for the most up-to-date compatibility
Format Support
Video Format
SDI
UHD 4K: 30
HDMI
UHD 4K: 60
Power
DC Input Power
10 to 34 VDC at 2.1 A
General
Material of Construction
Aluminum
Dimensions
209 x 130 x 34.66 mm
Weight
900 g

In the Box

  • SmallHD ULTRA 7 UHD 4K On-Camera Touchscreen Monitor
  • Limited 1-Year Manufacturer Warranty
