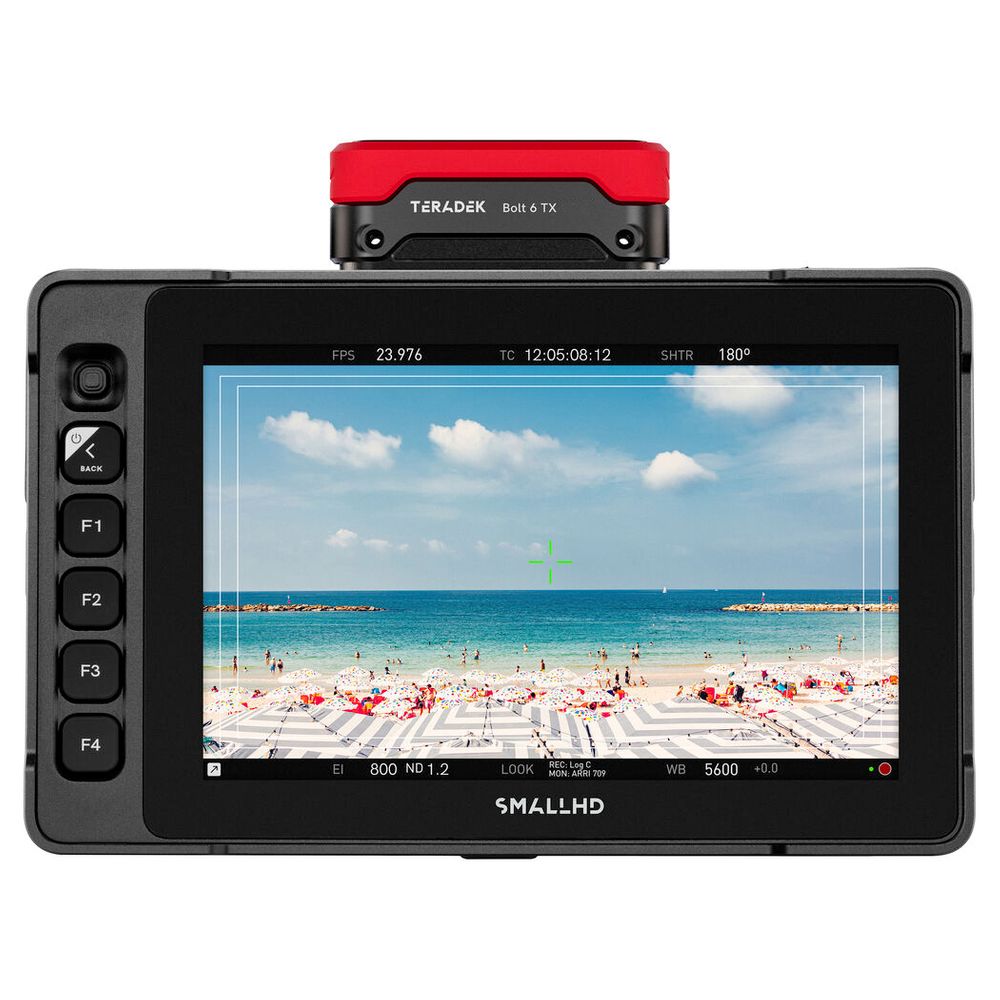

SmallHD Ultra 7 Bolt 6 TX 750

33.1.16-0729

Product Features:

7" 1920 x 1080 Touchscreen Display
Built-In Bolt 6 Wireless Transmitter
6G-SDI & HDMI Inputs/Outputs, 4K I/O
6 GHz Wireless Transmission up to 750'(228.6m)
Bright 2300 cd/m² LCD Panel
10-Bit 4:2:2 DCI-P3 Colour Gamut
5-Pin USB & Ethernet Control Ports
Power via 2-Pin LEMO Input
PageOS 5 with Imaging Tools
Milled Aluminum Unibody Housing
$7,499.00
Stock Level:
In Stock
Check Location Availability

SmallHD Ultra 7 Bolt 6 TX 750

Essential Add-On's we recommend

Description

Add an ultra-bright monitor with wireless control to your production rig with the SmallHD ULTRA 7 Bolt 6 TX 750 Monitor. The unit features an ULTRA 7 bright 7" on-camera monitor and an integrated Bolt 6 transmitter from Teradek. The monitor features a bright 2300 cd/m² display, a 1920 x 1080 touchscreen LCD, HDMI and 6G-SDI inputs/outputs that support up to 4K, camera control options, tactile buttons, and 10-bit 4:2:2 Rec. 709 color processing.

The built-in transmitter module provides wireless image transmission up to 750'(228.6m), as well as optional wireless camera control using a separately available receiver module and connection kit. The module can transmit via the 6 GHz wireless band to up to six Teradek Bolt 6 series receivers, as well as to 5 GHz receivers such as the Teradek Bolt 4K series. It features a powerful internal V-antenna for high-quality, low-latency transmissions, and its unibody design is water and dust resistant.

Features
  • The Ultra 7 Bolt 6 TX 750 integrates a Bolt 6 750 Transmitter directly inside an Ultra 7 monitor, allowing you to wirelessly send the image from your camera up to 750'(228.6m) away
  • Daylight-viewable, 7" touchscreen on-camera monitor with 2300 cd/m² brightness
  • Slim, lightweight design with 10-bit 4:2:2 DCI-P3 color, touchscreen LCD panel
  • HDMI and 6G-SDI inputs and outputs
  • The Bolt 6 750 TX is a real-time wireless video transmitter that supports video signals up to 4K30 via HDMI with no image delay, allowing you to send color-accurate, True HDR images in less than 0.001 seconds
  • Tactile buttons around the monitor allow you to use the monitor in any condition
  • The PageOS 5 toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), advanced Teradek RT overlays, and more
  • Four 1/4"-20 mounting threads on the left, right, bottom, and back of the monitor
  • Power using a 2-pin power input
  • Optional RED camera control via the 5-pin USB port
  • Optional ARRI/Sony VENICE camera control via the Ethernet port
  • Durable aluminum chassis

Display Tools
  • Pixel zoom: 2x and 4x with pinch-zoom
  • Aspect ratios: Preset and customizable
  • DSLR scale: Canon 5D Mk II and Canon 7D
  • Custom scale: Underscan only
  • Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
  • Image flip: Auto and manual
  • Image rotation: Auto and manual
  • Cross conversion: HDMI to SDI, SDI to HDMI
  • Color focus assist: Adjustable style and intensity
  • Peaking: Adjustable intensity
  • False color: Spectrum, ARRI-style, and customizable
  • Zebra: Dual, customizable
  • Waveform: Luma and RGB, customizable with region-of-interest highlighting
  • Vectorscope
  • RGB parade, customizable
  • Histogram: Luma and RGB
  • Image capture, with a dedicated button and image gallery
  • Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
  • LUT import: Via SD card or USB storage device
  • Image overlay: Opacity slider and blink setting
  • Image capture
  • Audio meters: Up to eight channels

SmallHD ULTRA 7 TX 750 Specs

Key Specs
Display Size
7.0" / 17.8 cm
Resolution
1920 x 1080
Touchscreen
Yes
Video I/O
1 x BNC (6G-SDI) Output
1 x HDMI (Unspecified Signal) Output
1 x BNC (6G-SDI) Input
1 x HDMI (Unspecified Signal) Input

Media/Memory Card Slot
Single Slot: SD (Unspecified Type)
Video Format
SDI (10-Bit 4:2:2)
DCI 4K: 30/29.97/25/24/23.98
UHD 4K: 30/29.97/24/23.98
DCI 2K: 60/59.94/50/48/47.95
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 100/60/59.94/50/30/29.97/25/24/23.98
480i: 59.94
576i: 50
HDMI (8/10/12/16-Bit 4:4:4)
UHD 4K: 30
1080p: 60/59.94/50/30/25/24/23.98
1080PsF: 30/25/24/23.98
1080i: 60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/25/24/23.98
576p: 100/50
480p: 120/119.88/60/59.94
480i: 240/239.76/120/119.88/60/59.94
576i: 200/100/50

Built-In Battery
Yes
Display
Panel Type
LCD
Display Size
7.0" / 17.8 cm
Resolution
1920 x 1080
Aspect Ratio
16:9
Touchscreen
Yes
Maximum Brightness
2300 nits / cd/m2
Contrast Ratio
1000:1
Bit Depth / Color Support
10-Bit (1.07 Billion Colors)
Pixels Per Inch (ppi)
314 ppi
Color Gamut
95% DCI-P3
98% Rec. 709
Image Controls
Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform
Inputs / Outputs
Video I/O
1 x BNC (6G-SDI) Output
1 x HDMI (Unspecified Signal) Output
1 x BNC (6G-SDI) Input
1 x HDMI (Unspecified Signal) Input
Embedded Audio
HDMI
SDI
Audio I/O
1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
No
Power I/O
1 x LEMO 0B 2-Pin (2.1 A / 34 VDC) Input
Other I/O
1 x LEMO 5-Pin (Camera Control) Output
1 x RJ45 (Camera Control) Output
Media/Memory Card Slot
Single Slot: SD (Unspecified Type)
Encryption
No
Wireless
Wireless Range
228.6 m
Wi-Fi
Yes
Bluetooth
No
Mobile App Compatible
No
*As of January, 2024: Check with manufacturer for the most up-to-date compatibility
Format Support
Video Format
SDI (10-Bit 4:2:2)
DCI 4K: 30/29.97/25/24/23.98
UHD 4K: 30/29.97/24/23.98
DCI 2K: 60/59.94/50/48/47.95
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 100/60/59.94/50/30/29.97/25/24/23.98
480i: 59.94
576i: 50
HDMI (8/10/12/16-Bit 4:4:4)
UHD 4K: 30
1080p: 60/59.94/50/30/25/24/23.98
1080PsF: 30/25/24/23.98
1080i: 60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/25/24/23.98
576p: 100/50
480p: 120/119.88/60/59.94
480i: 240/239.76/120/119.88/60/59.94
576i: 200/100/50
Audio Format
2-Channel
Power
DC Input Power
10 to 34 VDC at 2.1 A
Built-In Battery
Yes
Environmental
Environmental Protection
Dust-Resistant (IP53)
Certifications
CE, FCC, IC, RoHS
General
Material of Construction
Aluminum
Weight
900 g




In the Box

  • SmallHD ULTRA 7 Bolt 6 TX 750 Monitor
  • SmallHD D-Tap to 2-Pin Power Cable (36")
  • Limited 1-Year Manufacturer Warranty
