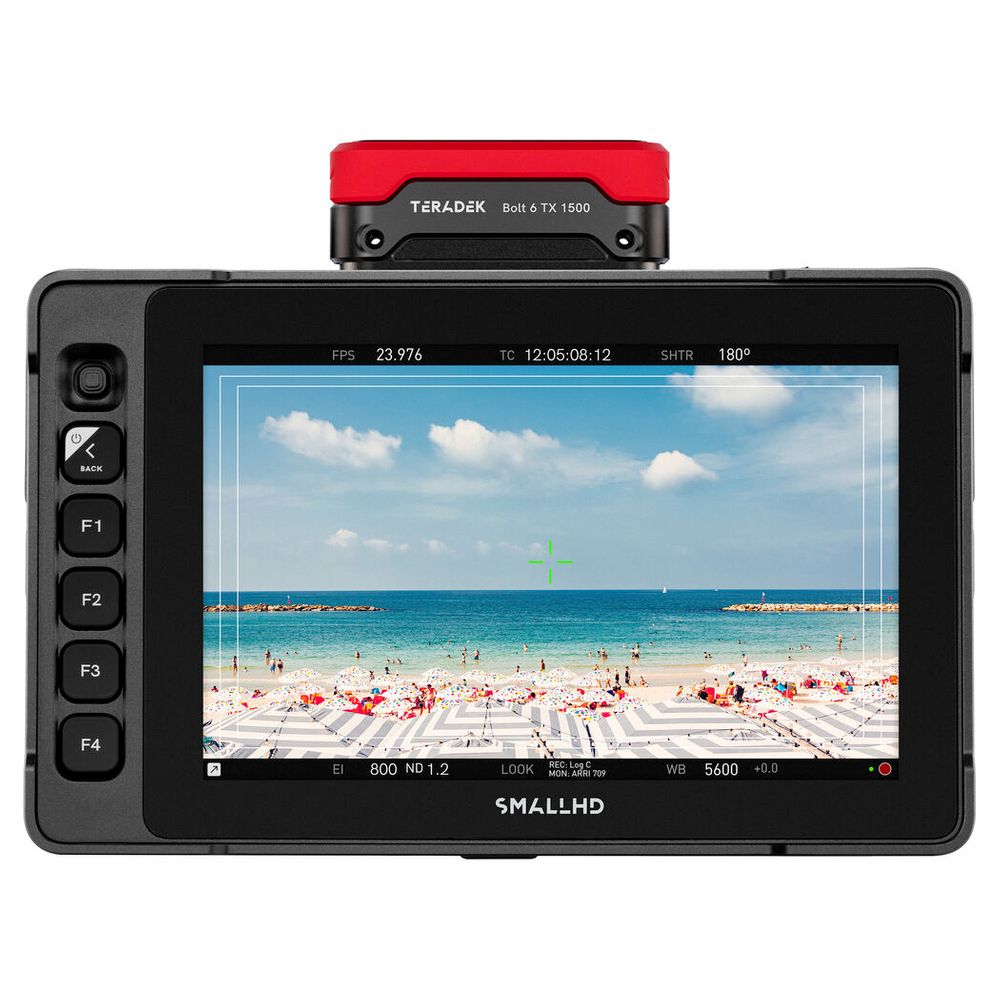

Add an ultra-bright monitor with wireless control to your production rig with the SmallHD ULTRA 7 Bolt 6 TX 1500 Monitor. The unit features an ULTRA 7 bright 7" on-camera monitor and an integrated Bolt 6 transmitter from Teradek. The monitor features a bright 2300 cd/m² display, a 1920 x 1080 touchscreen LCD, HDMI and 6G-SDI inputs/outputs that support up to 4K, camera control options, tactile buttons, and 10-bit 4:2:2 Rec. 709 color processing.
The built-in transmitter module provides wireless image transmission up to 1500'(457.2m), as well as optional wireless camera control using a separately available receiver module and connection kit. The module can transmit via the 6 GHz wireless band to up to six Teradek Bolt 6 series receivers, as well as to 5 GHz receivers such as the Teradek Bolt 4K series. It features a powerful internal V-antenna for high-quality, low-latency transmissions, and its unibody design is water and dust resistant.
- The Ultra 7 Bolt 6 TX 1500 integrates a Bolt 6 1500 Transmitter directly inside an Ultra 7 monitor, allowing you to wirelessly send the image from your camera up to 1500'(457.2m) away

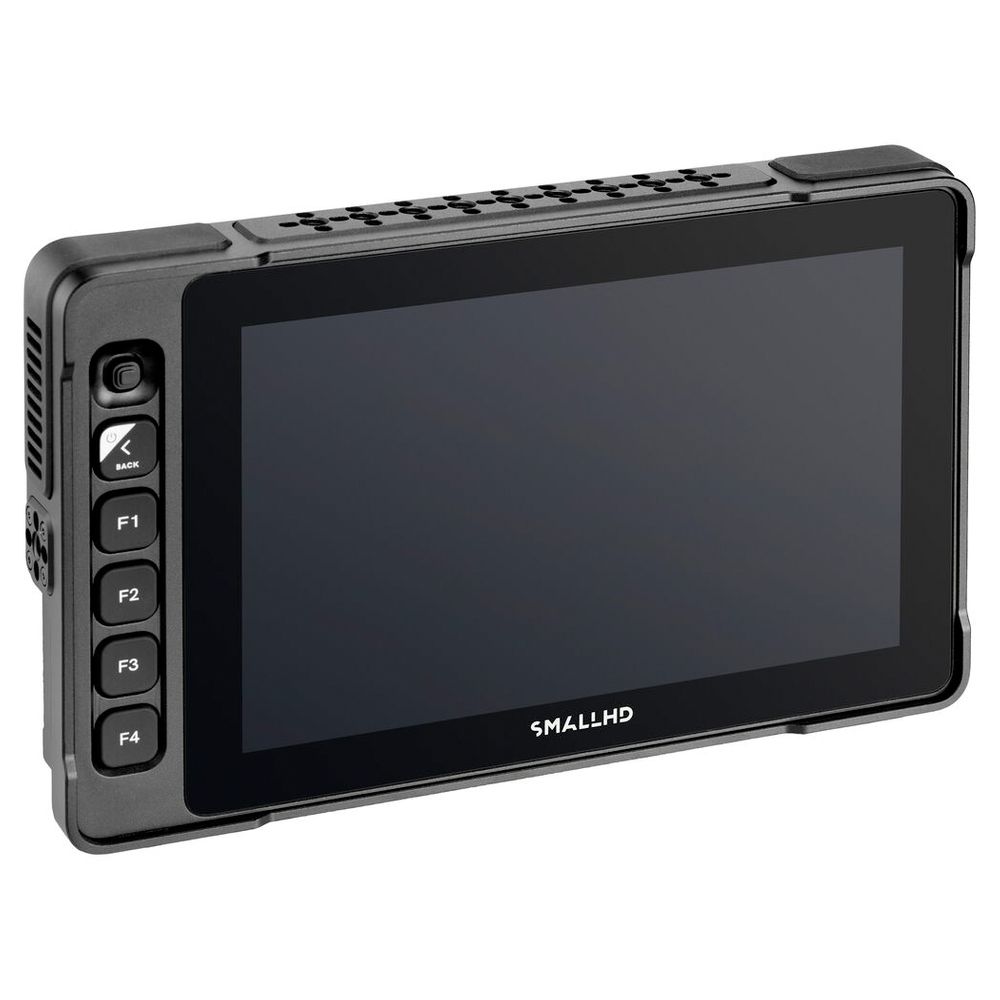

- Daylight-viewable, 7" touchscreen on-camera monitor with 2300 cd/m² brightness
- Slim, lightweight design with 10-bit 4:2:2 DCI-P3 color, touchscreen LCD panel

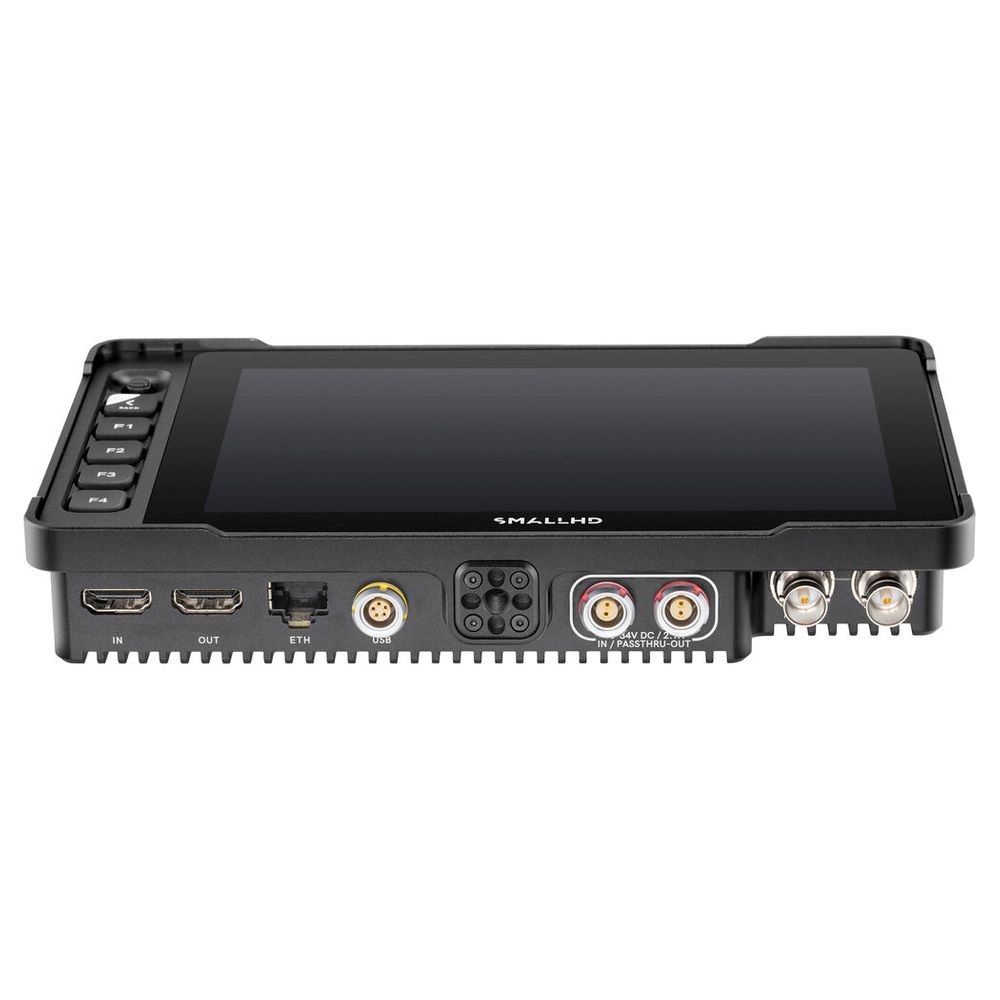

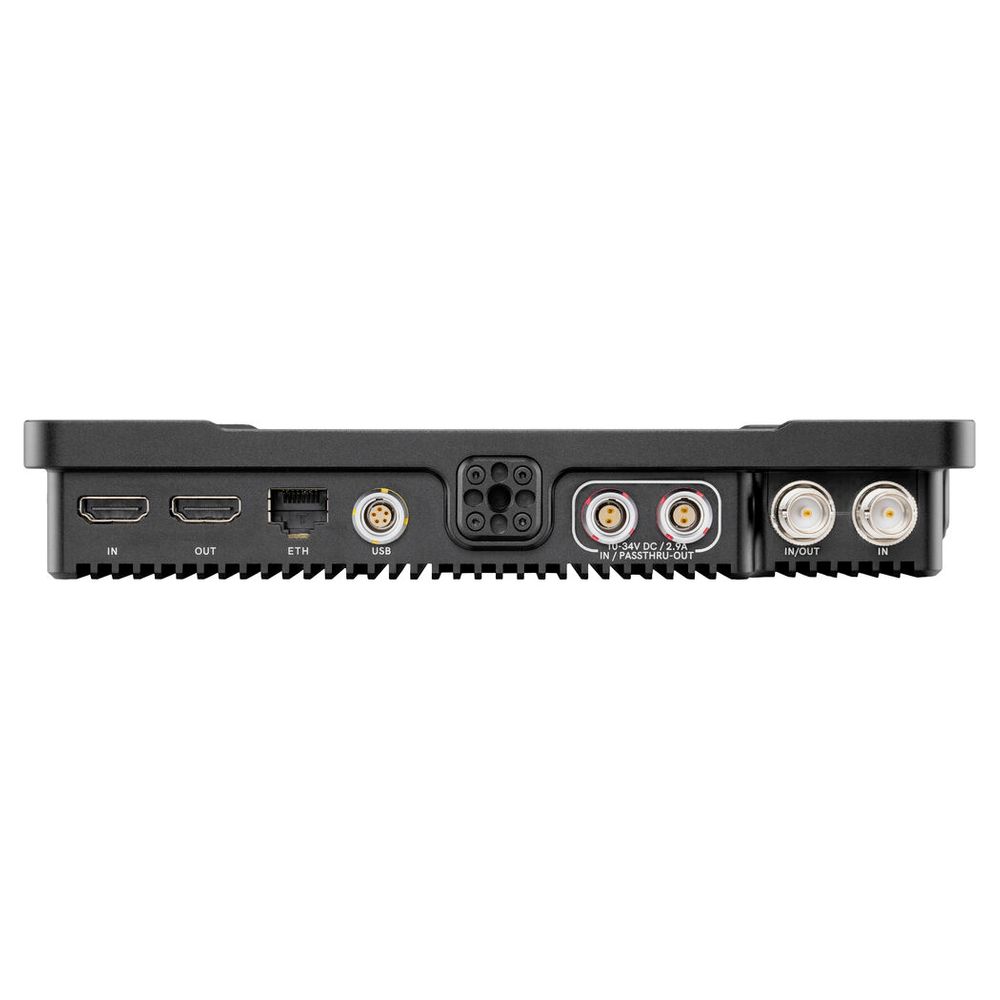

- HDMI and 6G-SDI inputs and outputs
- The Bolt 6 1500 TX is a real-time wireless video transmitter that supports video signals up to 4K30 via HDMI with no image delay, allowing you to send color-accurate, True HDR images in less than 0.001 seconds
- Tactile buttons around the monitor allow you to use the monitor in any condition
- The PageOS 5 toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), advanced Teradek RT overlays, and more

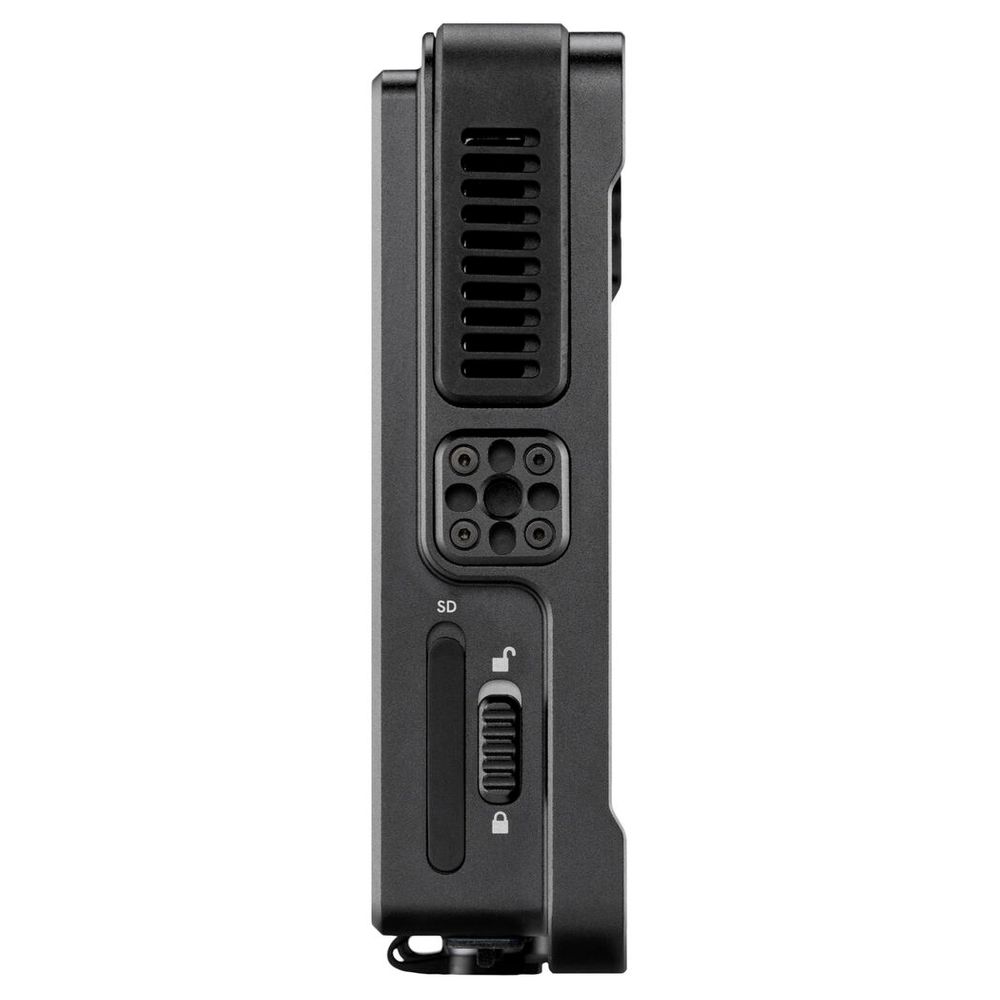

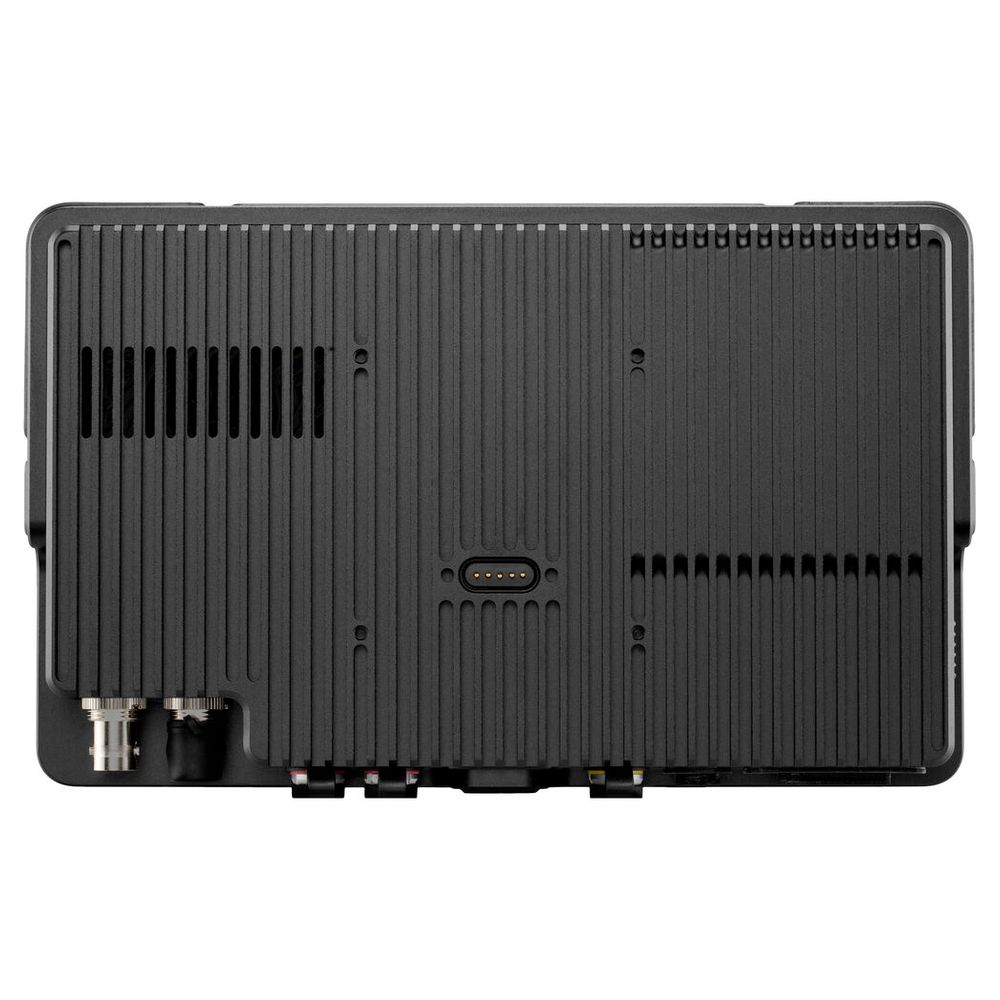

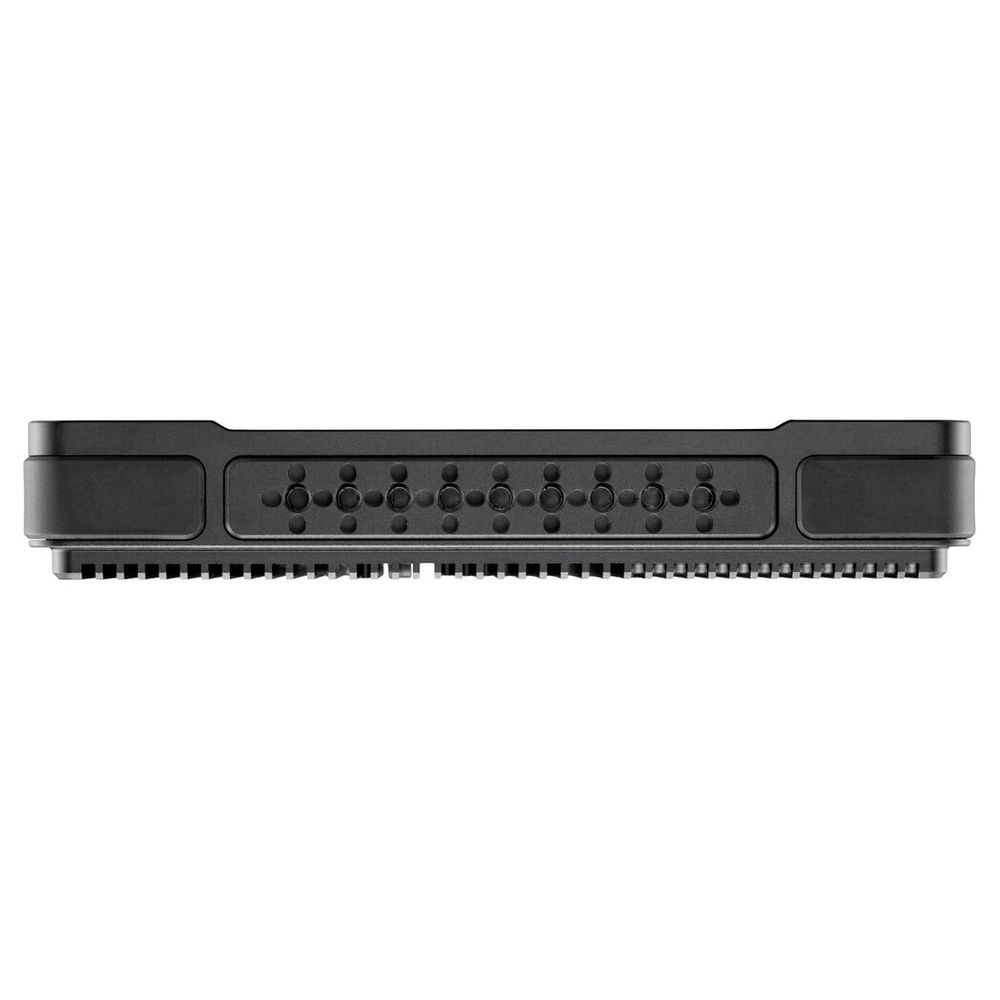

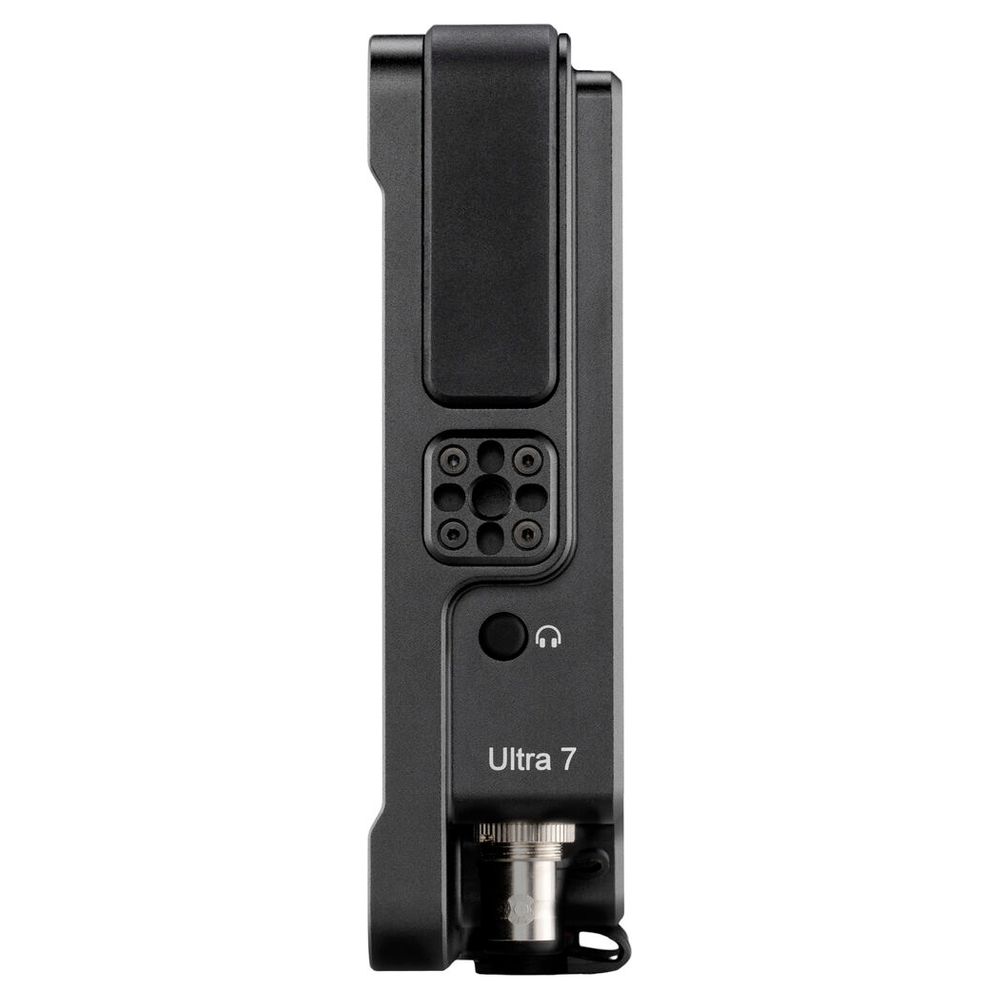

- Four 1/4"-20 mounting threads on the left, right, bottom, and back of the monitor
- Power using a 2-pin power input
- Optional RED camera control via the 5-pin USB port
- Optional ARRI/Sony VENICE camera control via the Ethernet port
- Durable aluminum chassis
- Pixel zoom: 2x and 4x with pinch-zoom
- Aspect ratios: Preset and customizable
- DSLR scale: Canon 5D Mk II and Canon 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Cross conversion: HDMI to SDI, SDI to HDMI
- Color focus assist: Adjustable style and intensity
- Peaking: Adjustable intensity
- False color: Spectrum, ARRI-style, and customizable
- Zebra: Dual, customizable
- Waveform: Luma and RGB, customizable with region-of-interest highlighting
- Vectorscope
- RGB parade, customizable
- Histogram: Luma and RGB
- Image capture, with a dedicated button and image gallery
- Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Image capture
- Audio meters: Up to eight channels
SmallHD ULTRA 7 TX 1500 Specs
| Display Size | |
| Resolution | |
| Touchscreen | |
| Video I/O | |
| Media/Memory Card Slot | |
| Video Format | |
| Built-In Battery |
| Panel Type | |
| Display Size | |
| Resolution | |
| Aspect Ratio | |
| Touchscreen | |
| Maximum Brightness | |
| Contrast Ratio | |
| Bit Depth / Color Support | |
| Pixels Per Inch (ppi) | |
| Color Gamut | |
| Image Controls |
| Video I/O | |
| Embedded Audio | |
| Audio I/O | |
| Built-In Speaker | |
| Power I/O | |
| Other I/O | |
| Media/Memory Card Slot | |
| Encryption |
| Wireless Range | |
| Wi-Fi | |
| Bluetooth | |
| Mobile App Compatible |
| Video Format | |
| Audio Format |
| DC Input Power | |
| Built-In Battery |
| Environmental Protection | |
| Certifications |
| Material of Construction | |
| Weight |
In the Box
- SmallHD ULTRA 7 Bolt 6 TX 1500 Monitor
- SmallHD D-Tap to 2-Pin Power Cable (36")
- Limited 1-Year Manufacturer Warranty
