Wooden Camera - B-Box System (Sony Burano)

54.A00598

Product Features:

B-Box Power Extension for D-Box
Bolt-On Side Mount
Link and Remote Cables
2-Pin, 3-Pin, and Remote Input Ports
$795.00
Stock Level:
In Stock
Check Location Availability

Wooden Camera - B-Box System (Sony Burano)

Description

Extend the power and run/stop capabilities of your Sony BURANO with the B-Box System from Wooden Camera. The system includes the core B-Box, a bolt-on side mount, a link cable, and a remote cable.

The B-Box extends the power and run/stop of the D-Box, connecting via the 5-pin EXT port and providing 12V 2-pin and 24V 3-pin ports. The 3.5mm remote input allows you to connect to the remote port on the camera to utilize the 3-pin connector for run/stop operation. The mount allows you to attach the B-Box to the optional top plate for Sony BURANO.

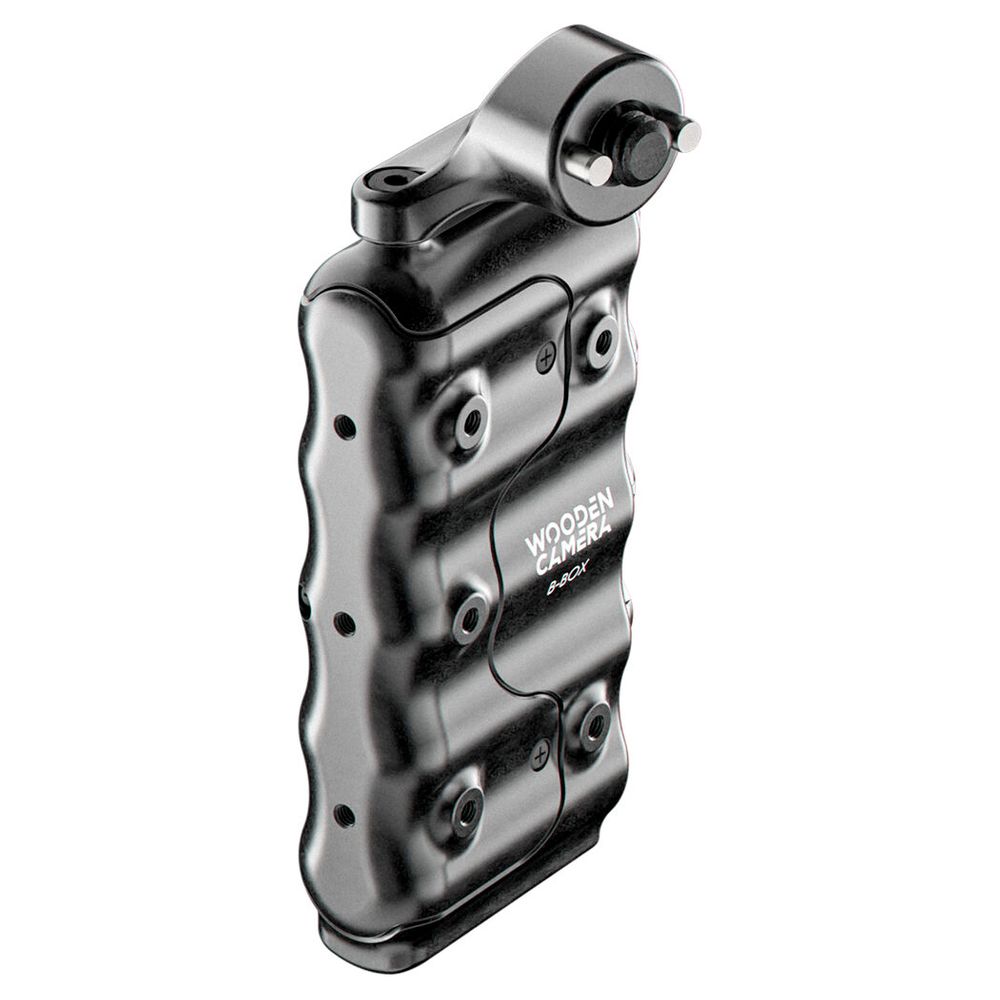

Wooden Camera B-Box for Sony BURANO

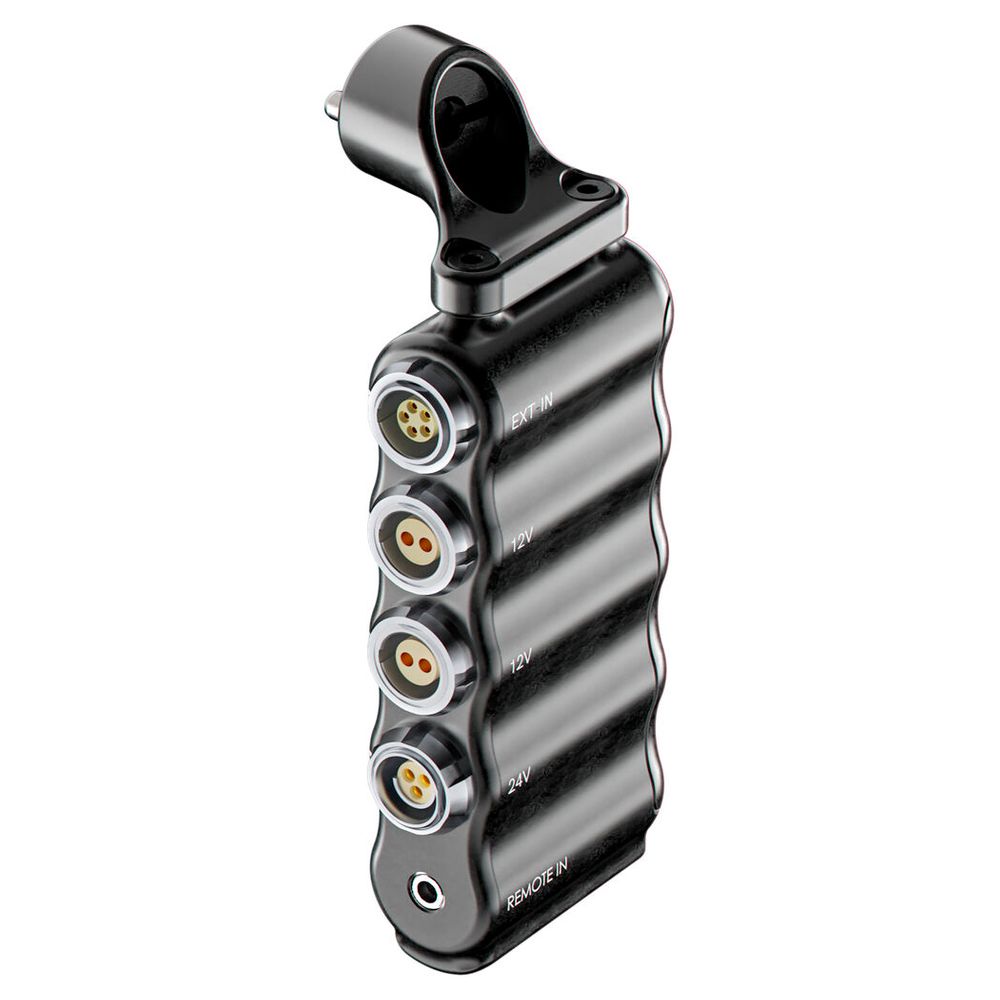

The B-Box from Wooden Camera is a power breakout box extension for the D-Box for the Sony BURANO cinema camera. The B-Box plugs into the D-Box using a separately available 5-pin remote cable and draws power from the D-Box, and it provides two 12V 2-pin ports and a 24V 3-pin port. A 3.5mm LANC remote input can extend the run/stop control to the 3-pin port using a separately available remote cable. The B-Box can be mounted onto a cage or camera plate using a separately available Bold-On Side Mount.

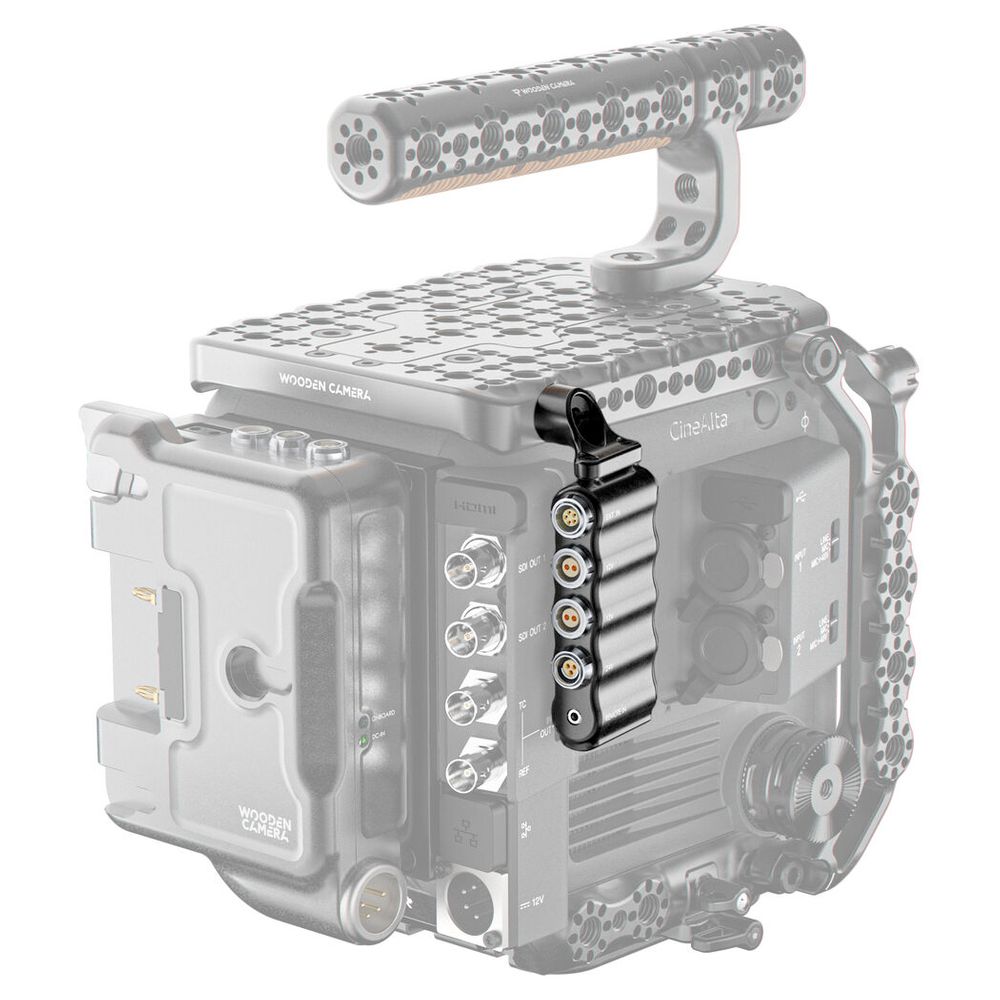

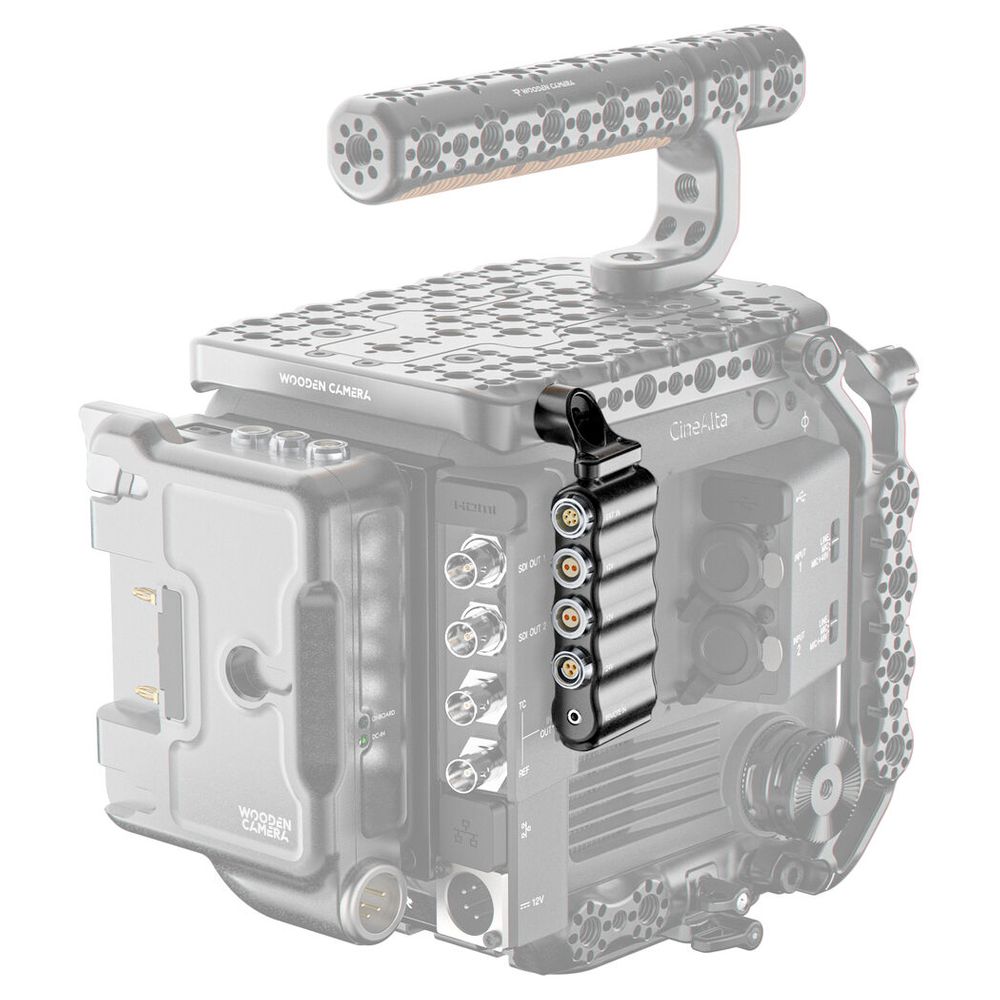

Wooden Camera B-Box Bolt-On Mount for Sony BURANO

Mount your B-Box onto your Sony BURANO cinema camera with this B-Box Bolt-On Mount from Wooden Camera. This mount attaches to the top of the separately available B-Box and provides a 3/8"-16 anti-twist mounting screw to mount the B-Box onto the side of the Wooden Camera Top Plate for Sony BURANO. Its compact, low-profile design provides a solid, lightweight connection to your rig.



Wooden Camera Remote Cable for Sony BURANO B-Box

Add a 3-pin control option to your Sony BURANO cinema camera with this Remote Cable from Wooden Camera. The cable features 3.5mm connectors on each end that connect the camera's remote port with the B-Box for Sony BURANO. The connection enables the 3-pin LEMO-type connector on the B-Box to be used for run/stop control of the camera.



Wooden Camera B-Box Link Cable for Sony VENICE, VENICE 2, and BURANO

Enable the B-Box capability on your Sony BURANO, VENICE, or VENICE 2 camera with this B-Box Link Cable from Wooden Camera. The cable features 5-pin EXT connectors on each end that plug into the EXT ports on the separately available B-Box and the camera. The cable enables power transfer between the B-Box and the camera.



Wooden Camera B-Box For Sony BURANO Specs

Key Specs
Power Output
LEMO 2-Pin: 12 VDC
Fischer 3-Pin: 24 VDC
Camera Power Method
Connector
Power
Power Input
XLR 5-Pin Female: VDC
Power Output
LEMO 2-Pin: 12 VDC
Fischer 3-Pin: 24 VDC
General
Camera Power Method
Connector
Inputs/Outputs
2x LEMO 2-Pin Female
1x Fischer 3-Pin Female
Dimensions
73 x 46 x 24 mm
Weight
51.26 g

Wooden Camera B-Box Bolt-On Mount For Sony BURANO Specs

General
Accessory Mounting
3/8"-16 Male
Material of Construction
Aluminum

Wooden Camera Remote Cable For Sony BURANO B-Box Specs

General
Compatibility
Sony BURANO Cinema Camera
Wooden Camera B-Box for Sony BURANO
Inputs / Outputs
Connector 1
1x 1/8" / 3.5 mm (LANC) Control Female
Connector 2
1x 1/8" / 3.5 mm (LANC) Control Female
Physical
Cable Length
Not Specified by Manufacturer

Wooden Camera B-Box Link Cable For Sony VENICE, VENICE 2, And BURANO Specs

General
Compatibility
Sony BURANO Cinema Camera / VENICE Cinema Camera / VENICE 2 Cinema Camera
Wooden Camera B-Box
Inputs / Outputs
Connector 1
1x 5-Pin EXT Male
Connector 2
1x 5-Pin EXT Male





In the Box

  • Wooden Camera B-Box for Sony BURANO
    • Limited 1-Year Manufacturer Warranty
  • Wooden Camera B-Box Bolt-On Mount for Sony BURANO
    • Limited 1-Year Manufacturer Warranty
  • Wooden Camera Remote Cable for Sony BURANO B-Box
    • Limited 1-Year Manufacturer Warranty
  • Wooden Camera B-Box Link Cable for Sony VENICE, VENICE 2, and BURANO
    • Limited 1-Year Manufacturer Warranty
