Wooden Camera - Base Plate System For Sony Burano

54.A00601

Product Features:

Arca-Type Baseplate for Sony BURANO
Low-Profile Arca-Type Riser Plate
15mm LWS Rod Clamps
Works with Standard ARRI Bridges Plates
3/8"-16 Anti-Twist Mounting Threads
$795.00
Overseas Air Freight
Check Location Availability

Wooden Camera - Base Plate System For Sony Burano

Description

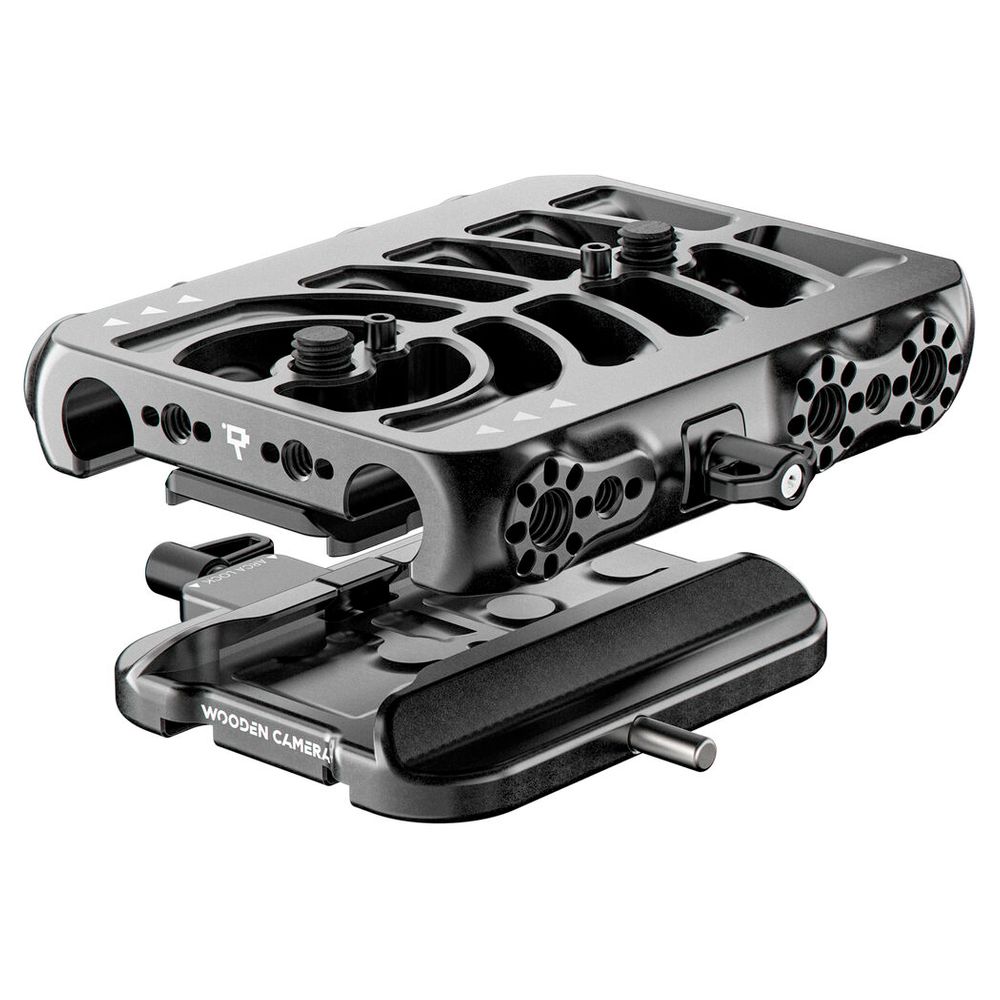

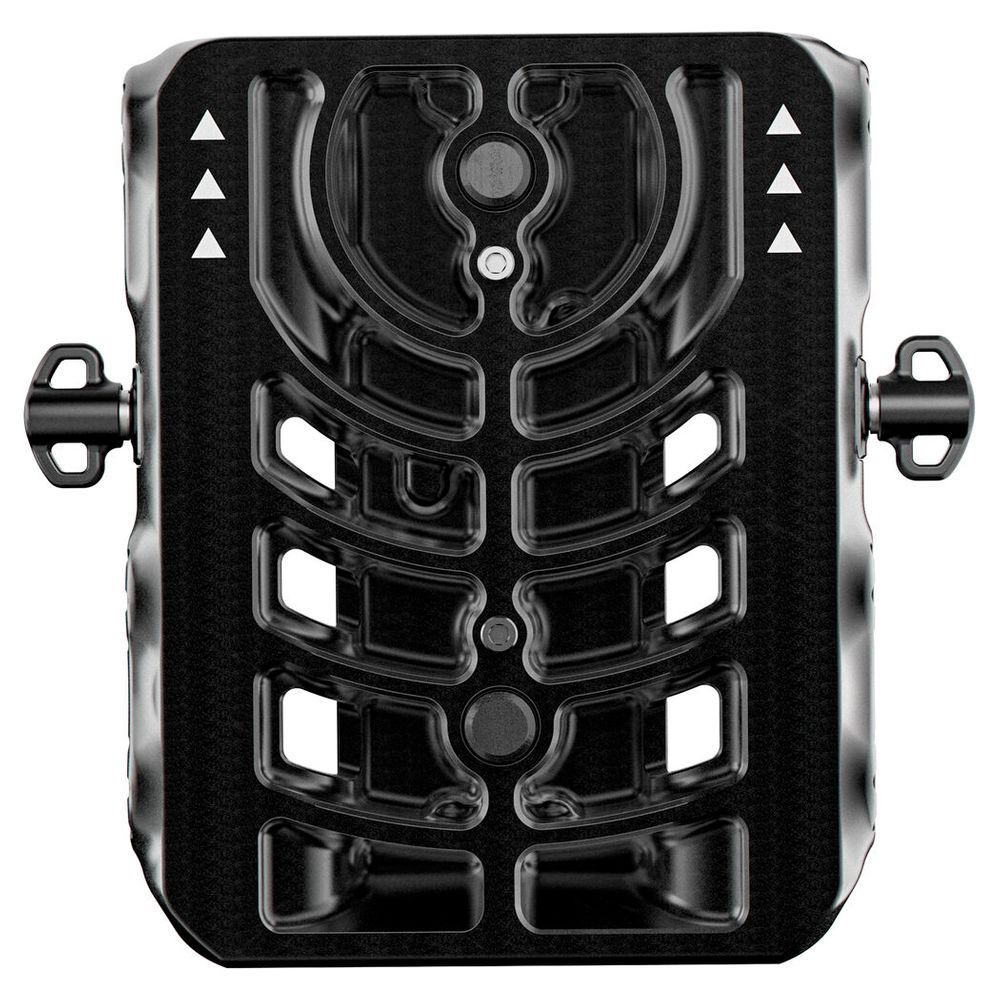

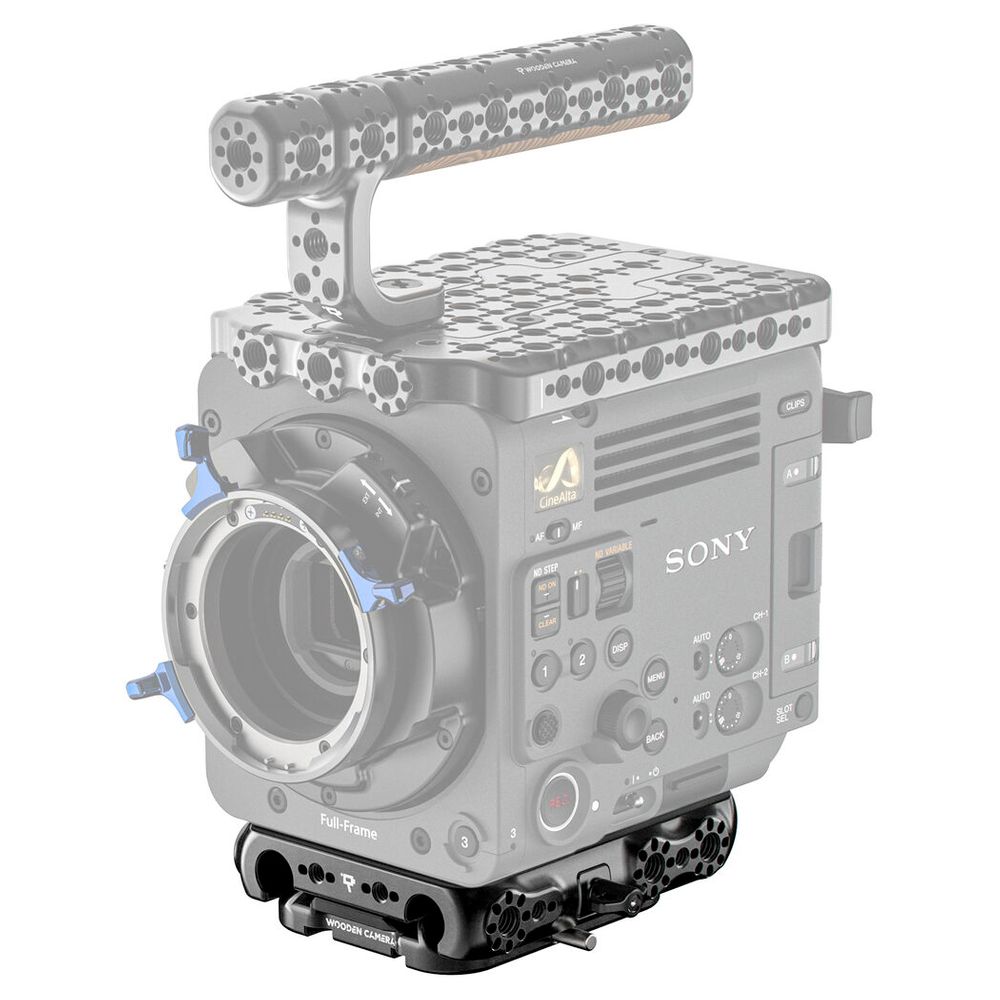

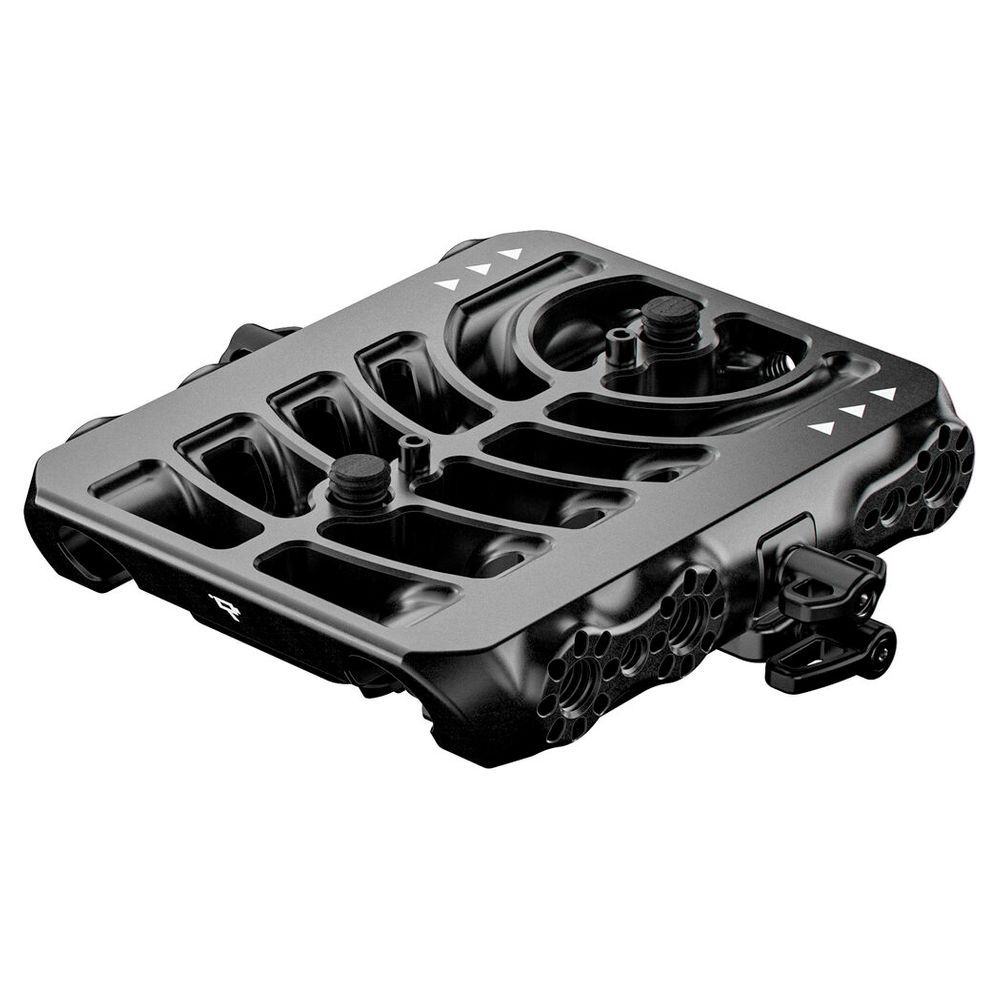

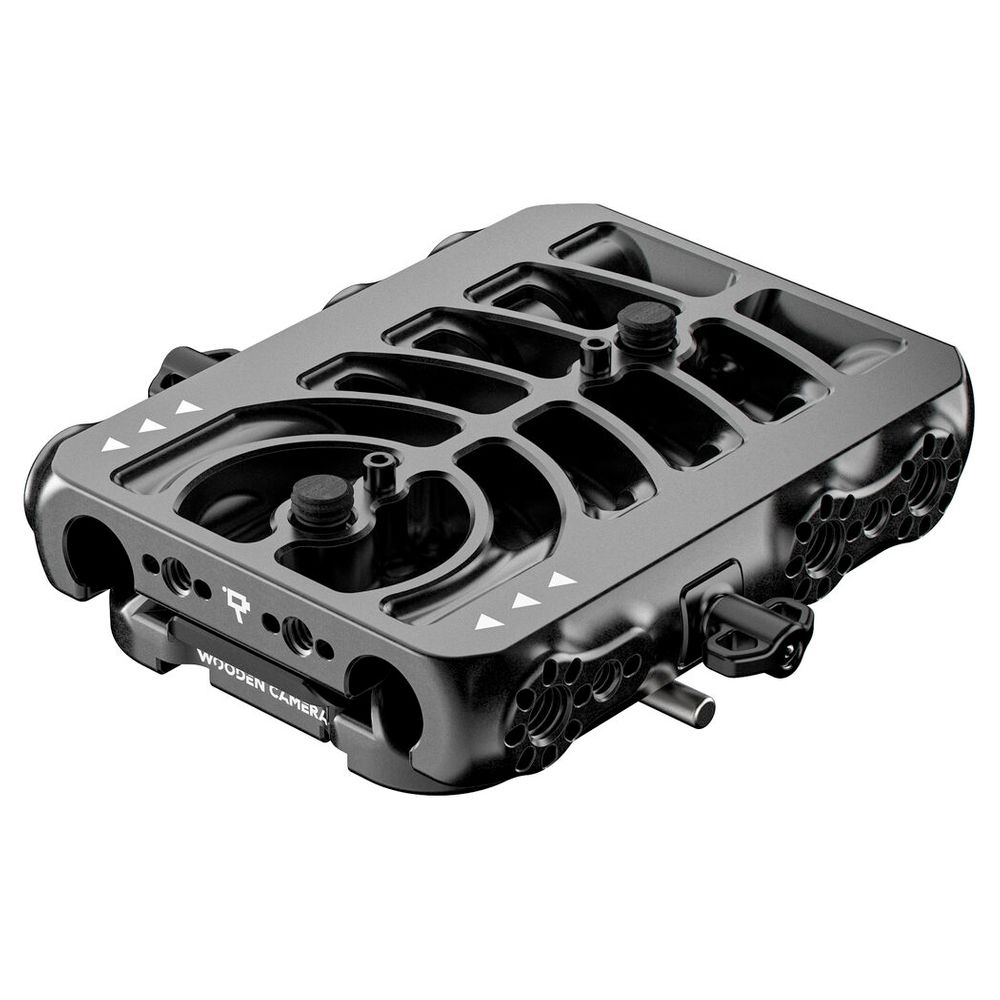

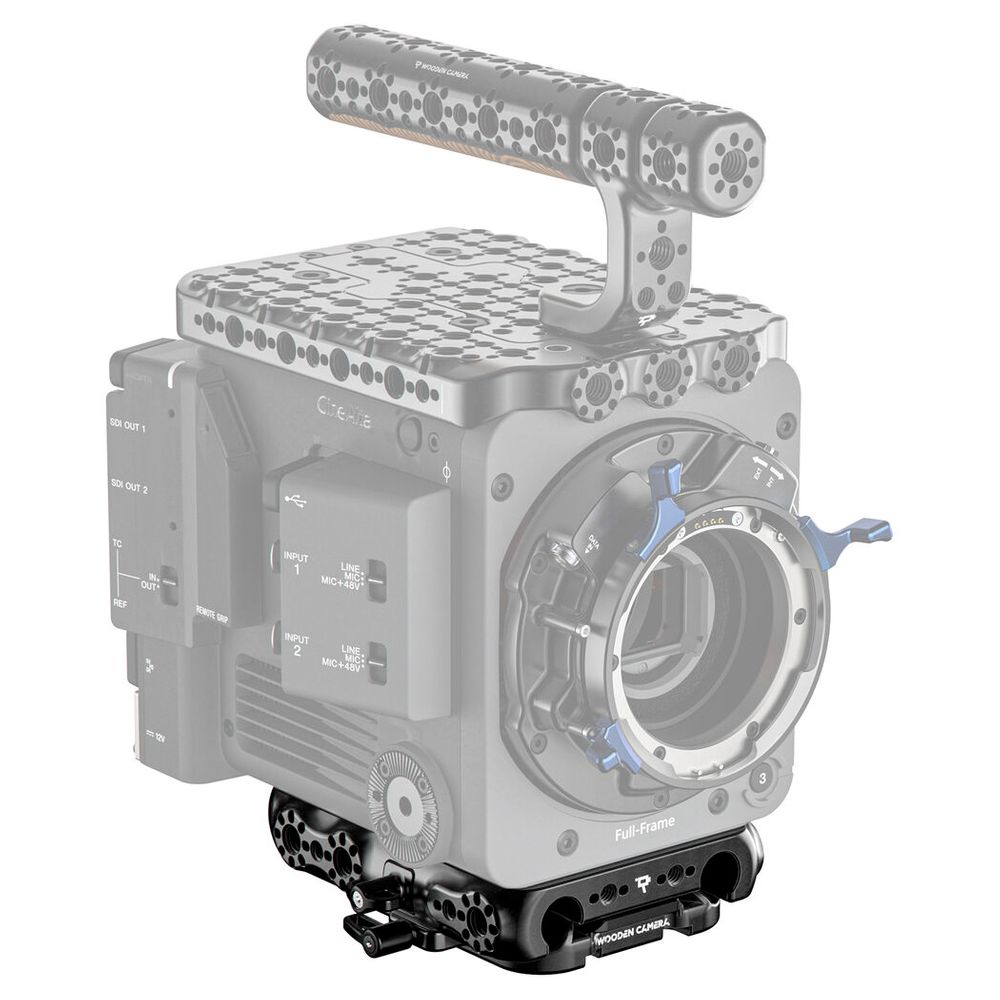

Mount your Sony BURANO cinema camera onto a sturdy but lightweight Baseplate System from Wooden Camera. The low-profile system is made up of a 15mm LWS Arca-type baseplate and an Arca-type riser plate.

The baseplate features 3/8"-16 camera screws and mounts onto the riser, and it can slide for balance and quickly mount and unmount. The 15mm rod clamps feature standard LWS spacing, and there are 3/8"-16 anti-twist threads on the side of the baseplate and on the bottom of the riser for compatibility with an optional bridge plate.

Wooden Camera Arca-Type Baseplate for Sony BURANO

Quickly swap your Sony BURANO between rigs with this Arca-Type Baseplate from Wooden Camera. The baseplate features an Arca-type dovetail designed to work with the Wooden Camera Baseplate System for the Sony BURANO. The camera mounts using 3/8"-16 anti-twist screws and features 15mm LWS rod half-ports to accommodate separately available rods. There are also 1/4"-20 and 3/8"-16 anti-twist threads around the front and sides to mount additional accessories.

Wooden Camera Arca-Type Riser Plate for Sony VENICE-Series Cameras

Attach this Wooden Camera Arca-Type Riser Plate to your Sony VENICE-series cinema to achieve the proper lens height for accessory integration. This riser features a wedge clamp thumbscrew locking system to secure your Arca-type plate in place. 3/8"-16 mounting threads attach the bridge plate to the riser.

Compatible Cameras
Sony VENICE
Sony VENICE 2
Sony VENICE Rialto
Sony VENICE Rialto 2


Wooden Camera Arca-Type Baseplate For Sony BURANO Specs

General
Compatibility
Sony BURANO Camera
Wooden Camera Baseplate System for Sony BURANO
Environmental
Environmental Protection
No
Physical
Mounting
2 x 3/8"-16 Anti-Twist Screws
4 x 1/4"-20 Anti-Twist Threads
6 x 3/8"-16 Anti-Twist Threads
1 x Arca-Type Base
Material of Construction
Aluminum
Dimensions
5.1 x 4.9 x 1" / 130 x 125 x 26 mm
Weight
14.5 oz / 410.95 g

Wooden Camera Arca-Type Riser Plate For Sony VENICE-Series Cameras Specs

General
Compatibility
Sony VENICE / VENICE 2 / VENICE Rialto / VENICE Rialto 2
Environmental
Environmental Protection
No
Physical
Mounting
Multiple x 3/8"-16 Threads
1 x Arca-Type Mount
Dimensions
116 x 100 x 16 mm
Weight
224 g

In the Box

  • Wooden Camera Arca-Type Baseplate for Sony BURANO
  • 2 x 3/8"-16 Screw
  • Hex Wrench
  • Limited 1-Year Manufacturer Warranty
  • Wooden Camera Arca-Type Riser Plate for Sony VENICE-Series Cameras
  • Limited 1-Year Manufacturer Warranty
