Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit with Internal Antennas - V Mount

53.10-2260-VII

Product Features:

3G-SDI/HDMI Transmitter & Receiver Set
Supports 6 GHz Frequency Band
Supports up to 4K30 Resolution HDMI Input
Receives HD Video from up to 750' LoS
Output Video up to 4K30 via HDMI
Internal Antennas Transmitter & Receiver
Cross-Compatibility Bolt 4K series with zero delay using the 5 GHz band
Bluetooth Mobile App, Spectrum Analyzer
AES-256 Encryption|RSA-1024 Key Exchange
V-Mount Battery Plate

Configuration Options:

$5,799.00
$5,220.00
Stock Level:
In Stock
Check Location Availability
Make an Enquiry

Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit with Internal Antennas - V Mount

Add To Cart
$5,799.00
$5,220.00

Essential Add-On's we recommend

You may also like...

Description

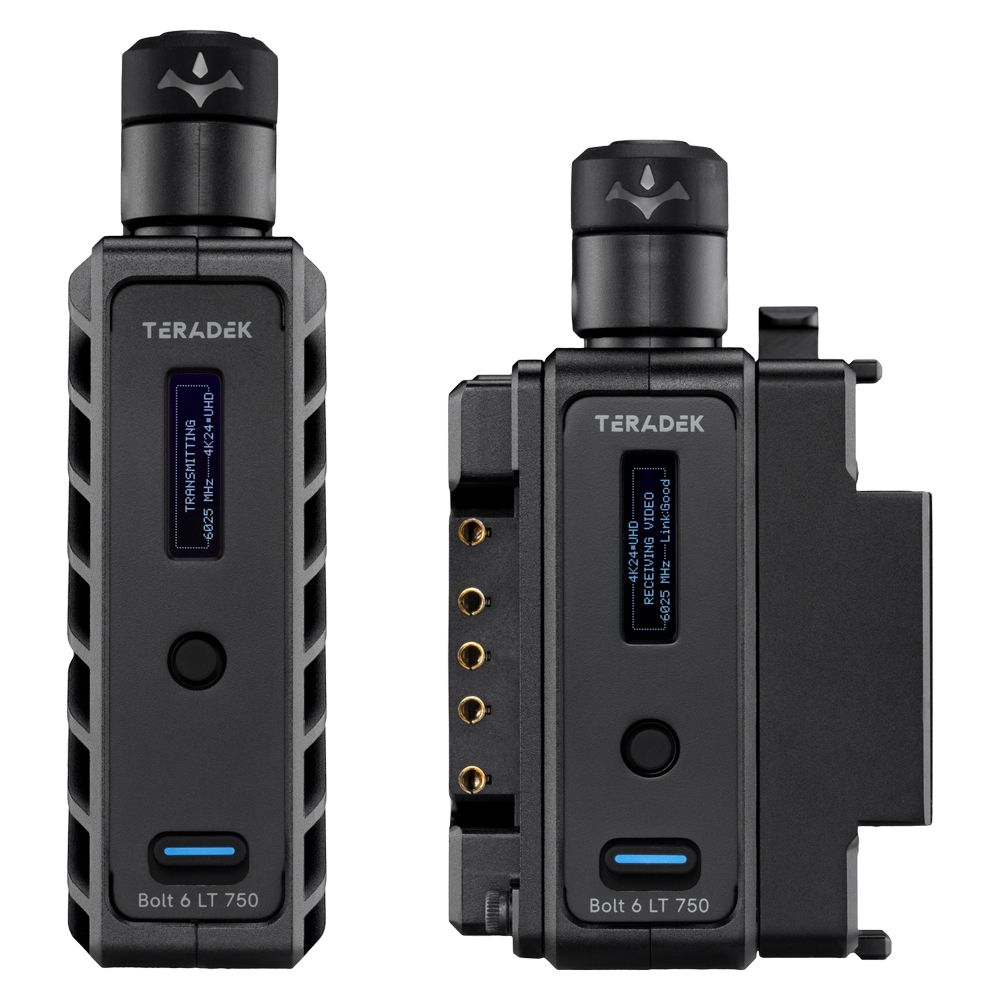

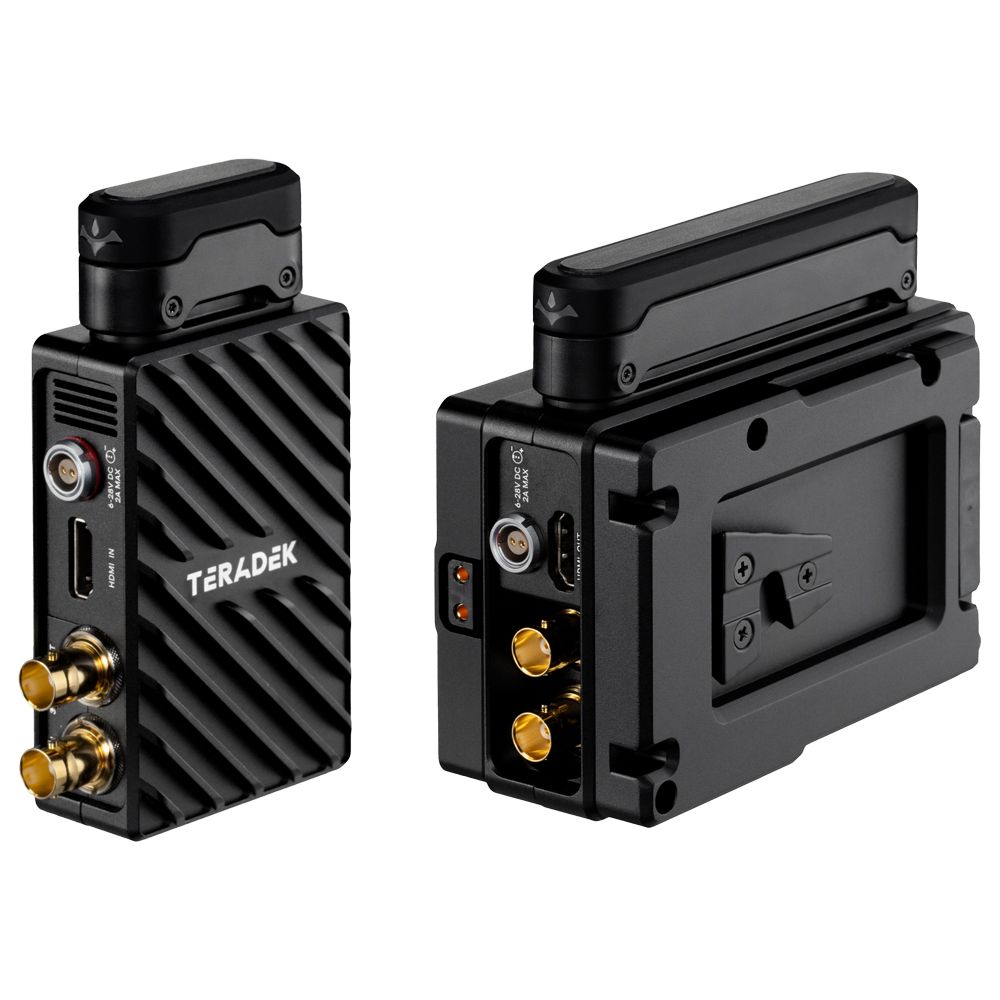

Transmit and receive lossless HD video at ranges up to 750ft line of sight with the V-mount Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit with Internal Antennas from Teradek. This kit includes a wireless Bolt 6 LT 3G-SDI/HDMI transmitter and wireless Bolt 6 LT 3G-SDI/HDMI receiver, both with internal antennas, that support the 6 GHz wireless frequency, feature bright OLED displays, and can wirelessly receive up to UHD 4K30 video with 10-bit 4:2:2 HDR support. The receiver comes with a V-mount battery plate to power it with a high-capacity battery.

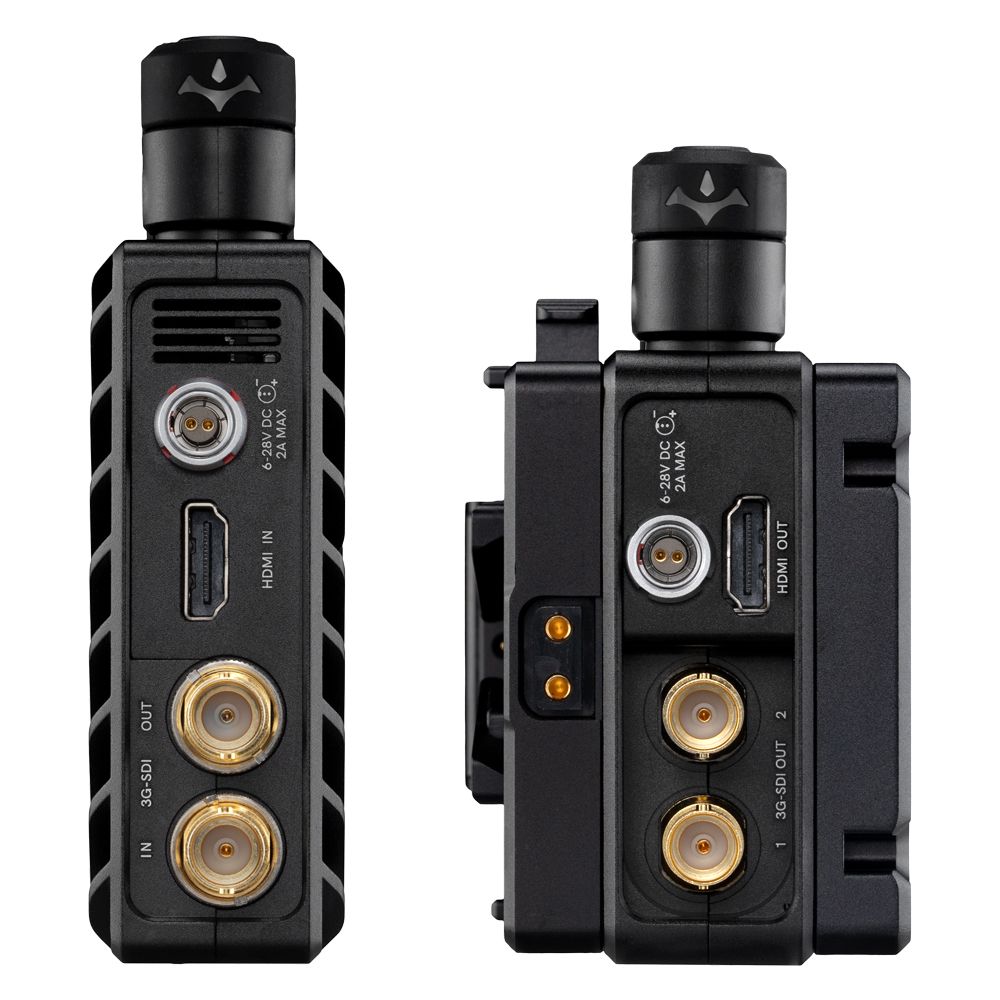

The transmitter inputs video over 3G-SDI or HDMI and features 3G-SDI and HDMI loop outputs, and the receiver outputs video via 3G-SDI and HDMI. Both units are also compatible with all Bolt 4K models using the 5 GHz wireless band. A carry case is included to store and transport the kit.

Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas
Transmit lossless HD video up at distances up to 750ft with the Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas from Teradek. The transmitter can input video over HDMI or 3G-SDI with 10-bit 4:2:2 HDR support and supports the 6 GHz wireless band. This transmitter unit provides a powerful signal that can travel up to 750ft line of sight and features a sleek form with all antennas tucked inside, a bright OLED display, and an SDI loop output.



Sleek Design with Internal Antennas

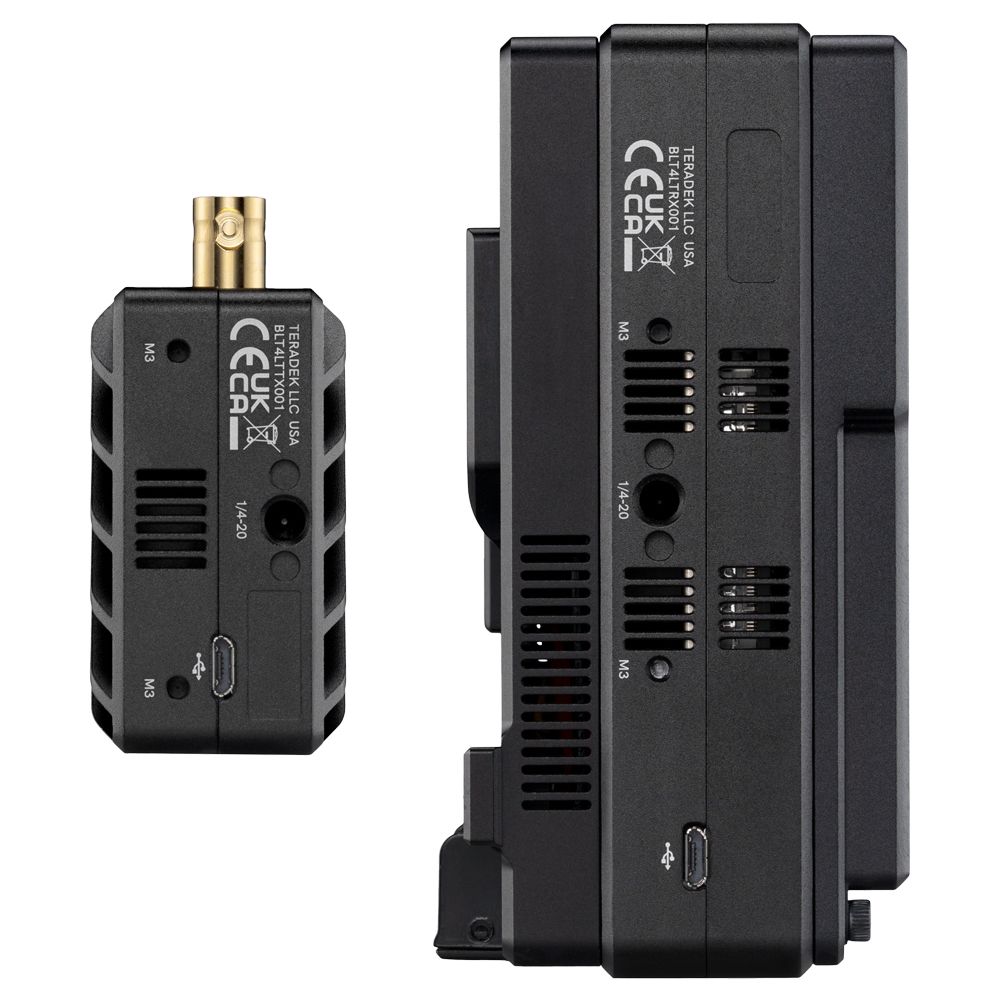

The antennas in this transmitter are all tucked inside, producing a sleek, compact form. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Transmits to up to Six Receivers
The transmitter supports transmission of video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keep your video clean no matter how many devices are using the wireless spectrum. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.

Cross Compatibility
Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

Up to UHD 4K30 via HDMI
  • Input video up to UHD 4K30 4K via HDMI and transmit up to 4K30 video; input up to 1080p60 via SDI and output via an SDI loop out.
  • Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut.
  • The wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration.

Teradek Bolt 6 LT 750 3G-SDI/HDMI Receiver with Internal Antennas (V-Mount)

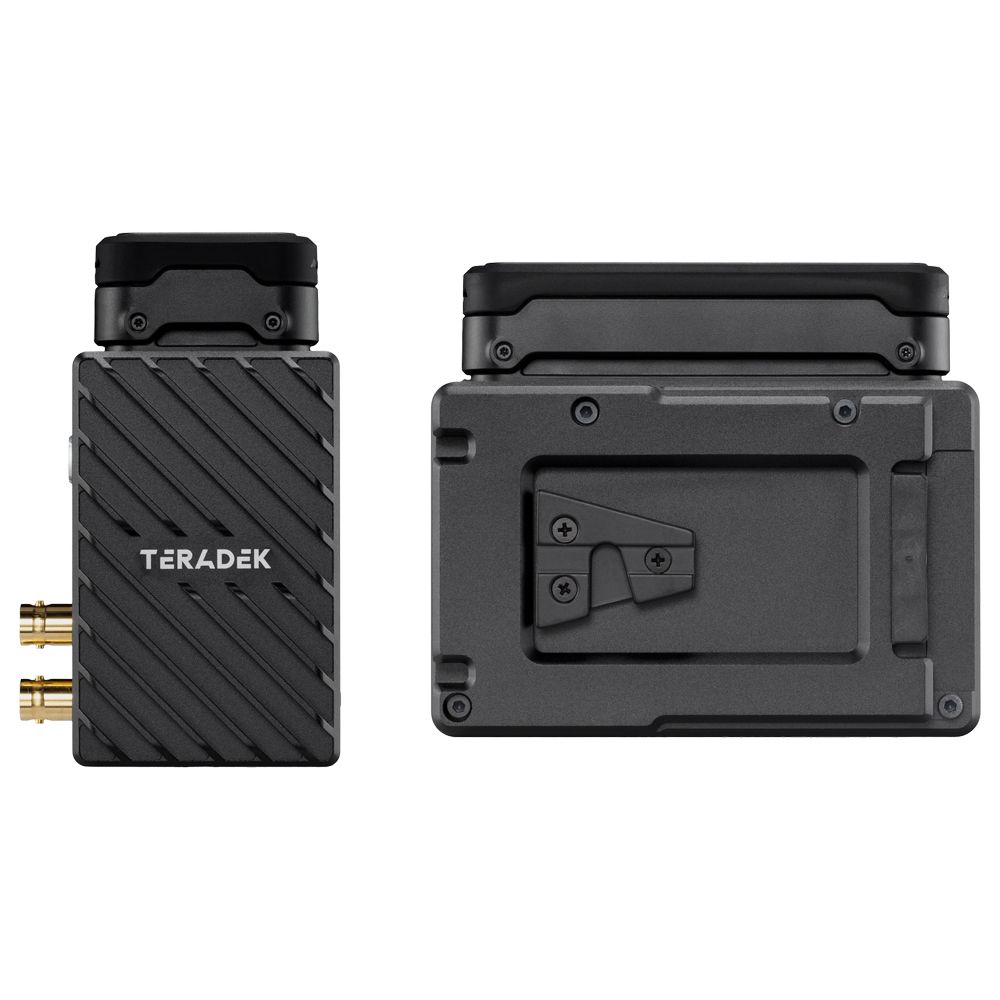

Receive lossless HD video from up to 750ft away along the line of sight with the Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver with Internal Antennas from Teradek. This unit can wirelessly receive up to UHD 4K30 video with 10-bit HDR, output video via an HDMI or 3G-SDI port, and it comes in a sleek form with all antennas tucked inside. It features a bright OLED display and support for the 6 GHz wireless band. The receiver comes with a V-mount battery plate to power it with a high-capacity battery.
Sleek Design with Internal Antennas
The antennas in this receiver are all tucked inside, producing a sleek, compact form. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Cross Compatibility
This receiver is cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum and works with Bolt 6 series devices using the 6 GHz frequency band. It also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

Up to UHD 4K30 via HDMI
  • Wirelessly receive up to UHD 4K30 video and output 4K via an HDMI or 1080p via a 3G-SDI output.
  • Supports Rec. 2020 HDR in 10-bit 4:2:2 color gamut.
  • SDI Eye Pattern Tool to check SDI cable integrity.
  • Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration.

What's In The Box

  • 1 x Bolt 6 LT 750 TX Internal Antenna
  • 1 x Bolt 6 LT 750 RX Internal Antenna V-Mount
  • 1 x 2pin to P-Tap Cable, 457mm
  • 1 x 2pin to AC Adapter 18W, 1.8m
  • 2 x Ultra Thin HDMI Male to Male Cable, 457mm
  • 2 x SDI Cable, 254mm
  • 1 x Lightstand Adapter 1/4-20in
  • 1 x Hot Shoe Adaptor
  • 1 x USB-C 2.0 Male to Male, 1m
