Teradek Prism Mobile Backpack 5G 859 Gold Mount - 2 x 5G

47.10-2859-3G2
Teradek Prism Mobile Backpack 5G 859 Gold Mount - 2 x 5G
Click to Enlarge
slide 1 to 4 of 4
  • Teradek Prism Mobile Backpack 5G 859 Gold Mount - 2 x 5G
  • Teradek Prism Mobile Backpack 5G 859 Gold Mount - 2 x 5G
  • Teradek Prism Mobile Backpack 5G 859 Gold Mount - 2 x 5G
  • Teradek Prism Mobile Backpack 5G 859 Gold Mount - 2 x 5G

Product Features:

Mobile Video Encoder with 2 x 5G Modems
2 x External 5G Node Modems
Bond up to 9 Connections: Mobile + LAN
Gold Mount Battery Plate on Encoder
12G-SDI/HDMI Input, HEVC/AVC Streaming
Encode up to 10-Bit 4K HDR 4:2:2 Video
Camera-to-Cloud Support Including Core
External Cellular, Wi-Fi, Ethernet
SRT, RTMP/S, MPEG-TS, and RTSP Support
Stereo, 5.1 Audio, SD Card Recording
$18,095.00
Overseas Air Freight
Check Location Availability
Make an Enquiry
$175.16 per week. Return any time after minimum rental agreement.

Teradek Prism Mobile Backpack 5G 859 Gold Mount - 2 x 5G

Add To Cart
$18,095.00

Description

Broadcast to the cloud or a CDN right from your ENG or cine camera with the Prism Mobile 5G Backpack 859 with 2 x 5G Modems from Teradek. This compact encoder backpack provides a bonding backpack, a Prism Mobile 5G encoder with a Gold mount battery plate, and two Node 5G external modems.

The Prism Mobile 5G features 12G-SDI and HDMI 2.0 inputs and multiple transmission output options that support high-resolution video up to 10-bit 4K HDR 4:2:2 with stereo or 5.1 surround sound. It supports high-quality, low-latency HEVC/H.265 and AVC/H.264 streams via cloud applications such as Teradek Core or RTMP/RTSP/SRT to servers and CDNs.

The output options include two internal 5G modems, two external Node 5G modems, Ethernet, or Wi-Fi networks. It supports bonding with any combination of streaming outputs up to a total of six networks using the backpack. You can also record your stream onto an SD card using the internal SD card slot, or output to USB for external storage . Management options include the OLED display, a web UI via LAN or Wi-Fi, and there is a Prism App for iOS that also provides configuration and control options. The Prism Mobile 5G unit is powered via a 2-pin power input or via the included Gold mount battery plate.

Bonded Mobile Cellular Solution
Compact, low profile, and loaded with 5G connectivity, the Prism Mobile 5G is the ultimate encoder for live coverage from the field. Combined with Prism Mobile's built-in cellular connectivity, the backpack provides up to six simultaneous cellular connections for robust streaming from any location. The backpacks are compatible with all Prism Mobiles.

Connectivity from Anywhere
Get worldwide Internet connectivity virtually anywhere you go with two internal high-throughput Node 5G modems, uniquely designed for video applications. For maximum redundancy, the Prism Mobile can bond up to nine network connections across four mobile hotspots, two Ethernet and three modems, ensuring your stream never misses a beat.

High Performance Modems
The Prism Mobile 5G internal 5G modems offer dual SIM profiles, global connectivity, and cutting-edge speeds as well as a set of high-gain antennas to maximise connectivity withinstadiums and challenging network environments.

5G Model
The Prism 5G model provides high-performance cellular connectivity in camera-back or desktop form factors. For additional bandwidth, extra Node modems can be attached via a locking USB connector. The included two 5G Node modems expand your network speed and access.

Private Mobile Networks
The Prism Mobile 5G supports CBRS and private mobile networks, allowing broadcasters to deliver live video over high availability, highly reliable wireless infrastructure for the most critical applications.

Ultra-Low Latency Streaming
Teradek Reliable Transport (TRT) represents a groundbreaking advancement in streaming video transport over local (LAN) and wide area networks (WAN). Designed for resilience and ultra-low latency, TRT can deliver audio and video over single and bonded networks with a round trip time (RTT) of just 100 and 250ms respectively. TRT is available on all Prism devices and is the ideal transport protocol for real-time point-to-point and multipoint streaming in live production environments.

Configure Prism From Your Phone
With the Prism app for iOS and Android, you can manage your Prism devices right from your phone or tablet. Fire up the app to configure your encoder, monitor, and manage your feed, and review streaming stats in real-time. The Prism app also allows you to share your phone's 5G or LTE bandwidth with your Prism device.

Do More with the Cloud
Core is Teradek's cloud orchestration platform that helps you securely monitor, manage, distribute, and archive your live video feeds from anywhere in the world. An optional subscription is required.

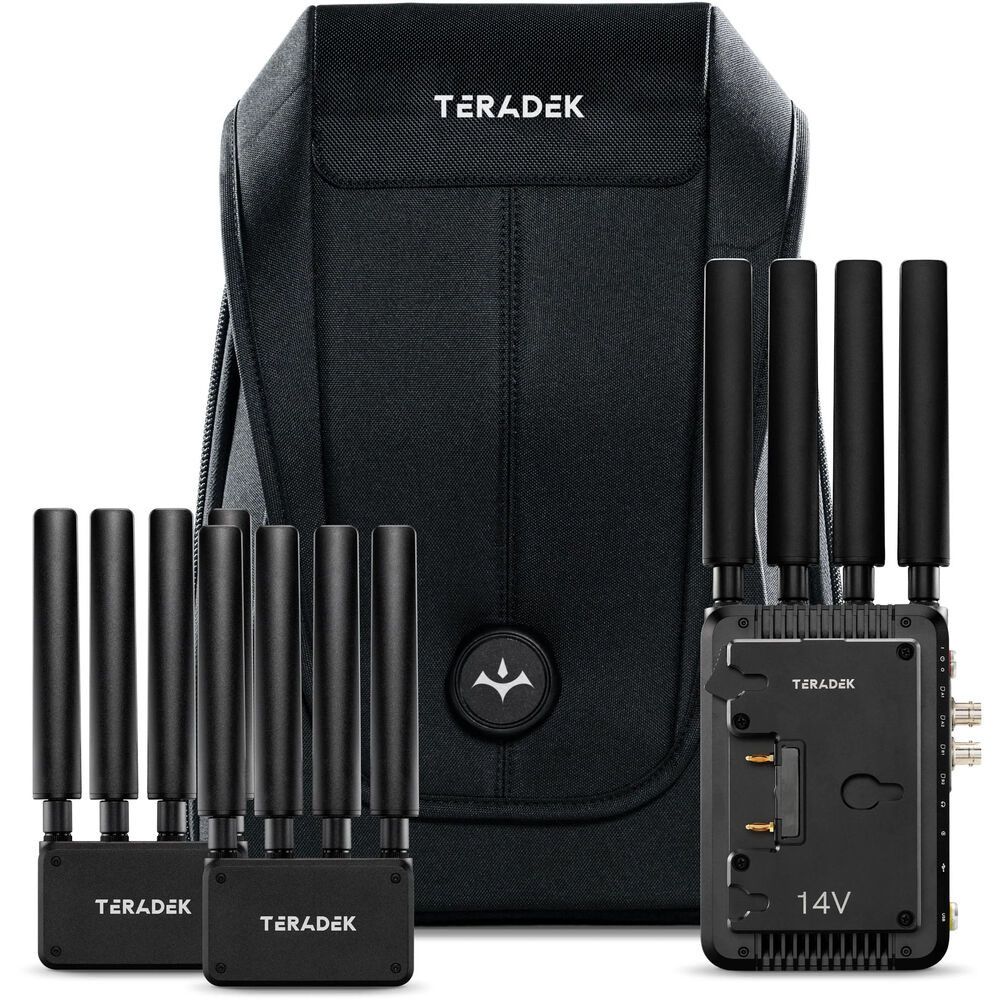

This product includes:
  • Teradek Prism Mobile 5G Backpack 859 with 2 x 5G Modems (Gold Mount)
  • Prism Mobile 5G Encoder
  • Gold Mount Battery Plate
  • Bonding Backpack
  • 2 x Node 5G
  • 12 x Long Multi-Band SMA Antenna
  • 4 x Short Multi-Band SMA Antenna
  • D-Tap Power Supply
