Xrite Exact 2 Standard Spectrophotometer 2mm

57.30.ETVXR2SDAU

Product Features:

For paper, corrugated, carton board substrates
Identify exact point of measurement with Mantis™ video targeting
Intuitive design and 30% larger screen make it easy to learn and use
Avoid wet ink contamination with low-contact measurement area
$18,302.63
Available Soon
Check Location Availability

Xrite Exact 2 Standard Spectrophotometer 2mm

Description

For paper, corrugated, carton board substrates


  • Identify exact point of measurement with Mantis™ video targeting
  • Intuitive design and 30% larger screen make it easy to learn and use
  • Avoid wet ink contamination with low-contact measurement area

Next Generation of Color Measurement

Available in three models, eXact 2 reimagines color measurement with enhanced accuracy and speed, unrivaled non-contact video measurement and zoom technology, onboard Wi-Fi, and fleet management powered by X-Rite Link. eXact 2 also helps printers meet print quality program requirements and industry standards.

0.25 ΔEab
Inter-Instrument Agreement
< 1 sec
Measurement Time
45:0
Device Geometry

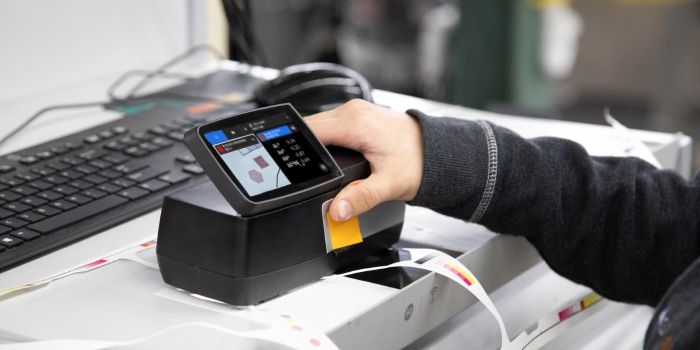

Take Accurate Measurements and Inspect Patches with Video Targeting

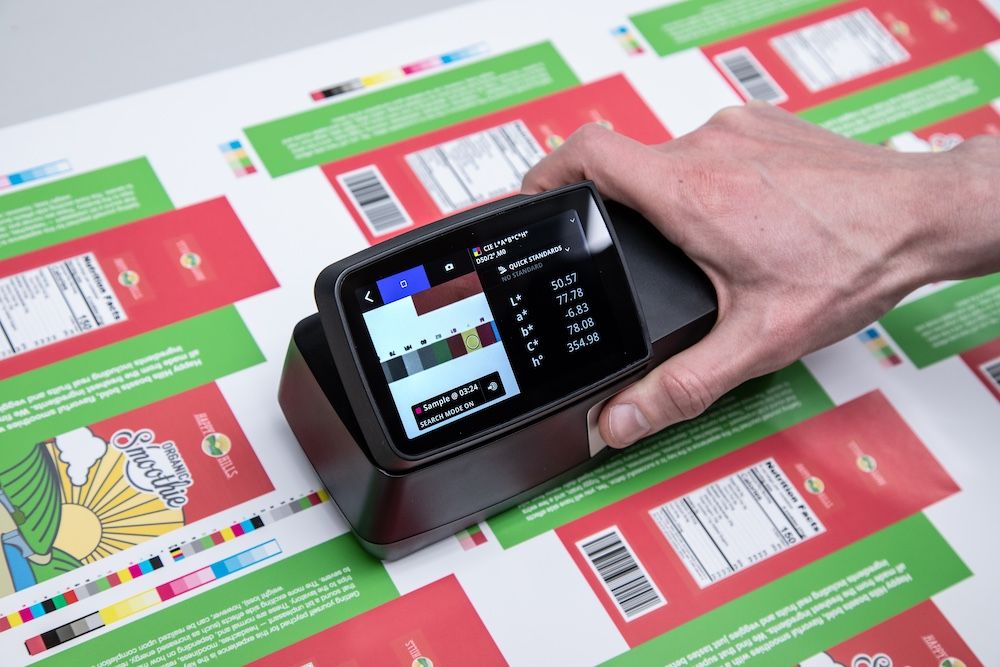

All eXact 2 models use Mantis video targeting, combined with a high-resolution display that is 30% larger than previous generations, making it easy to find the measurement area. With Digital Loupe, you can quickly zoom to inspect or capture an image to include in your audit trail.

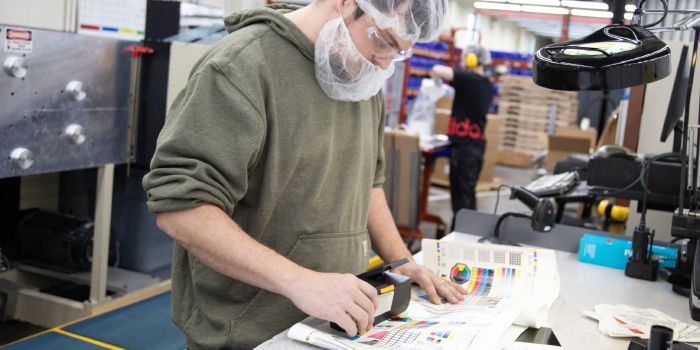

A Pressroom Operator's Best Friend

“We have stringent reporting needs. This is a device we can use press-side and allow the team to work without leaving their area and give us the kind of reporting we need with a user-friendly interface as well.” - Steve Lehning, GR Label

Quickly Scan M0, M1, M2, M3 in a Single Measurement

The eXact 2 Plus can easily toggle between spot and scan measurements using integrated wheels and patch recognition technology, speeding up measurement by 17%. eXact 2 Plus simultaneously measures M0, UV included/ISO 13655:2017; M1, D50/ISO 13655:2017; M2, UV excluded/ISO 13655:2017; and M3 - Polarization/ISO 13655:2017.



A Connected Ink and Print Workflow

Quickly collect and visualize your color data to find the information you need when you need it. All eXact 2 models offer on-screen, embedded quality control and quality assurance capabilities and simplified ink workflows. Work faster and more securely anywhere in your facility with onboard WiFi.

ci64 product call out
Best-in-Class Global Service and Support

X-Rite has been helping customers master color quality for 60+ years. With global service centers and 40+ certified service partners, our comprehensive support includes technical assistance, ISO certification, Service Care Plans, training, and more. Whether troubleshooting issues, optimizing workflows, or staying current with the latest technology, you can trust our service and support teams to provide prompt and reliable assistance to minimize disruptions.

eXact 2
eXact 2 is Available in Three Models to Measure a Variety of Substrates

Capture color measurements on paper with eXact 2; film, poly and foil with eXact 2 Xp; and all ink, print and packaging substrates with eXact 2 Plus.

X-Rite Link SW
Get Full Access to X-Rite Link Device Dashboard

Get up-to-date intelligence on device health and service history, plus remotely deploy firmware updates, color libraries, and standards to your entire fleet with X-Rite Link dashboard.

Warranty
End-to-End Protection for Peace of Mind

All eXact 2 models include two-years of ISO:9001 compliant NetProfiler verification and comprehensive coverage, including accidental damage protection and a loaner device with a Service Care Plan in regions where applicable.

Specifications

7.7 cm

eXact 2 Dimension image
21.2 cm

Use this product for the following applications

  • Print & Packaging
Aperture1.5 mm, 2 mm, 4 mm or 6 mm
BatteryLithium Ion, 3.63VDC, 4750mAh
BestMatch FeatureYes
CalibrationAutomatic on white reference
Color DifferencesCIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994)
Color SpacesCIE L*a*b*, CIE L*C*h°
Communication InterfaceUSB-C; Wi-Fi
ConnectivityUSB-C; Wi-Fi
Density Range0.0 D – 3.0 D
Density StandardsStatus A, E, I, T and G
Dimensions (length, width, height)21.2 cm x 7.7 cm x 7.7 cm (LxWxH)
8.4" x 3.0" x 3.0" (LxWxH)
G7 CertificationYes with embedded G7, PSO, Japan Color job templates
Humidity30 to 85% RH (non-condensing)
IlluminantsA, C, D50, D55, D65, D75, F2, F7, F11, F12
Import/Export FormatCxF3
Industry StandardsISO 5-4:2009(E), ISO 13655:2017
Instrument DisplayColor touch-screen, 800 x 480 pixels
Inter-Instrument AgreementAverage: 0.25 ΔEab,
Max: 0.45 ΔEab (for M3: 0.55 ΔEab)
(Measurements using X-Rite manufacturing standards at a temperature of 23°C +/- 1°C, 40-60% RH for all measurement modes on 12 BCRA color tiles and a white ceramic reference (D50, 2°))
Languages SupportedBulgarian Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian, Serbian, Slovenian, Spanish, Swedish, Thai, Turkish, Vietnamese
Light SourceLED
MacintoshmacOS 10.15, macOS 11, macOS 12
Measurement Conditions2: M0, M1 (method 2), M2, M3
Measurement Geometry45°:0° ring illumination optics, ISO 13655:2017
Measurement Time< 1 sec
NetProfiler SupportYes
Observers2° and 10°
Operating Temperature Range10°C to 35°C
50°F to 95°F
PantoneLIVE SupportYes; Embedded Pantone Libraries
Pass / FailYes
Scan LengthMax: 1,120mm (44”)
Scanning CapabilityYes, Embedded Scanning
Service IndicatorCertification Reminder
Short Term Repeatability - Density+/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D)
Short Term Repeatability - White0.02 ΔEab (standard deviation) White BCRA (Error compared to mean value of 20 measurements every 5 seconds)
Single Pass ScanM0, M1, M2, M3
Software Development Kit

Yes

Spectral AnalyzerDRS spectral engine
Spectral Interval10 nm
Spectral Range400 nm to 700 nm
StandardsMemory capacity for more than 50,000 standards
Storage Temperature Range-20° to 50°C
-4° to 122°F
Supported SubstratesPaper, corrugated, carton board
User ExperienceStart-up wizard, configurable, customize toolset, upgradable
Voltage12 VDC @ 2.5 A (Docking Station Power Supply)
Warranty1 year
Weight620g,
1.4 lbs.
What's Included?USB-C cable with Adapter for USB-A, Power Supply, Software and documentation, Docking/Charging Station, Quick Start Guide, Carrying case, ISO 9000 certificate.
WindowsWindows 10 (32 and 64 bit), Windows 11
