Wooden Camera - Core Accessory System For Canon EOS C80

54.K10034

Product Features:

Arca-Type Baseplate and Riser Plate
Top Plate and Ridge Plate
Lens Support Rod, 15mm Rod Ports
Multiple 1/4"-20 and 3/8"-16 Threads
$1,445.00
Overseas Air Freight
Check Location Availability

Wooden Camera - Core Accessory System For Canon EOS C80

Description

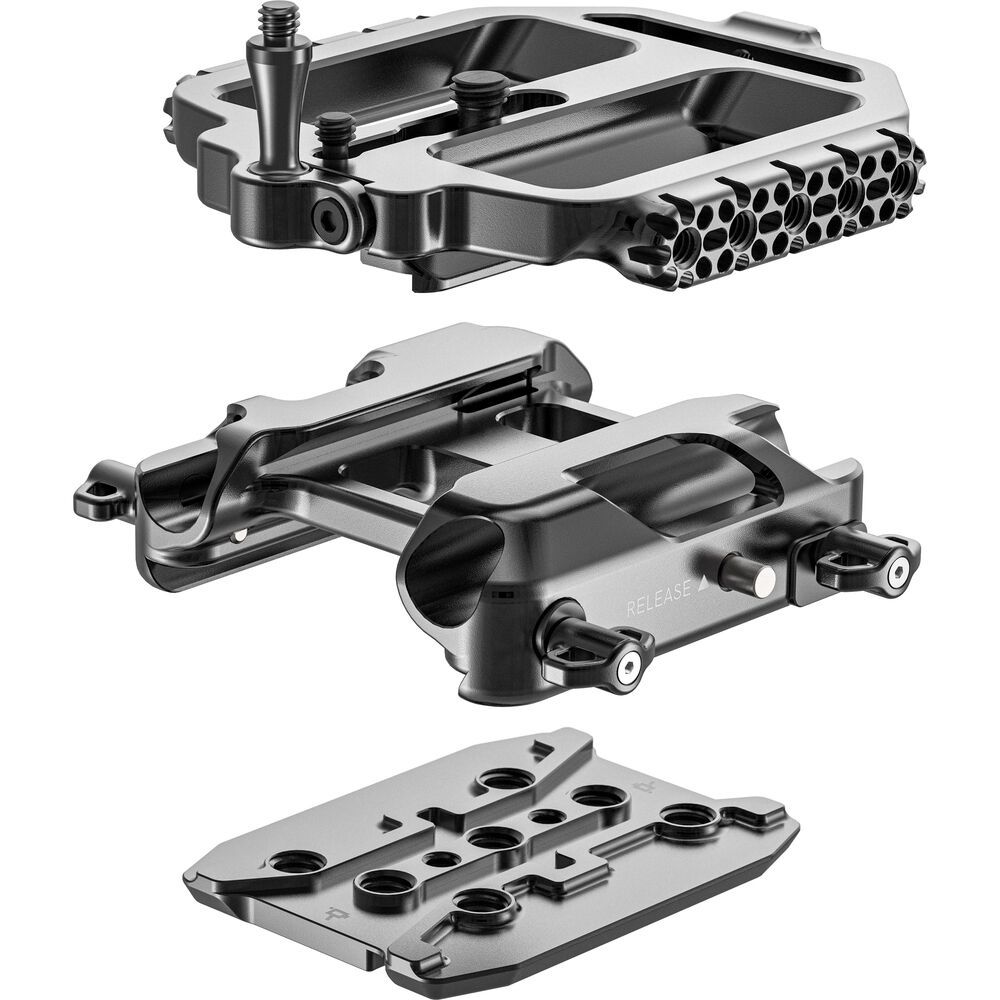

Quickly switch your Canon EOS C80 mount between a tripod and shoulder rig and add accessories with this Core Accessory System from Wooden Camera. The system includes an Arca-type baseplate, an Arca-type riser plate, a top plate, and a ridge plate. The C400 baseplate (also compatible with the C80) features an Arca-type receiver, a 15mm LWS rod clamp, and bottom threads for mounting on a variety of bridge plates or rigs.

The riser plate mounts onto the baseplate, providing the correct optical height, and features a lens support rod and multiple 3/8"-16 side threads for added accessories. The top plate adds multiple 1/4"-20 and 3/8"-16 threads, and the ridge plate allows you to mount the original C80 top handle onto the top plate.

Wooden Camera Arca-Type Baseplate for Canon C80/C400

Quickly swap your Canon C80 or C400 cinema camera between rigs with this Arca-Type Baseplatefrom Wooden Camera. The baseplate features an Arca-type dovetail designed to work with the Wooden Camera Baseplate System for the Canon C400.

The camera mounts onto a standard or studio dovetail and features 15mm LWS rod ports to accommodate separately available rods. Tie-down screws allow you to adjust the baseplate when mounted onto a dovetail, shoulder rig, or bridge plate. The baseplate requires the separately available riser plate to mount it onto the C400.

Wooden Camera Arca-Type Riser Plate for Canon C80

Attach this Arca-Type Riser Plate from Wooden Camera to your Canon EOS C80 cinema camera with the separately available Arca-type C400 baseplate, shoulder rig, or gimbal mount to achieve the proper lens height for integration and easy transitioning between rigs. The riser includes a lens adapter support rod to prevent twisting or movement.

An integrated, adjustable slide rail in the center allows you to fine-tune your camera position when using a lens mount adapter. On the sides, there are multiple 1/4"-20 threads to add a variety of accessories, such as a shoulder plate or other mounting plates, without requiring a bridge or baseplate.

Features
  • Adjustable along the underside of the plate to allow variable lens mount attachments
  • Rear, rigid tie-in point allows the C70 battery plate to attach directly to the riser
  • Integrated lens support mount to prevent lens mounts from adjusting during use
  • Arca-type design on the bottom allows attaching of C400 baseplate or accessories like the Arca-type shoulder plate
  • Sides of the plate allow for additional 1/4"-20 accessories to be mounted along the underside of the camera
Wooden Camera Top Plate for Canon EOS C80

Add accessories such as a top handle, extension arms, a battery mount, a monitor, or an EVF mount to your Canon C80 camera with this Top Plate from Wooden Camera. The aluminum top plate features numerous 1/4"-20 and 3/8"-16 ARRI-style anti-twist accessory threads that can be used to mount accessories, and there are threads around the sides for bolt-on accessories such as rods or a rod clamp.

The plate mounts on top of the camera using its Canon Accessory Mount and the captive 1/4"-20 screw. There is also a removable portion of the plate in the rear that features a shoe adapter that can further secure the plate into the hot shoe, as well as provide a thread connection for a battery plate. That portion can be removed when the user needs to access the camera's hot shoe.

Features
  • Fastens to the top of the camera using a single 1/4"-20 screw and hot shoe mount on the back of the camera
  • Rear hot shoe is removable in case the user decides to use the Hot Shoe mount
  • Under the top plate, the 1/4"-20 tie-in has ridges built into the underside of the plate to prevent twisting of the top plate
  • Rear removable portion of the plate has a ridged tie-in point to allow the C70
  • Battery plate to securely tighten onto the plate
  • Forward facing 3/8"-16 mounting points for accessories like bolt-on rods or dual rod clamp A00375
Wooden Camera 1/4"-20 Ridge Plate for Canon C80 Top Handle

Mount the original Canon EOS C80 top handle onto the Wooden Camera top plate using this 1/4"-20 Ridge Plate. The ridge plate mounts onto the Wooden Camera C80 top plate using two 3/8"-16 captive screws with 1" spacing and provides a single 1/4"-20 thread to mount the original C80 top handle. It features ridges that match the camera body design. It can also be used with the Ultra Handle, allowing you to add a monitor mount or other accessory.
