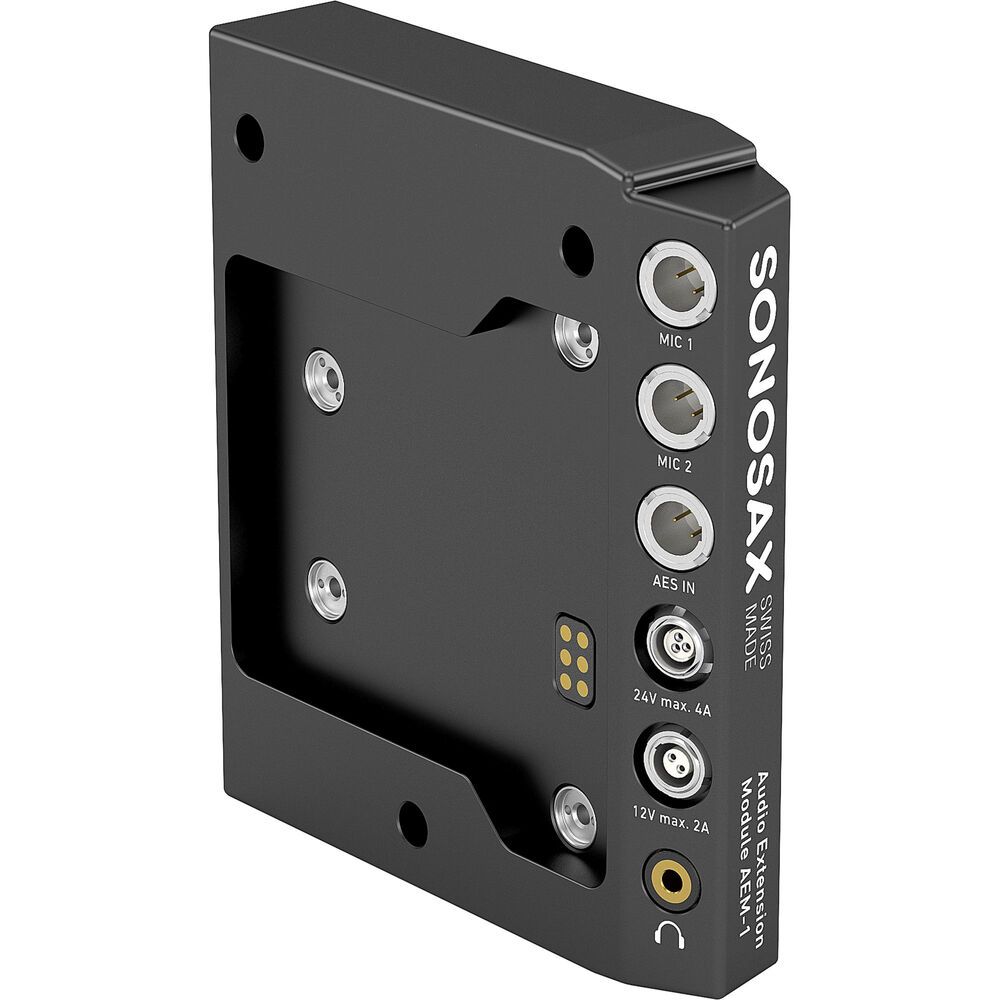

ARRI Audio Extension Module AEM-1 for ALEXA 35
20.K2.0023750
Product Features:
Add Audio Input/Power Output to ALEXA 35
2 x Balanced Mic/Line Mini-XLR Inputs
1 x Balanced AES3/AES42 Mini-XLR Input
48V Phantom Power, Low-Cut/Gain/Limiter
1 x 24 VDC R/S Power Output
$4,312.00
Available Soon
Check Location Availability
ARRI Audio Extension Module AEM-1 for ALEXA 35
Description
The Audio Extension Module AEM-1 adds a high-quality audio interface and extra accessory power outputs to the ALEXA 35 or ALEXA 35 Live. Featuring two ultra-low noise microphone preamplifier channels, the AEM-1 mounts directly to the rear of the camera as an integrated electronic module. Selectable features include MIC/LINE input, 48V Phantom power, phase reversal, adjustable low-cut filter, gain and limiter. The AEM-1 also features an AES stereo digital audio input and a high-quality headphone amplifier.
Inputs:
- 2x MIC/LINE inputs on Mini-XLR (TA3) connectors, electronically balanced, with phase reversal, 48V phantom, LF cut and level control
- 1x AES3/AES42 ona Mini-XLR (TA3) connector, transformer balanced input with phase reversal and level control
- 1x line/headphones stereo output on 3.5mm Mini-jack
- 1x 12V 2p LEMO power output
- 1x 24V RS power output
