ARRI Camera Control Monitor CCM-1 Set

20.KK.0048851
  • Watch Video
  • Watch Video

    • Product Features:

    7" Camera Control Monitor
    For ARRI ALEXA Mini LF & ALEXA 35
    Touchscreen Display & Physical Buttons
    Includes Folding Sunshade & Tilt Mount
    Includes Screen Protector & Cables
    $9,306.00
    Stock Level:
    In Stock
    Check Location Availability
    Make an Enquiry

    ARRI Camera Control Monitor CCM-1 Set

    Add To Cart
    $9,306.00

    Description

    Use the compact Camera Control Monitor CCM-1 Set from ARRI to obtain both full camera control and menu access in a touchscreen display that is bright and sharp enough to use as an operating alternative to an EVF. This 7" onboard monitor features a single EVF-cable solution for imaging, control, and power for sleek rigging, BNC input and loop output, battery options, and a choice of touchscreen, side button, and joystick/button control. Display tools are based on the SmallHD monitoring tool kit familiar to many ACs and operators. This kit comprises the CCM-1 monitor, a folding sunshade, a screen protector, a tilting mount, a 1.5' VF cable, and a 1.6' RS power cable.

    Full Camera Control Compatibility
    The CCM-1 offers full camera control and novel viewing configurations for both the ALEXA 35 and ALEXA Mini LF digital cinema cameras. It can use the same viewfinder connector as the MVF-2 without taking up one of the camera's SDI ports, providing an alternate means of imaging, control, and menu selection, or it can be used alongside the MVF-2. The CCM-1 uses SmallHD PageOS, which enables LUTs to be added to a Page or Pages with the monitor LUT tool.

    Note: Both the ALEXA 35 and Mini LF will require an upcoming firmware update to be fully functional with the CCM-1.

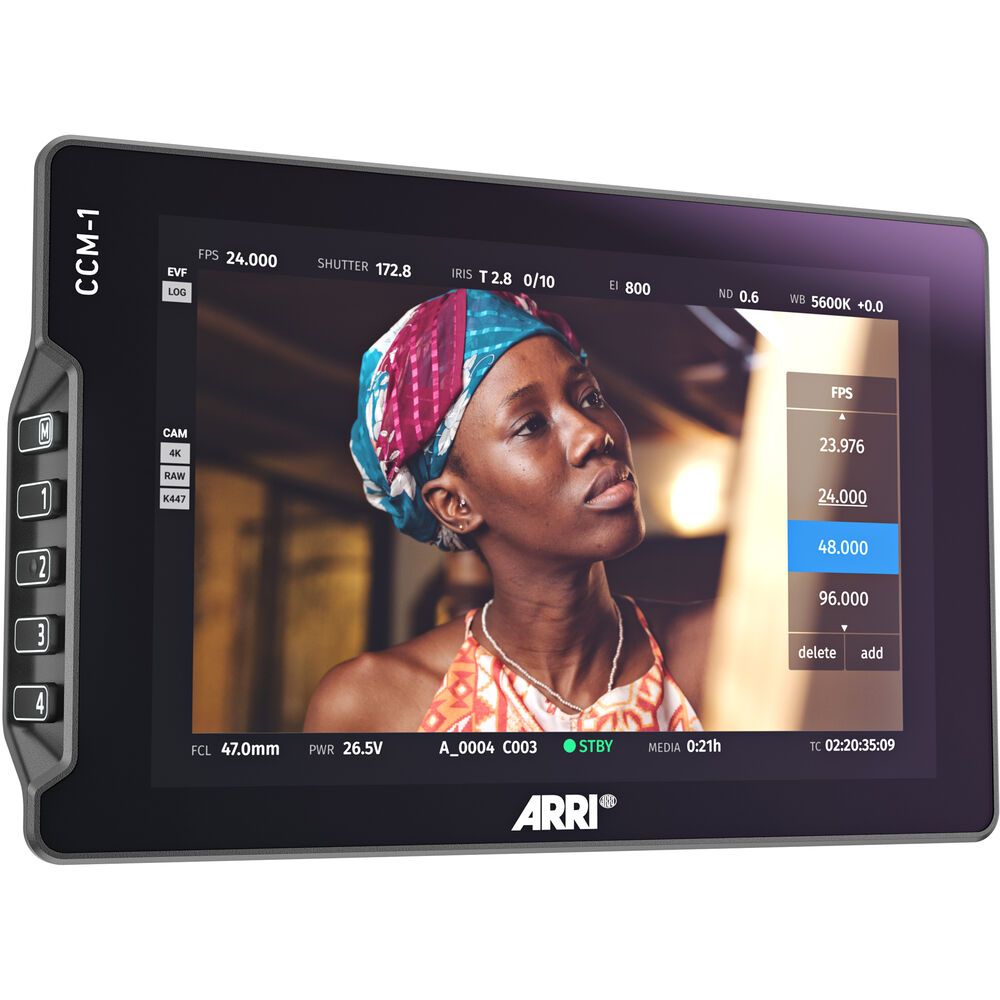

    Bright, Accurate Display
    • The CCM-1 employs a 7" IPS LCD screen to display a bright, high-contrast 1080 x 1200 HD image with ARRI-quality colour accuracy and subtlety.
    • Display tools like focus peaking and false colour affect only the image, not the status overlays, for easy viewability.
    • Sensor-level functions like zooming use the sensor resolution for improved focus checking and more.
    • The CCM-1 uses SmallHD PageOS which enables LUTs to be added to a Page or Pages with the monitor LUT tool.
    Status and Home Screen
    • Status changes can be viewed in real time as interactive settings overlaid on the live image.
    • An updated home screen displays all relevant camera information.
    • Each of the five main exposure parameters can be expanded for a live preview over your image.
    Camera Menu and Playback Controls
    • Access all your camera settings via the touchscreen, side buttons, or rear joystick and buttons.
    • Playback control has been improved with an extended clip list and both menu and user button control.
    Single-Hand Control
    • Both the side buttons and the joystick and back buttons combination are positioned on the left side for easy, single-handed use.
    • The side buttons include a dedicated Menu button and four user-assignable buttons.
    Flexible Connectivity
    • When used with your camera's VF connector, the CCM-1 leaves both SDI outputs free for other uses.
    • The CCM-1 supports up to 33' VF cables that are ideal for distanced use for car rigs, confined spaces, cranes, and dollies.
    • Connect the CCM-1 via its SDI ports to enable ALF-1 and ALF-2 application, access the full SmallHD tool set, and use with third-party cameras.

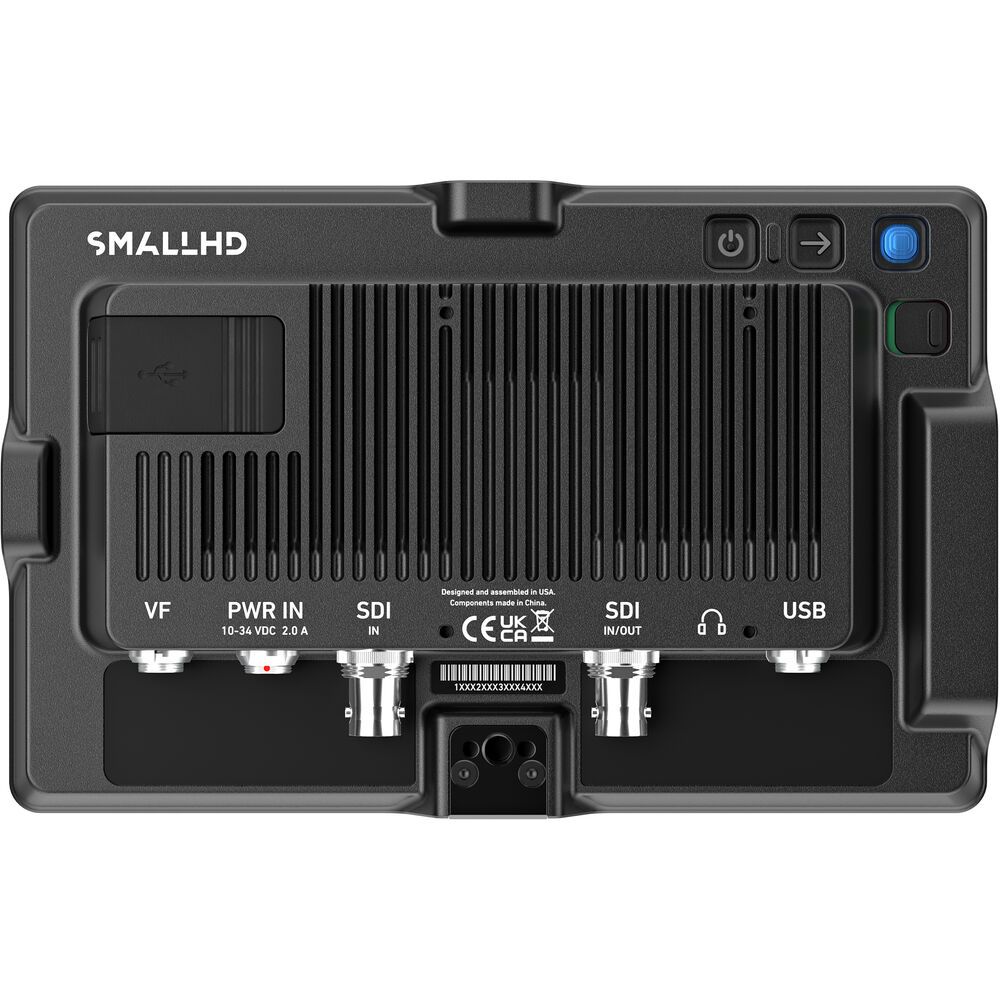

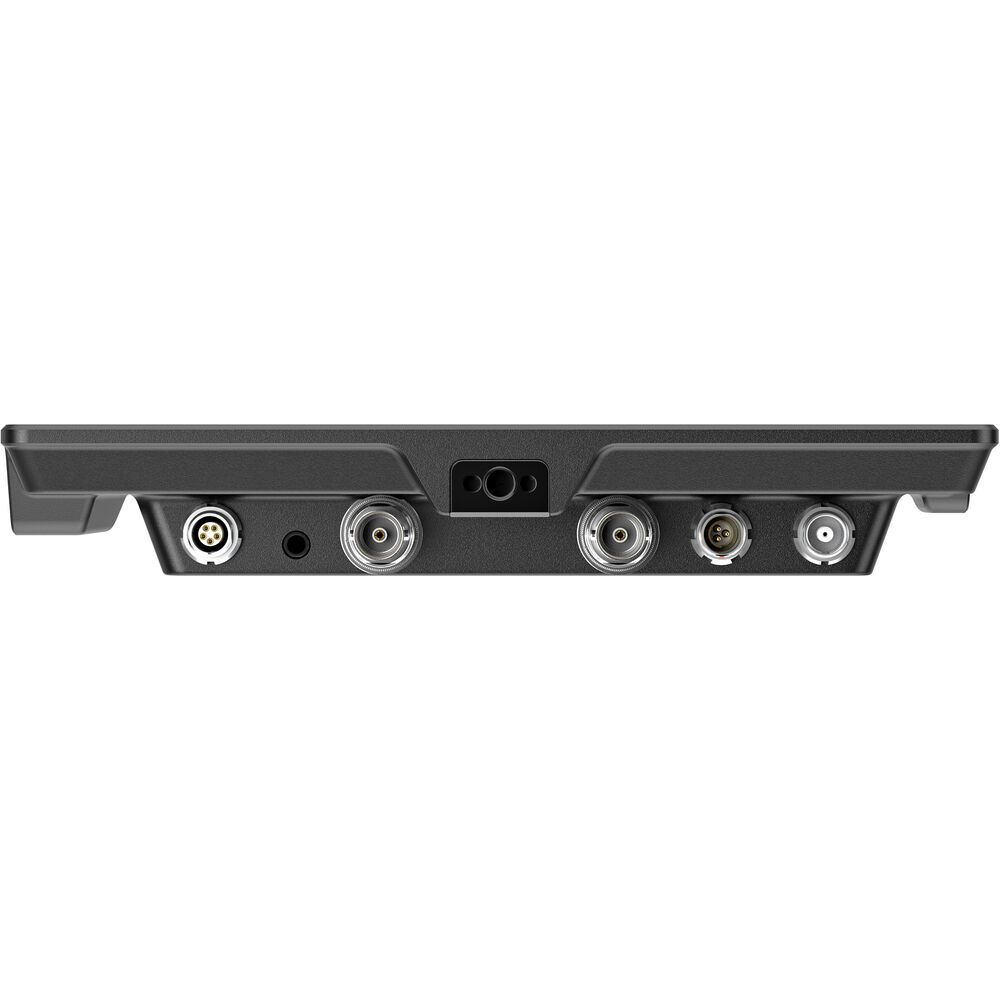

    Versatile Interfaces
    • The 3G-SDI input and loop outputs can be used for monitoring when using a Hi-5 or other wireless controller.
    • A new 5-pin LEMO USB port can be used with the upcoming USB-to-Ethernet adapter to enable ALEXA Mini LF camera control while simultaneously using an MVF-2.
    • The 3.5mm TRS audio jack provides the same headphone monitoring as the MVF-2.
    • A user-replaceable steel block enables you to switch out the more frequently used ports in case of excessive wear.
    Brightness
    • When used with a single power/image/control VF cable, the CCM-1 provides the REC 709 standard of 100 cd/m2  brightness, which is suitable for studio and interior use.
    • Add a power cable with DC input or an onboard battery using a separate plate to boost the brightness to 1300 cd/m2 for outdoor viewing.
    Mounting Options
    • Use the separately available VFA-4 adapter to attach the CCM-1 to standard ARRI viewfinder brackets.
    • Mount the CCM-1 on the included MAC-1 arm for easy, single-handed repositioning with its friction lock.

    Includes:

    • K2.0048523 1x CCM-1 with Foldable Sunhood, Screen Protector
    • 2.0048394 1x Monitor Arm for Camera MAC-1
    • K2.0023943 1x Cable VF (0.5m/1.5ft)
    • K2.0001637 1x Cable RS - RS/PWR IN (0.5m/1.6ft)
    • 1x CCM-1 Protective Pouch
