SDI Video Inputs
- Switchable between SD, HD and 6G-SDI.

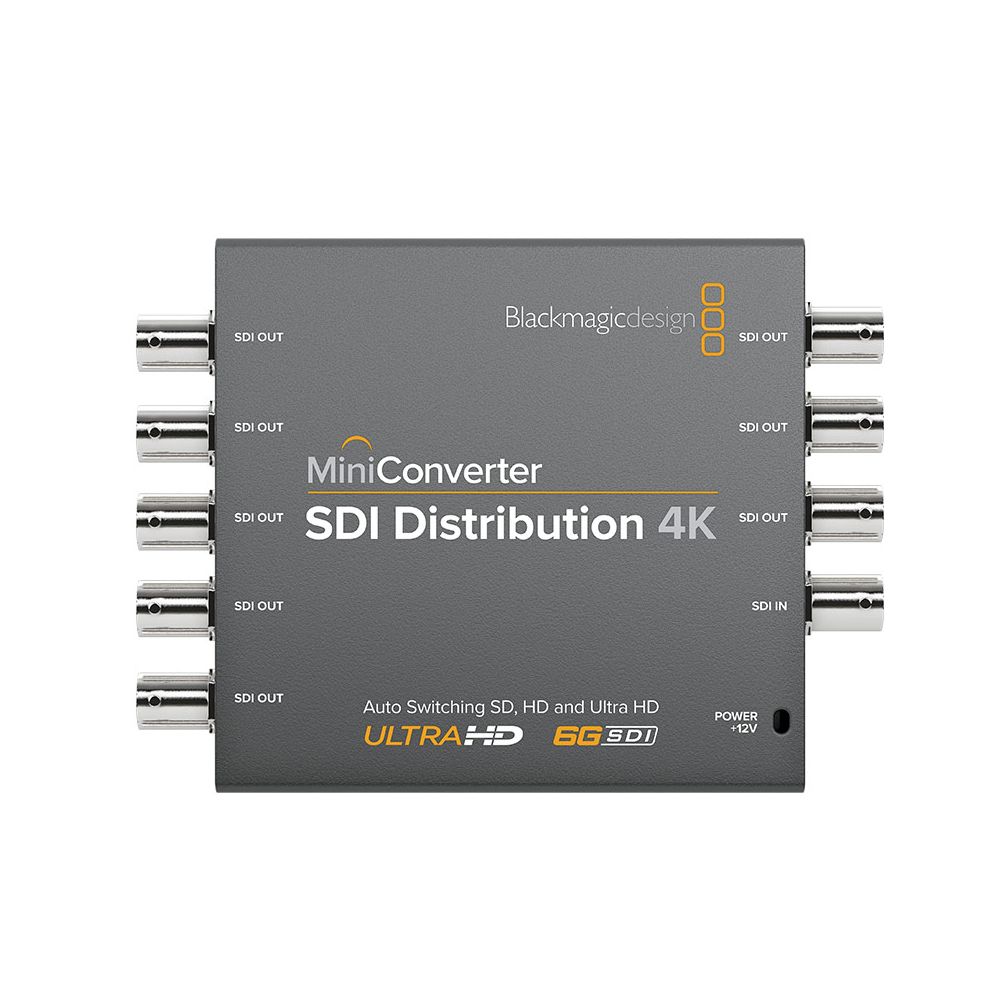

Blackmagic Design Mini Converter SDI 4K Distribution Box
99.BM.CONVMSDIDA4K
Product Features:
Single Link SD/HD/3G/6G-SDI Input
8x Single Link SD/HD/3G/6G-SDI Outputs
Re Clocked Outputs
Supports SD, HD, UHD 4K & DCI 4K Signals
Automatic Input Signal Detection
Ancillary Data & Embedded Audio
Supports ASI Signals
Control via DIP Switches or Software
USB 2.0 Port for Firmware Updates
12V Universal Power Supply Included
$525.00
$477.27
Available Soon
Check Location Availability
Essential Add-On's we recommend
You may also like...
-
Brand
Stock Level:In StockStock Code:10.CS2740Was:$2,761.00Now:$2,299.00Price:$2,299.00 -
Brand
Available SoonStock Code:44.3.STHA8000800Was:$537.90Now:$464.26Price:$464.26 -
Brand
Available SoonStock Code:94.V11H988053Was:$1,399.00Now:$1,259.10Price:$1,259.10 -
Brand
Available SoonStock Code:36.CTL-4100-K0-CXPrice:$139.00 -
Brand
Available SoonStock Code:120.1.B11B205345Was:$1,999.00Now:$1,799.10Price:$1,799.10 -
Brand
Stock Level:In StockStock Code:09.VO-7UTRIKITBLKWas:$295.00Now:$135.00Price:$135.00 -
Brand
Stock Level:In StockStock Code:11.ES45KITPrice:$210.00
Description
When you need to connect to multiple SDI devices, then Mini Converter SDI Distribution 4K is the perfect solution! Connect a single SDI source to 8 re-clocked SDI outputs with automatic switching between all SD-SDI, HD-SDI, 3G-SDI and 6G-SDI video formats, plus all ASI, ancillary and embedded audio formats.
Connections
Reclocking
- Yes
SDI Video Outputs
- 8 outputs automatically match the SDI video input.
Multi Rate Support
- Auto detection of SD, HD or 6G-SDI.
Standards
SD Video Standards
- 525i59.94 NTSC, 625i50 PAL
HD Video Standards
- 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60
2K Video Standards
- 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
- 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Video Standards
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Video Standards
- 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SDI Compliance
- SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE ST-2081
SDI Video Rates
- SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
SDI Video Sampling
- 4:2:2 and 4:4:4
SDI Audio Sampling
- Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
- 4:2:2 and 4:4:4
SDI Color Space
- YUV and RGB
SDI Auto Switching
- Automatically detects SD, HD or 6G-SDI.
ASI Support
- Yes
Power Requirements
Power Supply
- +12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
- 4.80 Watts
Operational Voltage Range
- 12 - 31V DC
