ARRI cforce mini Basic Set 2

20.KK.0040344

Product Features:

1 x cforce mini Motor
1 x Offset 15/19mm Clamp Console 2
1 x 0.8-Mod/32-Pitch, 40-Tooth Gear
Adjusts Lens Focus, Zoom, or Iris
For ARRI ALEXA/Mini/AMIRA Cameras
Dual LBUS Connectors / Daisy Chainable
For 3rd-Party Cameras Using AMC-1/UMC-4
For 3rd-Party Cameras Using OCU-1
For 3rd-Party Cameras Using Master Grips
$5,368.00
Available Soon
Check Location Availability
Make an Enquiry

ARRI cforce mini Basic Set 2

Add To Cart
$5,368.00

Description

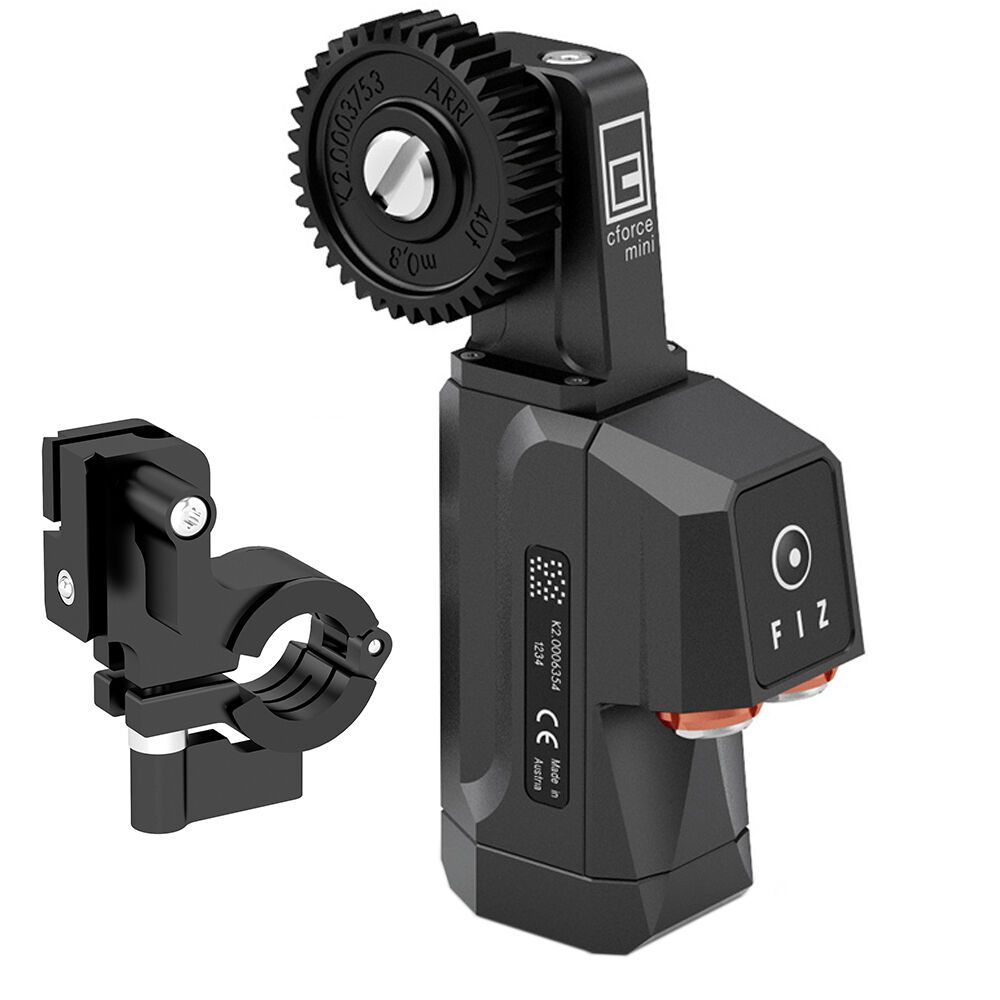

ARRI's cforce Mini Motor is an ultracompact, lightweight motor used to remotely control your lens' focus, iris, or zoom function. The cforce Mini Motor weighs just over six ounces with a gear and bracket (available separately). Directly compatible with ARRI ALEXA Mini cameras and cmotion units, the cforce Mini Motor can be connected to an RIA-1 (Radio Interface Adapter) to work with any camera. Up to three cforce Mini Motors may be daisy-chained together, saving space and weight in your camera rig.

The cforce Mini Motor's ultralight, compact form makes it suitable for gimbal, drone, and other lightweight camera rigs. This basic motor unit requires a separately available gear, cable, and bracket.

Compatibility
  • Ultracompact lens-control motor works directly with ARRI ALEXA cameras.
  • Connects to RIA-1 (Radio Interface Adapter) for use with any camera.
  • Works with WCU-4 or SXU-1 and the ARRI AMIRA.
Versatile Lens Control
  • Quick, versatile control for all standard cine-style lenses.
  • Uses twin LBUS ports for daisy chaining up to three motors in a row.

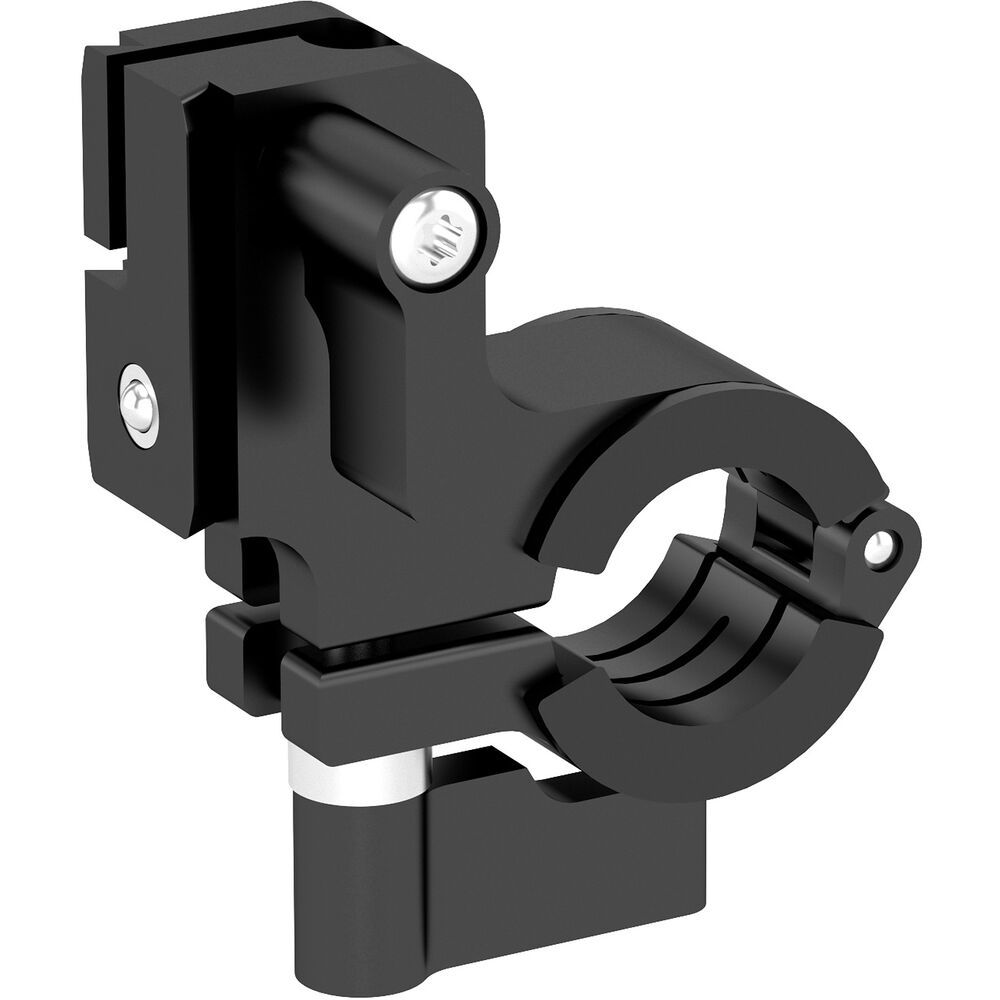

ARRI cforce mini Clamp Console 2

The ergonomic cforce mini Clamp Console 2 from ARRI is designed to offer easier rod mounting and removal of several ARRI lens components. This clamp is compatible with the cforce mini, cforce mini RF, cmotion cpro, and CLM-5 motors, as well as the OCU-1 control unit. The clamp design offsets the thumb levers for easier handling, and a spring-loaded plunger provides a secure fit. This 19mm clamp can be used with the included 15mm rod adapter or the separately available 5/8"" bushing.

Compatibility
  • cforce mini and cforce mini RF motors
  • cmotion cpro and CLM-5 motors
  • OCU-1 control unit
ARRI Gear for CLM-5 or cforce mini Motor (0.8-Mod, 32-Pitch, 40-Tooth)

This Gear for CLM-5 or cforce mini from ARRI is designed for use with a CLM-5 or cforce mini lens control motor. This 0.8-mod, 32-pitch, 40-tooth gear is compatible with ARRI/Zeiss and Fujifilm focus, iris, and zoom gears. It will also drive the focus gear on Panavision lenses.

Compatible Lenses
Including but not limited to:
ARRI/Zeiss focus, iris, and zoom gears
Fujifilm focus, iris, and zoom gears
Panavision focus gears

Includes:
  • ARRI cforce Mini Motor Unit
  • ARRI cforce mini Clamp Console 2
  • ARRI Gear for CLM-5 or cforce mini Motor (0.8-Mod, 32-Pitch, 40-Tooth)
