ARRI cforce mini RF Basic Set 2

20.KK.0040345

Product Features:

Mini RF Motor, Clamp 2, Gear & Antenna
Built-In, White-Coded RF Module
Eliminates Need for Separate Receiver
Adjusts Lens Focus, Iris, or Zoom
Power & Run/Stop via CAM Connector
14 Radio Channels
Daisy-Chains with Classic cforce Motors
Daisy-Chains with LBUS Devices
Compatible with WCU-4 Hand Unit
$10,373.00
Available Soon
Check Location Availability
Make an Enquiry

ARRI cforce mini RF Basic Set 2

Add To Cart
$10,373.00

Description

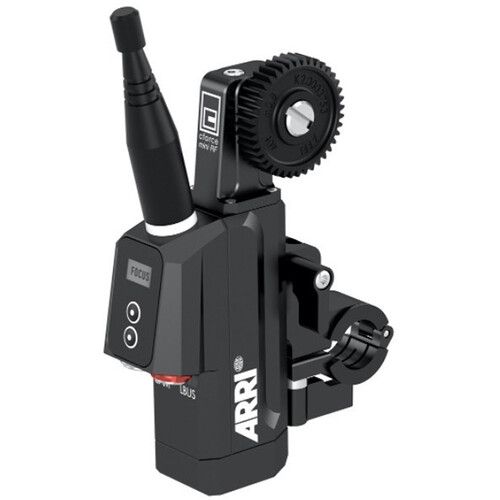

The ARRI cforce mini RF Basic Set 2 is a compact lens control motor set with an integrated white-coded RF radio module that eliminates the need for a separate receiver unit on your camera rig. This cforce mini Basic Set is comprised of one motor, an 08.MOD 40-tooth gear, a 2400 MHz antenna, and a rod clamp. Suited for gimbal, stabilizer, handheld, and drone setups, the cforce mini RF motor can be daisy-chained with classic cforce motors and ARRI LBUS components. Power and run/stop control are supplied for ARRI and select third-party cameras through the motor's CAM connector.

Daisy-Chain up to 3 Motors
  • Link up to three motors for a complete FIZ lens control system
  • Pair with up to three hand units for setups where splitting FIZ control is preferred
  • Daisy-chainable with classic cforce motors and ARRI LBUS components
Note: The required LBUS cables must be obtained separately

Lens Metadata
  • Lens metadata support for focus mapping
  • Abie to display data on a WCU-4 hand unit
White Radio Module
  • Integrated white ARRI radio module
  • Supports OCU-1 override function
  • Compatible with WCU-4, SXU-1, and legacy, white-coded ARRI hand units
Long Range
Supports up to 4921ft / 1500m  wireless range
Run/Stop Function

Provides power and run/stop control for ARRI and select third-party cameras via a CAM connector

14 Radio Channels
  • Compact FIZ motor with integrated 14-channel RF module
  • Improved resistance to interference

Includes:

  • 1 x ARRI cforce mini RF Motor Unit

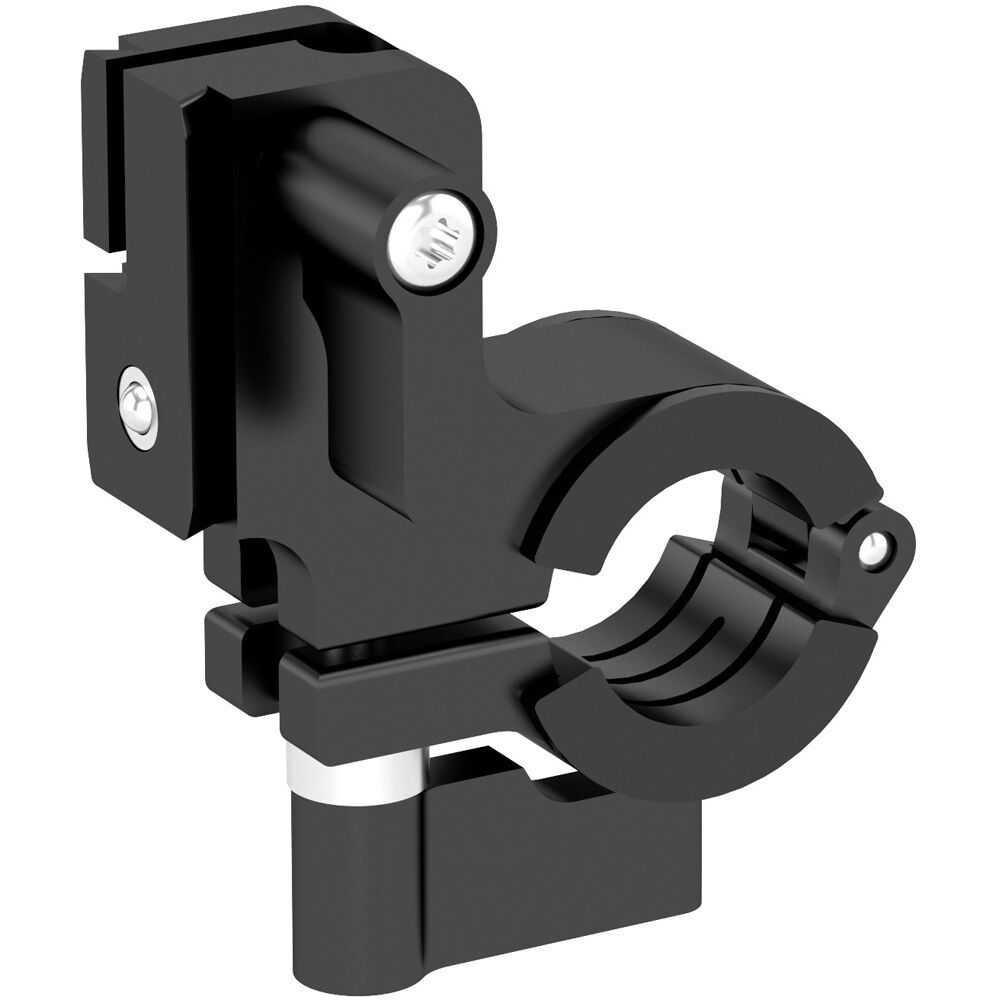

  • 1 x ARRI cforce mini Clamp Console 2
  • 1 x ARRI Gear for CLM-5 or cforce mini Motor (0.8-Mod, 32-Pitch, 40-Tooth)
  • 1 x ARRI Straight Outdoor Antenna for UMC-4 Motor Controller
