ARRI Production Support Set (Bottom, 15mm)
Product Features:
ARRI Production Support Set (Bottom, 15mm)
Description
This ARRI Production Support Set is designed to support the bottom of the ALEXA 35 cinema camera and supports 15mm LWS and 15mm Studio rod setups. The set includes the CBP-6 compact bridge plate and a 12" bottom dovetail plate. Read more below about the items in this kit.

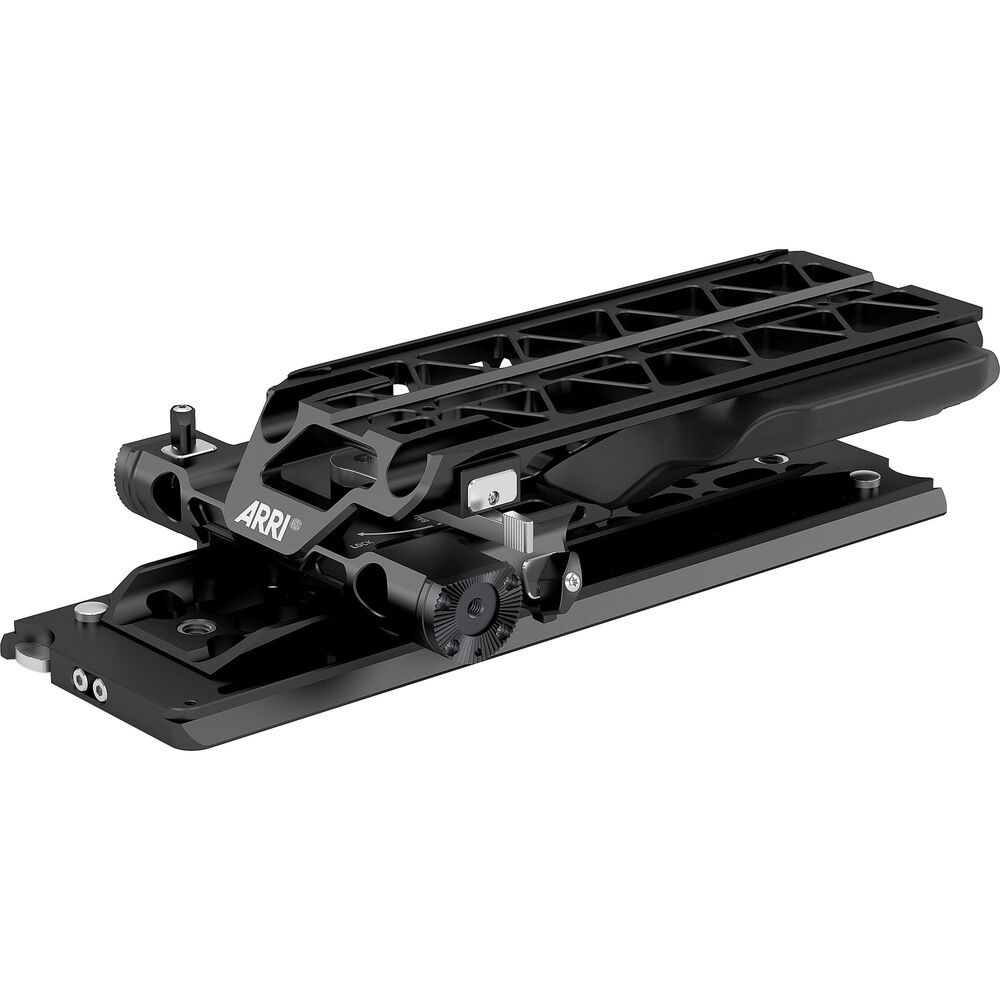

The compact, lightweight ARRI Compact Bridge Plate CBP-6 is designed for use with the ALEXA 35 cinema camera and provides a sliding bridge plate and a shoulder pad. The bridge plate mounts onto the BUD-1 utility dovetail, and its sliding function provides balance and support, especially when using long lenses. The quick release system has been improved from previous bridge plate models, and it also allows lifting the camera straight off the dovetail. It supports both 15mm LWS and 15mm studio rods as an option.
ARRI BUD-1 Utility dovetail
15mm Studio and 15mm LWS rods
Less is more when you're lugging your rig around, so opt for this 12"" Bottom Dovetail Plate from ARRI with a weight-reducing cutout design for balancing your camera setup. This updated dovetail offers a medium travel range suitable for prime lenses, and it sports several features that distinguish it from earlier models.
Safety release buttons are located both at the front and back of the dovetail. The front release is especially helpful when using accessories like lens motors that may hang below the level of the baseplate, preventing an easy backward slide off the dovetail. Two removable stopper screws provide additional security when desired and can be parked on the plate when not in use.
Constructed of a robust aluminum alloy, this dovetail has built-in 3/8""-16 and 1/4""-20 threads for mounting on a tripod or quick release plate.
Sachtler Cine 30
- Use with a separately available sliding bridge plate or sled to balance your camera rig
- Includes safety release buttons on both ends for maximum flexibility
- The two removable stopper screws can be stored on the plate when not in use
- Both 3/8""-16 and 1/4""-20 threads for mounting on a tripod quick release plate or other support
- Robust yet lightweight aluminum alloy build
Includes:
- ARRI Compact Bridge Plate CBP-6 (15mm)
- ARRI Bottom Dovetail Plate (12" / 300mm)
- 2 x Stopper Screw
"
