Wooden Camera - UVF Mount (LCD, No Clamp)

54.180300

Product Features:

For Top Handles/Rigs with 15mm Rod Clamp
LCD Monitor Mounting Bracket
$760.00
Overseas Air Freight
Check Location Availability

Wooden Camera - UVF Mount (LCD, No Clamp)

Essential Add-On's we recommend

Description

UVF Mount LCD (No Clamp) is a version of our popular UVF Mount LCD Kit without the 15mm Tube Clamp portion. This kit works great with NATO Handle (Plus) which has an integrated 15mm clamp.

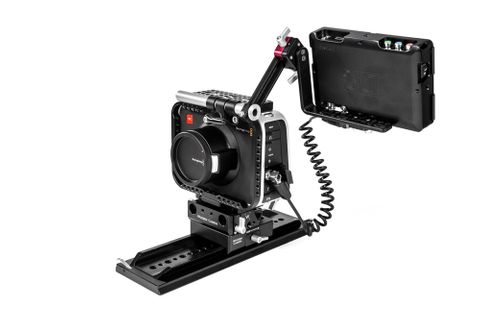

The UVF Mount LCD Kit attaches larger LCD monitors to cameras while keeping the horizon level. Three points of adjustment: 15mm tube clamp for tilt and distance to the camera, NATO thumbscrew (identified by red component) for positioning on NATO rail, and tension thumbscrew to adjust tilt of LCD. Tool-less design allows quick installation and removal of LCD unit. Safety pin prevents accidental removal. UVF v2 Sled can also attach directly to any NATO-style rail. A small spacer piece is included for the LCDs with video connection ports and controls on the bottom.

NATO Arm length approximately 4"

Features:

  • 1/4-20 threaded and pass through holes - for attaching LCDs

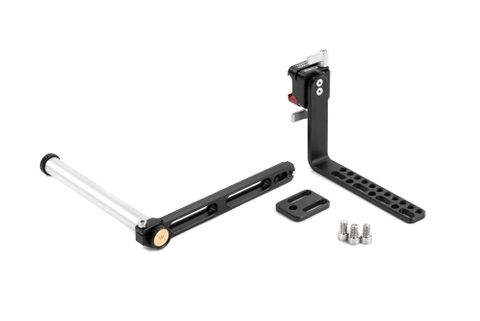

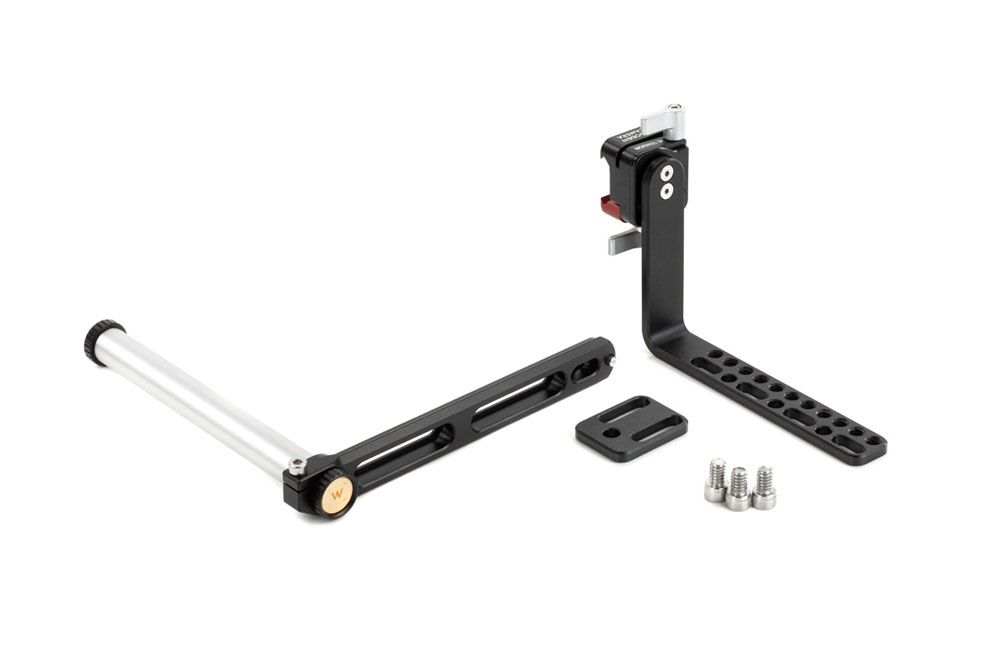

Includes:

  • (2) 1/4-20 x 3/8 socket cap screw
  • (2) #6-32 socket flat head screws

Specifications:

  • Weight: 270g (0.6 lbs)
  • Dimensions: 158.8 x 145.3 x 30.8 mm
