Description

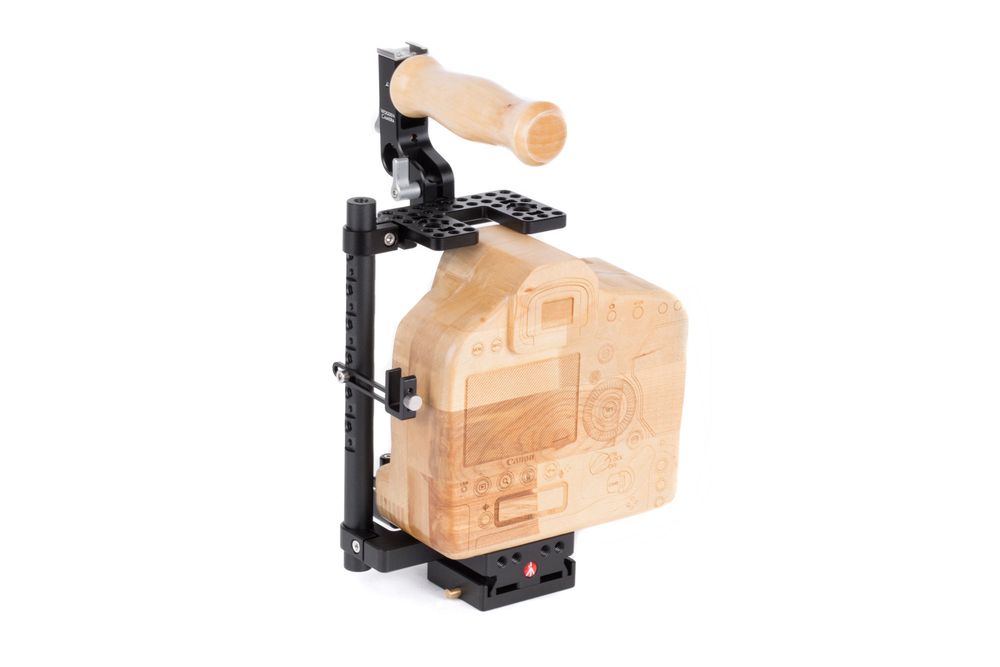

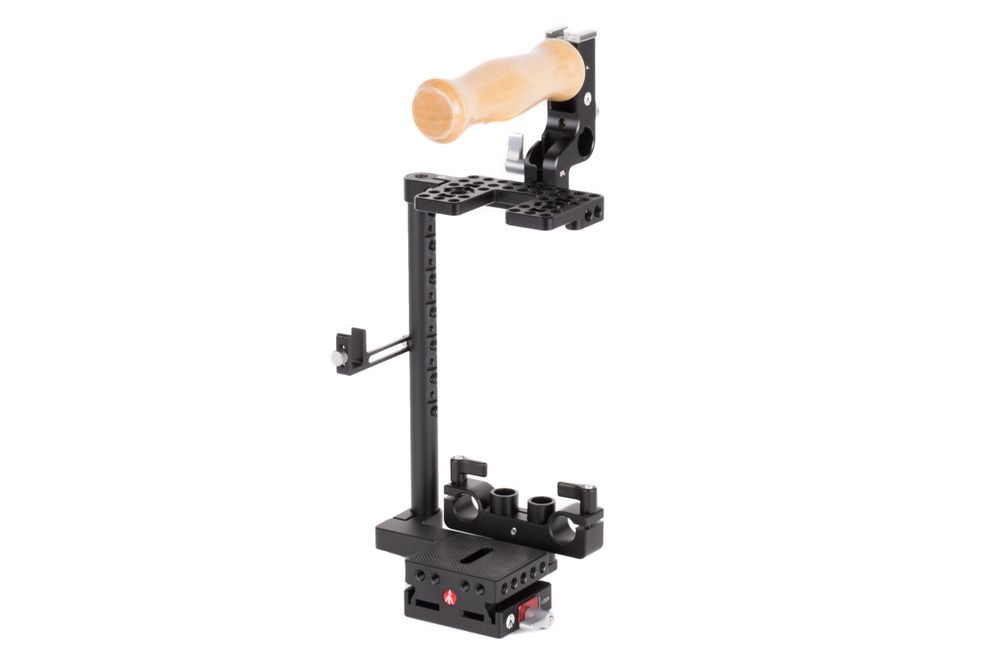

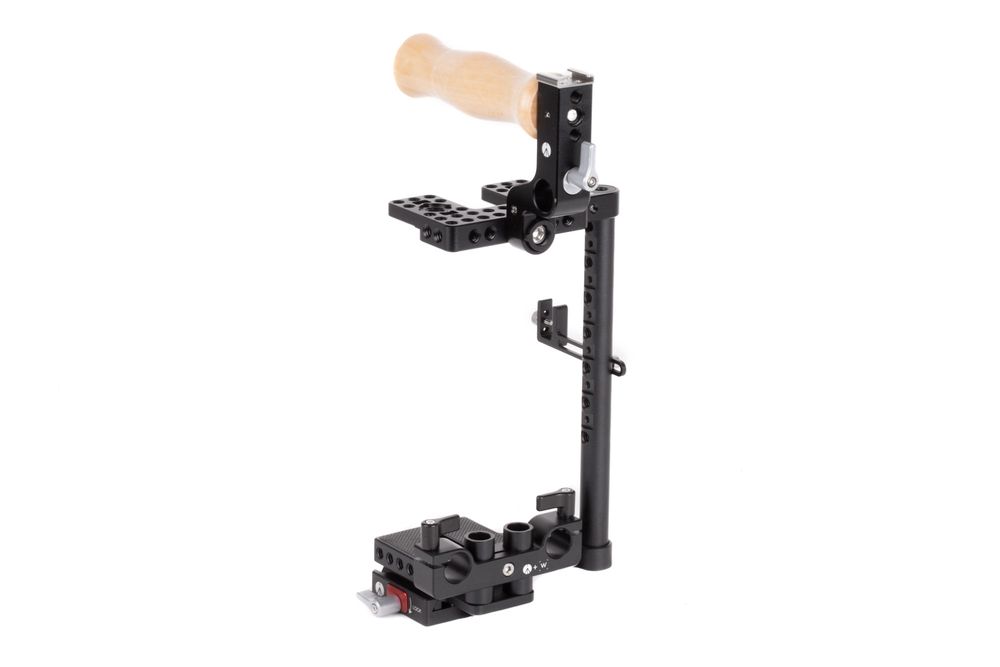

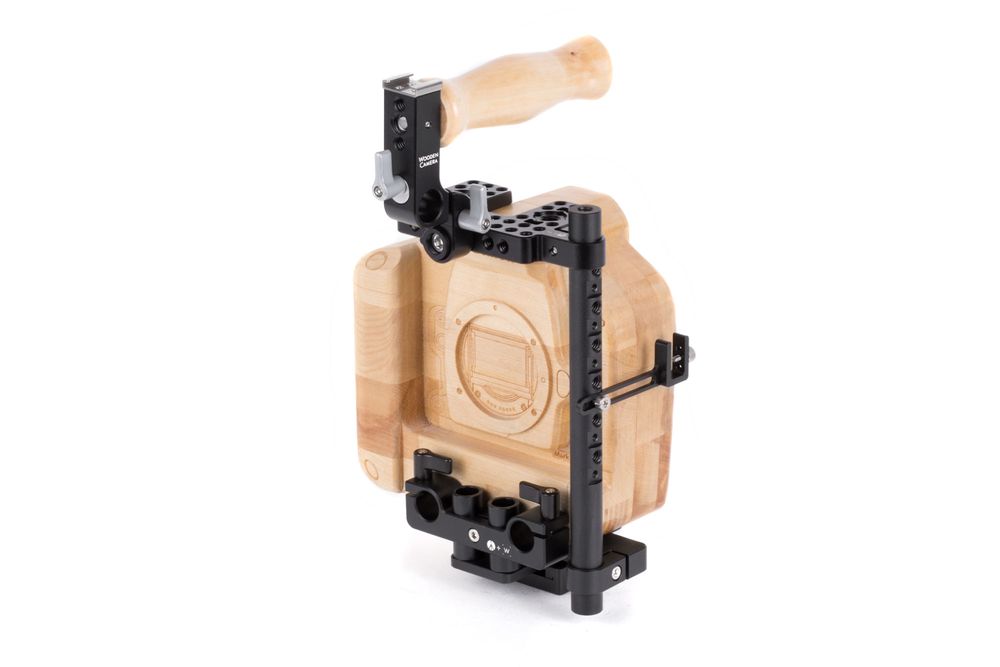

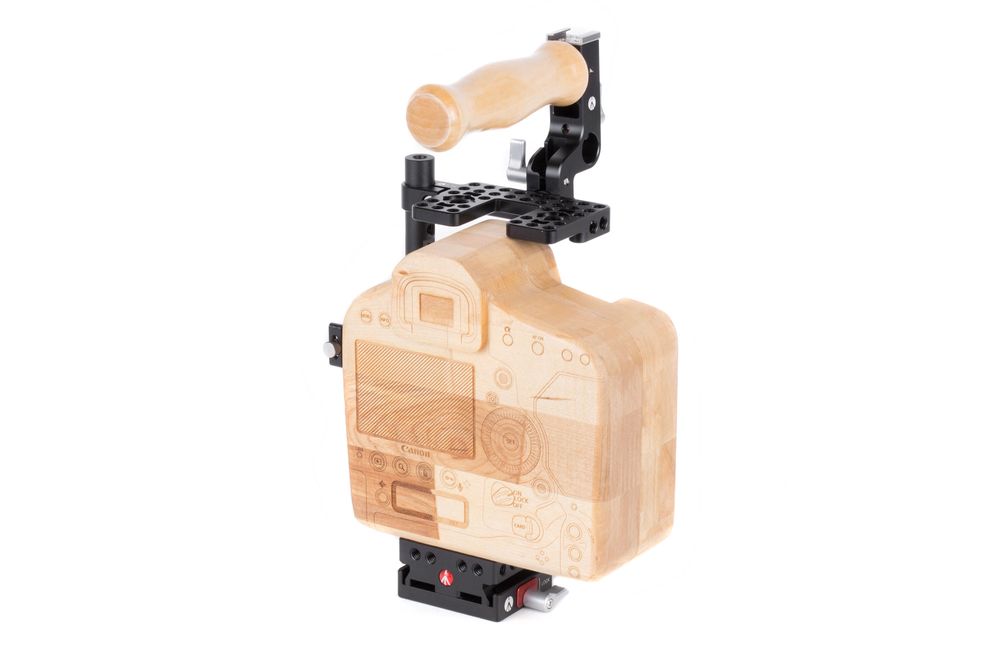

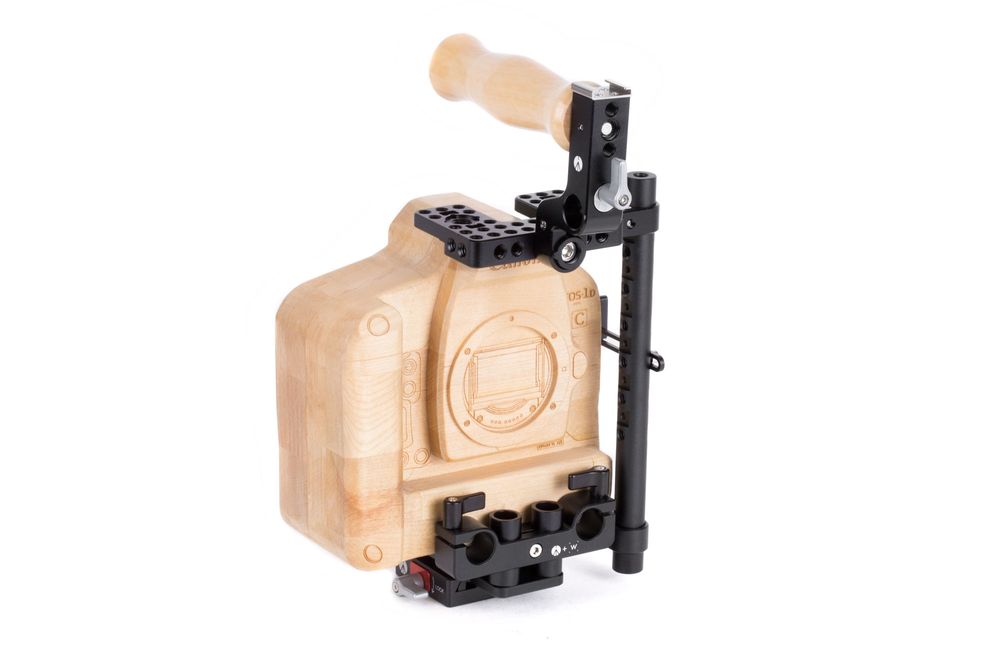

Unified DSLR Cage (Large) is a quick release, height adjustable cage that fits larger DSLR cameras like Canon 1DC, 1DX, 1DX mkII, 1DmkIV, 1DmkIII, Nikon D4, D3x, D800 and many cameras with battery grips installed. The open shoe mount area allows for hot shoe accessories to be installed without obstruction. The minimalist design gives you mounting points on the top and side while leaving all of the camera's vital controls on the right grip and left side easily viewable and accessible.

The cage includes a reversible top handle which can be repositioned over the lens area when an XLR adapter is in use. Built into the handle is a cold shoe mount and a 15mm tube clamp for mounting any of our UVF Mount kits used with 3rd party electronic viewfinders. The handle can also fold down when packing your bag and can even be reconfigured onto the left, vertical 15mm rod for a secondary grip!

Cameras with fold-out LCD screens can be positioned easily and an included HDMI cable clamp can be mounted to the vertical rod to secure video cables and prevent port damage.

The Unified DSLR Cage (Large) includes a height adjustable 15mm lightweight rod clamp for positioning 15mm rods at the correct distance to the centre of the lens, ensuring compatibility with standard matteboxes and follow focus units.

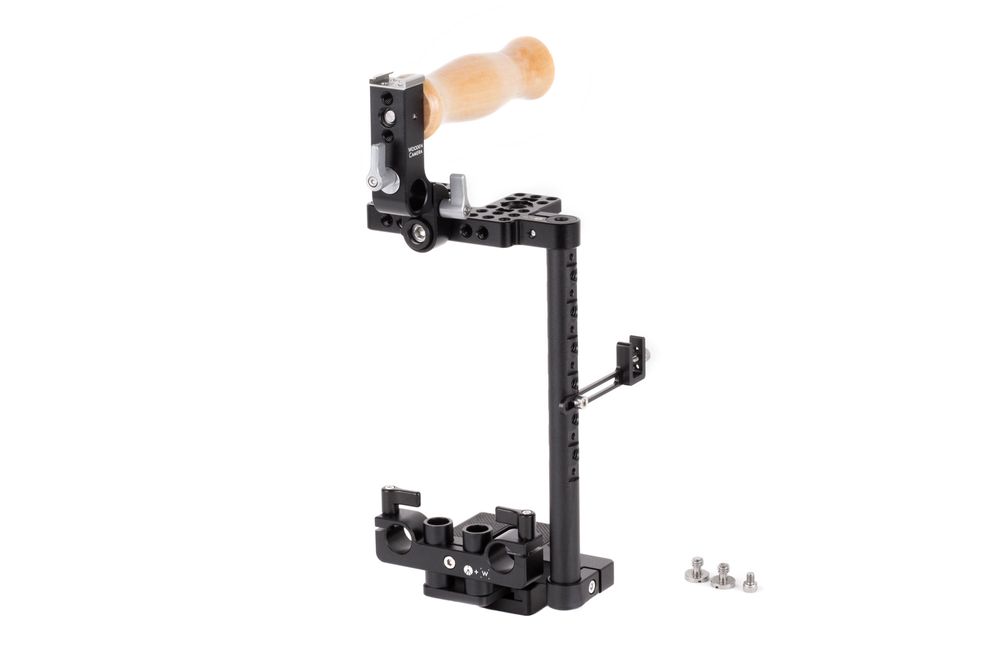

Includes:

• (2) 1/4"-20 low profile screw

Camera Compatibility:

• DSLR Cameras 5" or taller
• Canon 1DC, 1DX, 1DXmkII, 1DmkIII, 1DmkIV
• Nikon D4s, D4, D3x, D5, D800, D810, D850
• DSLR Cameras with installed Battery Grip such as Sony Alpha series or Fujifilm X-H1

For the Nikon D800 / D810/ D850, to better match the form factor of the camera we recommend using the Unified DSLR Cage Vertical Rod (Medium) as well as the Unified DSLR 15mm Baseplate to ensure correct rod height if rod support is needed.
*Compatible with many additional cameras with battery grips installed

Specifications:

• Weight: 590g
• Dimensions: 292.1 x 114.3 x 152.4 mm
