Description

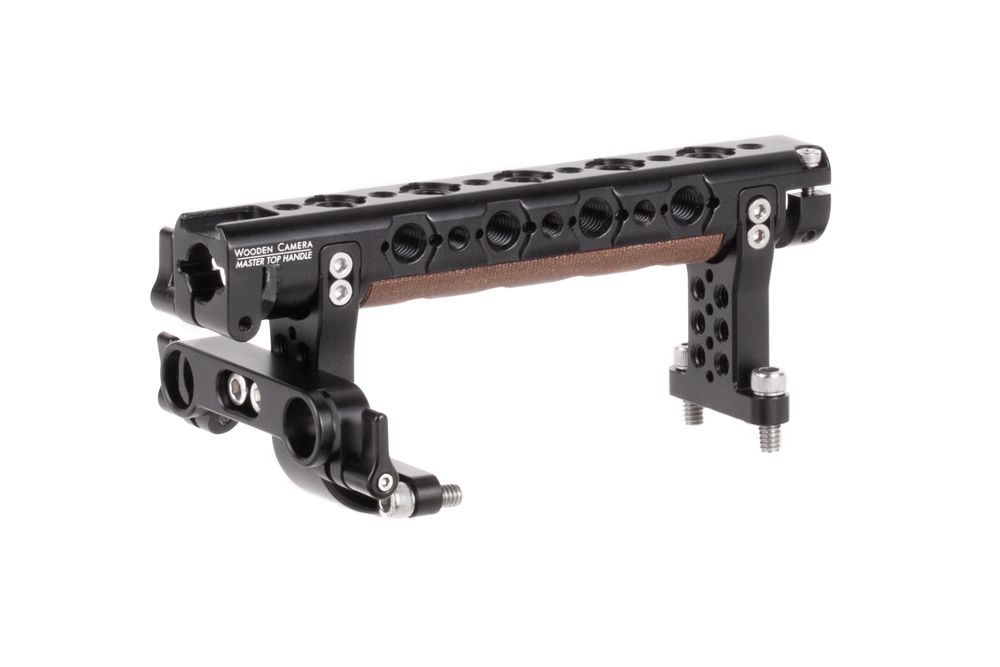

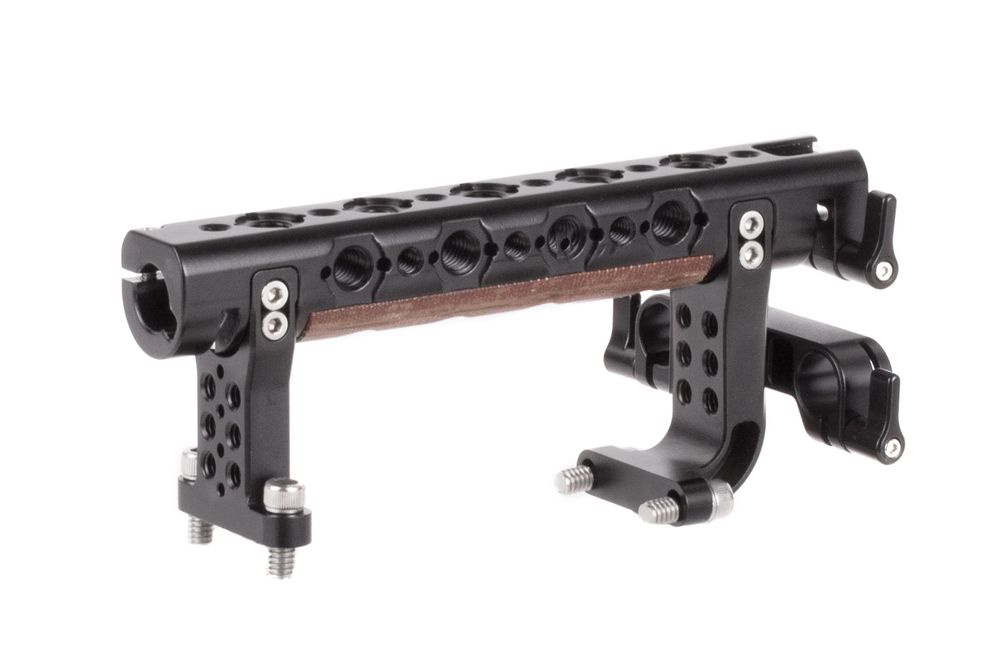

Master Top Handle (RED DSMC2) is a modular handle system designed for larger camera builds and back of camera operation. The Master Top Handle (RED DSMC2) (Main Handle Section Only) is the base of the handle system and attaches in two places to either the Easy Top (Weapon) or the Pass Through Top Plate (Weapon) by four 1/4-20 screws, making it extremely secure. 1/4-20 and 3/8-16 mounting points are available on three sides as well as the ARRI standard accessory mount.

The Master Top Handle (RED DSMC2) (Main Handle Section Only) has a hot shoe mount in front as well as a 15mm rod opening with thumbscrew. The rear portion of the handle also features a 15mm opening and is clamped down using an M4 screw.

Extensions are added easily and securely by inserting at the correct angle aligning the tab and slot, rotating clockwise, and then pushing in again. This multi-action attachment method prevents the extensions from accidentally being removed. Once pushed into place, simply tighten the screw to keep it locked in position.

Specifications:

• Weight: 314 g
• Dimensions: 50.8 x 196.85 x 76.2 mm

Compatibility:

• Compatible with RED DSMC2 cameras; Weapon, Epic-W, Scarlet-W, and Raven.
