Wooden Camera - UVF Mount v2

54.157100

Product Features:

Viewfinder Mounting Bracket Included
Adapter for Alphatron & SmallHD Included
$810.00
$730.00
Stock Level:
In Stock
Check Location Availability

Wooden Camera - UVF Mount v2

Essential Add-On's we recommend

Description

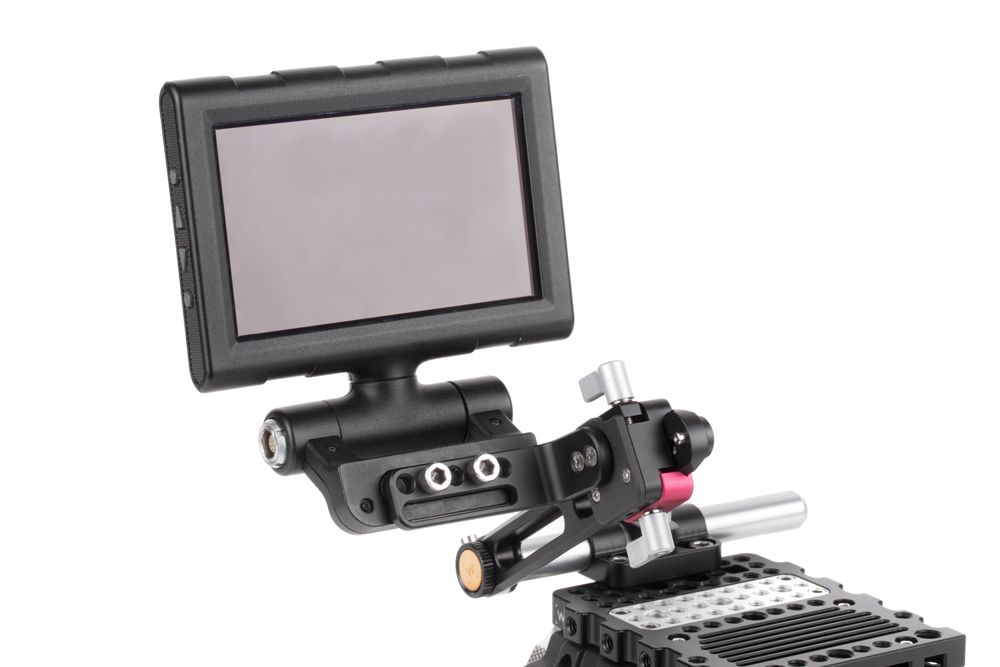

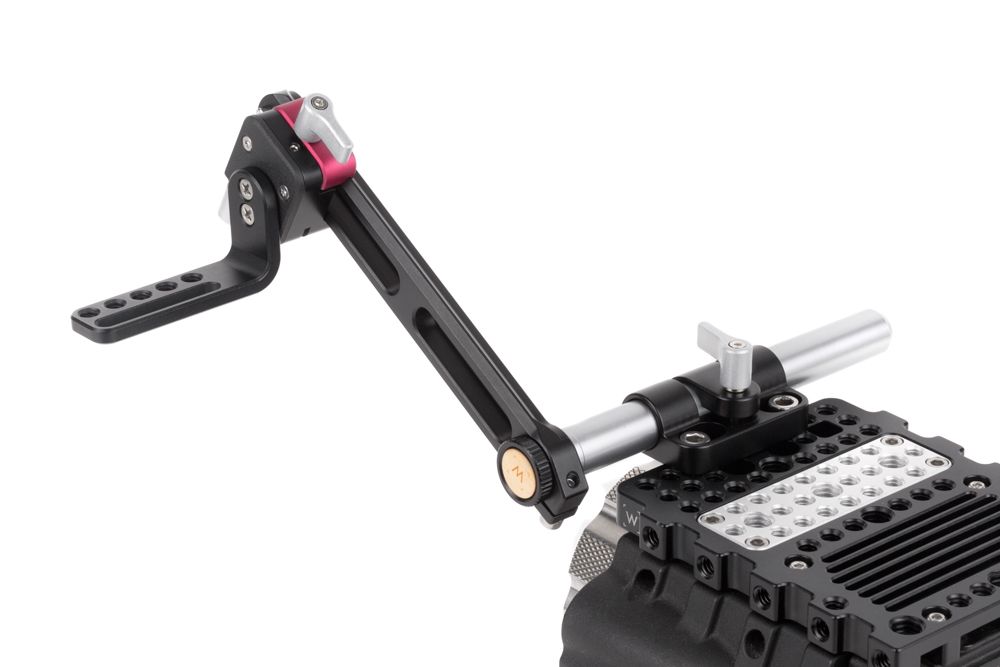

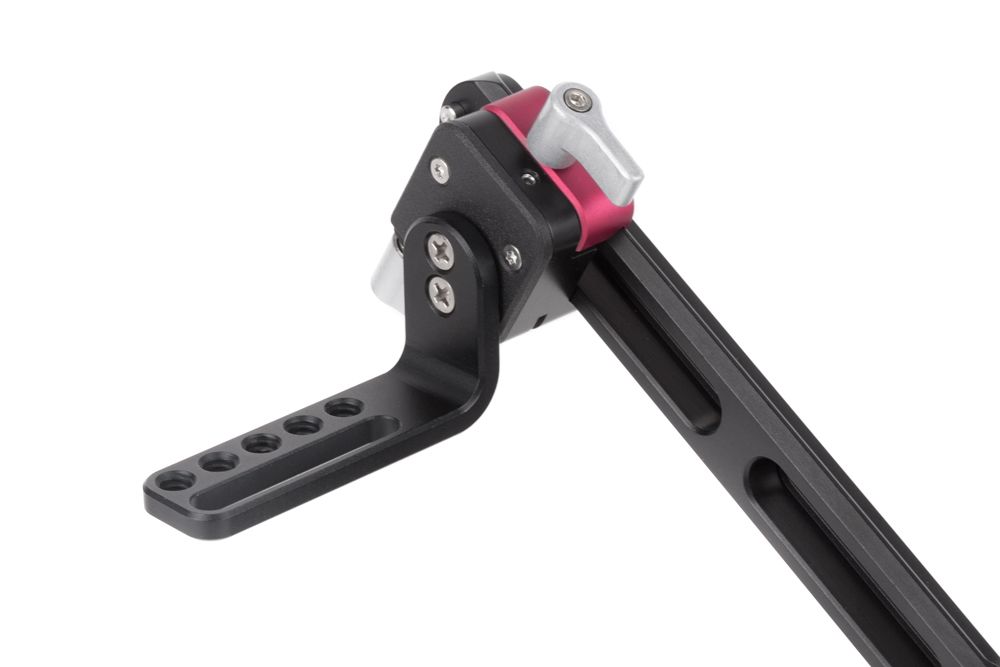

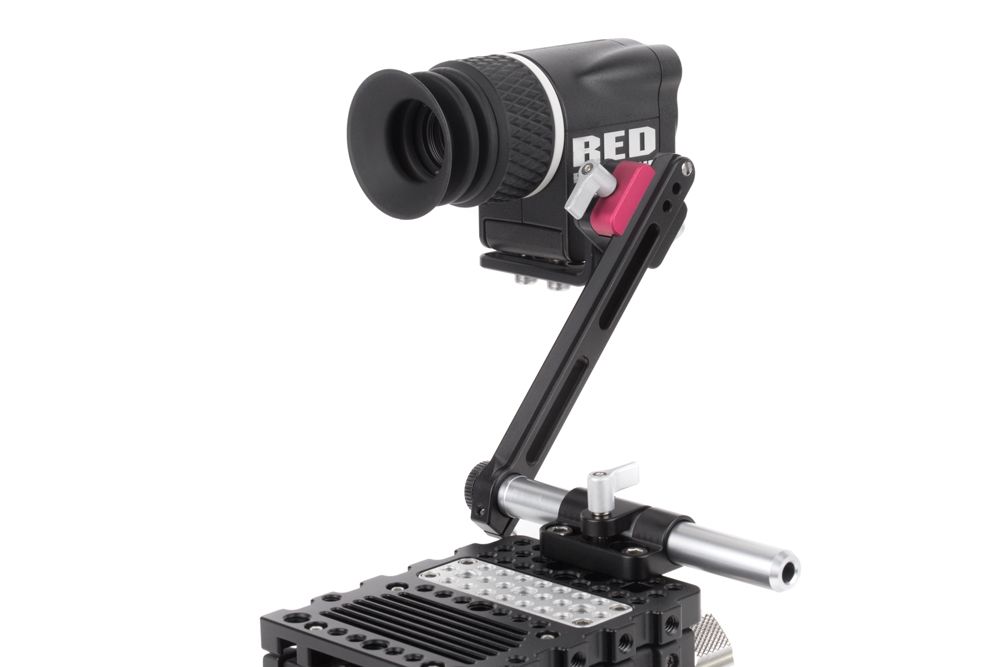

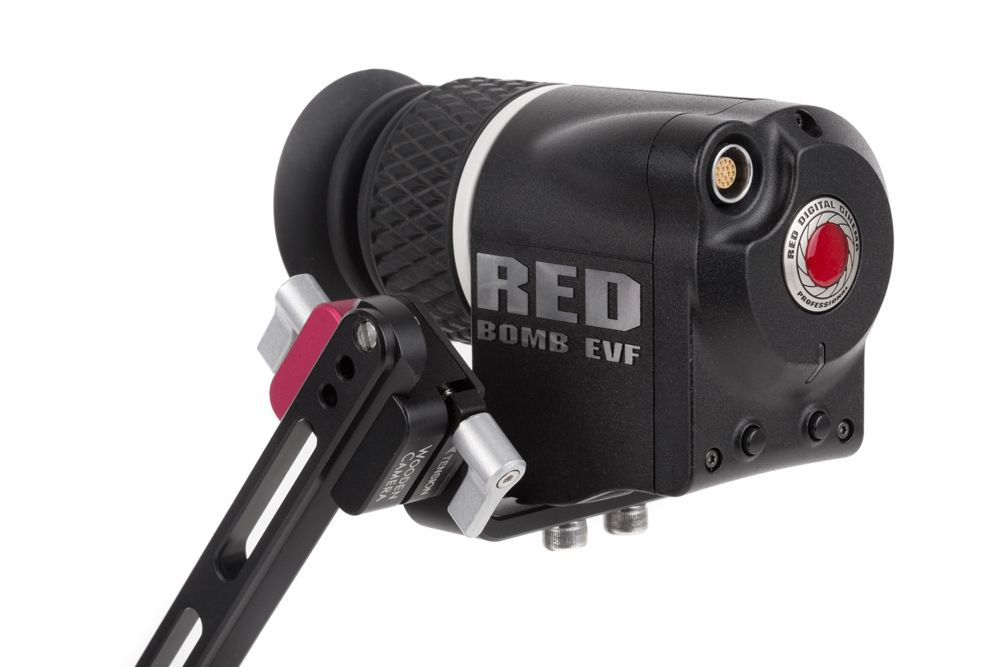

UVF Mount v2 accepts most EVFs and LCDs. Three points of adjustment: 15mm tube clamp for tilt and distance to the camera, NATO thumbscrew (identified by red component) for positioning on NATO rail, and tension thumbscrew to adjust tilt of EVF. Tool-less design allows quick installation and removal of UVF v2 Sled. Safety pin prevents accidental removal. UVF v2 Sled can attach directly to any NATO-style rail and includes adapter for using SmallHD and Alphatron viewfinders.

NATO Arm length approximately 5"

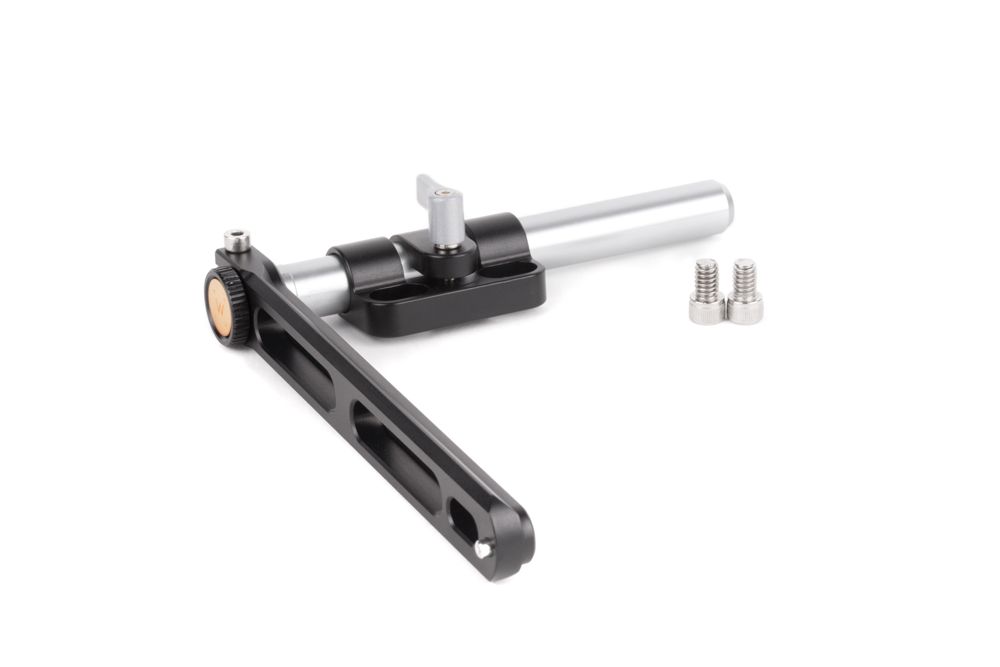

The included 15mm Tube Clamp bolts directly to two 1/4-20 screw holes spaced between 25mm and 36mm centre to centre. Can attach directly to RED Dragon/Epic/Scarlet and AJA CION. Can also attach to other cameras via Wooden Camera cages and cheeseplates.

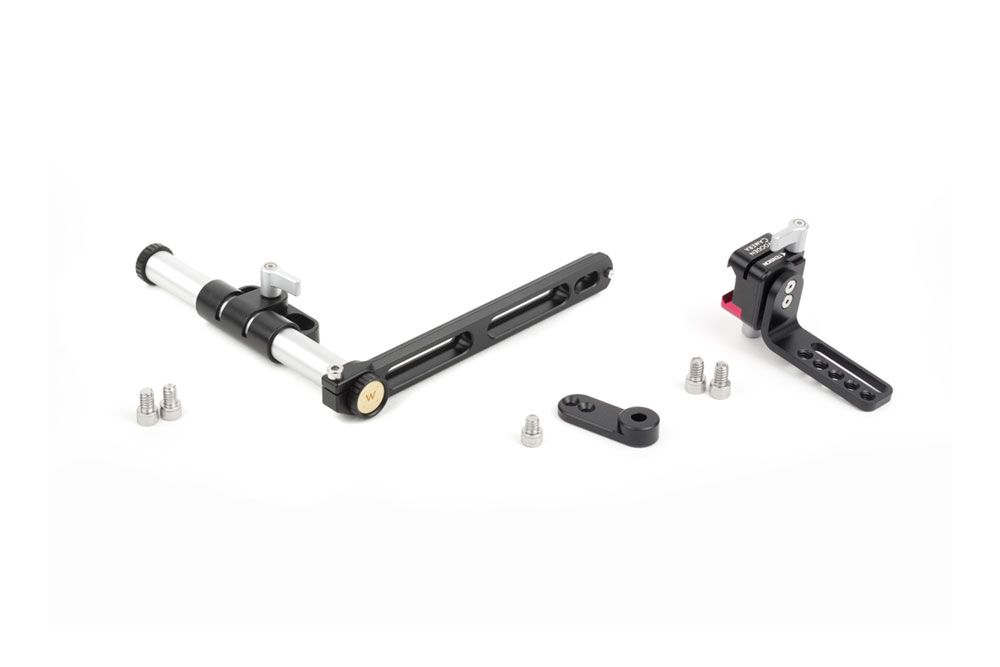

Includes:

  • (4) 1/4-20 x 3/8" screws
  • (1) 1/4-20 x 1/4" screws

Specifications:

  • Weight: 320g (0.7 lbs)
  • Dimensions: 206.8 x 158.8 x 60.9 mm

Comaptibility:

  • Alphatron
  • Cineroid
  • RED
  • SmallHD Sidefinder
  • Zacuto
  • And more
