Description

The Wacom Cintiq Pro 24 is an advanced creative pen display, featuring a premium 4K screen with world class colour performance and virtually no parallax. Combined with Wacom Pro Pen 2, the Wacom Cintiq Pro pen display offers an experience designed to enhance every creative breakthrough.

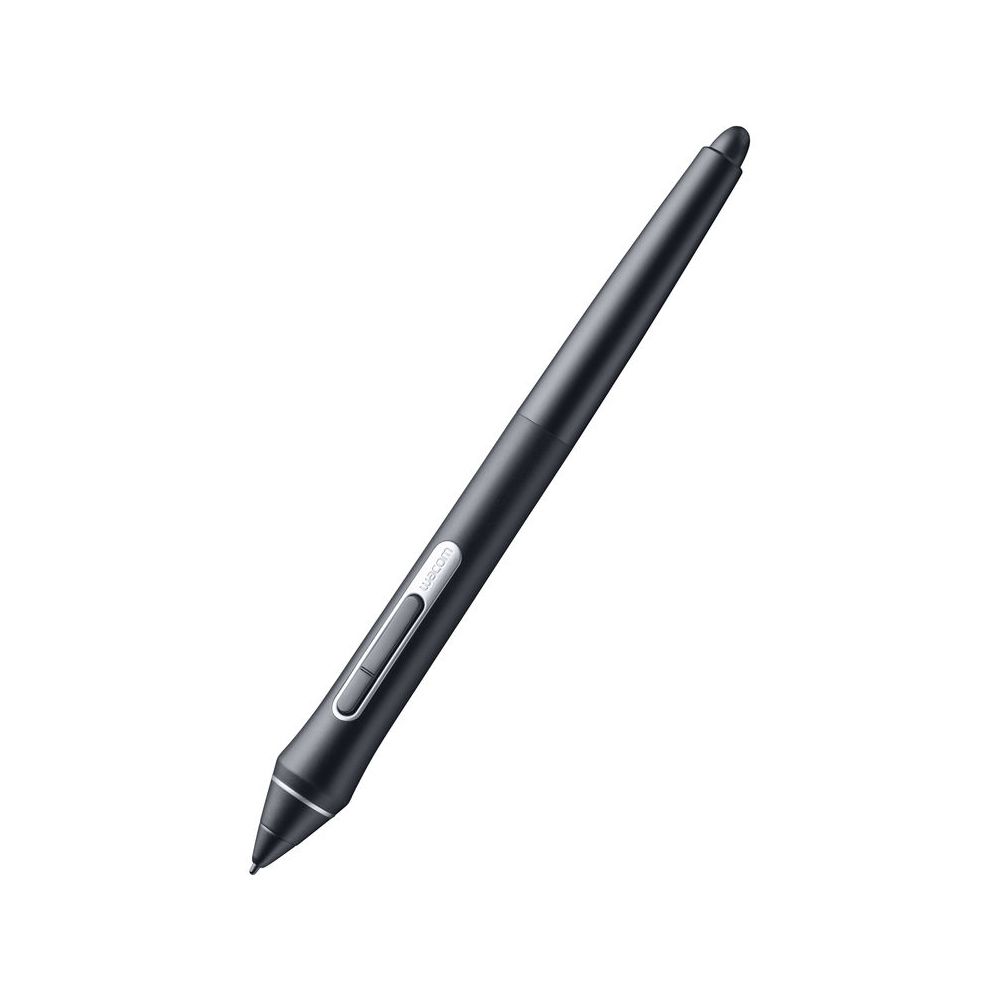

The included Wacom Pro Pen 2 provides state-of-the-art creative pen technology. 8,192 levels of pressure sensitivity and unparalleled tilt recognition means that every stroke and every move of your hand is followed with unerring accuracy.

Features

• Includes a Wacom Pro Pen 2 for superior accuracy, tilt detection and 8,192 levels of pressure sensitivity.

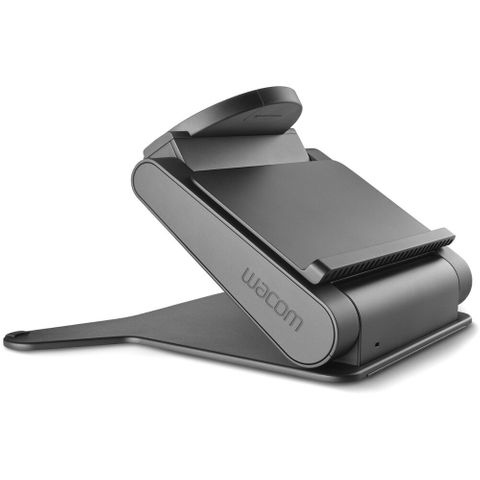

• An on-screen keypad, radial menus and the ExpressKey™ Remote offer a more intuitive experience.
• Virtually no parallax and jitter while using premium 4K screens, complete with world-class Adobe RGB 98% colour performance.
• Etched glass screens reduce glare and reflections while providing a natural, pen-on-paper feel as you draw.

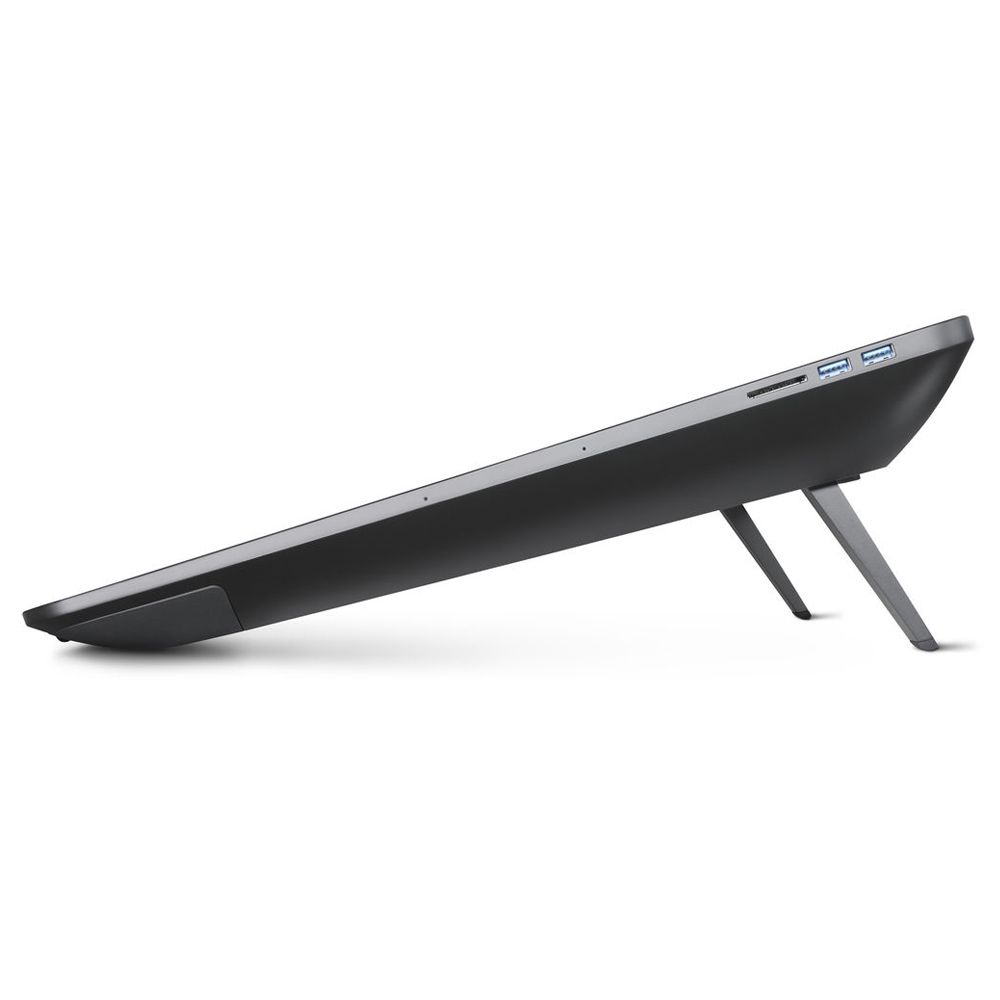

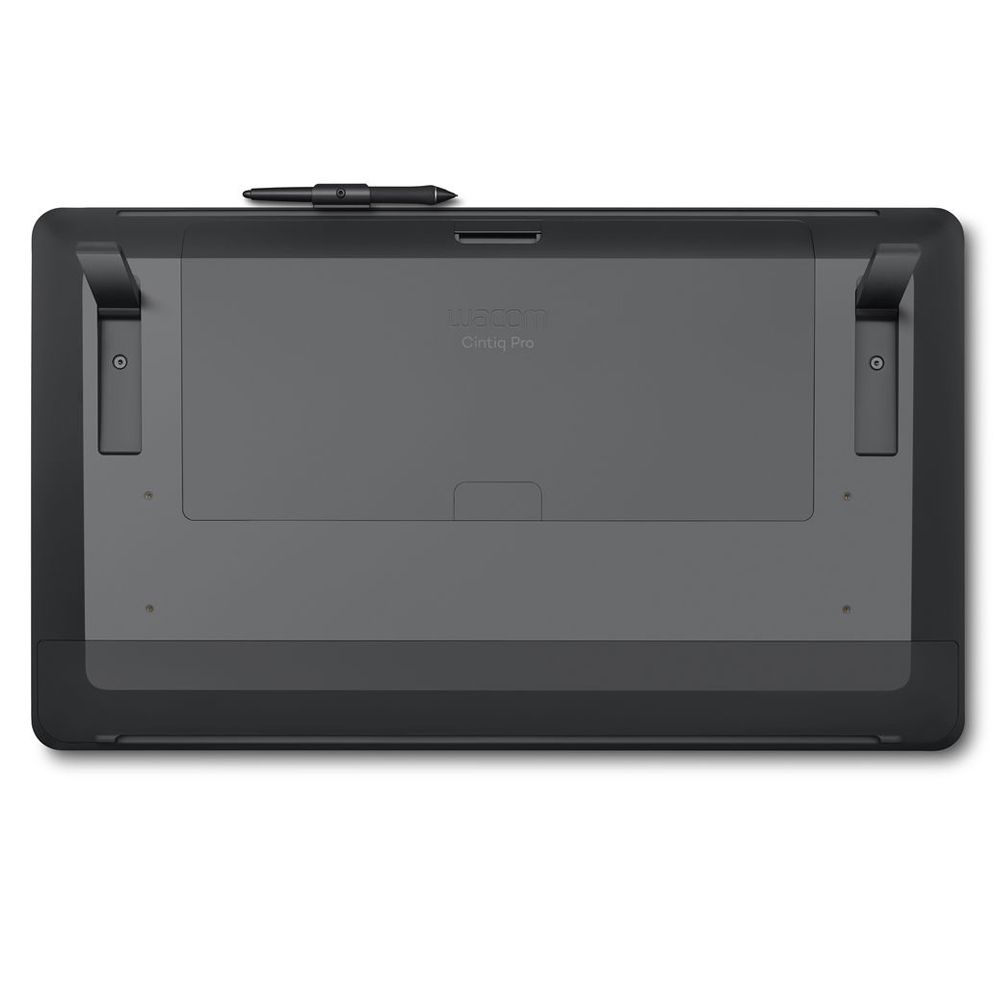

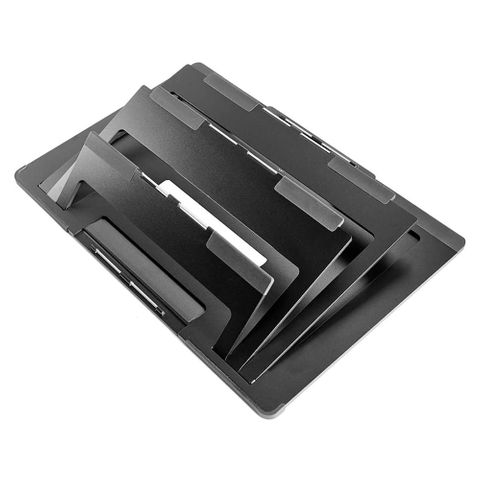

• Built-in legs raise your Wacom Cintiq Pro from 5° to 20°.

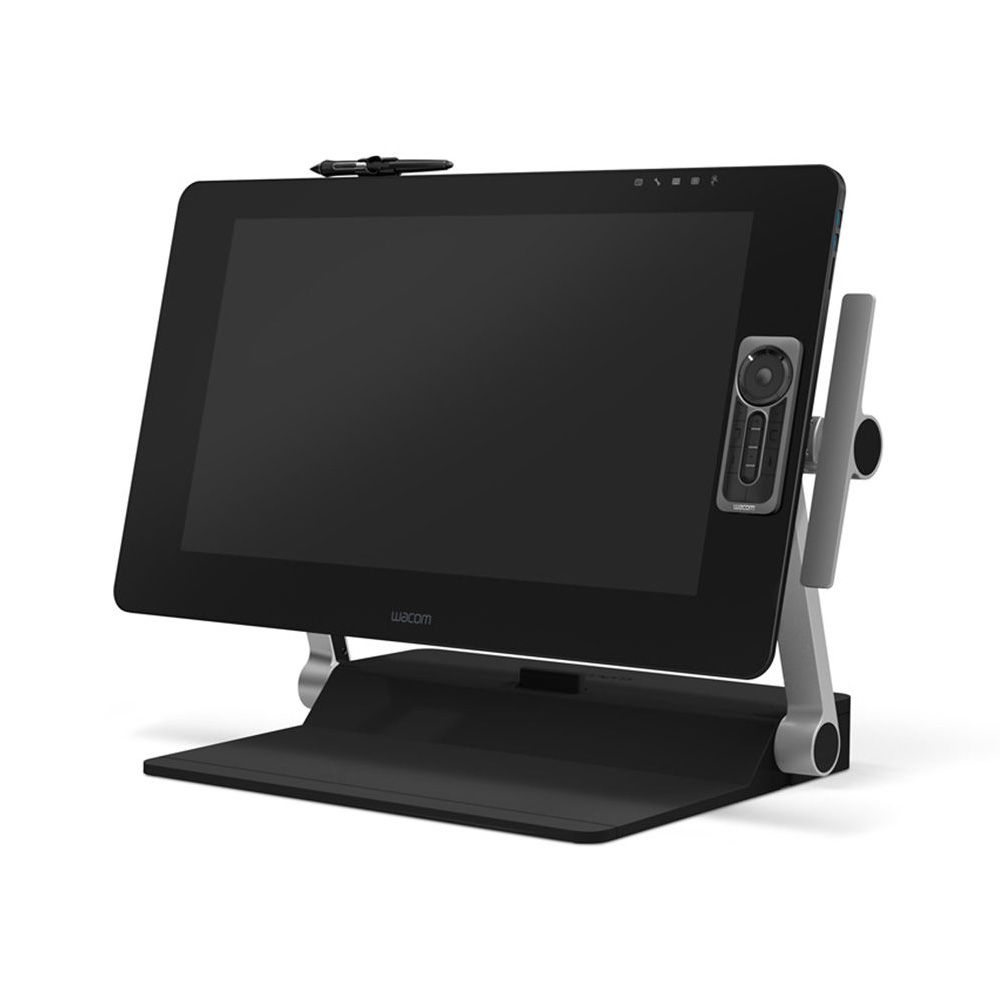

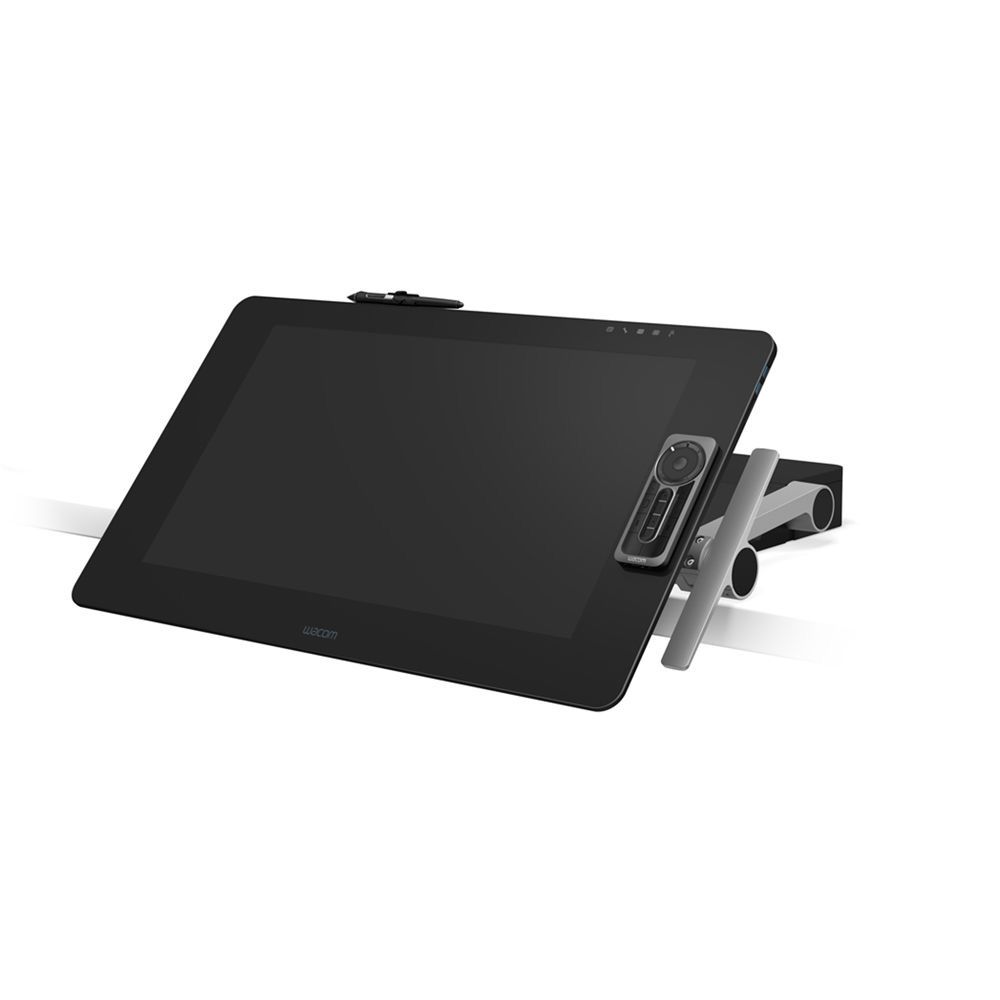

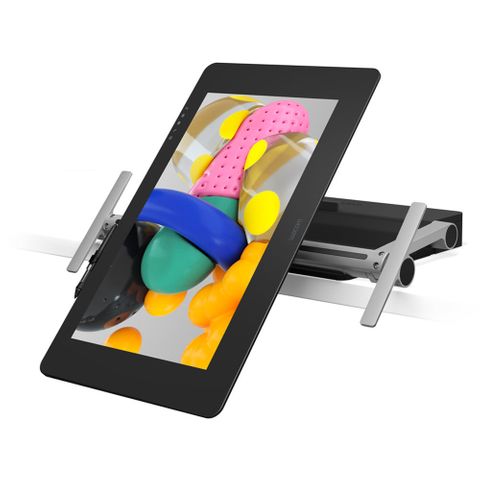

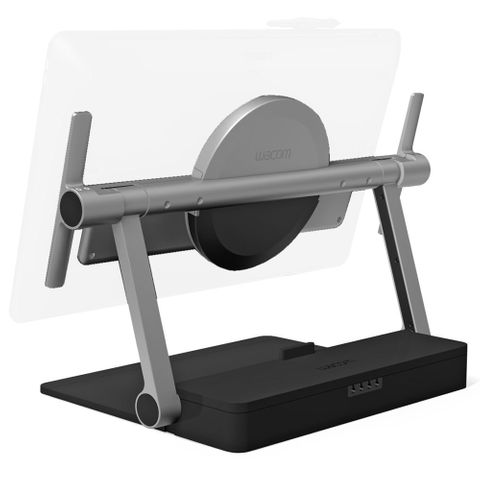

• The optional Wacom Ergo Stand (available March 2018) lets you raise, tilt and rotate your Cintiq Pro to find the most natural position for you.
• Add the optional creative PC module Cintiq Pro Engine to turn your Cintiq Pro into a powerful creative pen computer
• Compatible with Mac and Windows.

Specifications

• Product Type: Creative Pen Display 24 Touch
• Model number: DTH2420K0 creative pen display
• Size: 677 x 394 x 47mm
• Weight: 7 kg (15.43 lbs) without optional stand
• Screen Size (Measured Diagonally): 59.94cm
• Active Area: 522 X 294mm
• Adobe RGB at CIE1931
• Coverage Ratio: 99%
• Multi-Touch: Yes
• Pressure Levels: 8192, both pen tip and eraser
• Type: Pressure-sensitive, cordless, battery-free
• Resolution: 5080 lpi
• ExpressKeys™: 17 customizable, application-specific on included ExpressKey™ Remote
• Touch Ring: Yes - on included ExpressKey Remote
• Rocker Ring And Home Button: Yes - on included ExpressKey Remote
• Radial Menu: Yes
• Precision Mode: Yes
• Display Toggle: Yes
• Dedicated Pan, Scroll, Zoom, Brush Size: Yes
• Stand Orientation: Right or left-handed use
• Ports included: 4 x USB3 ports* 1 x USB C port 1 x HDMI2.0 port 1 x DP port 2 USB-A Ports (one for ExpressKey Remote dongle)

*When connected to the host computer over USB-C (including Cintiq Pro Engine), Cintiq Pro USB 3.0 ports run at USB 2.0 speeds to accommodate 4K video bandwidth over USB-C.

System Requirements

• PC: Windows® 7 or later (latest service pack/build) or Mac: OS X 10.11 or later (latest update)
• USB-C port with DisplayPort Alternate Mode (UHD), or Mini DisplayPort/DisplayPort (UHD) and USB-A, or HDMI 2.0 (UHD) and USB-A
• Internet access for driver download.

What's Included

• Wacom Cintiq Pro 24 touch
• Wacom Pro Pen 2 with 4-colour pen ring set
• ExpressKey™ Remote (with USB-A RF dongle and 30cm micro-USB to USB charger cable)
• Pen stand with 10 replacement nibs (6 standard, 4 felt) and nib removal tool
• Pen holder
• 180W AC adaptor and 1.8m power cable
• 1.5m USB-C to USB-C cable
• 3m DisplayPort to DisplayPort cable
• 3m HDMI2.0 to HDMI2.0 cable
• 3m standard USB-A to USB-A cable
• DisplayPort to Mini DisplayPort adapter
• Quick Start Guide
• Regulation sheet
• Cleaning cloth
• Certifications VCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM, KCC, BSMI, C-tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS
