Wooden Camera - Unified Bridgeplate (15mm Studio)
Product Features:
Configuration Options:
Essential Add-On's we recommend
Description

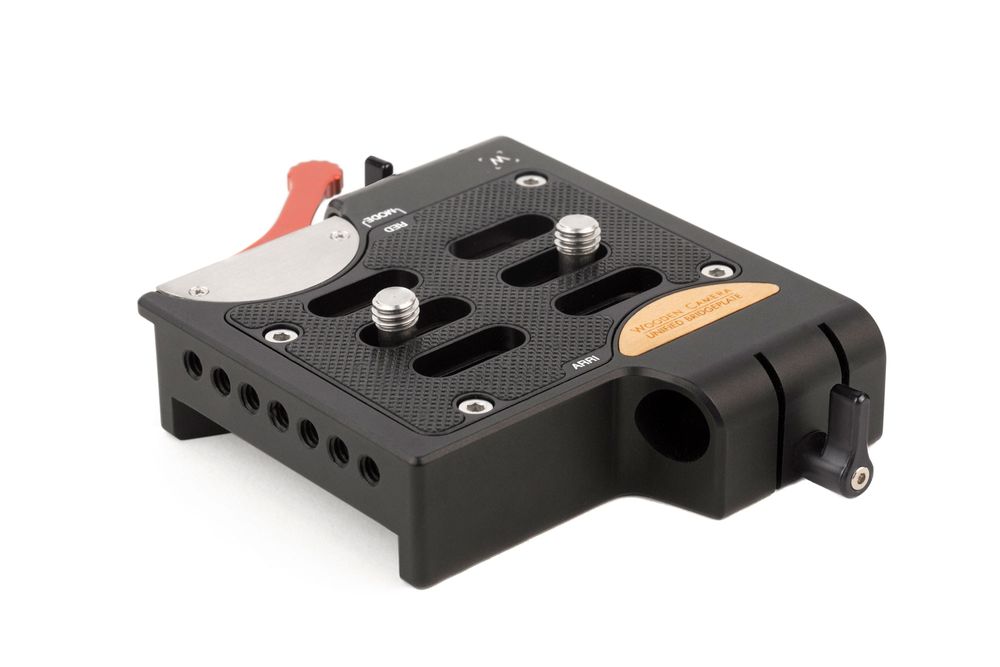

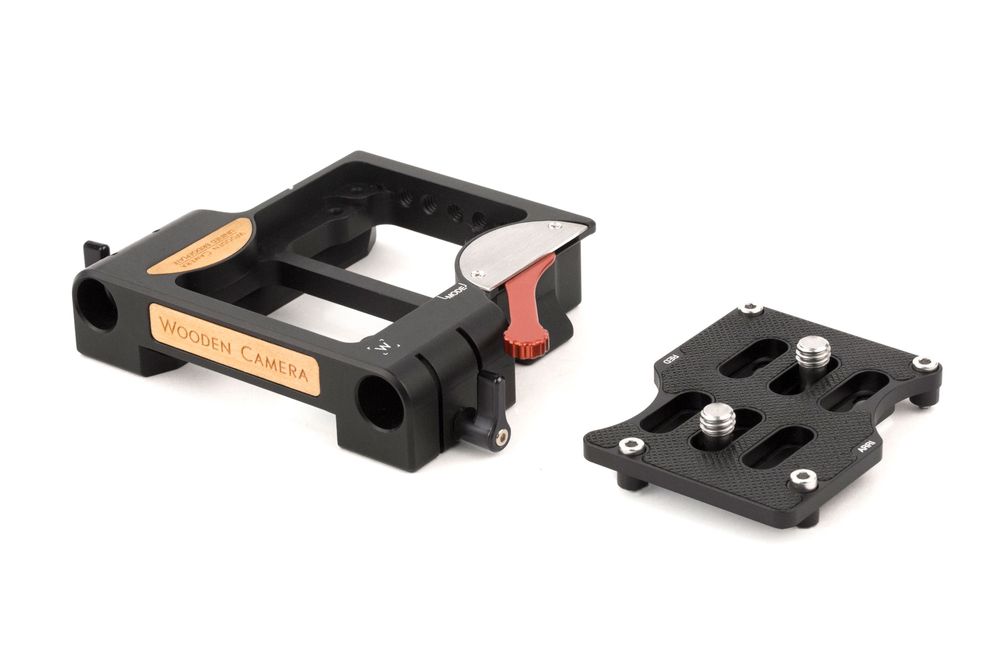

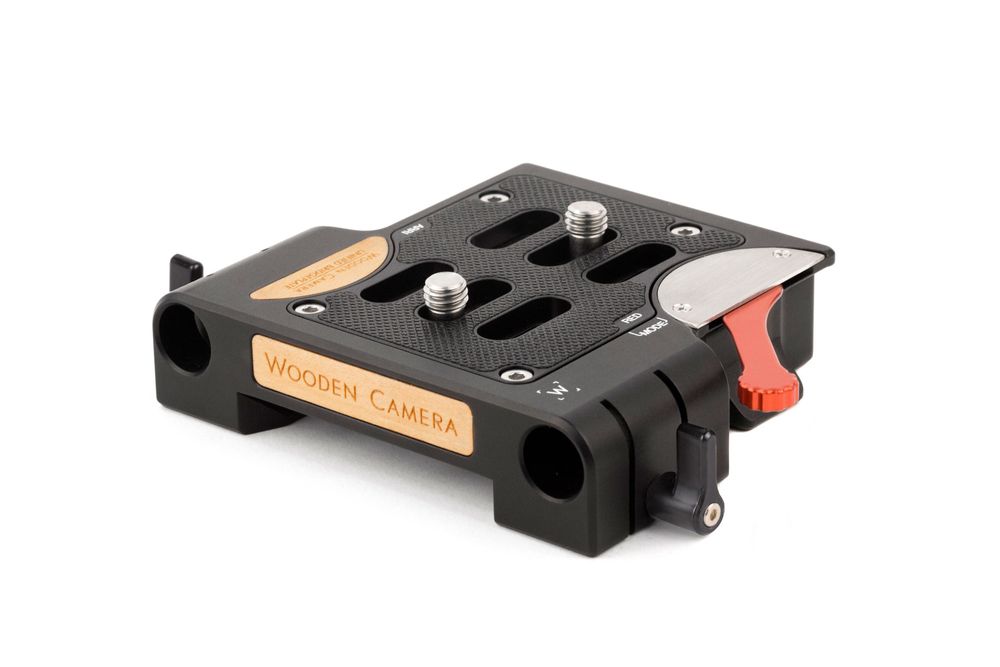

Unified Bridgeplate (15mm Studio) is an ARRI standard bridge plate with 15mm studio offset spacing (rods spaced 100mm center to center). New design allows the Bridgeplate to be converted from RED standard height to ARRI standard height making it compatible with any type of camera rig. Rubberised top coating prevents twisting and slotted design accommodates non-standard screw spacings.

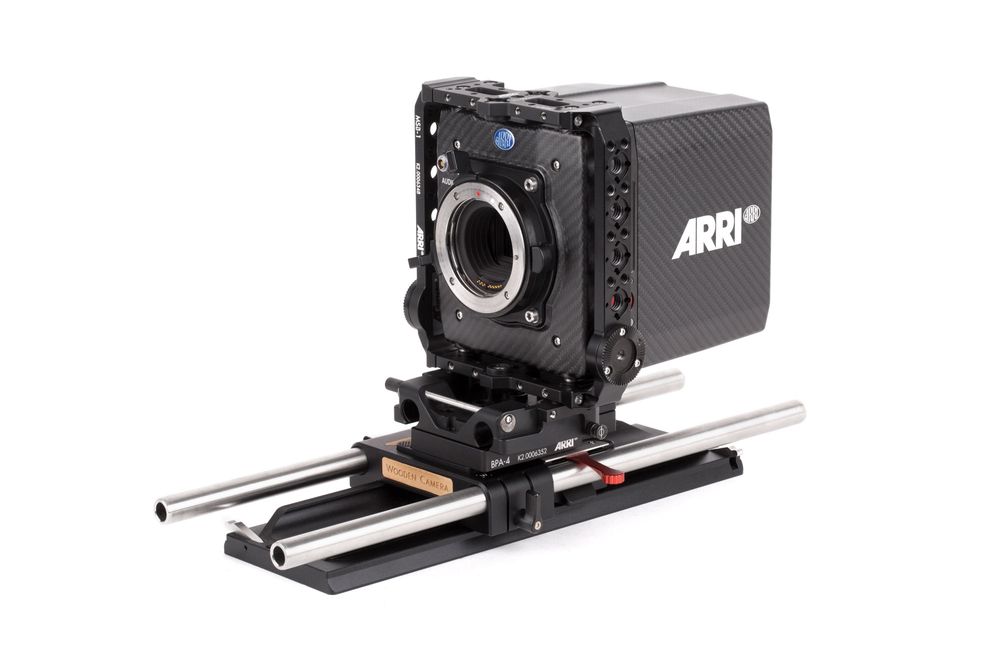

Combine with Unified Baseplates for correct rod height on cameras like Sony FS7, FS5, F55/F5, Canon C100mkII/C300mkII, C100C300/C500, Blackmagic URSA Mini, Panasonic VariCam 35, VariCam LT, and risers for RED Weapon/Scarlet-W/Epic-W/Raven, and Epic/Scarlet.
Includes:
- (2) 3/8-16 screws
- (2) 1/4-20 screws
Specifications:
- Weight: 453.592 g
- Dimensions: 50.8 x 127 x 177.8 mm
