Description

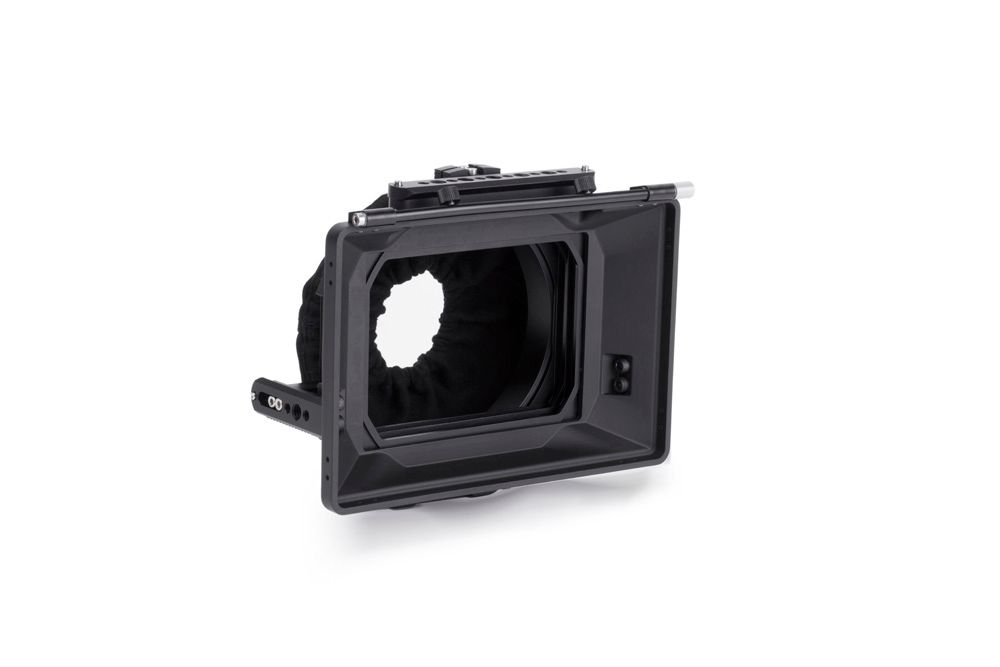

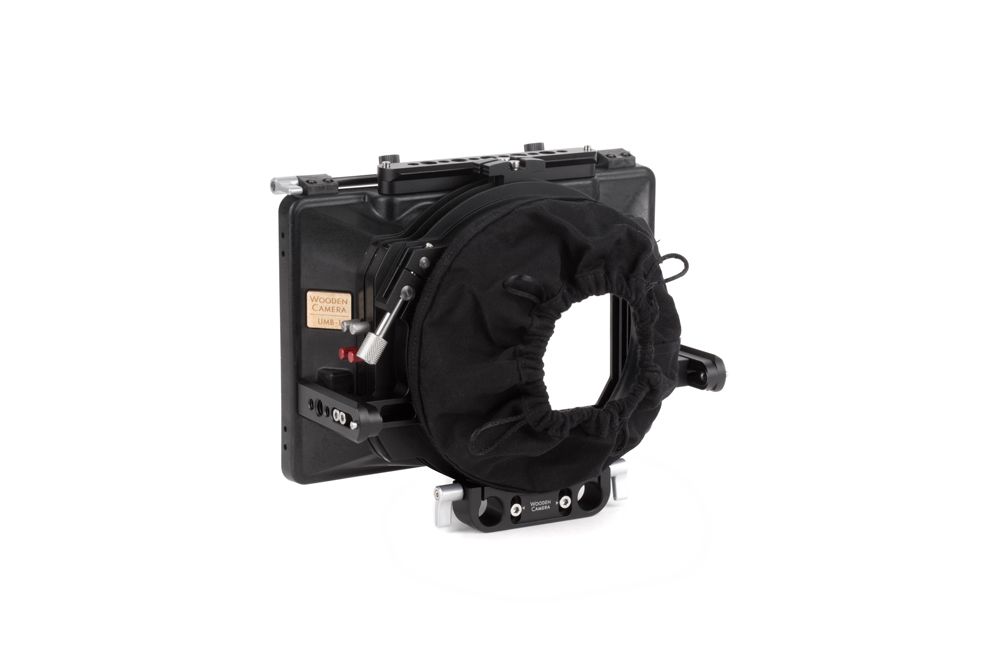

UMB-1 Universal Mattebox (Base) comes standard with two rotating 4x5.65 filter stages (with an optional third stage available), individual tray catchers, folding French flag, 143mm diameter opening, a height adjustable 15mm LW rod bracket which can be adapted to studio rods a universal cloth donut with easy to grab finger loops, and NATO standard accessory rails on left, right, and top for attaching accessories. The UMB-1 is designed to be user upgradable and quick to transition from base, to clamp on, to swing away, to ultralight when using a stabiliser. Upgradable to Swing Away or Clamp On versions when needed.

This kit ships in a box with custom cut foam. The custom foam can be removed and installed into a Pelican 1550 hard case (not included).

Universal Mattebox Kit Guide

Included Components:

• Height adjustable 15mm LW rod bracket
• 2x rotating 4x5.65 filter stages

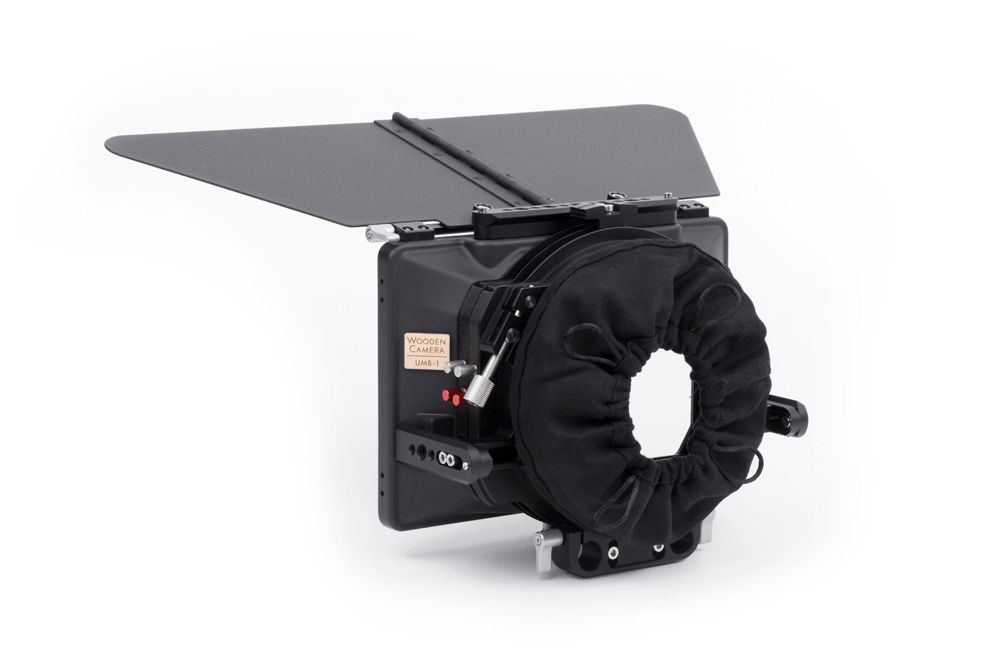

• Folding French flag
• 143mm opening with universal cloth donut
• NATO standard accessory rails on left, right, and top

Specifications:

• Weight: 839g (1.04kg with top flag)
• Dimensions: 22cm x 15cm x 8.8cm

Coverage Test Results:
Epic Dragon with Wooden Camera PL Mount:

• Arri / Zeiss Ultra Prime 16mm T1.9 - No vignette in 5K
• Cooke S4/i 16mm T2.0 - No vignette in 4K
• Angenieux Optimo DP 16-42mm T2.8 - No vignette in 5K as wide as 18mm
• Leica Summicron-C 18mm T2.0 - No vignette in 5K
• Cooke S4/i 21mm T2.0 - No vignette in 5K

Epic Dragon with Red Ti Canon Mount (EF):

• Zeiss CP.2 15mm T2.9 - No vignette in 6K
• Canon L Series I 16-35mm f2.8 - No vignette in 6K

Sony A7S (FF) with EF Adapter:

• Sigma 12mm Prime - No vignette in full frame
• Canon 24mm L-Series Prime - No vignette in full frame
